Plan 64563SC

Flexible New American Ranch House Plan: Main-Level Master and Walkout Lower Level

Name: Plan 64563SC: Flexible New American Ranch House Plan: Main-Level Master and Walkout Lower Level
Brand: Architectural Designs
SKU: 64563SC
Price: 1795.0 USD
Availability: InStock

Heated S.F.

2,769

Beds

2 - 4

Baths

4.5+

Stories

Cars

Floor Plan

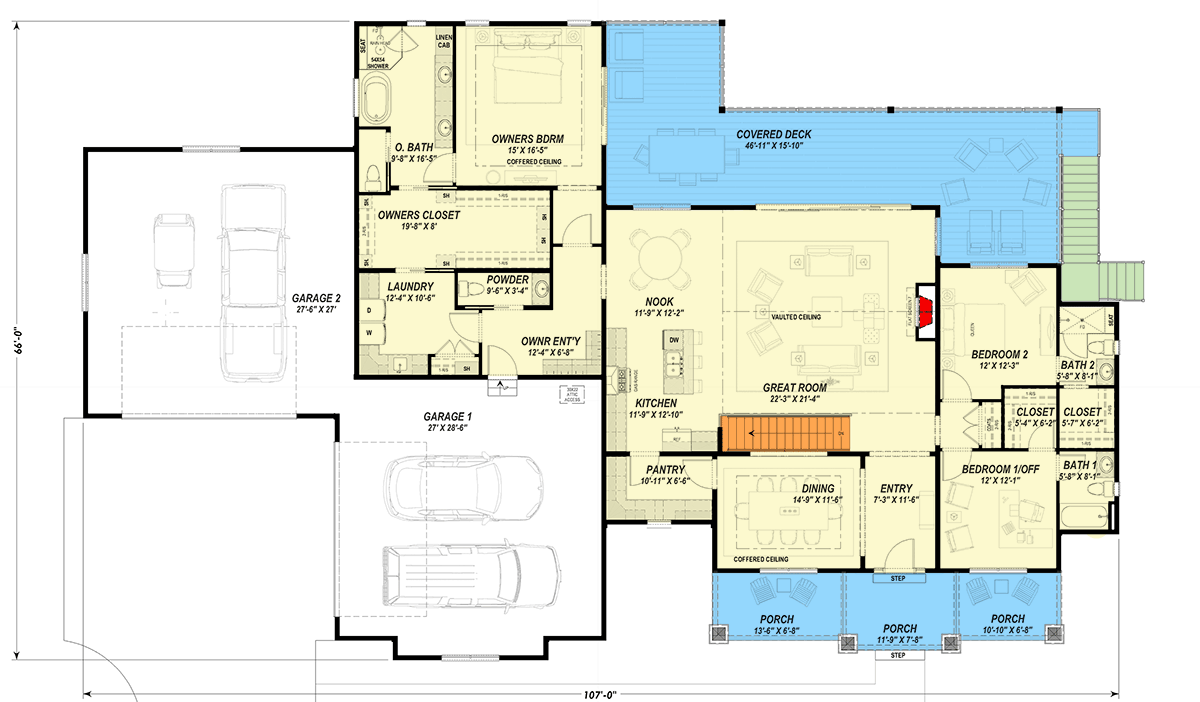

Main Level

2nd Floor

Plan Details

This expansive 2,769 sq. ft. New American Ranch house plan provides flexible living with 2, 3, or 4 bedrooms, 4 full baths, 2 half baths, and an impressive 1,557 sq. ft. 4-car garage.
Upon entry, discover an inviting open-concept layout designed for modern living, seamlessly connecting common areas while maintaining distinct zones. A dedicated home office or library/study is strategically placed for privacy and productivity.
The main level boasts a fluid connection between the gourmet kitchen, a charming breakfast nook for casual meals, and a formal dining area perfect for hosting sophisticated dinners. A convenient mudroom ensures a tidy transition from the expansive garage.
Experience ultimate comfort in the first-floor master suite, featuring direct laundry access for unparalleled convenience, and thoughtfully designed split bedrooms for privacy.
This plan truly excels in offering unparalleled entertainment and leisure options, including a sophisticated wet bar and a spacious game/rec room, ideal for gatherings and relaxation.
Embrace outdoor living with a welcoming wrap-around front porch, a generous deck, and a covered patio perfect for morning coffee or evening relaxation, complemented by a sprawling uncovered patio on the lower level, ideal for al fresco dining and entertaining.

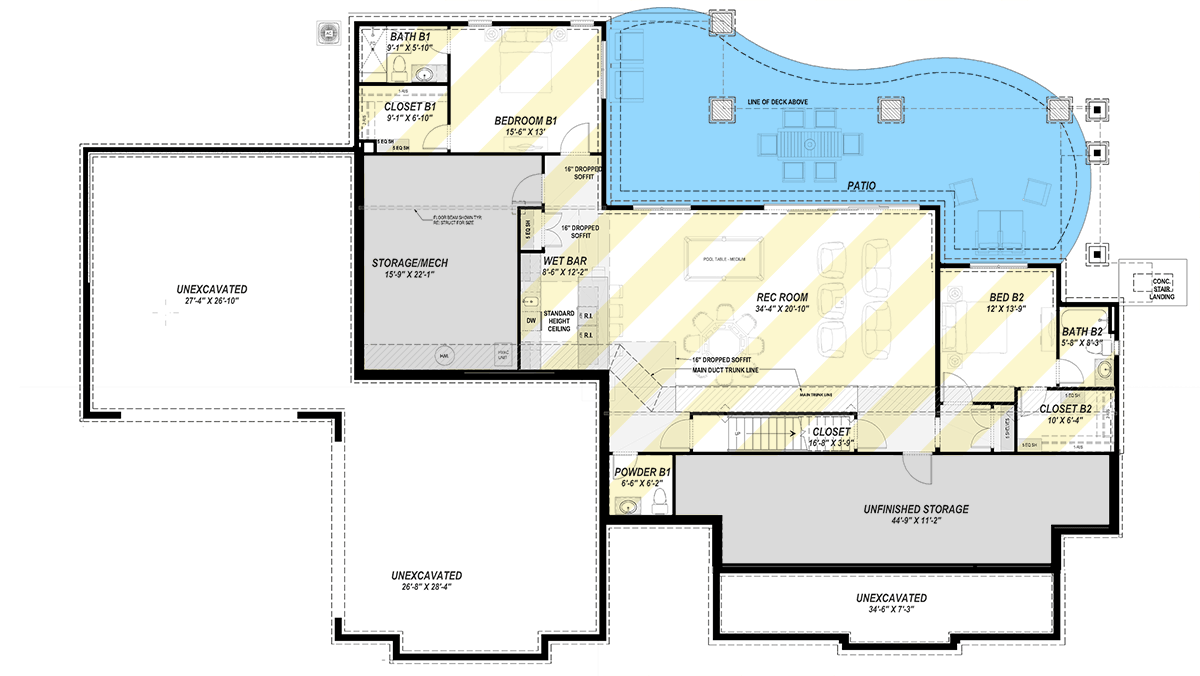

The optional 1,849 sq. ft. walkout lower level significantly expands living possibilities, featuring two additional bedrooms, two full baths, a powder room, a large rec room, and a wet bar, perfect for creating a vibrant entertainment hub or guest suite.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
