Flexible Year-Round Escape

Plan 21919DR

  • 2,920

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Stories

  • This 5-bedroom escape has two bedrooms above, two below and one on the main. It is great for a year-round home or a vacation retreat.
  • You'll enjoy the 2-story cathedral ceiling in the living room. In the dining room the ceiling is partially-raised to 10'.
  • The main floor has an open floor plan with expansive views out the back. A deck wraps around two sides to help take in the views.
  • The lower level features an open family room, two bedrooms and access to the terrace where you can enjoy the views some more.
  • Related Plan: For an alternate lower level with a full kitchen, see house plan 21920DR.

Each plan includes the following:

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Plan details



Flexible Year-Round Escape

  • 2,920

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $1,220
  • 8 Sets $1,250
  • Reproducible Set $1,300
  • PDF - single-use $1,300
  • CAD $1,950
  • View all purchase option online

About This Plan

  • This 5-bedroom escape has two bedrooms above, two below and one on the main. It is great for a year-round home or a vacation retreat.
  • You'll enjoy the 2-story cathedral ceiling in the living room. In the dining room the ceiling is partially-raised to 10'.
  • The main floor has an open floor plan with expansive views out the back. A deck wraps around two sides to help take in the views.
  • The lower level features an open family room, two bedrooms and access to the terrace where you can enjoy the views some more.
  • Related Plan: For an alternate lower level with a full kitchen, see house plan 21920DR.

Floor Plans

  • Basement

  • Main Level

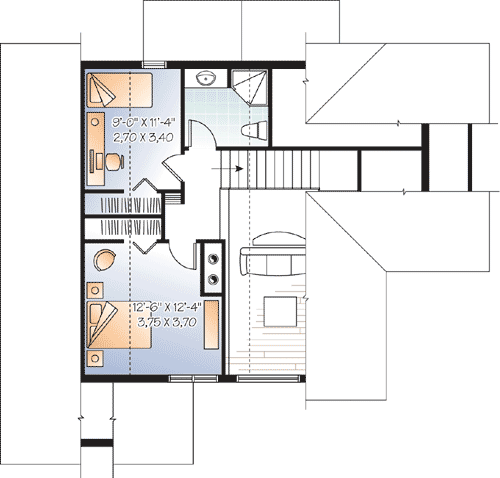

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,920 sq. ft.
  • Lower Level: 1,212 sq. ft.
  • 1st Floor: 1,212 sq. ft.
  • 2nd Floor: 496 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 40' 0"
  • Max ridge height: 32' 10"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
