Florida House Plan with Game Room and Loft

Plan 66381WE

  • 3,616

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Family and friends alike with enjoy the spacious second floor loft and game room in this upscale Florida house plan.
  • Almost every room in the house gets an impressive special ceiling treatment.
  • The home was designed with an open layout in the main living area with walls of sliding glass doors that open to the rear covered lanai.
  • When you need a quiet retreat, head to the large study off the foyer where you can close off any noise.
  • Or relax on a chaise lounge in the beautiful master suite that has easy access to the rear lanai.
  • Bedroom 2 is also on the main floor yet it is all the way across the house.
  • Each of the two bedrooms on the second floor has a private bathroom.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

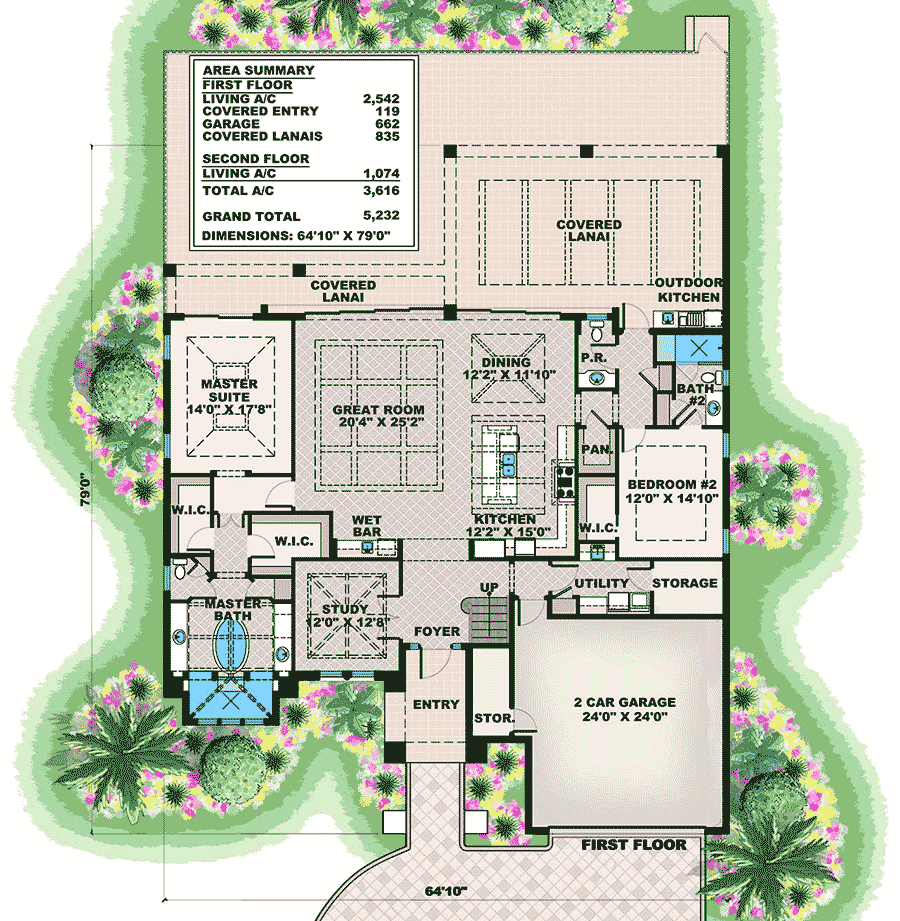

Florida House Plan with Game Room and Loft - 66381WE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

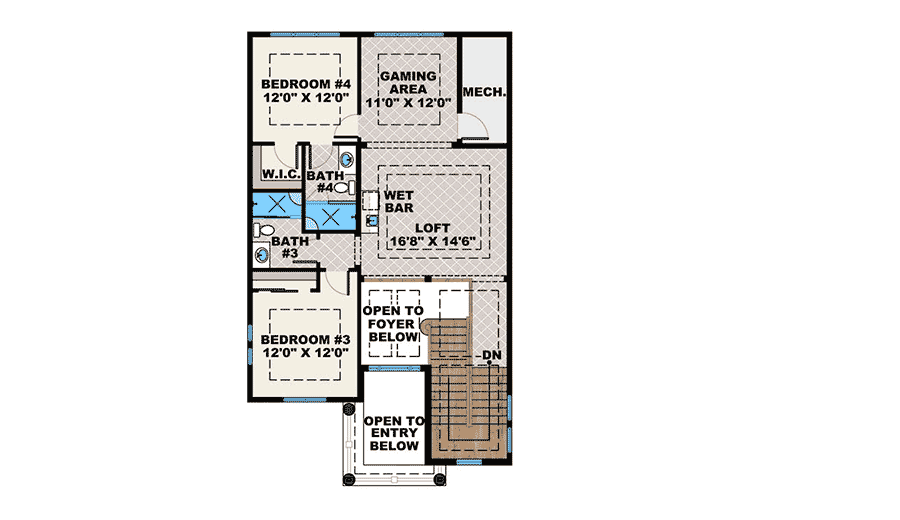

Florida House Plan with Game Room and Loft - 66381WE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,616 sq. ft.
  • 1st Floor: 2,542 sq. ft.
  • 2nd Floor: 1,074 sq. ft.
  • Porch, Front: 119 sq. ft.
  • Lanai: 835 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 10"
  • Depth: 79' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 662 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
Room Type Height
Entry Flat 25' 4"
Foyer Coffered 13' 4" - 24' 4"
Great Room Coffered 11' 0" - 12' 0"
Dining Room Coffered 11' 0" - 12' 0"
Kitchen Coffered 11' 0" - 12' 0"
Study Coffered 11' 0" - 12' 0"
Master Bedroom Vaulted
Bedroom 2 Coffered 10' 0" - 11' 0"
Bedroom 3 Coffered 10' 0" - 11' 0"
Loft Coffered 10' 0" - 12' 0"
Lanai Coffered 12' 0" - 13' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Florida House Plan with Game Room and Loft

  • 3,616

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $2,200
  • PDF - Single-Build $2,200
  • CAD - Single-Build $2,200
  • View all purchase option online

About This Plan

  • Family and friends alike with enjoy the spacious second floor loft and game room in this upscale Florida house plan.
  • Almost every room in the house gets an impressive special ceiling treatment.
  • The home was designed with an open layout in the main living area with walls of sliding glass doors that open to the rear covered lanai.
  • When you need a quiet retreat, head to the large study off the foyer where you can close off any noise.
  • Or relax on a chaise lounge in the beautiful master suite that has easy access to the rear lanai.
  • Bedroom 2 is also on the main floor yet it is all the way across the house.
  • Each of the two bedrooms on the second floor has a private bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,616 sq. ft.
  • 1st Floor: 2,542 sq. ft.
  • 2nd Floor: 1,074 sq. ft.
  • Porch, Front: 119 sq. ft.
  • Lanai: 835 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 10"
  • Depth: 79' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 662 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
