Plan 66035WE Florida House Plan with Side Patio

4,058 3 4 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Florida House Plan with Side Patio

Plan 66035WE

  • 4,058

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Double doors near the kitchen lead you out to a large side patio in this high-end Florida house plan, the perfect spot for breakfast outdoors..
  • The rear covered lanai is enormous and a front porte-cochere shelters your entry into the home.
  • Sightlines blow you away when you walk in the foyer with views that sweep back through the enormous great room into the covered lanai beyond.
  • Bonus space can be a formal dining room or whatever you wish.
  • The master suite sets the bar high with its bayed sitting area, tray ceiling and two huge walk-in closets.
  • In the master bathroom, the soaking tub takes center stage, backed by a giant two entry walk-in shower.
  • Each additional bedroom is positioned to give privacy to all.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

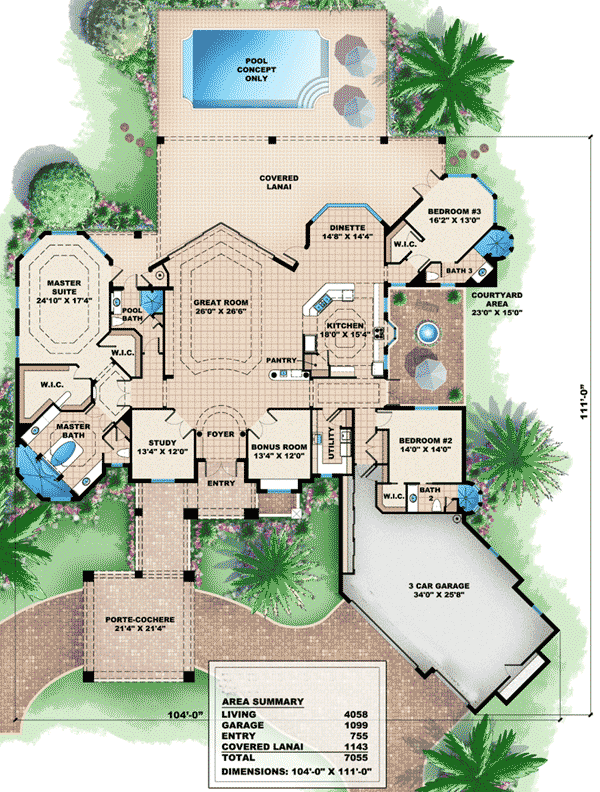

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Florida House Plan with Side Patio - 66035WE floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,058 sq. ft.
  • 1st Floor: 4,058 sq. ft.
  • Entry: 755 sq. ft.
  • Lanai: 1,143 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 104' 7"
  • Depth: 135' 8"
  • Max ridge height: 20' 4"

Garage

  • Type: Attached
  • Area: 1099 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Florida House Plan with Side Patio

  • 4,058

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,625
  • CAD - Single-Build $1,625
  • View all purchase option online

About This Plan

  • Double doors near the kitchen lead you out to a large side patio in this high-end Florida house plan, the perfect spot for breakfast outdoors..
  • The rear covered lanai is enormous and a front porte-cochere shelters your entry into the home.
  • Sightlines blow you away when you walk in the foyer with views that sweep back through the enormous great room into the covered lanai beyond.
  • Bonus space can be a formal dining room or whatever you wish.
  • The master suite sets the bar high with its bayed sitting area, tray ceiling and two huge walk-in closets.
  • In the master bathroom, the soaking tub takes center stage, backed by a giant two entry walk-in shower.
  • Each additional bedroom is positioned to give privacy to all.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,058 sq. ft.
  • 1st Floor: 4,058 sq. ft.
  • Entry: 755 sq. ft.
  • Lanai: 1,143 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 104' 7"
  • Depth: 135' 8"
  • Max ridge height: 20' 4"

Garage

  • Type: Attached
  • Area: 1099 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
