Florida Ranch Home with Large Outdoor Living Space

Plan 65759BS

  • 2,486

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Florida, ranch home offers a simple, yet charming, front elevation with a welcoming front porch beckoning you to enjoy a refreshing beverage.
  • The three-panel, sliding door in the great room brings the outdoors in, and the open kitchen boasts a massive island with casual seating. The attached dining area offers rearward views.
  • The multi-use, outdoor living space includes a grilling station and plenty of room for dining / lounge furniture.
  • The master suite rests behind the 2-car garage, with two closets bordering the hallway to the 4-fixture bath.
  • A hallway off the foyer leads to bedrooms 2 and 3, which are separated by the shared bath. French doors across the foyer give way to a quiet study, or home office.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

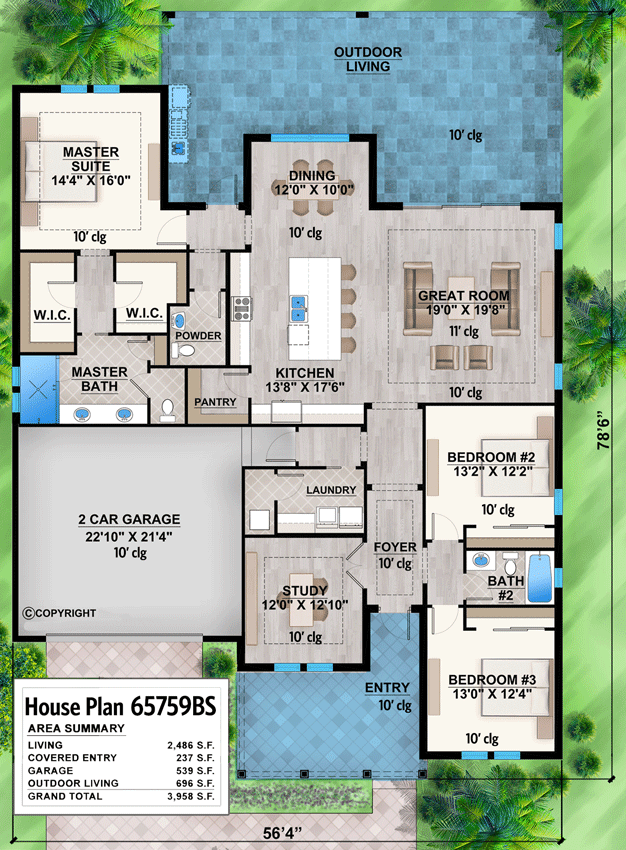

Florida Ranch Home with Large Outdoor Living Space - 65759BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,486 sq. ft.
  • 1st Floor: 2,486 sq. ft.
  • Porch, Combined: 696 sq. ft.
  • Porch, Front: 237 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 4"
  • Depth: 78' 6"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 539 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Florida Ranch Home with Large Outdoor Living Space

  • 2,486

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $2,486
  • PDF - Single-Build $2,486
  • View all purchase option online

About This Plan

  • This Florida, ranch home offers a simple, yet charming, front elevation with a welcoming front porch beckoning you to enjoy a refreshing beverage.
  • The three-panel, sliding door in the great room brings the outdoors in, and the open kitchen boasts a massive island with casual seating. The attached dining area offers rearward views.
  • The multi-use, outdoor living space includes a grilling station and plenty of room for dining / lounge furniture.
  • The master suite rests behind the 2-car garage, with two closets bordering the hallway to the 4-fixture bath.
  • A hallway off the foyer leads to bedrooms 2 and 3, which are separated by the shared bath. French doors across the foyer give way to a quiet study, or home office.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Floor Plans

  • Main Level
