Plan 6865AM

For a Sloping Lot

2,542 3 2.5 1 3
Pageloader

For a Sloping Lot

Plan 6865AM

  • 2,542

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Designed to fit on a lot that slopes up from the street, this contemporary house plan accommodates a three-bay drive-under garage.
  • Walking up to the front door, your guests pass through the double-door entry and then down to the public area. Here, both the great room and the nook open to a porch that wraps around two sides of the home. Tray ceilings frame both the great room and the dining room, and the great room sports a built-in media center.
  • Generously proportioned, the U-shaped kitchen includes a planning desk, a pantry closet and an angled island with cooktop and snack bar.
  • You walk up to the bedroom area, where the master suite is nicely secluded from the family bedrooms. The master bedroom with its tray ceiling opens to a well-equipped private bath. Another compartmented bath is accessed from both of the other bedrooms.
  • A den opens to a covered porch in back, making this the ideal area to get away from it all.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



For a Sloping Lot

  • 2,542

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $925
  • PDF - single-use $1,275
  • 5 Sets $1,425
  • 5 Sets PLUS $1,475
  • CAD - multi-use $2,550
  • View all purchase option online

About This Plan

  • Designed to fit on a lot that slopes up from the street, this contemporary house plan accommodates a three-bay drive-under garage.
  • Walking up to the front door, your guests pass through the double-door entry and then down to the public area. Here, both the great room and the nook open to a porch that wraps around two sides of the home. Tray ceilings frame both the great room and the dining room, and the great room sports a built-in media center.
  • Generously proportioned, the U-shaped kitchen includes a planning desk, a pantry closet and an angled island with cooktop and snack bar.
  • You walk up to the bedroom area, where the master suite is nicely secluded from the family bedrooms. The master bedroom with its tray ceiling opens to a well-equipped private bath. Another compartmented bath is accessed from both of the other bedrooms.
  • A den opens to a covered porch in back, making this the ideal area to get away from it all.

Floor Plans

  • Basement

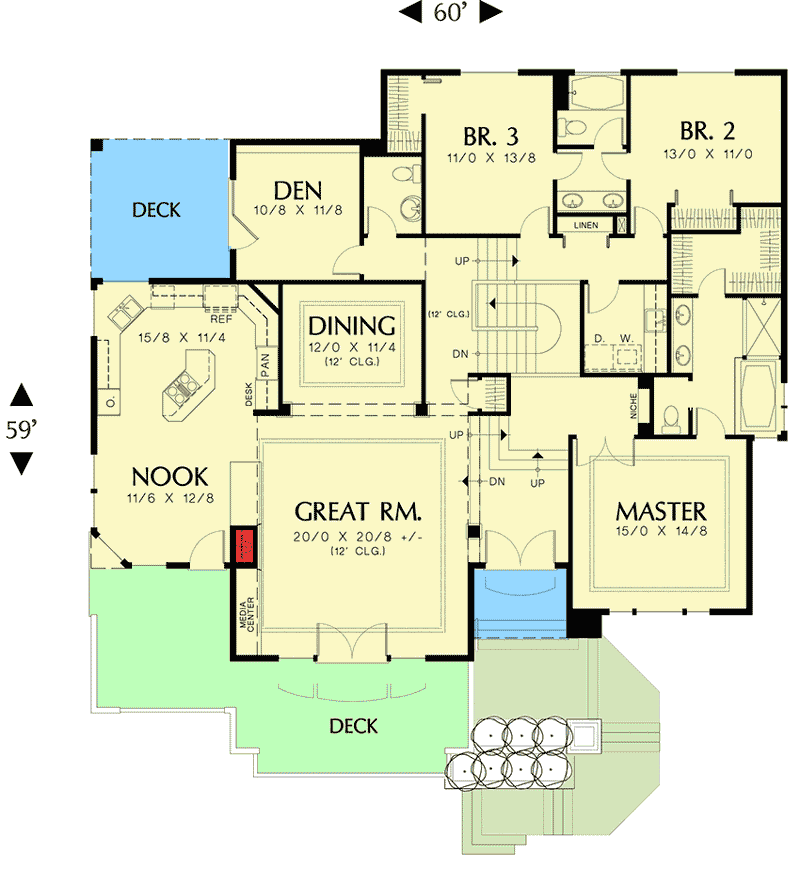

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,542 sq. ft.
  • Lower Level: 130 sq. ft.
  • 1st Floor: 2,412 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Slab-Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 59' 0"
  • Max ridge height: 32' 1"

Garage

  • Type: Drive Under
  • Area: 889 sq. ft.
  • Count: 3 Cars

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
