Four Bedroom Vacation Home Plan

Plan 21747DR

This plan plants 3 trees

2,146
Heated s.f.
4
Beds
3
Baths
1
Stories

You'll enjoy 9' ceilings throughout the main level of this lovely vacation home plan.
The lovely kitchen with central island/lunch counter also has plenty of space for storage. Other storage space is located in the hallway combined with integrated storage space in the living room with two trios of patio doors.
Four bedrooms, one of which is a master suite with triple patio doors and another a guest suite, gives you plenty of room for visitors.. Three full bathrooms are a plus.
The large attractive terrace extends the recreation space.
Related Plan: Gain a finished lower level with house plan 2161DR.

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

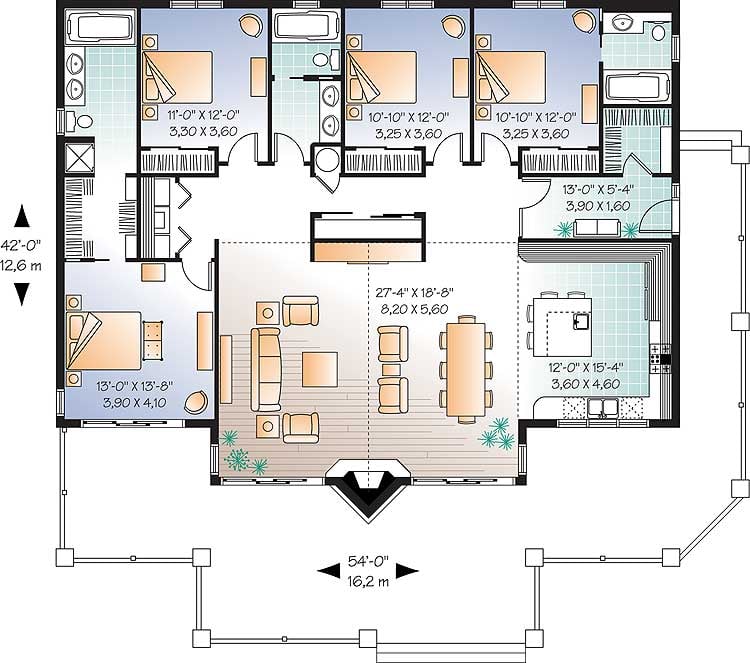

Four Bedroom Vacation Home Plan - 21747DR floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,146 sq. ft.
1st Floor: 2,146 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 54' 0"
Depth: 42' 0"
Max ridge height: 22' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features
