Plan 915016CHP

Four Bedrooms in a Narrow Lot Home Plan

Four Bedrooms in a Narrow Lot Home Plan

Plan 915016CHP

  • 2,885

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With a good-looking exterior and both a study and a game room, this four bedroom home may be just right for your family.
  • The long entry hall leads back to the L-shaped main living area where the big fireplace can be seen while cooking or eating.
  • The ceiling in the master bedroom rises to a lovely vault and the large private bathroom offers two sinks and a big soaking tub.
  • You'll love the convenience of a door from the master walk-in closet right into the laundry room.
  • Two family bedrooms at the front of the house share a connected bathroom while bedroom 4 has privacy all by itself up on the second floor.
  • A cozy study with built-in desk has 3 big windows to brighten the room and double doors can be closed off to make it a quiet environment.
  • There are even double doors to keep the noise down in the second floor game room.

This plan includes the following pages:

  • Front and rear elevations and roof plan
  • Detailed floor plans
  • Left and right elevations
  • Electrical schematics
  • Rafter plan, ceiling joist plans, cross section, interior elevations and cornice details
  • Foundation plans

Floor Plan

Plan details



Four Bedrooms in a Narrow Lot Home Plan

  • 2,885

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $800
  • 8 Sets $900
  • Reproducible Set $900
  • PDF - single-use $900
  • CAD $1,600
  • View all purchase option online

About This Plan

  • With a good-looking exterior and both a study and a game room, this four bedroom home may be just right for your family.
  • The long entry hall leads back to the L-shaped main living area where the big fireplace can be seen while cooking or eating.
  • The ceiling in the master bedroom rises to a lovely vault and the large private bathroom offers two sinks and a big soaking tub.
  • You'll love the convenience of a door from the master walk-in closet right into the laundry room.
  • Two family bedrooms at the front of the house share a connected bathroom while bedroom 4 has privacy all by itself up on the second floor.
  • A cozy study with built-in desk has 3 big windows to brighten the room and double doors can be closed off to make it a quiet environment.
  • There are even double doors to keep the noise down in the second floor game room.

Floor Plans

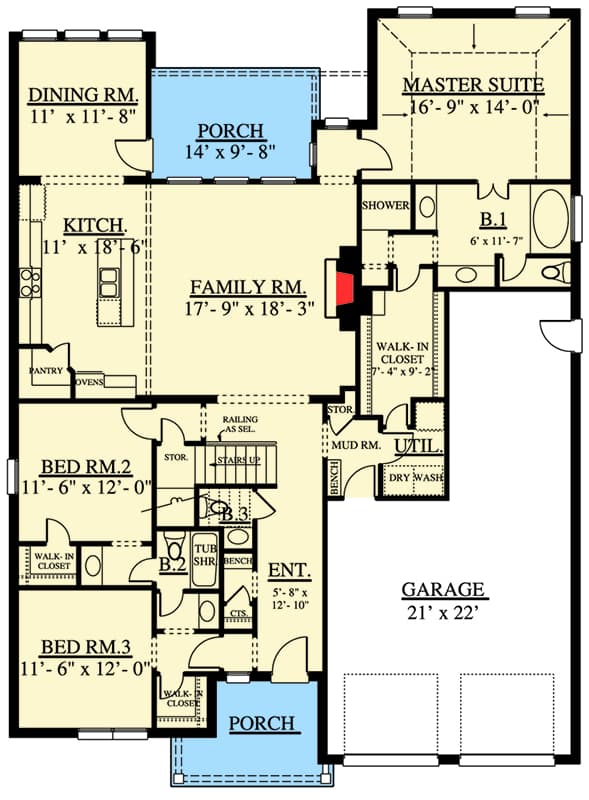

  • Main Level

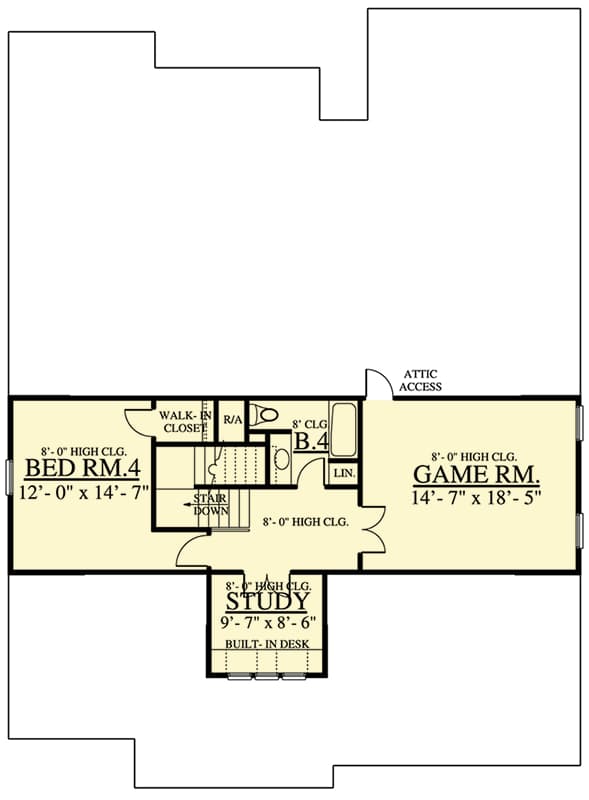

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,885 sq. ft.
  • 1st Floor: 2,113 sq. ft.
  • 2nd Floor: 772 sq. ft.
  • Porch, Combined: 238 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 2"
  • Depth: 67' 0"
  • Max ridge height: 24' 11"

Garage

  • Type: Attached
  • Area: 704 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
