Plan 42241WM
Four Bedrooms or Three
Heated S.F.
1,636
Beds
3-4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This house plan comes in both this 4 bedroom version and a 3 bedroom one (house plan 42240DB).
  • At 1,636 sq. ft., this house plan is cost-effective to build. It uses simplified construction while maintaining architectural integrity.
  • Note the lack of hallways. This was designed with a minimal amount of wasted space.
  • This open concept house plan gives you an open living room, dining room and kitchen arrangement. The result is a home that feels larger than it is.
  • A split bedroom layout maximizes privacy. Turn Bed 4 into a study if you like.
  • A simplified roofline still provides optimum architectural style and impact.
  • Related Plan: For a smaller 3 bedroom version, see house plan 42240DB.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Four Bedrooms or Three

  • 1,636

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

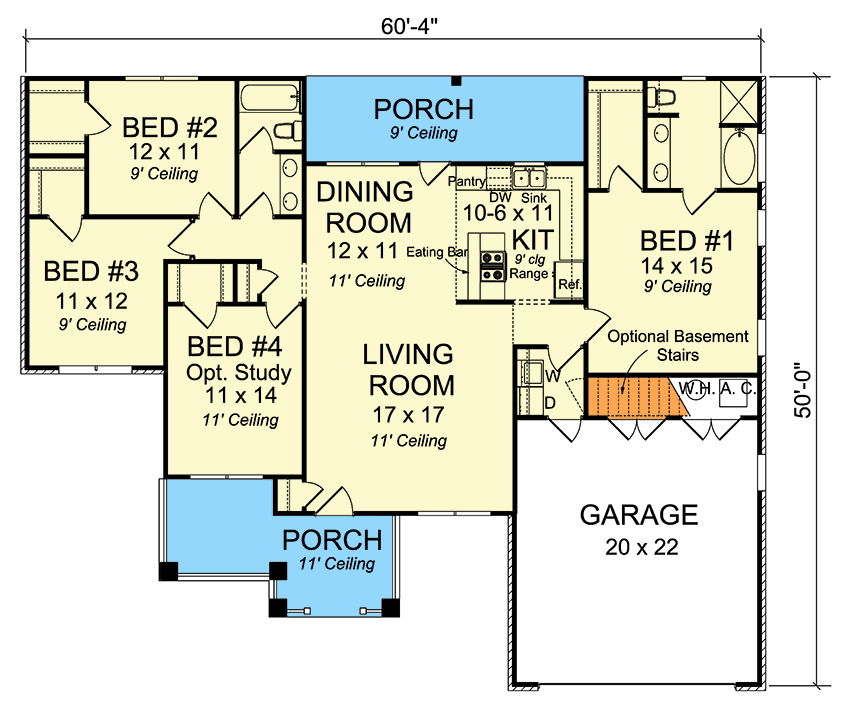

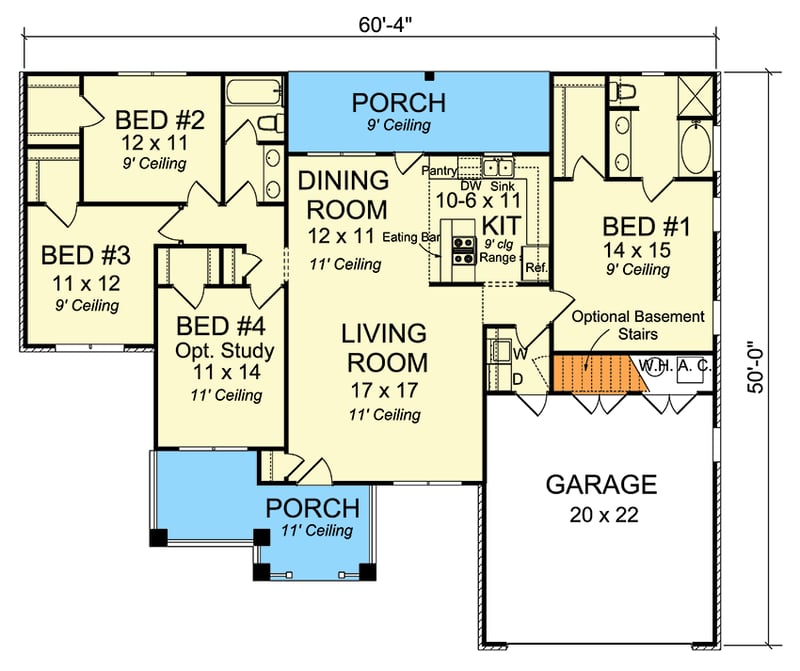

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,636 sq. ft.
  • 1st Floor: 1,636 sq. ft.

Dimensions

  • Width: 60' 4"
  • Depth: 50' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 198 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
