Plan 2170DR Four-Season Vacation Home

1,437 3 1.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Four-Season Vacation Home

Plan 2170DR

  • 1,437

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • Extensive decking on the main level of this four-season retreat provides an attractive outdoor venue.
  • The family room with a fireplace rises for two stories and can be viewed from the hallway above. The deck is accessed from both the family room and the dining room.
  • In the kitchen, a food-preparation island adds utility. Completing the main level are a half bath and a bedroom.
  • Upstairs, the master bedroom and the other bedroom on this floor share a bath. Note the private balcony off the master bedroom.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

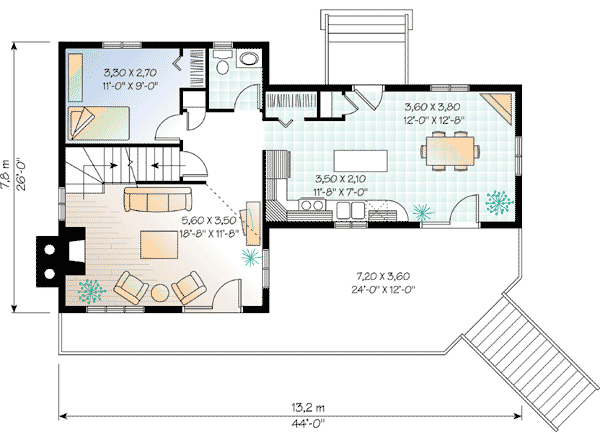

Four-Season Vacation Home - 2170DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

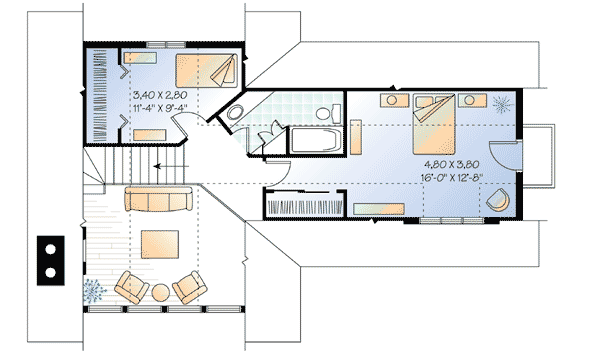

Four-Season Vacation Home - 2170DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,437 sq. ft.
  • 1st Floor: 856 sq. ft.
  • 2nd Floor: 581 sq. ft.
  • Balcony / Veranda: 18 sq. ft.
  • Deck: 344 sq. ft.
  • Basement Unfinished: 856 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 26' 0"
  • Max ridge height: 31' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Four-Season Vacation Home

  • 1,437

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,300
  • 3 Sets + PDF $1,425
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • Extensive decking on the main level of this four-season retreat provides an attractive outdoor venue.
  • The family room with a fireplace rises for two stories and can be viewed from the hallway above. The deck is accessed from both the family room and the dining room.
  • In the kitchen, a food-preparation island adds utility. Completing the main level are a half bath and a bedroom.
  • Upstairs, the master bedroom and the other bedroom on this floor share a bath. Note the private balcony off the master bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,437 sq. ft.
  • 1st Floor: 856 sq. ft.
  • 2nd Floor: 581 sq. ft.
  • Balcony / Veranda: 18 sq. ft.
  • Deck: 344 sq. ft.
  • Basement Unfinished: 856 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 26' 0"
  • Max ridge height: 31' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
Plan 2170DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/2170DR
|
Need Help? 800-854-7852
|
Plan 2170DR
