Plan 59529ND

Fourplex House Plan with 1258 Sq Ft Units with 3 Beds Each - Architectural Designs

Heated S.F.
5,032
Units
4
Width
Depth

Floor Plan

Plan 59529ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59529ND

M-F 9am-5pm EST |

1-203-761-8500

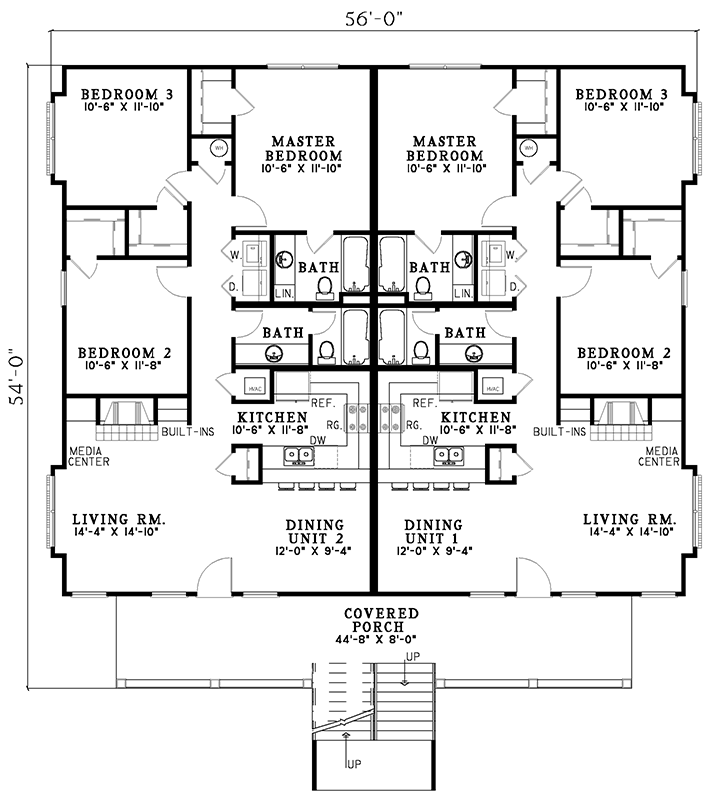

Main Level

Plan 59529ND: Fourplex House Plan with 1258 Sq Ft Units with 3 Beds Each - Architectural Designs - Floor Plan - Main Level - Traditional

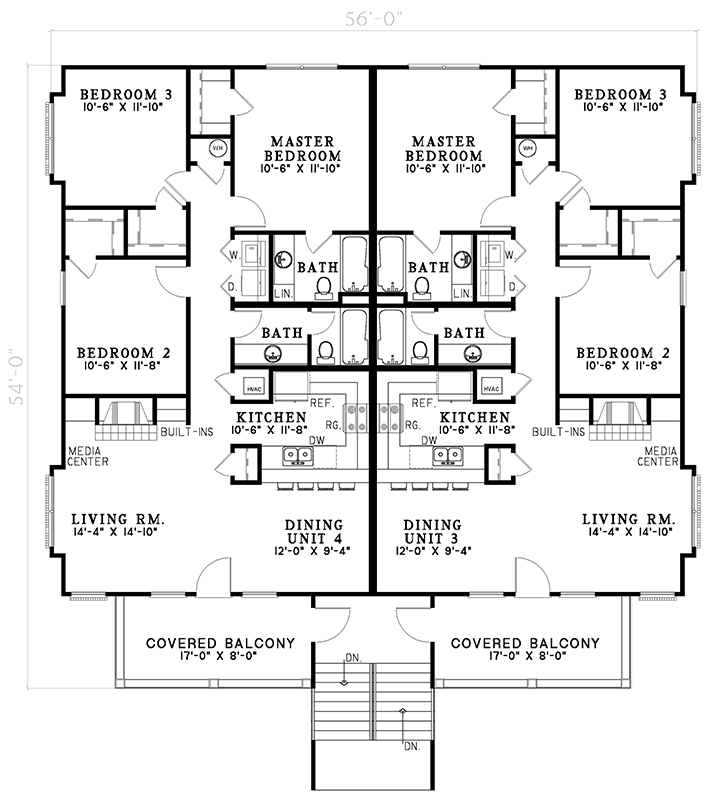

2nd Floor

Plan 59529ND: Fourplex House Plan with 1258 Sq Ft Units with 3 Beds Each - Architectural Designs - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This brick and siding fourplex house plan gives you 2 units on each floor. Each units gives you 3 beds and 2 baths and 1258 square feet of heated living space.
  • The step saver kitchen has a bar counter for additional seating while entertaining in the spacious dining area.
  • The living room has a cozy fireplace nestled between a built-in media center and bookshelves for a clutter free area.

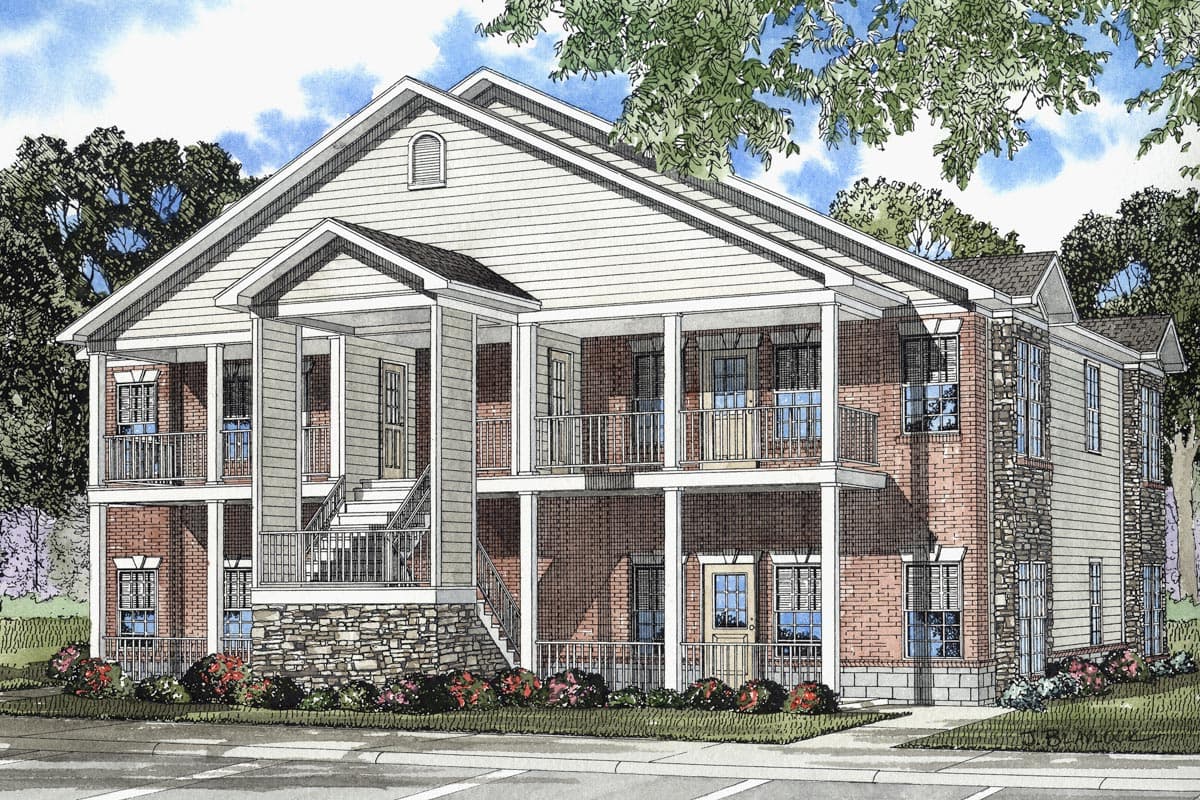

  • A covered porch lines the front of the structure with private balconies for each unit above.
Unit A
Heated Area
1,258Sq. Ft.
1258 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
28'width
54'depth
34'height
Unit B
Heated Area
1,258Sq. Ft.
1258 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
28'width
54'depth
34'height
Unit C
Heated Area
1,258Sq. Ft.
2516 Sq. Ft. 1st
2516 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
28'width
54'depth
34'height
Unit D
Heated Area
1,258Sq. Ft.
1258 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
28'width
54'depth
34'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

2,516 sq. ft.

2nd Floor

2,516 sq. ft.

Porch, Combined

2,856 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

54' 0"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Stacked Porches

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

2,516 sq. ft.

2nd Floor

2,516 sq. ft.

Porch, Combined

2,856 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

54' 0"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Stacked Porches
