French Country Estate House Plan - 6433 Sq Ft - Architectural Designs

Plan 93077EL

  • 6,433

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Magnificent curb appeal doesn't even begin to describe this French Country estate house plan. This luxury home plan gives you 5 beds, 5 full and 2 half baths and 6,433 square feet of heated living space to enjoy.

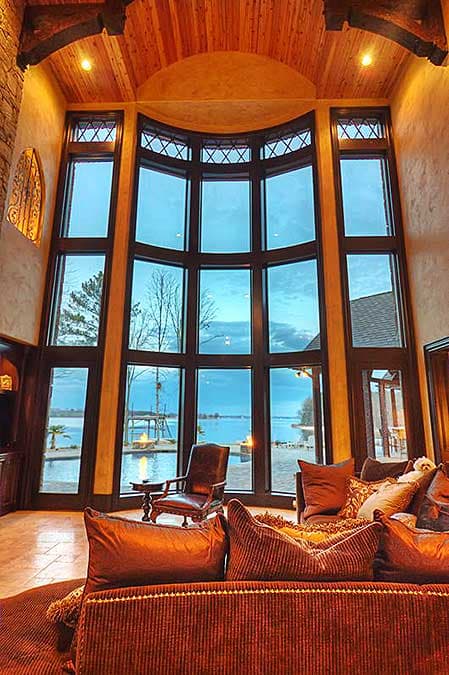

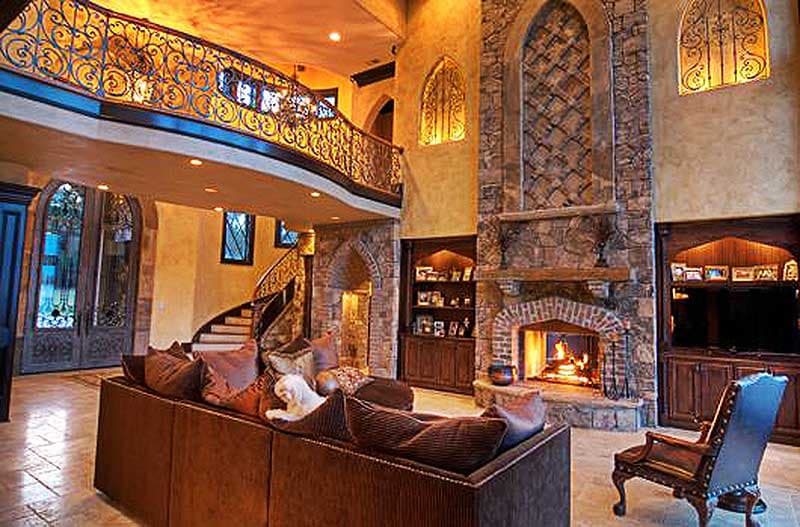

  • Grand detailing both inside and out includes a stunning barrel vaulted great room with its huge fireplace.
  • Four columns are all that separate the foyer from the great room so the sightlines are endless.

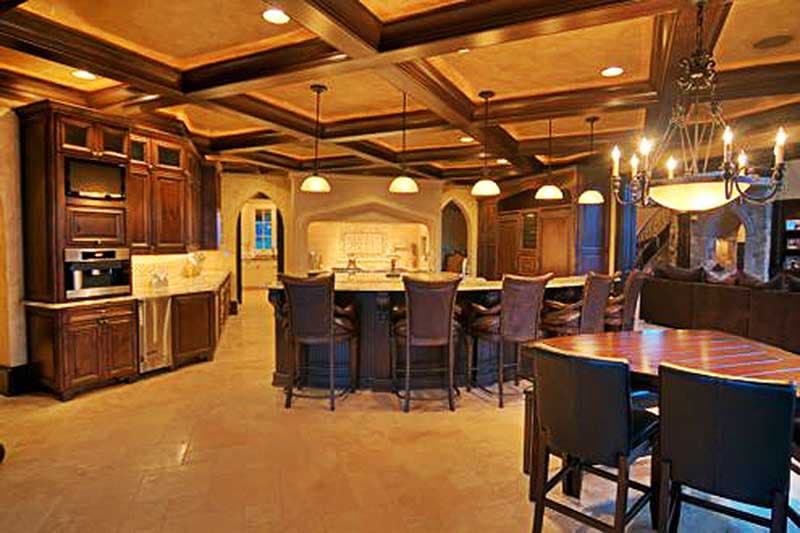

  • A gourmet kitchen includes two islands and a six burner range plus a walk-in pantry.
  • A wall of sliding glass doors in the vaulted and beamed game room opens to the spacious outdoor living area that has a huge fireplace, pool bathroom and a large outdoor kitchen.
  • There is a nanny suite that will add 489 heated square footage and lies over one of the two car garages and has its own separate entrance.

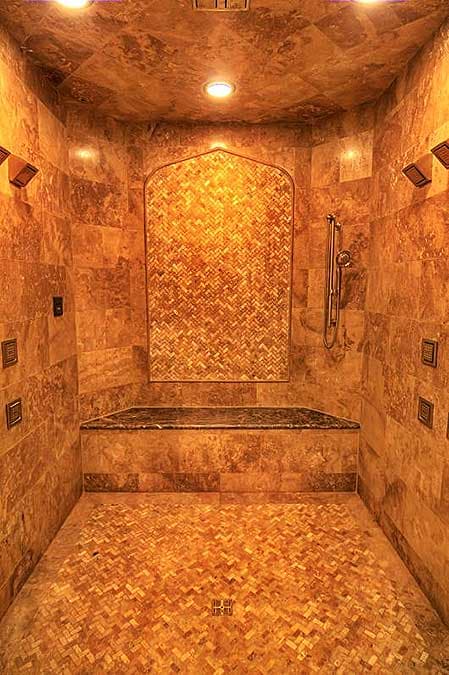

  • An over-sized master suite has beamed ceilings, a private exercise room and a grand master bathroom with a huge walk-in shower.
  • A key design feature is the open rail balcony hall on the second floor with stunning views of both the foyer and the great room.

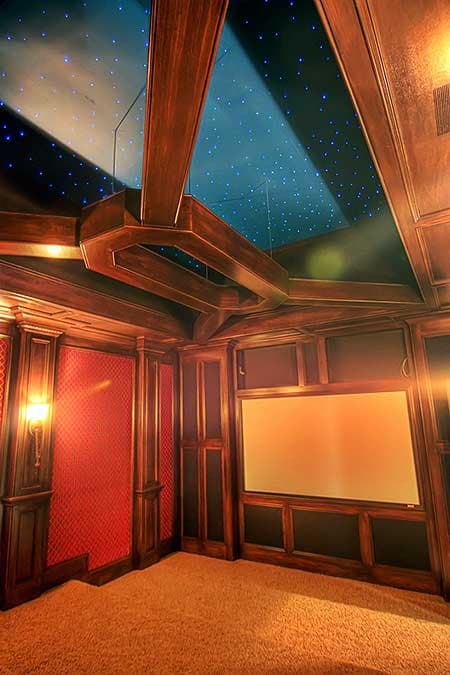

  • Three large bedroom suites share a home theater for all your movie nights.
  • Related Plans: Get a smaller version with house plans 93157EL (3,960 sq. ft.) and 93201EL (4,358 sq. ft.).

This house pan has 17 pages as follows:

  1. Cover sheet
  2. General notes
  3. Lower level floor plan
  4. First floor framing plan
  5. First floor plan
  6. Second floor framing plan
  7. Second floor plan
  8. Second floor ceiling plan
  9. Roof framing plan

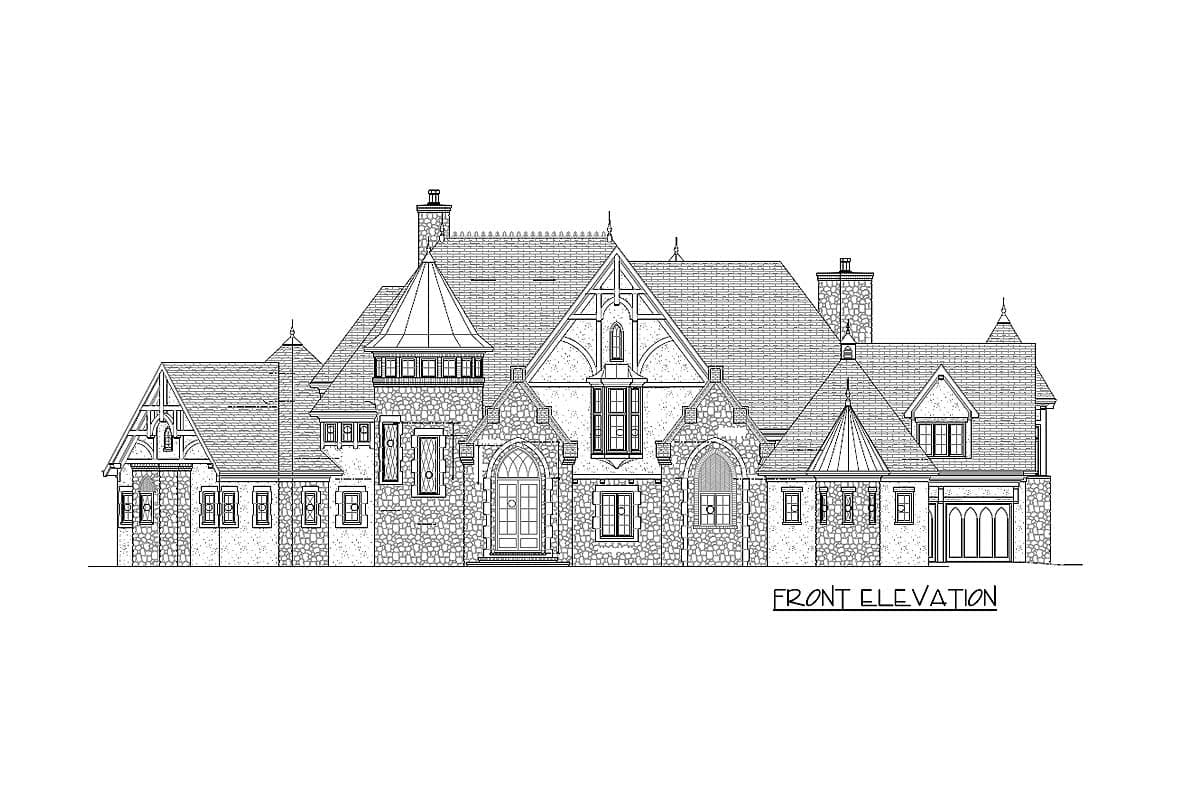

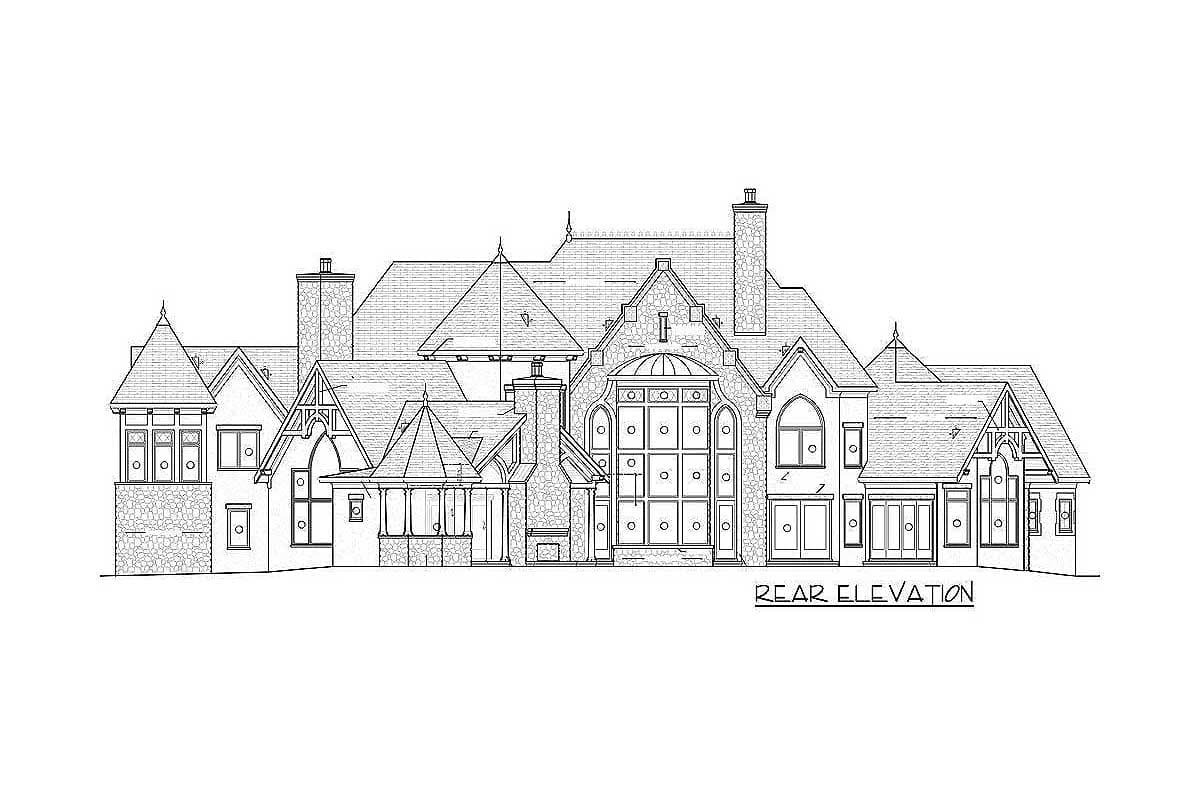

  10. Front and rear elevations

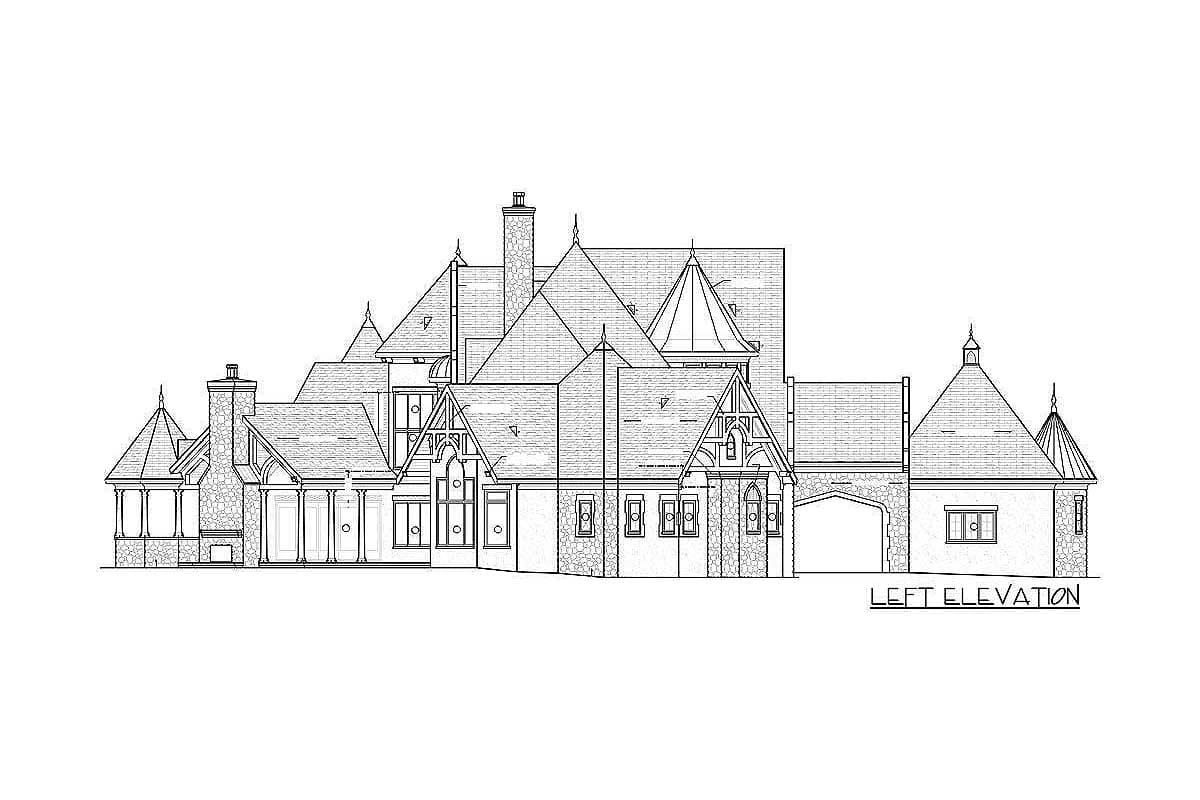

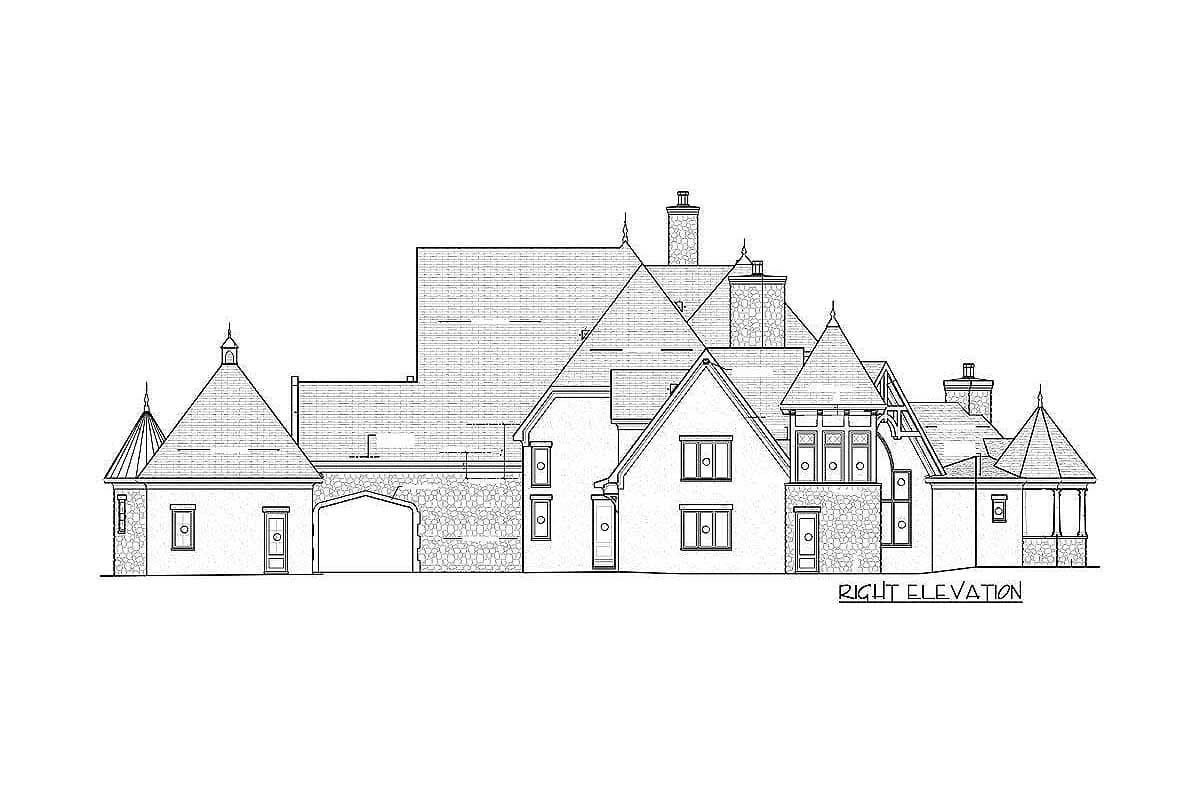

  11. Left and right elevations
  12. Sections
  13. Details
  14. Cornice plan
  15. Lower level electrical plan
  16. First floor electrical plan
  17. Second floor electrical plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

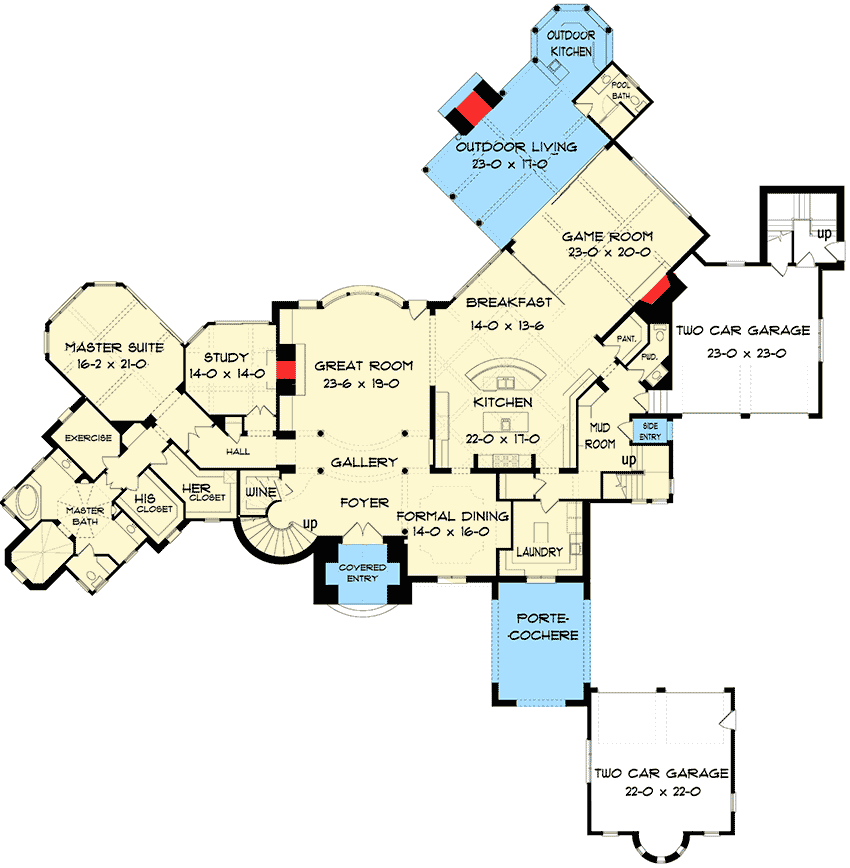

French Country Estate House Plan - 6433 Sq Ft - Architectural Designs - 93077EL floor plan - Main Level

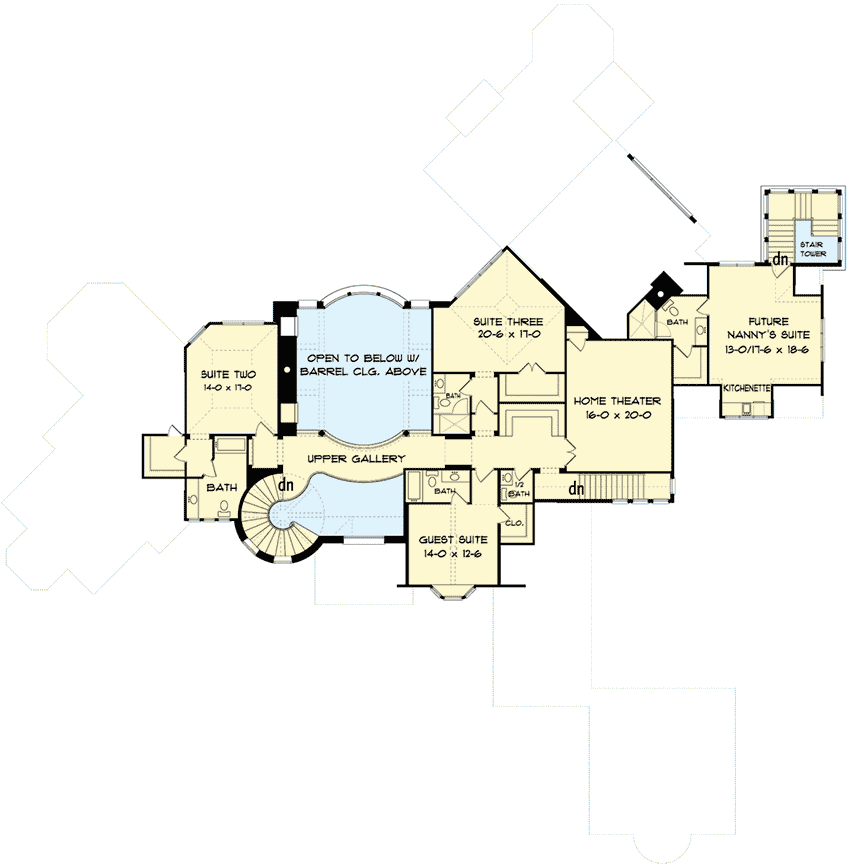

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
French Country Estate House Plan - 6433 Sq Ft - Architectural Designs - 93077EL floor plan - 2nd Floor

Unfinished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
French Country Estate House Plan - 6433 Sq Ft - Architectural Designs - 93077EL floor plan - Unfinished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,433 sq. ft.
  • 1st Floor: 4,412 sq. ft.
  • 2nd Floor: 2,021 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 131' 10"
  • Depth: 133' 10"
  • Max ridge height: 44' 0"

Garage

  • Type: Attached
  • Area: 1100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Rear, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

French Country Estate House Plan - 6433 Sq Ft - Architectural Designs

  • 6,433

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $4,181
  • CAD+PDF - Single-Build $4,824
  • PDF - Unlimited Build $5,031
  • CAD - Unlimited Build $5,674
  • View all purchase option online

About This Plan

  • Magnificent curb appeal doesn't even begin to describe this French Country estate house plan. This luxury home plan gives you 5 beds, 5 full and 2 half baths and 6,433 square feet of heated living space to enjoy.
  • Grand detailing both inside and out includes a stunning barrel vaulted great room with its huge fireplace.
  • Four columns are all that separate the foyer from the great room so the sightlines are endless.
  • A gourmet kitchen includes two islands and a six burner range plus a walk-in pantry.
  • A wall of sliding glass doors in the vaulted and beamed game room opens to the spacious outdoor living area that has a huge fireplace, pool bathroom and a large outdoor kitchen.
  • There is a nanny suite that will add 489 heated square footage and lies over one of the two car garages and has its own separate entrance.
  • An over-sized master suite has beamed ceilings, a private exercise room and a grand master bathroom with a huge walk-in shower.
  • A key design feature is the open rail balcony hall on the second floor with stunning views of both the foyer and the great room.
  • Three large bedroom suites share a home theater for all your movie nights.
  • Related Plans: Get a smaller version with house plans 93157EL (3,960 sq. ft.) and 93201EL (4,358 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Unfinished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,433 sq. ft.
  • 1st Floor: 4,412 sq. ft.
  • 2nd Floor: 2,021 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 131' 10"
  • Depth: 133' 10"
  • Max ridge height: 44' 0"

Garage

  • Type: Attached
  • Area: 1100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Rear, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
