Plan 80914PM

Fresh 2-Bed Modern Home Plan

Heated S.F.
1,022
Beds
2
Baths
1
Stories
1

Floor Plan

Plan 80914PM

Main Level
Main Level

Plan 80914PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

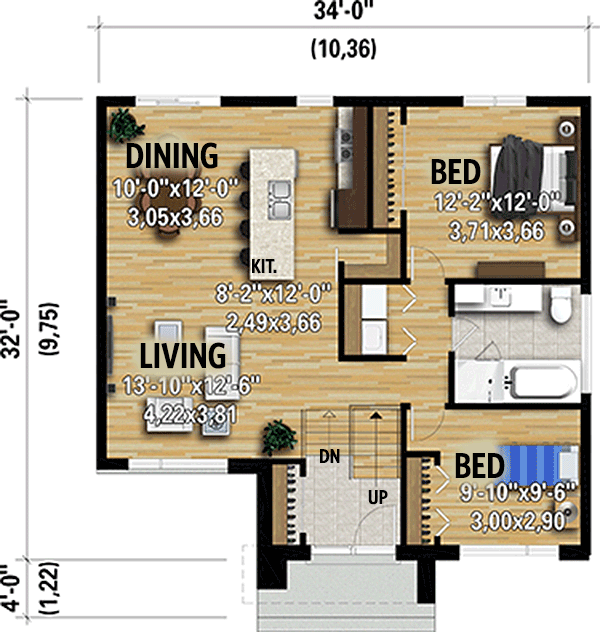

Plan 80914PM: Fresh 2-Bed Modern Home Plan - Floor Plan - Main Level - Contemporary, Modern, Northwest

Plan Details

  • Clean lines and complimentary exterior components set this modern, 2-bedroom house plan apart. This home, featuring earth tones in the wood siding, stone accents and brick exterior, offers a covered porch and french door, front entry.
  • The contemporary, open-concept floor plan allows for abundant natural light throughout the main living space.
  • An oversized island, in the kitchen, creates additional workspace and storage, and provides seating for four. The walk pantry is conveniently located in the heart of the kitchen.
  • Adjacent the kitchen, discover your dining room with sliding doors to the back of the house, extending your living outdoors.
  • Two bedrooms share a 4-fixture bathroom and the laundry room is nestled between the rooms for added convenience.


What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,022 sq. ft.

1st Floor

1,022 sq. ft.

Basement Unfinished

1,022 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

32' 0"

Max Ridge Height

21' 11"

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,022 sq. ft.

1st Floor

1,022 sq. ft.

Basement Unfinished

1,022 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

32' 0"

Max Ridge Height

21' 11"

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
