Fresh Acadian House Plan with Bonus Room above Garage
Heated S.F.
2,399
Beds
4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details

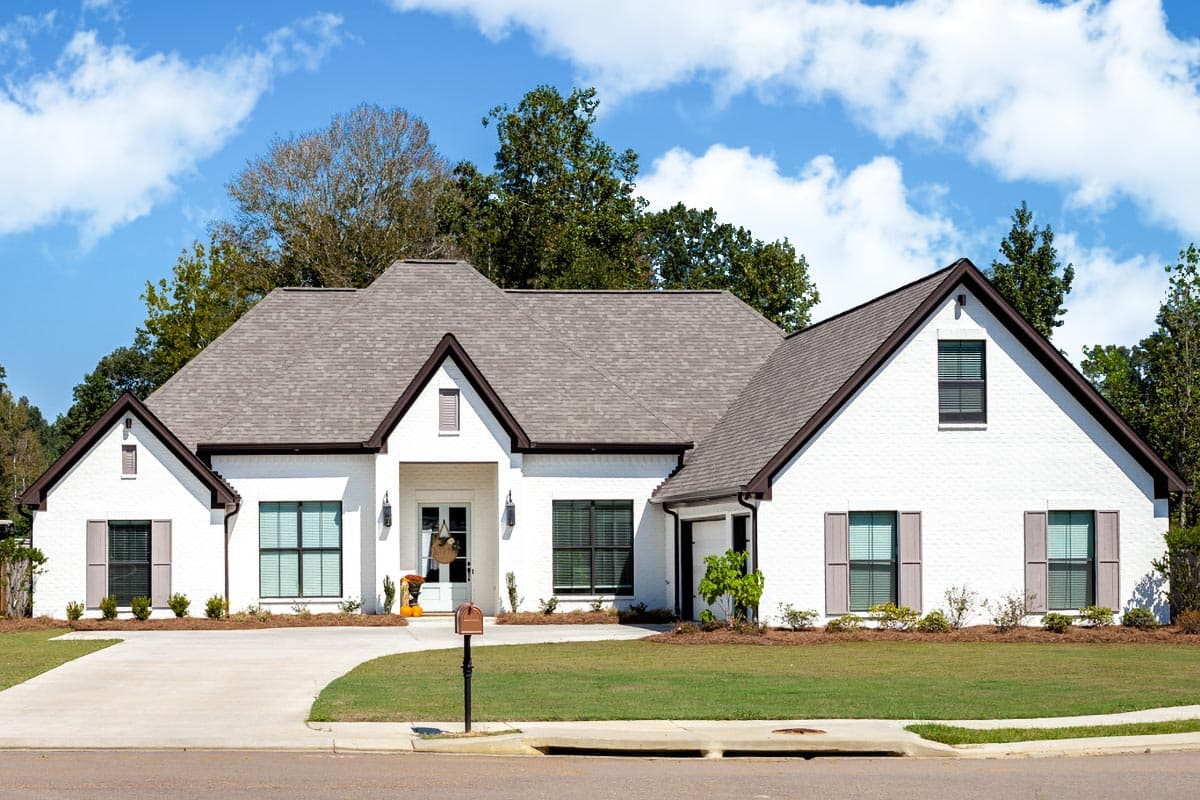

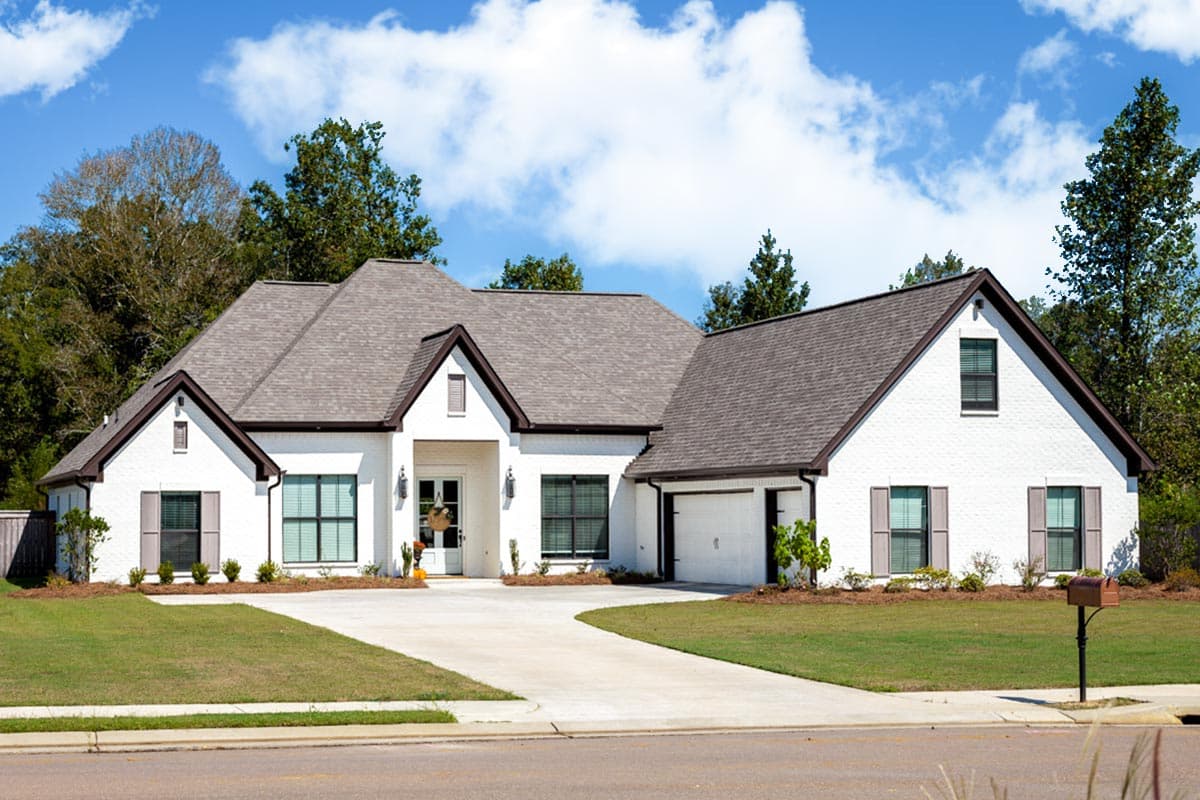

  • Forward-facing gables combine with a hip and valley roof to protect this Acadian house plan, while fresh, exterior features contribute to the great curb appeal.
  • Double doors welcome you inside, and a coat closet in the foyer offers to take your outdoor gear. A formal dining room sits to the right, while the center of everyday living is straight ahead.
  • A fireplace in the large family room serves as a focal point and can be enjoyed throughout the open floor plan. The open kitchen enjoys an elongated prep island to increase workspace, and a rear porch offers a space to grill, or dine outdoors.
  • The master bedroom is privately located on the right side of the home, and includes a 5-fixture bath and a pass-through closet that leads to the laundry room.
  • Three additional bedrooms can be found on the opposite side of the house, one of which includes a full bath.

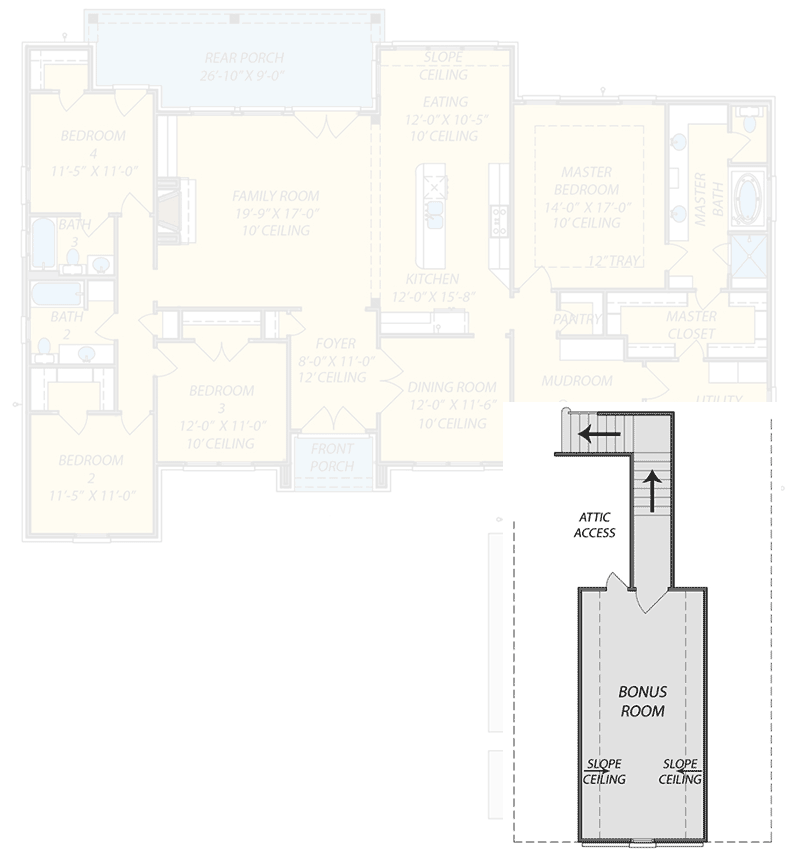

  • A storage room attached to the 3-car garage hides lawn equipment and supplies, while a bonus room above could serve as a playroom, home office, or additional storage space.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Fresh Acadian House Plan with Bonus Room above Garage

  • 2,399

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

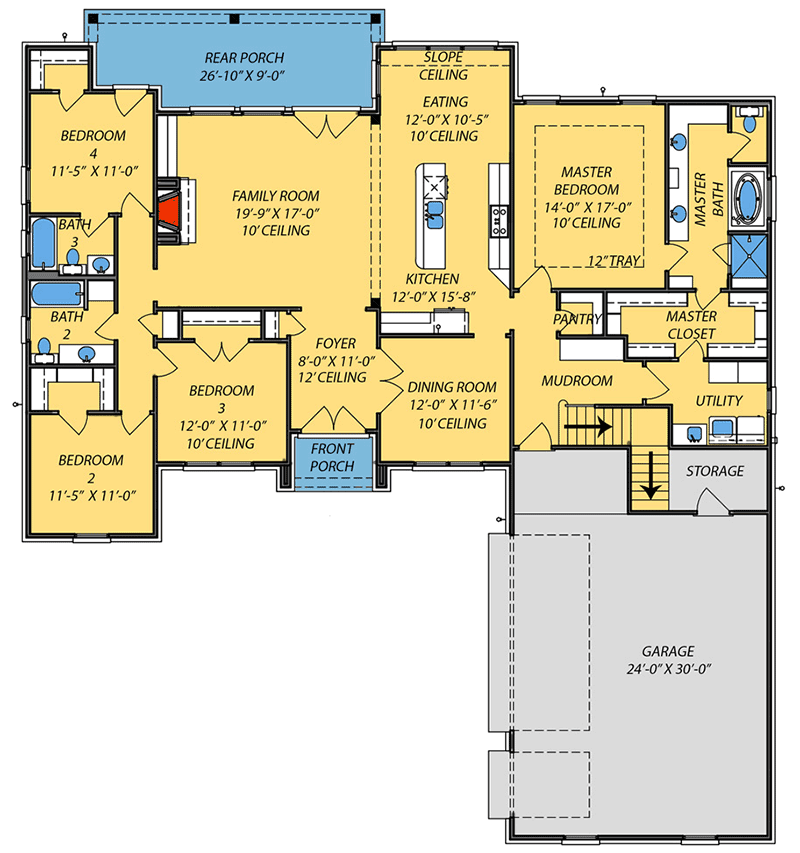

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,399 sq. ft.
  • 1st Floor: 2,399 sq. ft.

Dimensions

  • Width: 69' 5"
  • Depth: 76' 9"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 862 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
