Plan 490163NAH

Garage Plan with Upstairs Attached Apartment and Finished Bonus Room

Heated S.F.
1,403
Beds
1
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 490163NAH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 490163NAH

M-F 9am-5pm EST |

1-203-761-8500

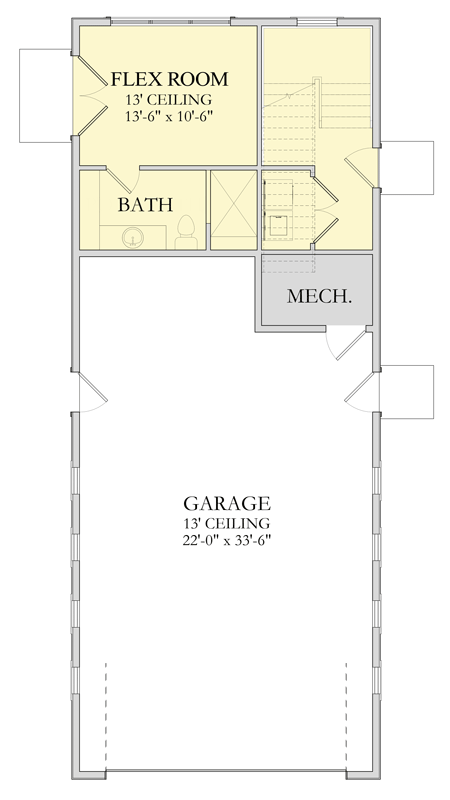

Main Level

Plan 490163NAH: Garage Plan with Upstairs Attached Apartment and Finished Bonus Room - Floor Plan - Main Level - Craftsman

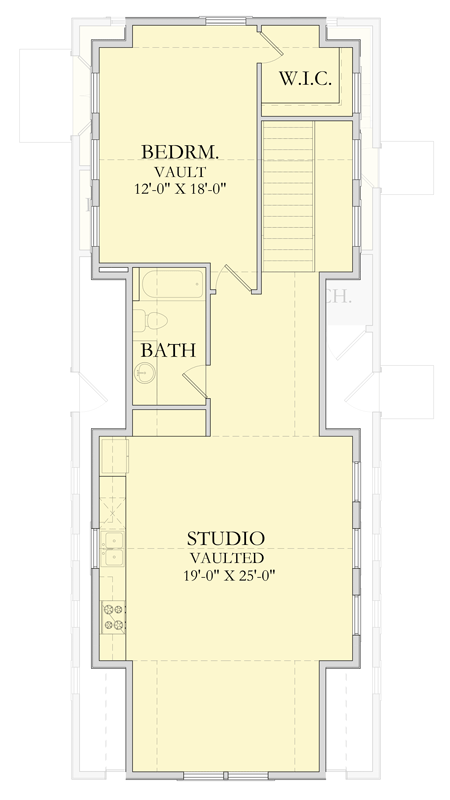

2nd Floor

Plan 490163NAH: Garage Plan with Upstairs Attached Apartment and Finished Bonus Room - Floor Plan - 2nd Floor - Craftsman

Plan Details

  • This 1,403 sq. ft. garage plan features 1 bedroom and 2 baths, complemented by a 938 sq. ft. front-entry for 2 cars.
  • Enter on the first floor to find a versatile finished bonus room perfect for a home office or guest space, adjacent to a convenient full bathroom.
  • The second floor reveals an open, vaulted studio area seamlessly connected to a functional kitchenette, ideal for cozy living or entertaining.
  • The master suite, privately located upstairs, offers a vaulted ceiling and walk-in closet, ensuring a serene retreat.
  • Expansive garage space on the lower level not only houses vehicles but also offers ample storage or workshop potential.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,403 sq. ft.

1st Floor

373 sq. ft.

2nd Floor

1,030 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

57' 0"

Max Ridge Height

29' 3"

Garage

Type

Detached

Area

938 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

13'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Craftsman

Special Features

Finished Bonus Room

Laundry - Main Level

Master Suite - Upstairs

Workshop

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

1,403 sq. ft.

1st Floor

373 sq. ft.

2nd Floor

1,030 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

57' 0"

Max Ridge Height

29' 3"

Garage

Type

Detached

Area

938 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

13'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Craftsman

Special Features

Finished Bonus Room

Laundry - Main Level

Master Suite - Upstairs

Workshop

Plan Collections

Attached Apartments
