Plan 69133AM Garage Under, Split Level Plan

2,146 3 3 2 2
Print
Compare
...

Garage Under, Split Level Plan

Plan 69133AM

  • 2,146

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Standing as tall and upright as a historic row house, this narrow design fits the bill for a small city in-fill lot that's located on a hillside.
  • With the garage tucked under the living levels, the home is just 40 feet wide and only 42 feet deep'ideal for a compact lot.

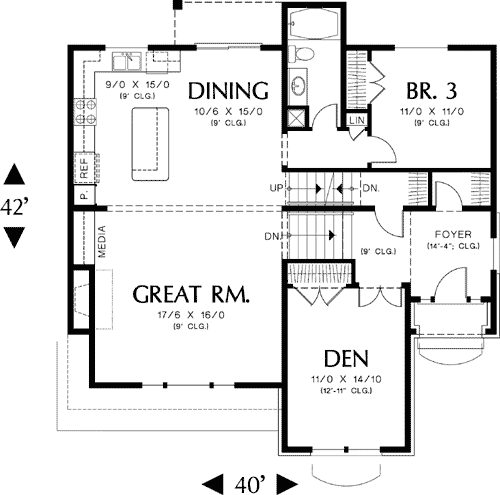

  • Rising up from the curbside, the front door opens to a roomy foyer with a coat closet. A landing beyond provides access to a den behind double doors, or to a staircase that leads into the main living spaces.
  • The kitchen, great room, and dining room form one open space.
  • An island defines the kitchen area and provides snack bar seating for family and guests.
  • Light and outdoor views fill the dining space through an adjacent set of patio doors.
  • The great-room includes a built-in media center and a triple window. A bedroom and a full bath also are on the same level.

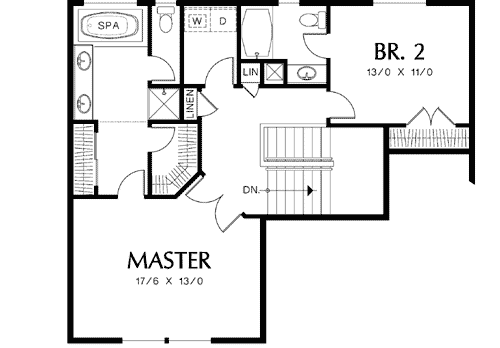

  • A U-shape staircase leads to a third level that houses two additional bedrooms and the laundry room.
  • Angled double doors open to the master suite, which provides two closets, a dual-sink vanity, and separate tub and shower.
  • The laundry room and two linen closets help stave off clutter.
  • Related Plan: For an alternate version, see house plan 69132AM.

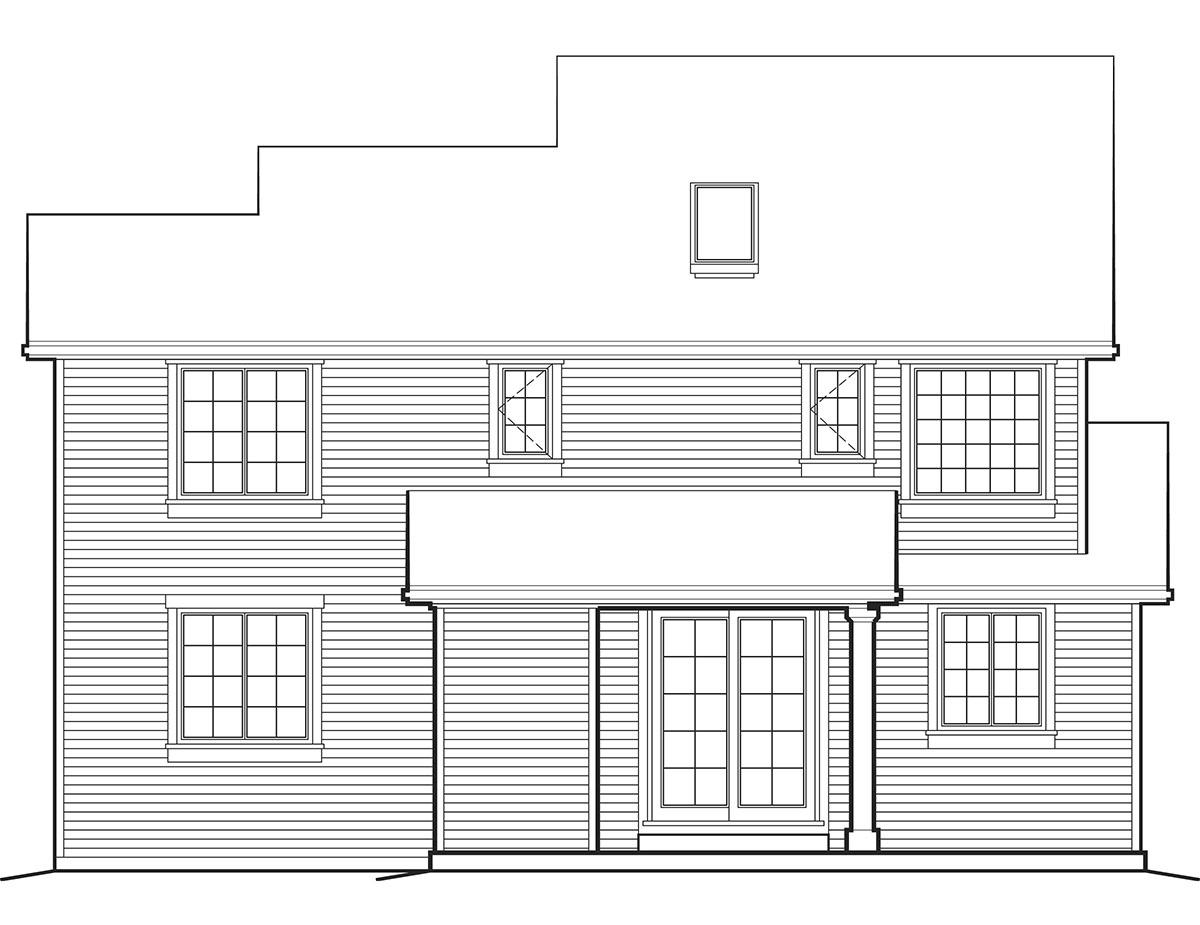

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,146 sq. ft.
  • 1st Floor: 1,302 sq. ft.
  • 2nd Floor: 844 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 627 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections



Garage Under, Split Level Plan

  • 2,146

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $1,057
  • PDF - Single-Build $1,407
  • 5 Sets $1,582
  • 5 Sets + PDF $1,632
  • CAD - Unlimited Build $2,814
  • View all purchase option online

About This Plan

  • Standing as tall and upright as a historic row house, this narrow design fits the bill for a small city in-fill lot that's located on a hillside.
  • With the garage tucked under the living levels, the home is just 40 feet wide and only 42 feet deep'ideal for a compact lot.
  • Rising up from the curbside, the front door opens to a roomy foyer with a coat closet. A landing beyond provides access to a den behind double doors, or to a staircase that leads into the main living spaces.
  • The kitchen, great room, and dining room form one open space.
  • An island defines the kitchen area and provides snack bar seating for family and guests.
  • Light and outdoor views fill the dining space through an adjacent set of patio doors.
  • The great-room includes a built-in media center and a triple window. A bedroom and a full bath also are on the same level.
  • A U-shape staircase leads to a third level that houses two additional bedrooms and the laundry room.
  • Angled double doors open to the master suite, which provides two closets, a dual-sink vanity, and separate tub and shower.
  • The laundry room and two linen closets help stave off clutter.
  • Related Plan: For an alternate version, see house plan 69132AM.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,146 sq. ft.
  • 1st Floor: 1,302 sq. ft.
  • 2nd Floor: 844 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 627 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss

Plan 69133AM
View this and more for this plan by visiting www.architechtecturaldesigns.com/69133AM
|
