Plan 666071RAF

Generous Northwest Craftsman House Plan with Multi-generational Apartment

Heated S.F.
5,765
Beds
6 - 7
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 666071RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666071RAF

M-F 9am-5pm EST |

1-203-761-8500

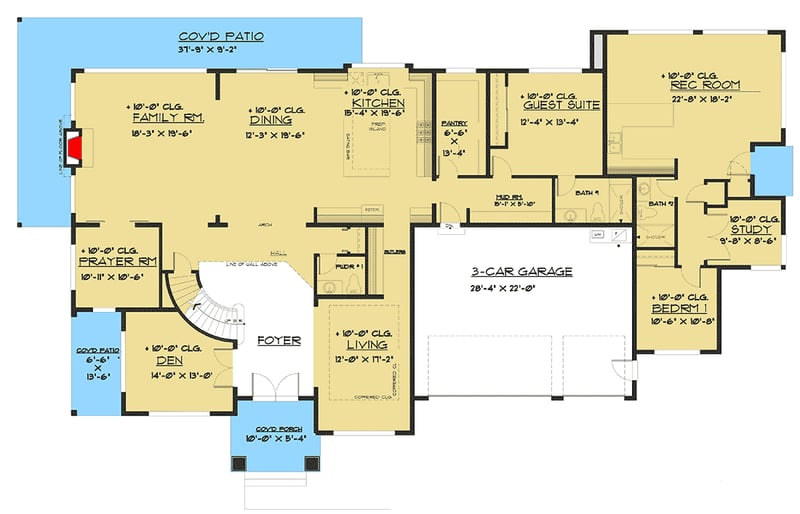

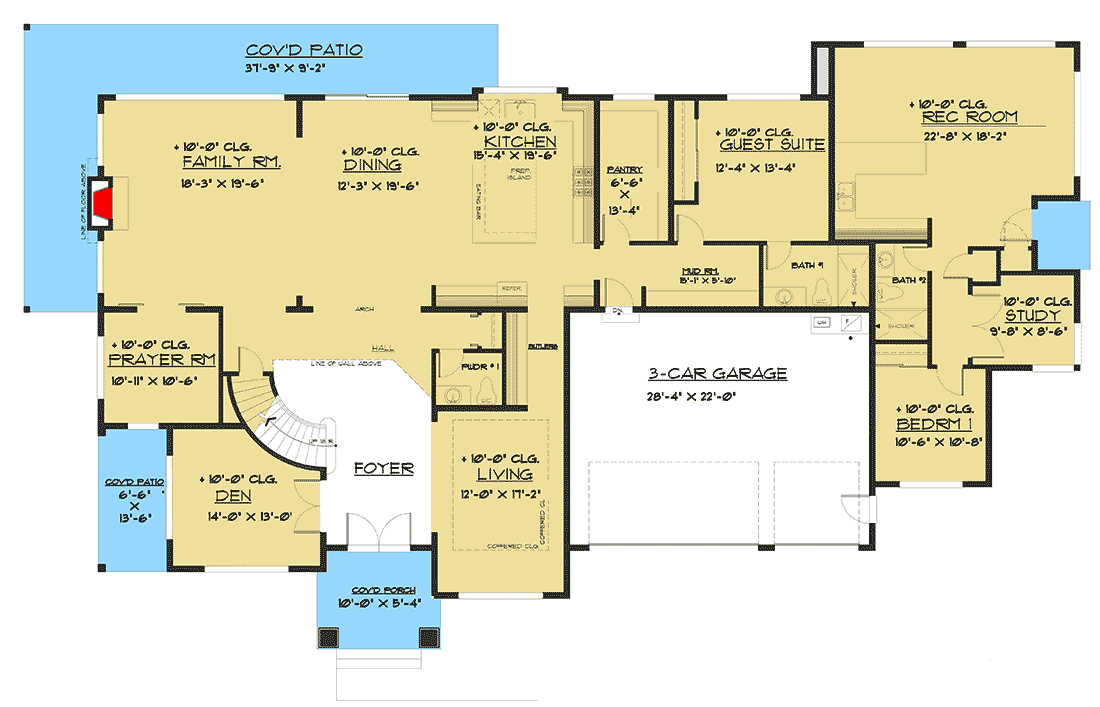

Main Level

Plan 666071RAF: Generous Northwest Craftsman House Plan with Multi-generational Apartment - Floor Plan - Main Level - Craftsman, Northwest

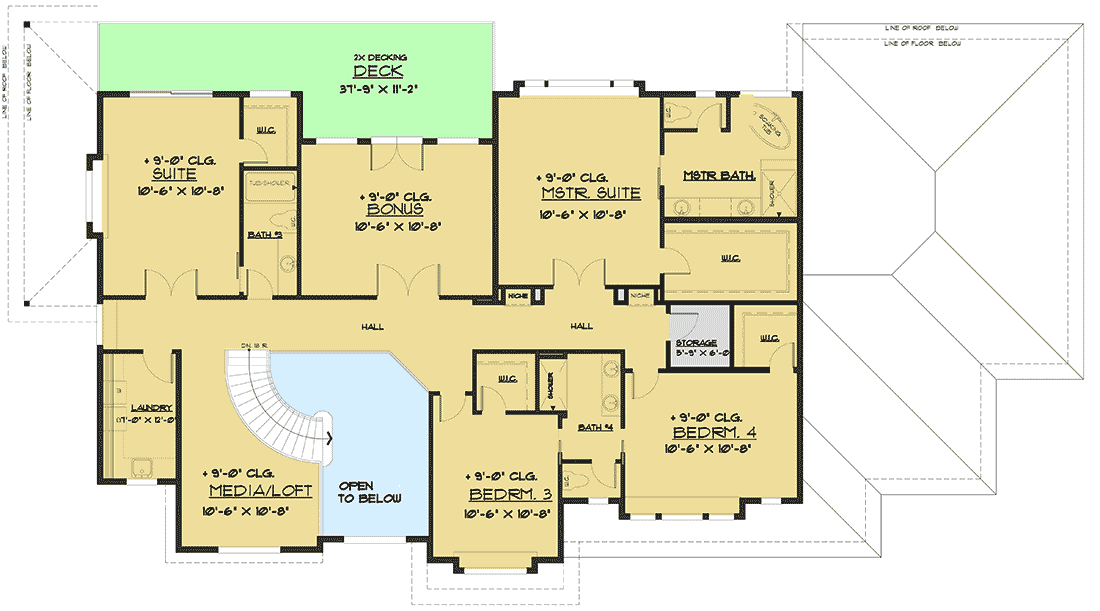

2nd Floor

Plan 666071RAF: Generous Northwest Craftsman House Plan with Multi-generational Apartment - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

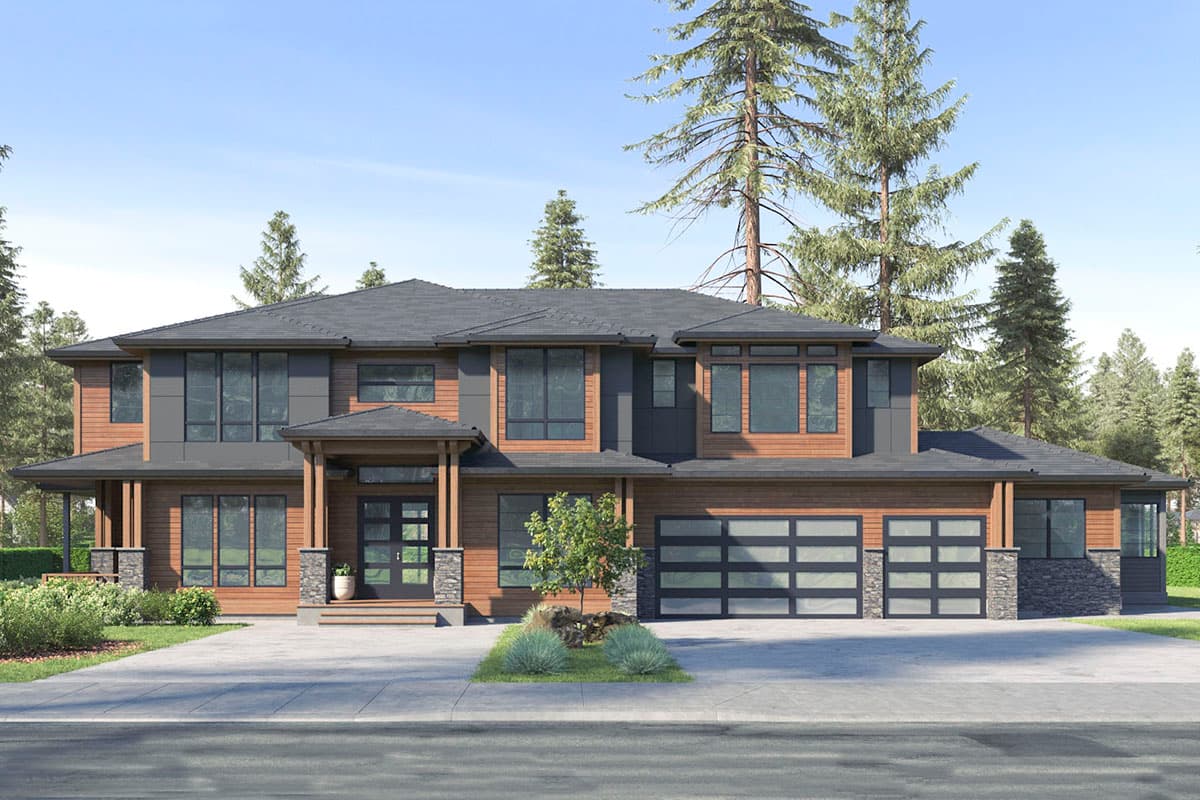

  • A low-pitched, hip and valley roof rests above horizontal siding and large cement panels, providing a modern twist to this Northwest craftsman house plan. The multi-generational layout offers an apartment to the right of the 3-car garage with a private entrance, bedroom, study, and full bath.
  • The custom curved stairway and high ceilings provide a feeling of grandeur once inside, while a quiet den and living room can be found on either side of the foyer.

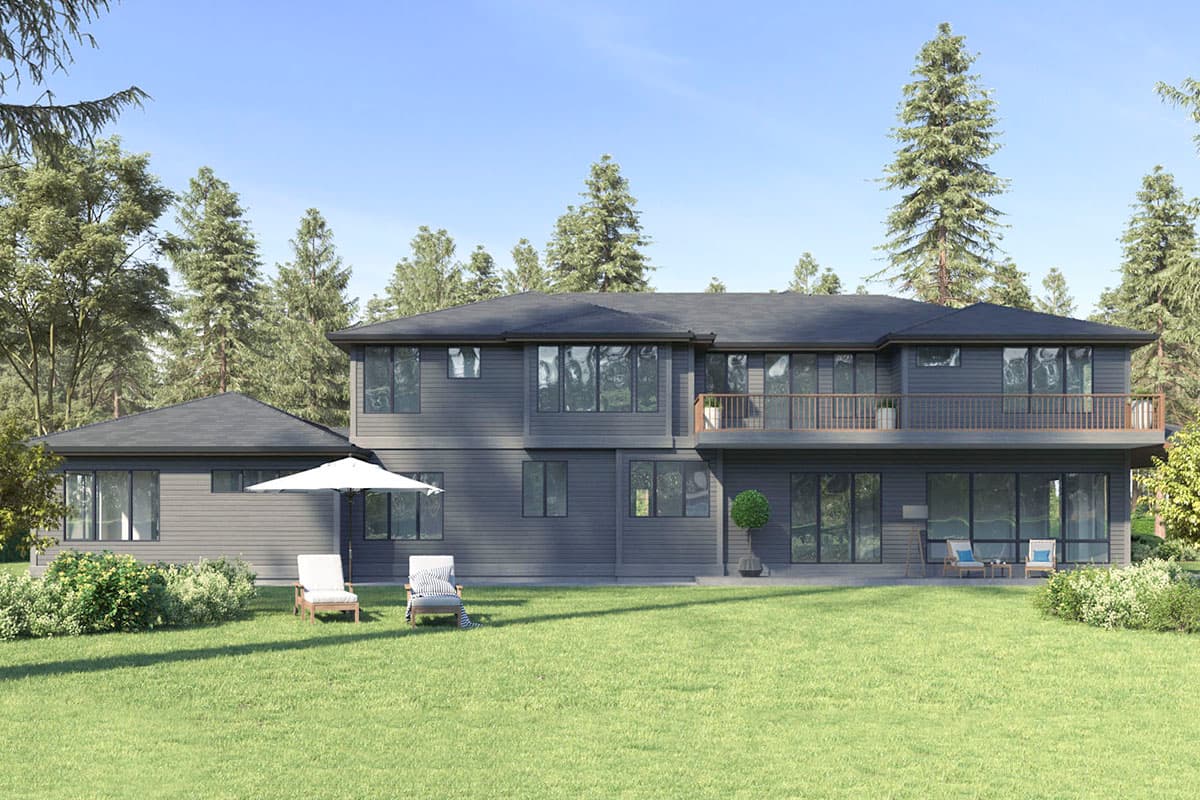

  • Unobstructed views are provided between the family room, dining area, and kitchen, creating an ideal space for gatherings, and a wrap-around covered patio invites you to enjoy the outdoors.
  • The master suite is located on the second level, and features a lavish bathroom with a soaking tub and spacious walk-in closet. Three additional bedroom suites reside down the hall; two share a Jack-and-Jill bath.
  • A sizable bonus room upstairs grants access to a rear-facing deck, and a media / loft provides an open space for electronics.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

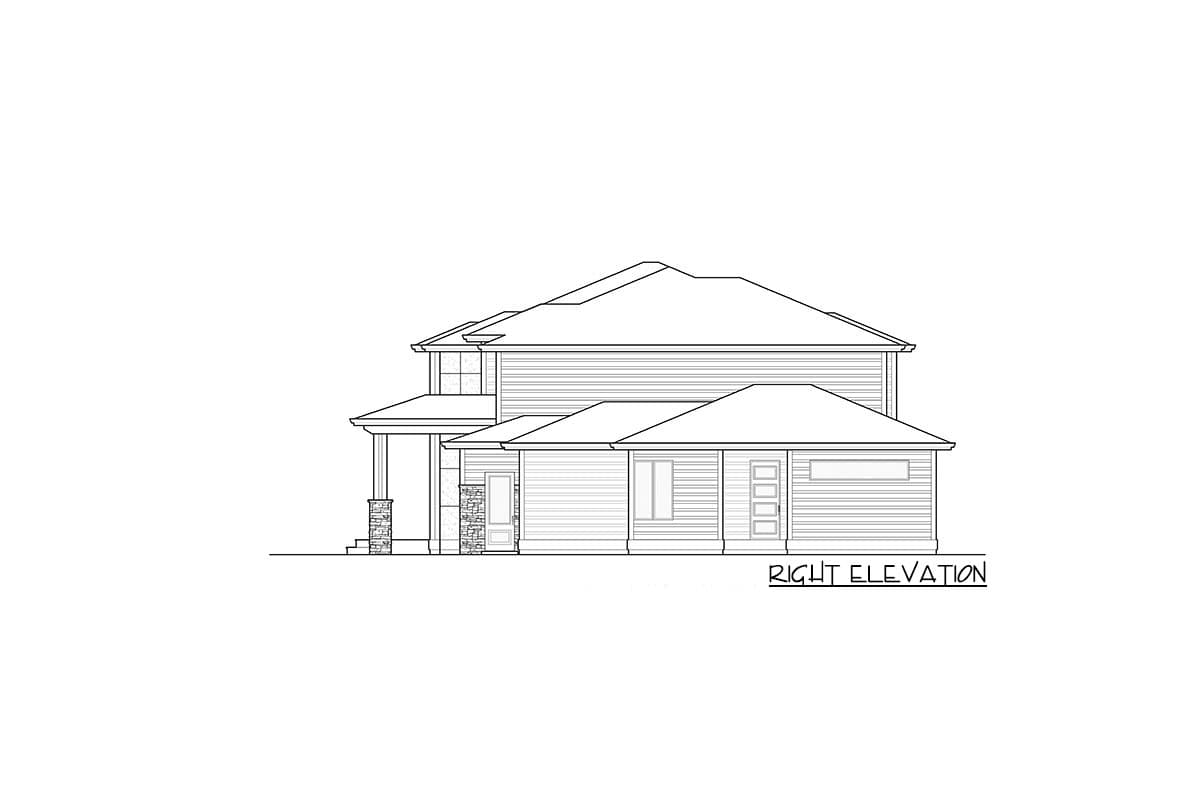

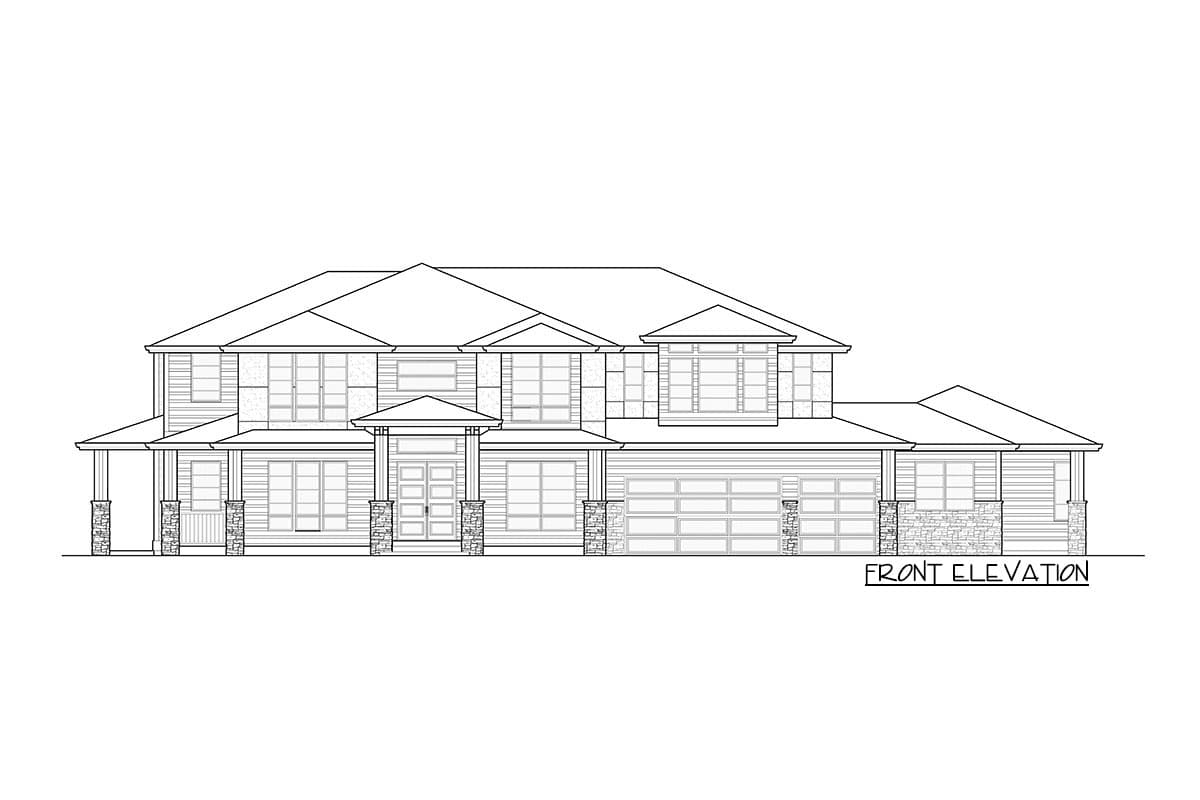

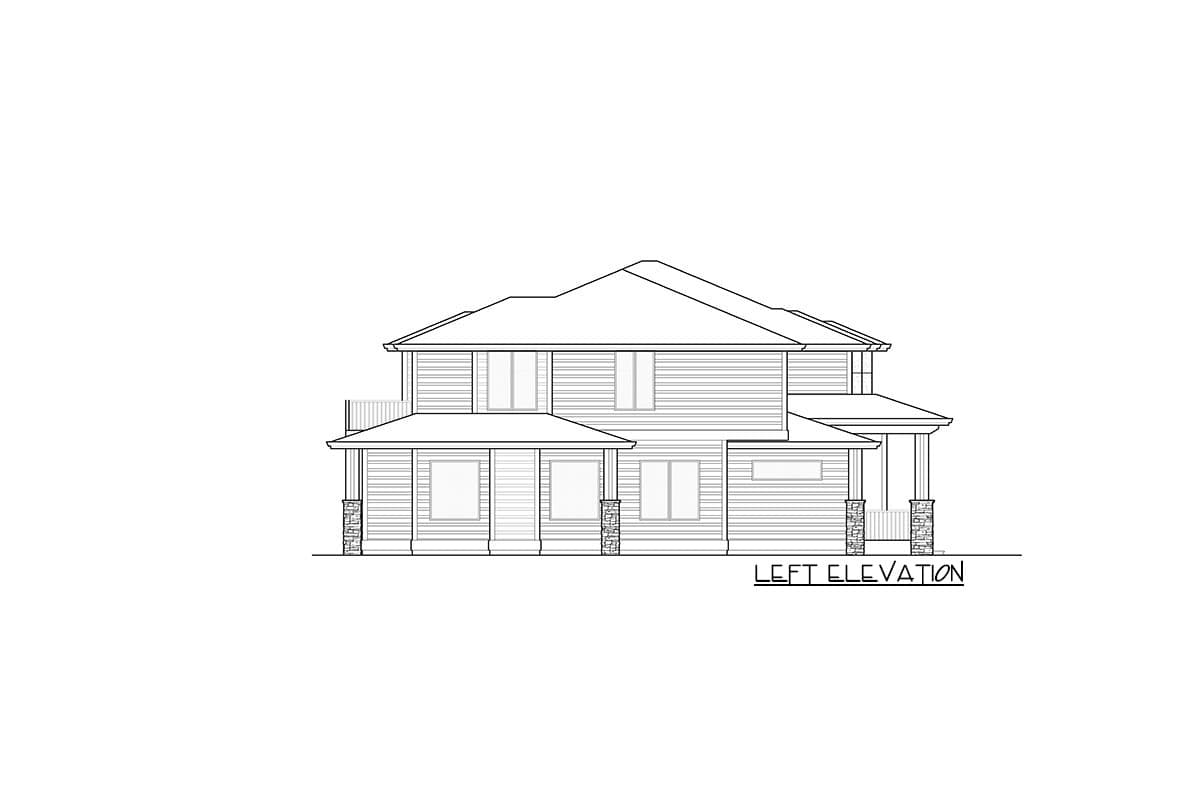

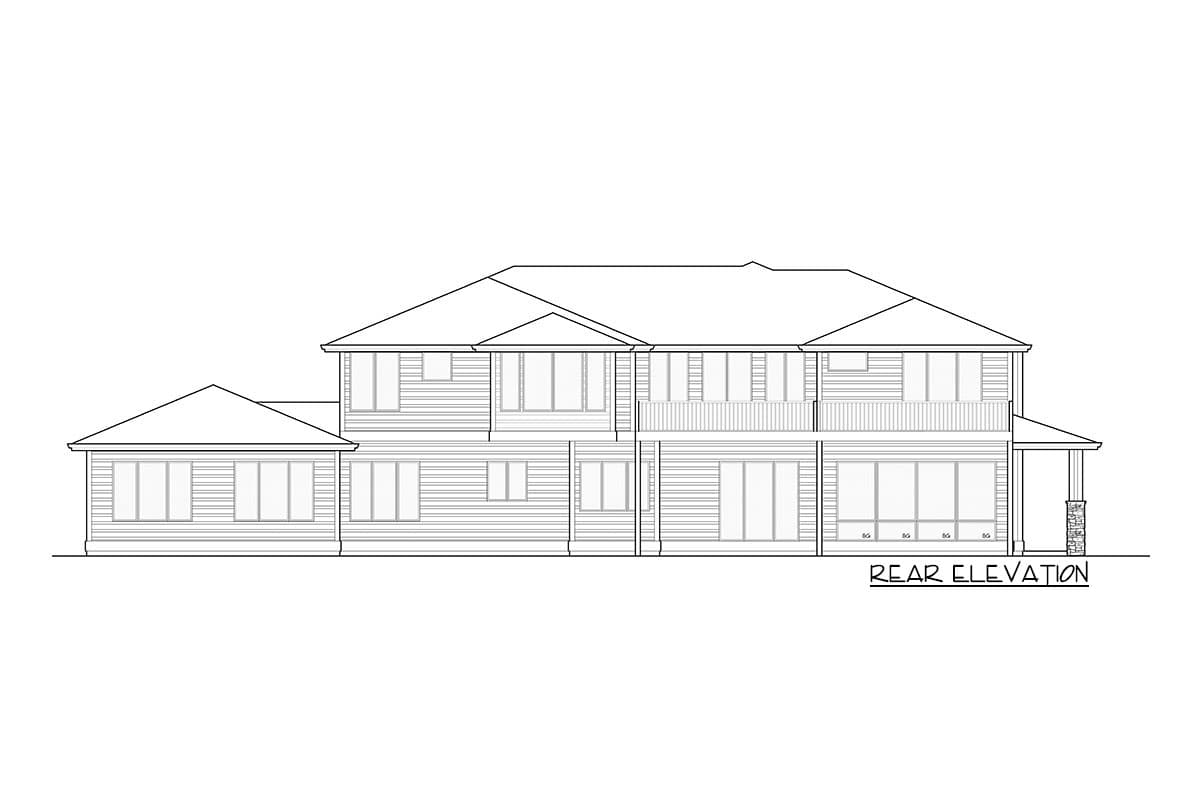

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,765 sq. ft.

1st Floor

3,243 sq. ft.

2nd Floor

2,522 sq. ft.

Deck

334 sq. ft.

Covered Patio

528 sq. ft.

Beds/Baths

Bedrooms

6 or 7

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 8"

Depth

57' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

648 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Den

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Optionally Finished Bonus Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

5,765 sq. ft.

1st Floor

3,243 sq. ft.

2nd Floor

2,522 sq. ft.

Deck

334 sq. ft.

Covered Patio

528 sq. ft.

Beds/Baths

Bedrooms

6 or 7

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 8"

Depth

57' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

648 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Den

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Optionally Finished Bonus Room

Walk-in Pantry
