Generously-sized Florida Home Plan for Indoor / Outdoor Lifestyle

Pageloader

Generously-sized Florida Home Plan for Indoor / Outdoor Lifestyle

Plan 86090BW

  • 6,910

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • This stunning and spacious Florida home plan boasts a 2-car garage protruding from either side of the home, creating a parking courtyard to welcome guests.
  • Enjoy entertaining on a large scale with this exquisite layout, which includes a wet bar with a wine cooler and multi-panel, sliding doors that retract to extend living space to the covered lanai.
  • The chef's kitchen evokes creativity, and multiple seating locations for meals are offered by the dining room, breakfast nook, kitchen island, and covered lanai.
  • Past the study on the right side of the home, discover the main-level master bedroom with a vestibule connecting the walk-in closets and the lavish en suite with an oversized shower and dual commode rooms.
  • A second bedroom suite on the main level is perfect for guests and includes a full bath.
  • Upstairs, three additional bedrooms each include a full bath, and a game room extends to a covered balcony, providing a fun space for the kids to enjoy.

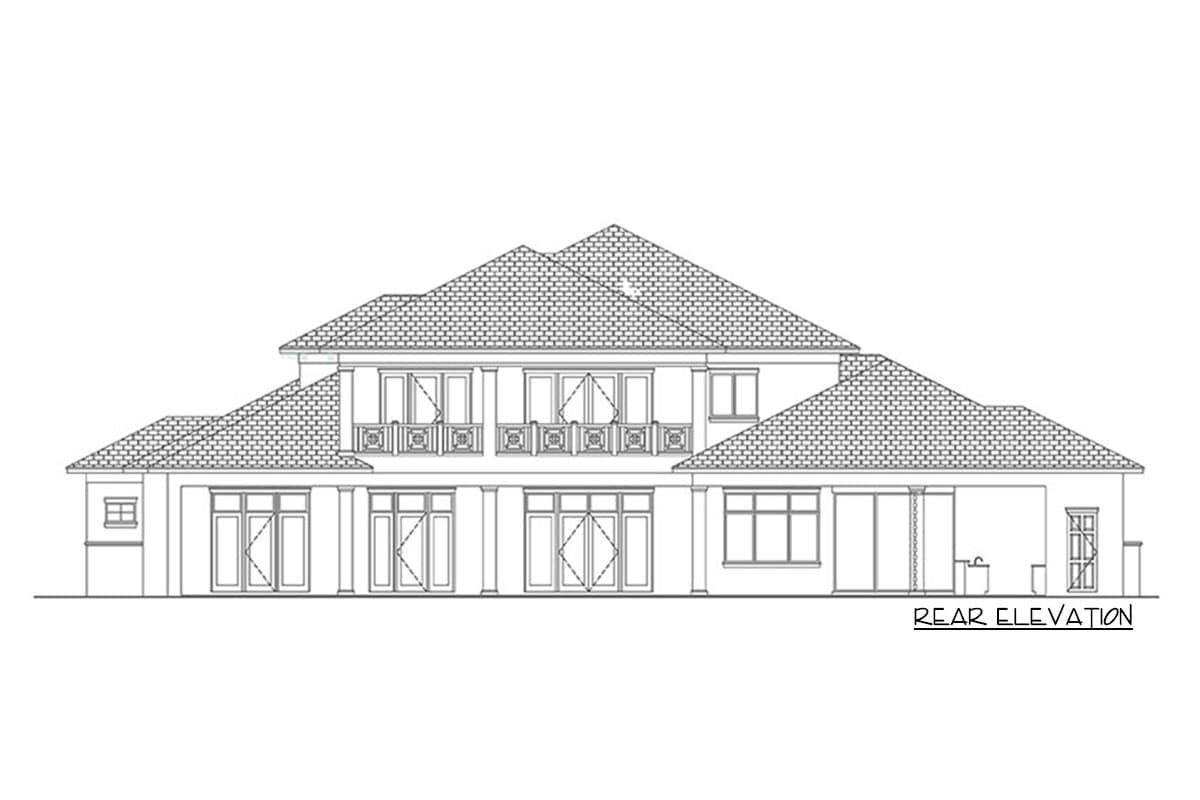

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

Floor Plan

Plan details



Generously-sized Florida Home Plan for Indoor / Outdoor Lifestyle

  • 6,910

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • CAD $6,220
  • PDF - single-use $6,220
  • View all purchase option online

About This Plan

  • This stunning and spacious Florida home plan boasts a 2-car garage protruding from either side of the home, creating a parking courtyard to welcome guests.
  • Enjoy entertaining on a large scale with this exquisite layout, which includes a wet bar with a wine cooler and multi-panel, sliding doors that retract to extend living space to the covered lanai.
  • The chef's kitchen evokes creativity, and multiple seating locations for meals are offered by the dining room, breakfast nook, kitchen island, and covered lanai.
  • Past the study on the right side of the home, discover the main-level master bedroom with a vestibule connecting the walk-in closets and the lavish en suite with an oversized shower and dual commode rooms.
  • A second bedroom suite on the main level is perfect for guests and includes a full bath.
  • Upstairs, three additional bedrooms each include a full bath, and a game room extends to a covered balcony, providing a fun space for the kids to enjoy.

Floor Plans

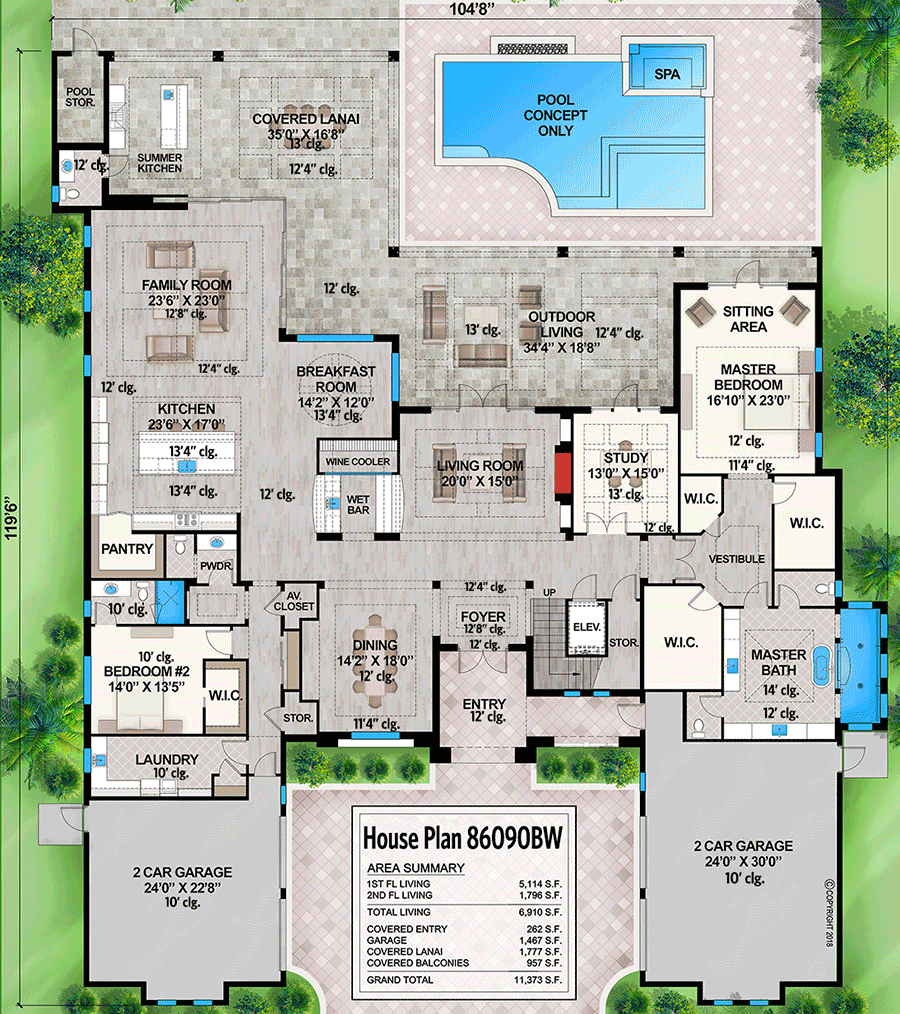

  • Main Level

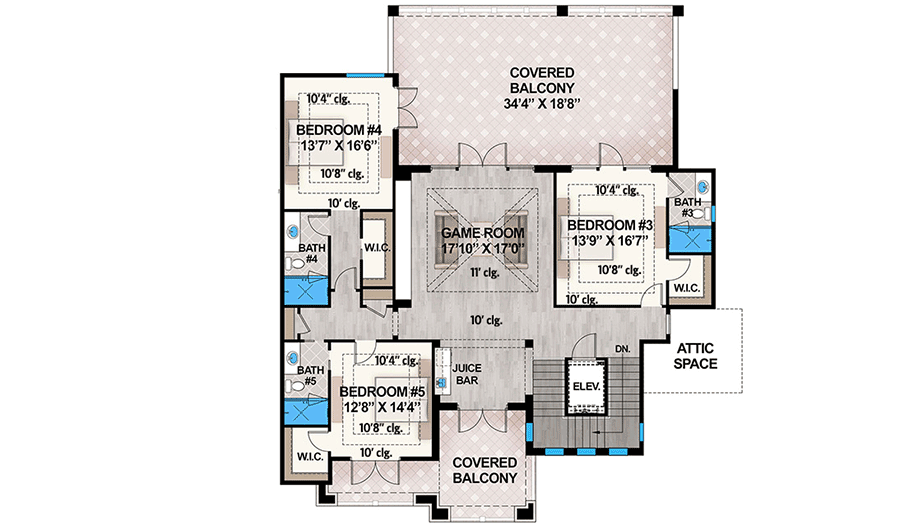

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,910 sq. ft.
  • 1st Floor: 5,114 sq. ft.
  • 2nd Floor: 1,796 sq. ft.
  • Lanai: 1,777 sq. ft.
  • Balcony / Veranda: 957 sq. ft.
  • Entry: 262 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 104' 8"
  • Depth: 119' 6"
  • Max ridge height: 37' 1"

Garage

  • Type: Attached
  • Area: 1467 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
