Geometric 2 or 3 Bed Home Plan

Plan 22353DR

This plan plants 3 trees

1,676
Heated s.f.
3
Beds
1
Baths
1
Stories
2
Cars

This home plan delivers great interior living space encased in a great geometric.
From the foyer you have unobstructed front-to-back views.
The living room is open to the dining room, giving you open space front-to-back there as well. A storage unit with a built-in wine cooler subtly provides separation between the two functional spaces.
Two bedrooms are off to the side of the home maximizing your privacy. The larger master bed has a walk-in closet and private access to bathroom with soaker tub and separate 5'x5' shower.
A home office is off the foyer, providing a quiet space to get work done and can serve as an optional third bedroom.
Additional living or recreation space can be added to the unfinished basement.

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

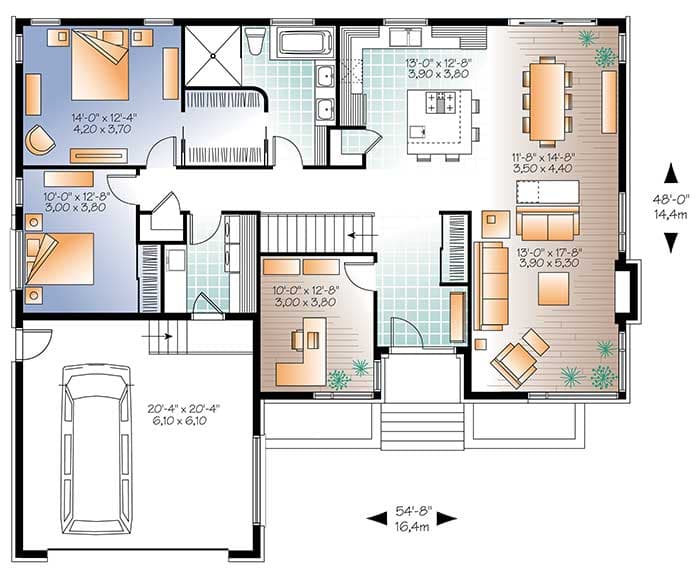

Geometric 2 or 3 Bed Home Plan - 22353DR floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,676 sq. ft.
1st Floor: 1,676 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 1

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Walkout, Daylight, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 54' 8"
Depth: 48' 0"
Max ridge height: 20' 10"

Garage

Type: Attached
Area: 469 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
