Plan 81786AB

Gothic Victorian Home Plan with Optional Lower-level Apartment - 2195 Sq Ft

Heated S.F.
2,195
Beds
3 - 5
Baths
2.5 - 3.5
Stories
2

Floor Plan

Plan 81786AB

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 81786AB

M-F 9am-5pm EST |

1-203-761-8500

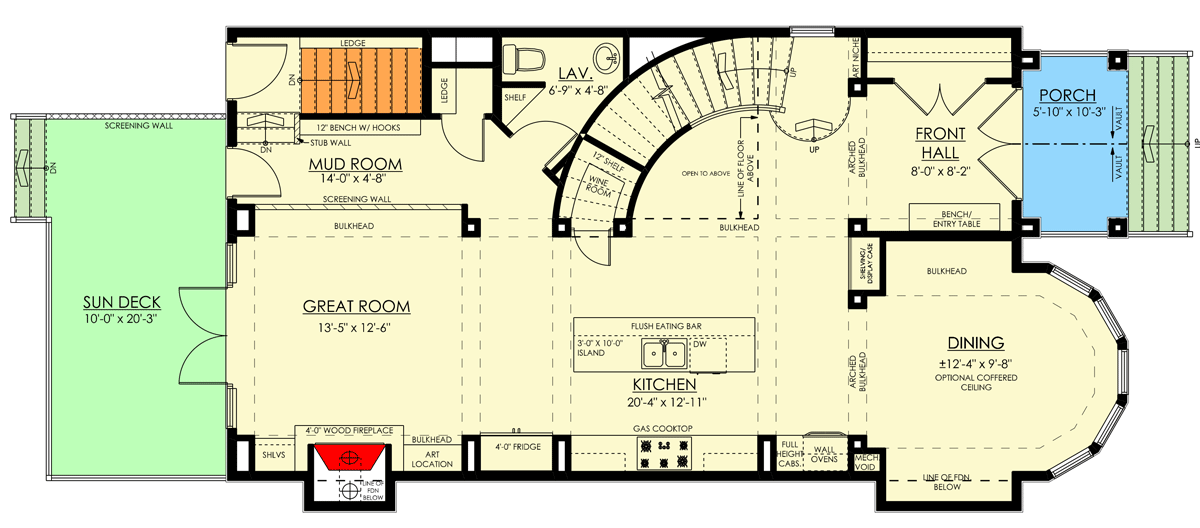

Main Level

Plan 81786AB: Gothic Victorian Home Plan with Optional Lower-level Apartment - 2195 Sq Ft - Floor Plan - Main Level - Northwest, Traditional, Victorian

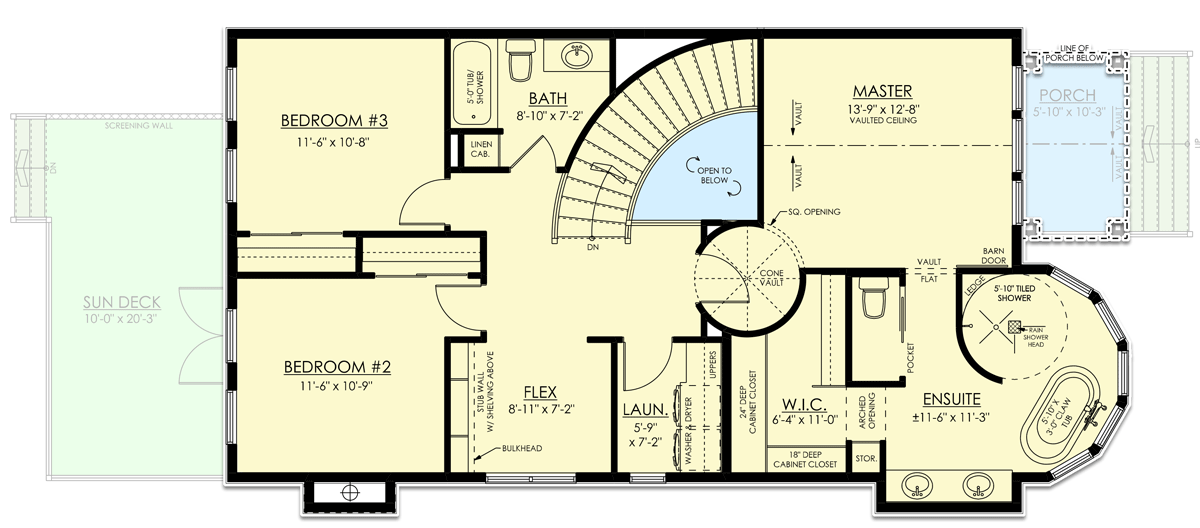

2nd Floor

Plan 81786AB: Gothic Victorian Home Plan with Optional Lower-level Apartment - 2195 Sq Ft - Floor Plan - 2nd Floor - Northwest, Traditional, Victorian

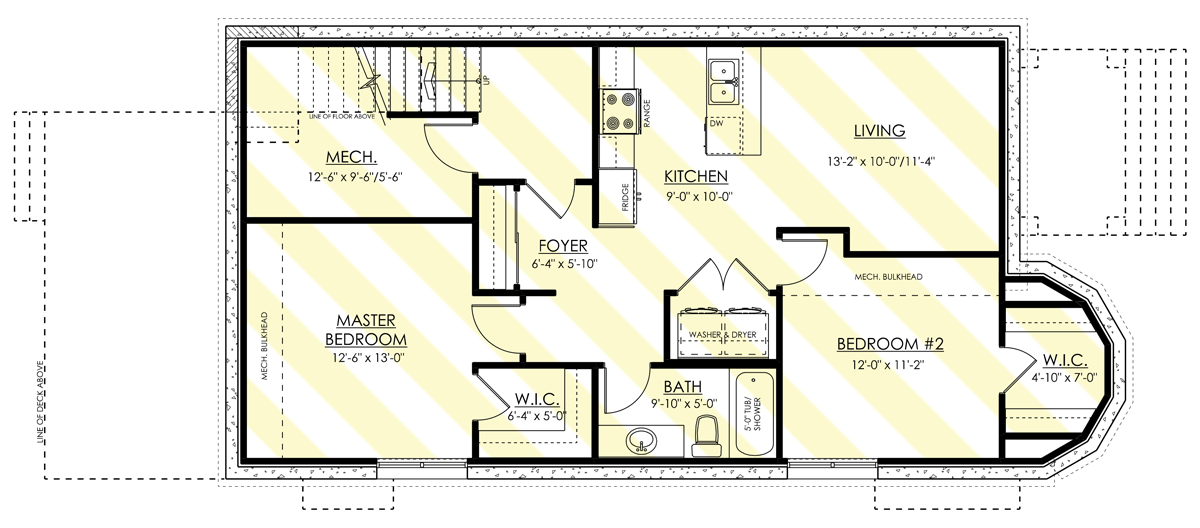

Optionally Finished Lower Level

Plan 81786AB: Gothic Victorian Home Plan with Optional Lower-level Apartment - 2195 Sq Ft - Floor Plan - Optionally Finished Lower Level - Northwest, Traditional, Victorian

Plan Details

  • Craftsman details and oversized windows form the ornate exterior of this Gothic Victorian home plan that totals 2,195 square feet of living space, as well as an option to finish the lower-level, 2-bedroom apartment.
  • The light and airy dining room with a rounded bay window provides forward-facing views with easy access into the island kitchen.
  • A fireplace anchors the great room and french doors encourage you to spend time on the sun deck. Centrally located, discover a wine room that makes good use of the space under the staircase.
  • Upstairs, three bedrooms, a flexible nook, and laundry room can be found. A cone, vaulted ceiling offers a grand entrance into the master bedroom and a zero-threshold shower adds to the deluxe ensuite.
  • This multi-generational design includes a 2-bedroom apartment in the basement, which includes a full kitchen, living space, and laundry closet.

What's Included

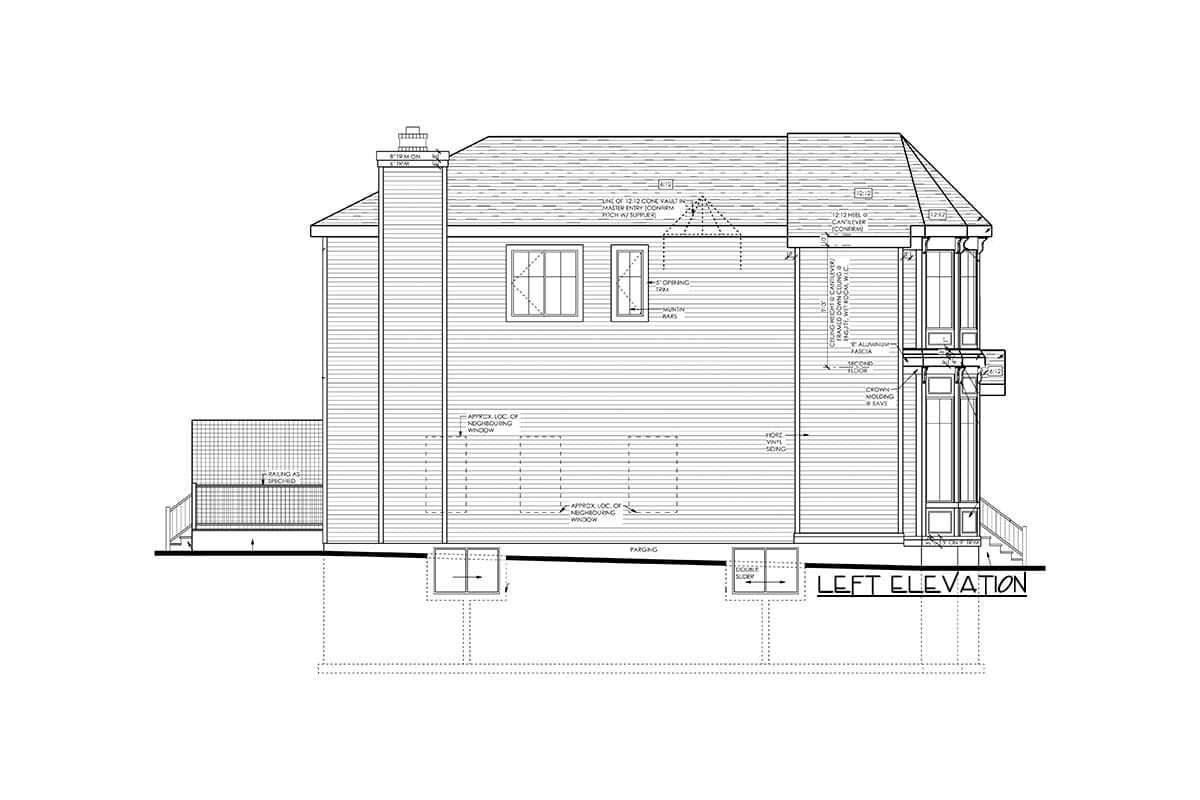

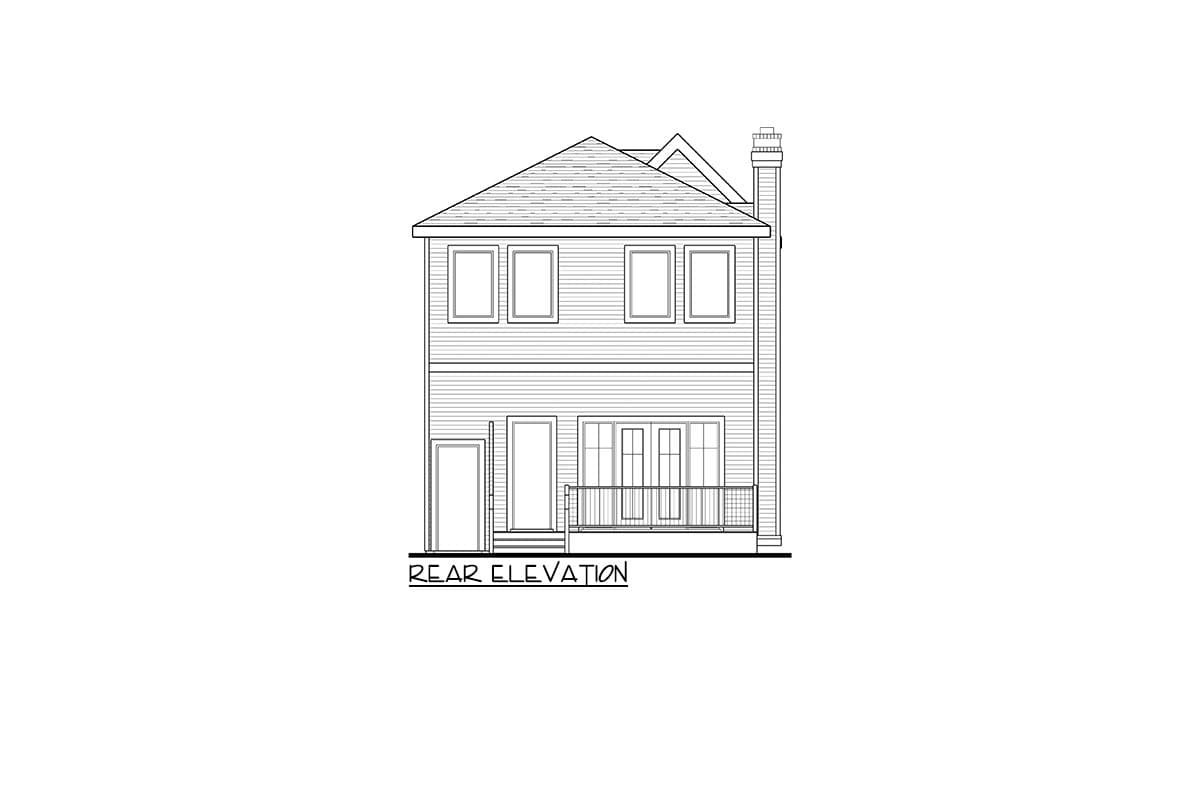

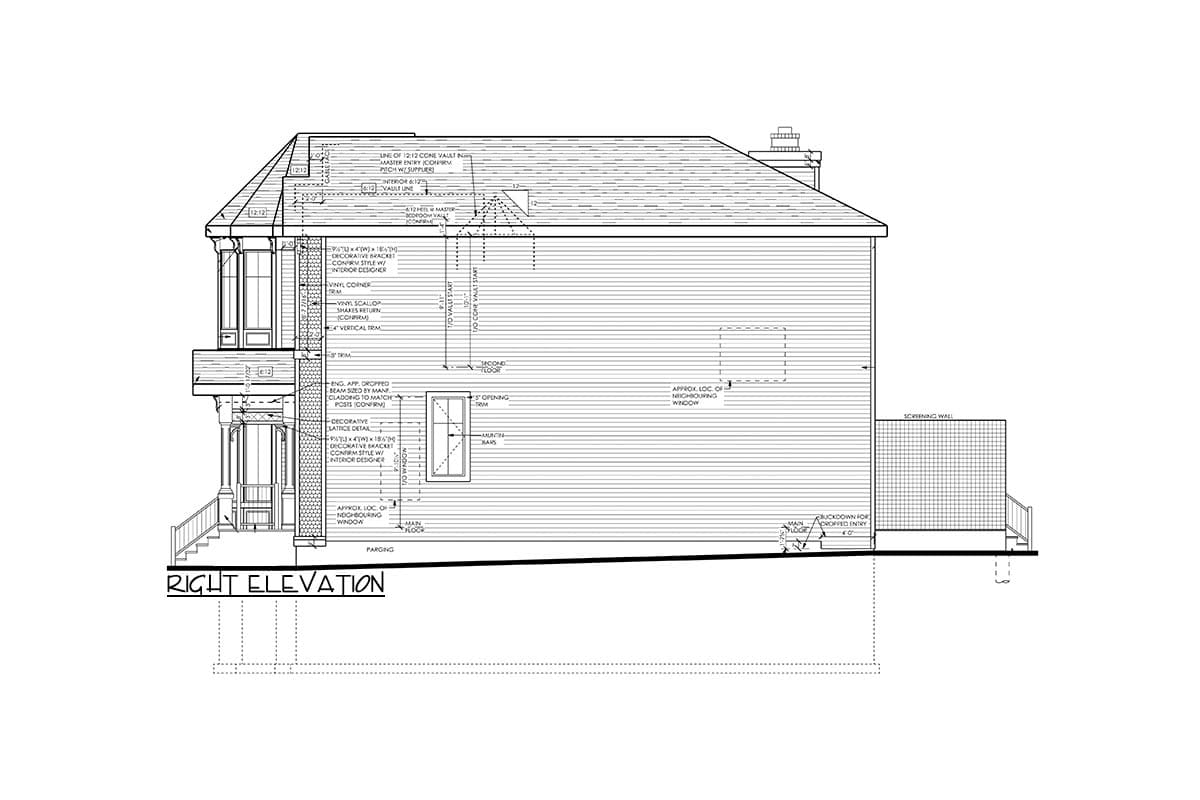

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,195 sq. ft.

1st Floor

1,123 sq. ft.

2nd Floor

1,072 sq. ft.

Optional Lower Level

924 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

25' 0"

Depth

49' 8"

Max Ridge Height

29' 10"

Ceiling Heights

Lower Level

9' 1"

First Floor

11' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Northwest

Traditional

Victorian

Special Features

Flex Room

Formal Dining

In-Law Suite

Laundry - Lower Level

Laundry - Upstairs

Master Suite - Lower Level

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Wine Room

Plan Collections

Canadian House Plans

Multi-Generational
