Plan 66253WE

Graceful Mediterranean House Plan

Heated S.F.
3,313
Beds
3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 66253WE

Main Level
Main Level

Plan 66253WE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

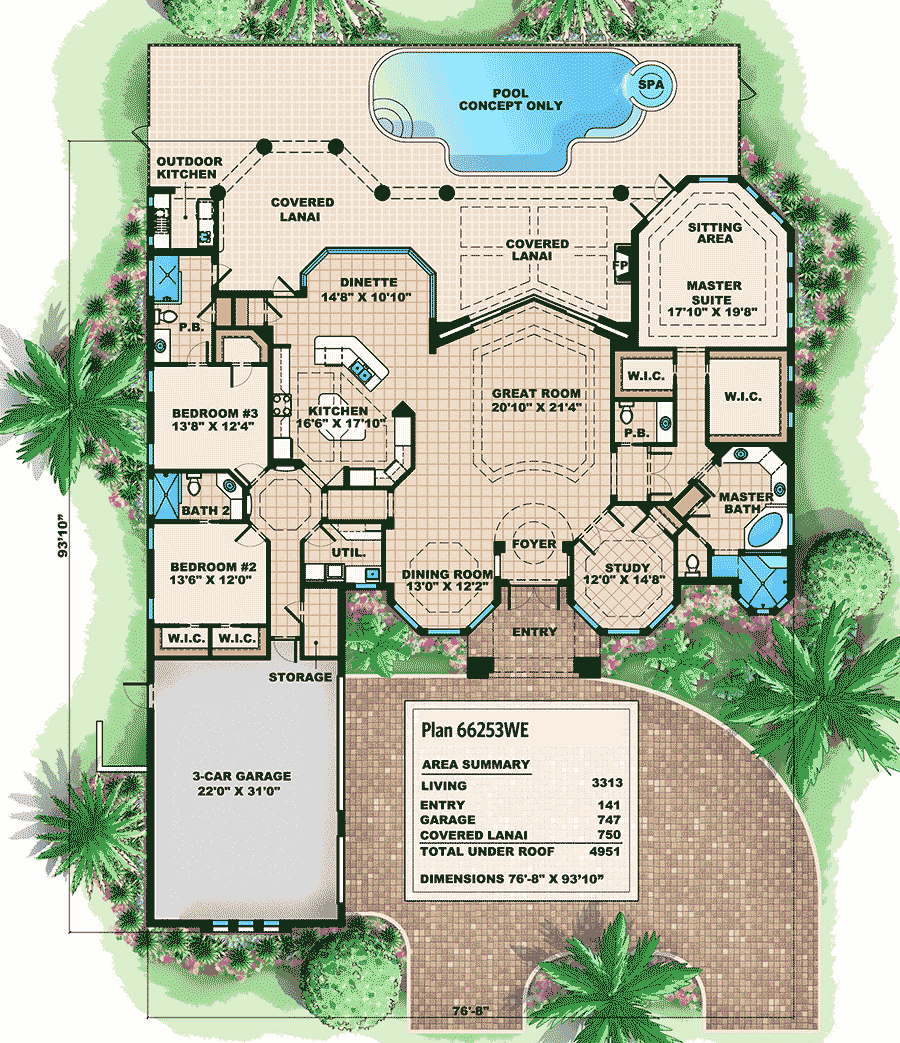

Plan 66253WE: Graceful Mediterranean House Plan - Floor Plan - Main Level - Florida-Style, Mediterranean

Plan Details

  • Graceful arches adorn the front of this Mediterranean house plan that has lots of big bay windows.
  • Sightlines start right at the front door where you get sweeping views of the great room, dining room and dinette.

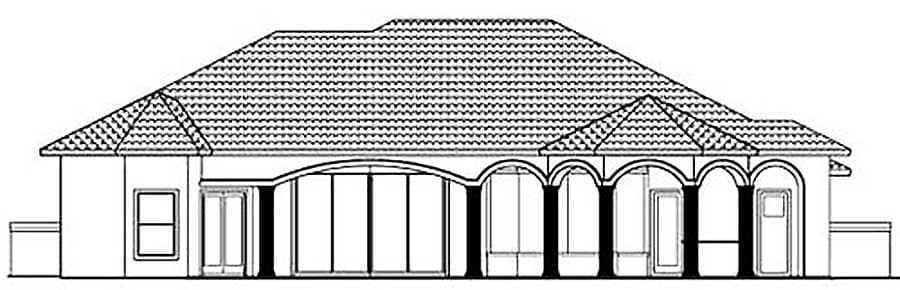

  • Walls of glass across the back give you instant views of the truly ideal outdoor covered lanai complete with an outdoor fireplace and a summer kitchen.
  • The master suite shines with a big sitting area set in the bay, double doors to the outdoors and a lovely double tray ceiling.
  • All the other bedrooms are across the house on the other side allowing for privacy for all.
  • The bathroom for bedroom three has a door to the lanai so you don't have to walk through the whole house if you are outside.
  • The three car garage and a large storage closet are additional pluses.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,313 sq. ft.

1st Floor

3,313 sq. ft.

Entry

141 sq. ft.

Lanai

750 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

76' 8"

Depth

93' 10"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

747 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,313 sq. ft.

1st Floor

3,313 sq. ft.

Entry

141 sq. ft.

Lanai

750 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

76' 8"

Depth

93' 10"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

747 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Walk-in Pantry
