Plan 56563SM

Grand 4-Bed Barndominium House Plan with RV Garage and Wrap-Around Porch

Name: Plan 56563SM: Grand 4-Bed Barndominium House Plan with RV Garage and Wrap-Around Porch
Brand: Architectural Designs
SKU: 56563SM
Price: 1345.0 USD
Availability: InStock

Heated S.F.

2,589

Beds

Baths

Stories

Cars

Floor Plan

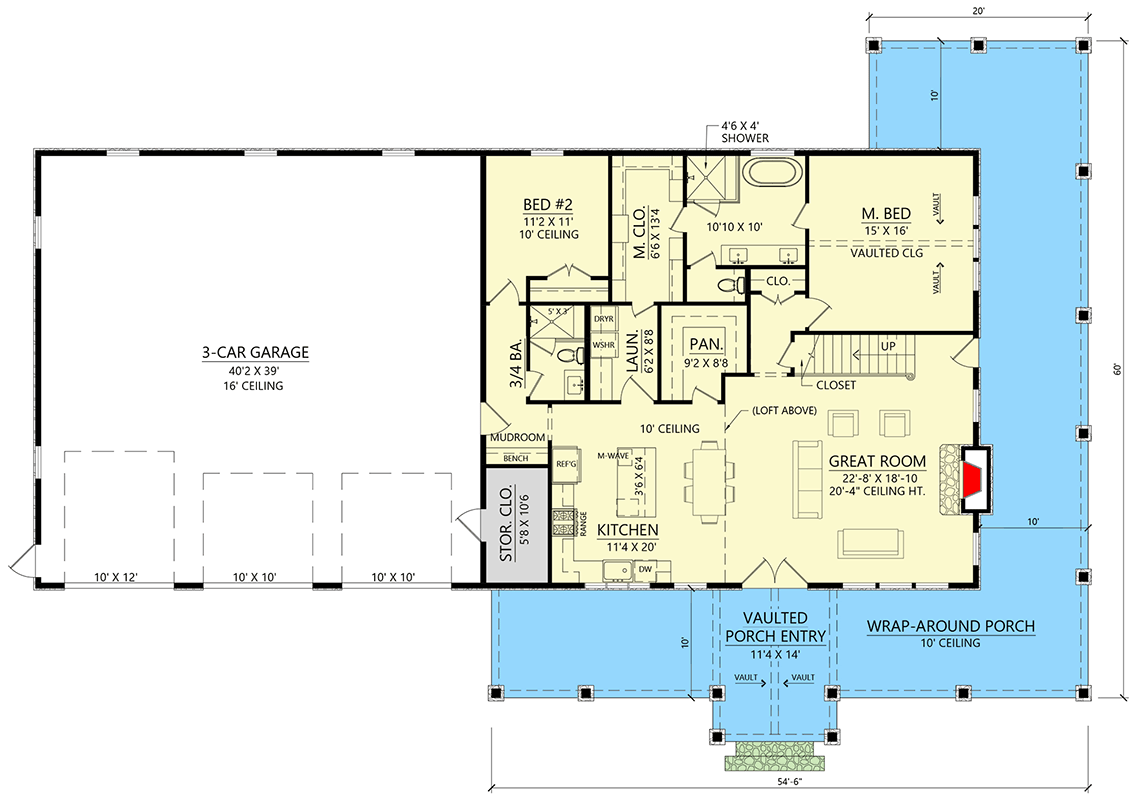

Main Level

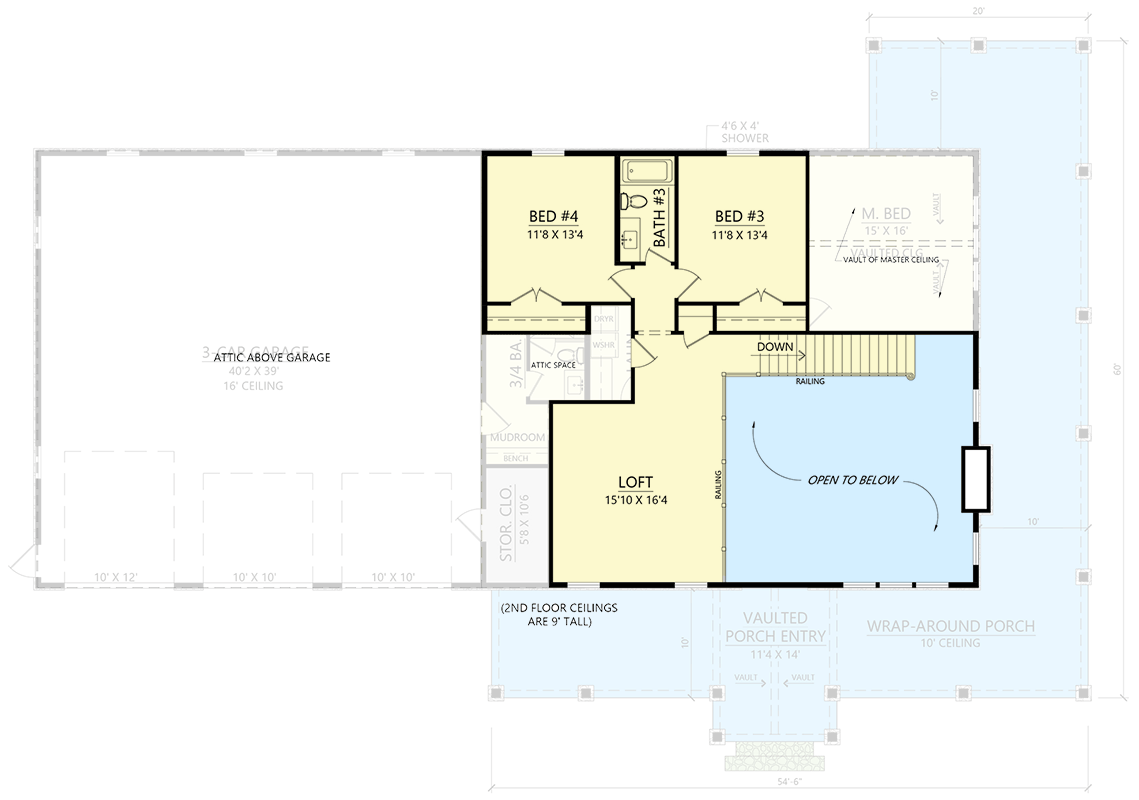

2nd Floor

Plan Details

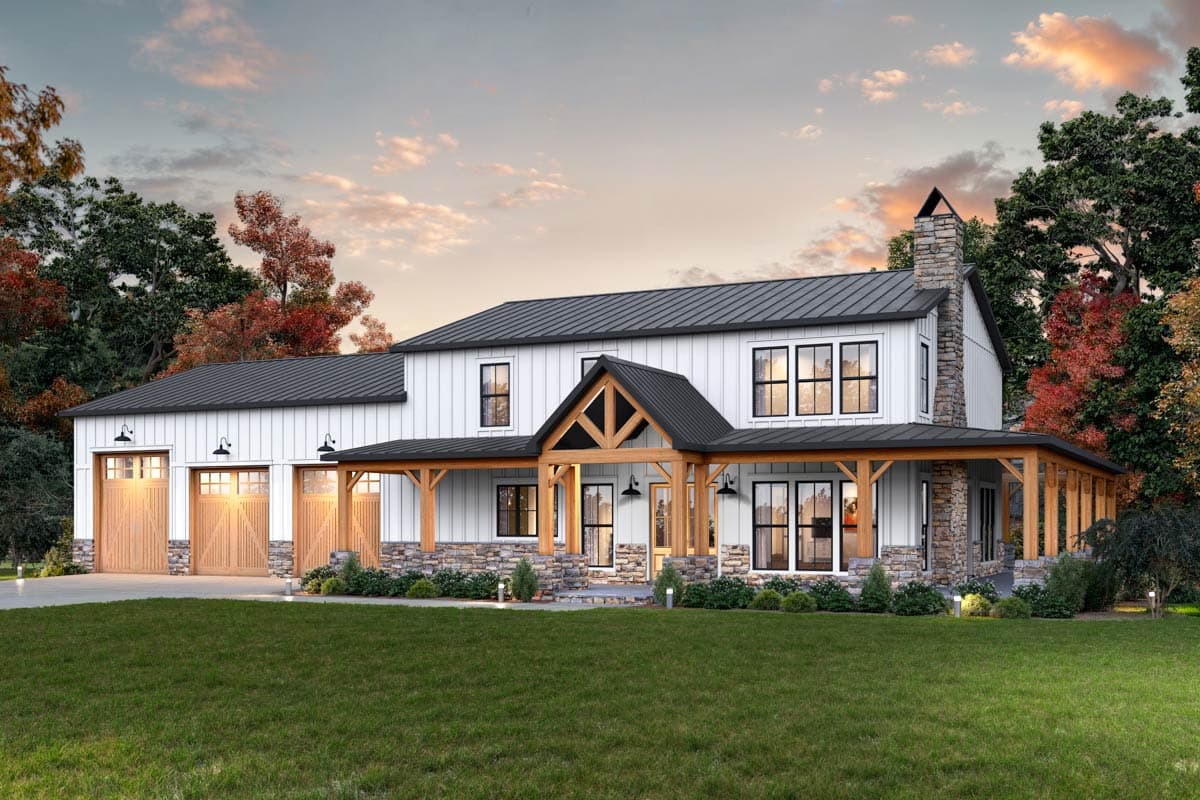

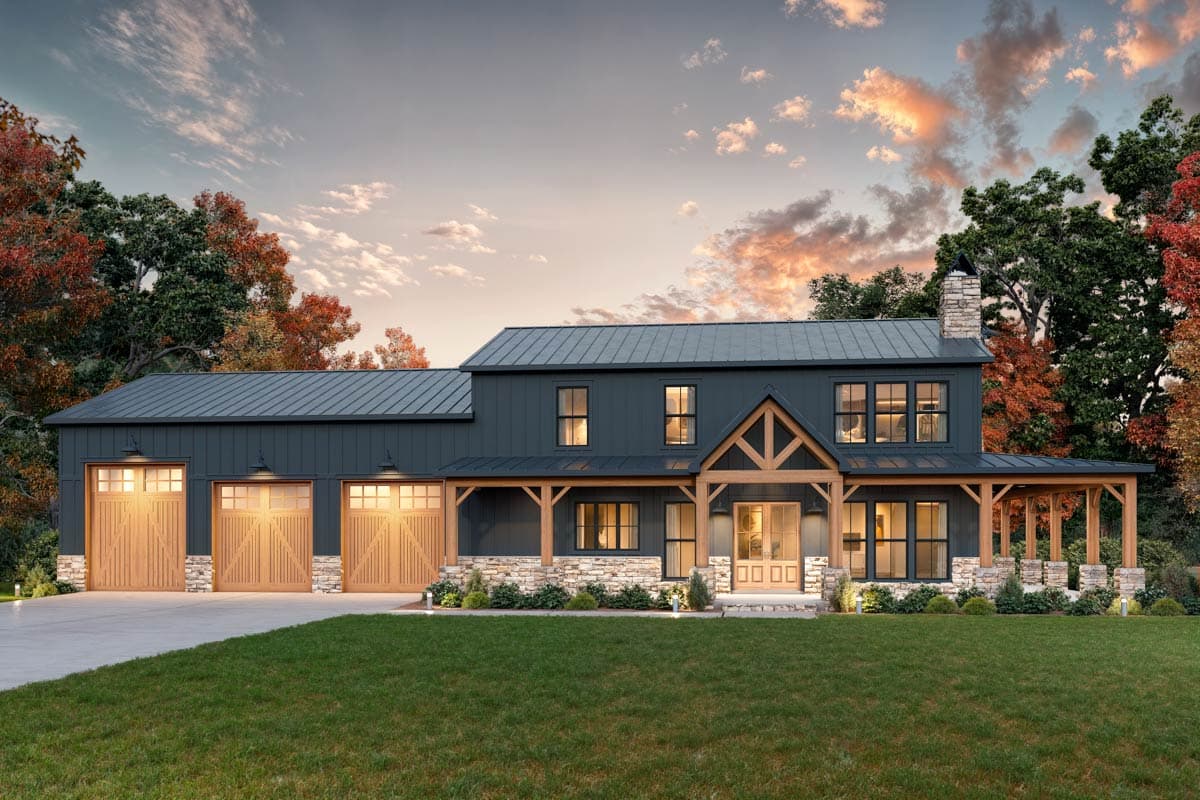

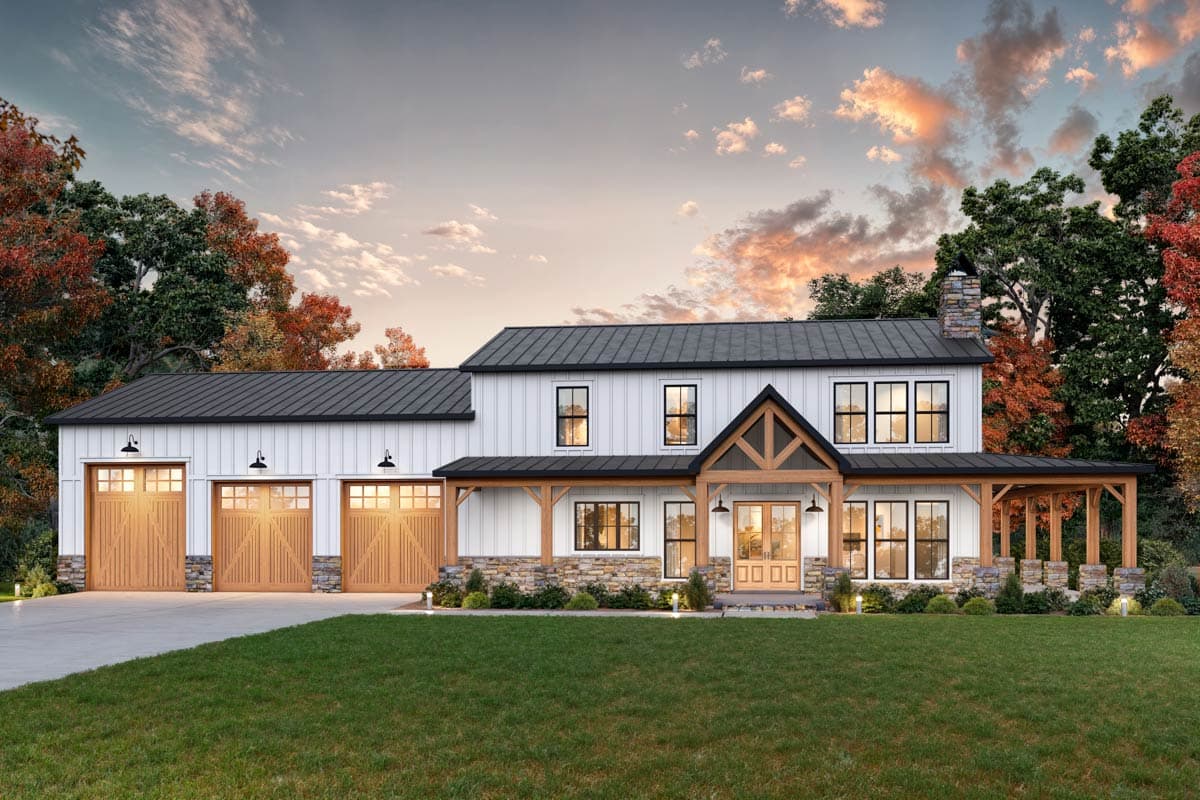

This expansive 2,589 sq. ft. Barndominium Farmhouse house plan features 4 bedrooms, 3 full bathrooms, and an impressive 1,627 sq. ft. 3-car garage, including an RV bay, all cloaked in a modern dark siding with stone and timber accents.
Step onto the vaulted wrap-around porch, a welcoming threshold to a thoughtfully designed interior where a convenient mudroom and main-level laundry lead directly from the garage, ensuring a seamless transition from the outdoors.
The heart of the home unfolds into an open-concept kitchen, equipped with a large island and a discreet butler's walk-in pantry, flowing effortlessly into the dramatic two-story great room, perfect for gathering or quiet evenings by the fireplace.
The luxurious first-floor master suite offers a private retreat with a vaulted ceiling, a spacious walk-in closet with direct laundry access, and an opulent en-suite bathroom, while a second bedroom with its own full bath also resides on the main level for added convenience and flexibility. Two additional bedrooms are thoughtfully clustered on the second floor, sharing a full bath and complementing the airy loft space overlooking the great room.
The second-floor loft provides a versatile space, ideal for a home office, reading nook, or creative studio, offering elevated views of the living area below.
Embrace outdoor living on the extensive 1,190 sq. ft. wrap-around porch, offering ample space for morning coffee, alfresco dining, or simply enjoying the surrounding landscape from multiple vantage points.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

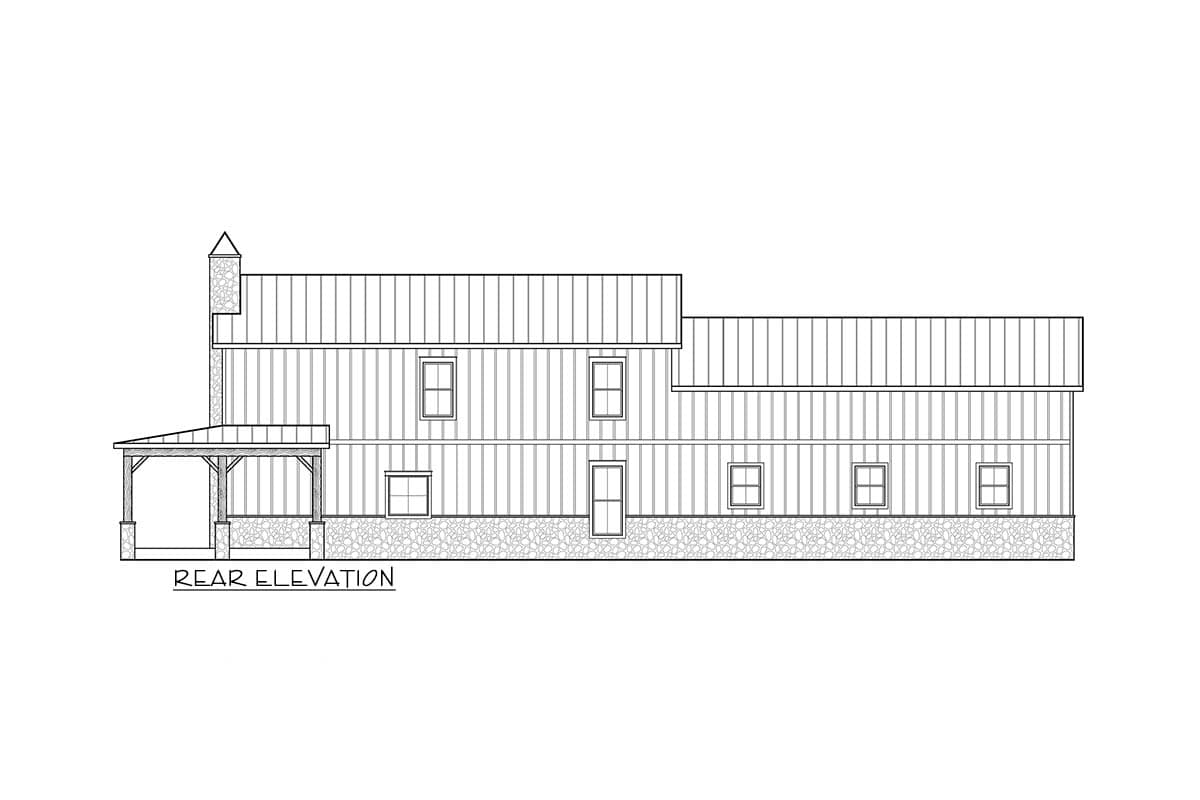

FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
