Plan 90226PD
Grand and Elegant
Heated S.F.
3,275
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 90226PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 90226PD

1-800-854-7852

1-262-521-4596

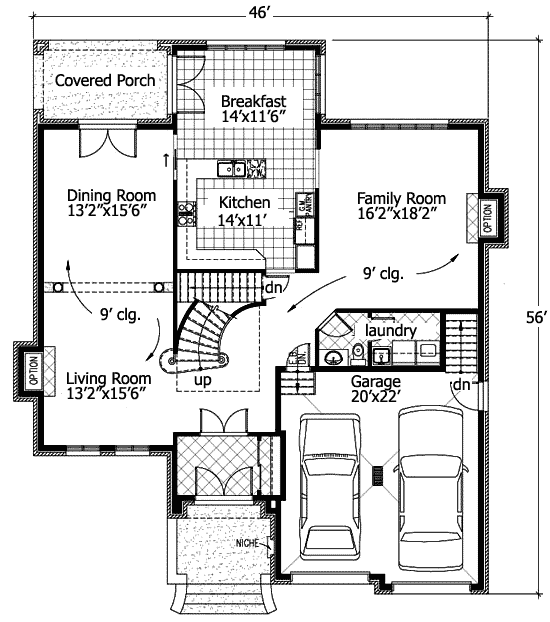

Main Level
floor plan image Main Level

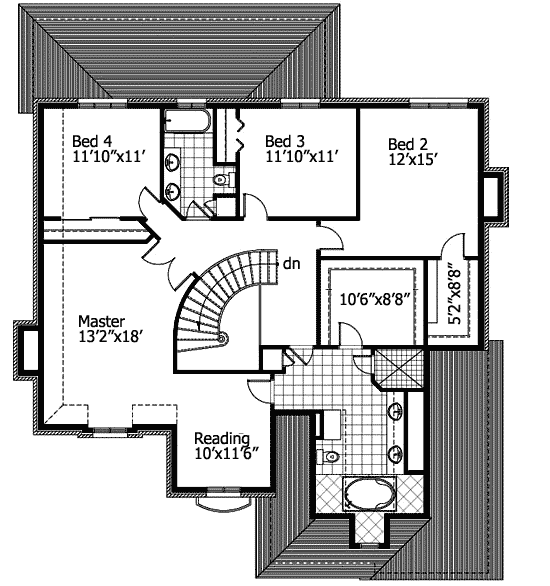

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Even though this European home is only 46' wide, it still feels grand and elegant.
  • An air-lock foyer keeps the cold air out in the winter with double doors introducing the main foyer.
  • A curved staircase adds another elegant touch.
  • Columns separate the living room with fireplace from the formal dining room.
  • The kitchen is huge and has a peninsula bar with sink so you can appreciate the views while cooking.
  • Another fireplace can be found in the spacious family room.
  • The master bedroom has its own sitting area and a huge walk-in closet off the hall bath adds wonderful storage.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,275 sq. ft.

1st Floor

1,575 sq. ft.

2nd Floor

1,700 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

56' 0"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

European

French Country

Special Features

Formal Dining

Master Suite - 2nd Floor

Master Suite - Sitting Area

Plan Collections

Canadian House Plans

Metric

Photo Gallery
