Plan 54071LK

Grand European Hill Country House Plan with Outdoor Kitchen

Name: Plan 54071LK: Grand European Hill Country House Plan with Outdoor Kitchen
Brand: Architectural Designs
SKU: 54071LK
Price: 2750.0 USD
Availability: InStock

Heated S.F.

4,490

Beds

Baths

4.5+

Stories

Cars

Floor Plan

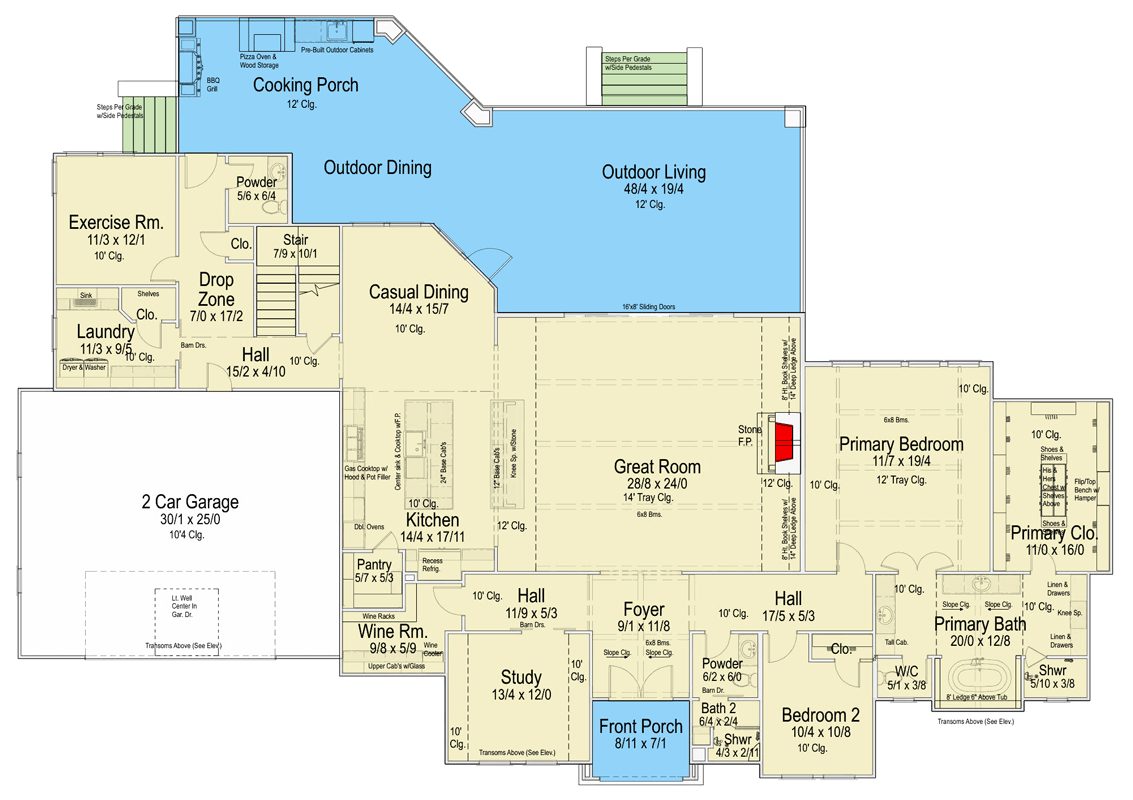

Main Level

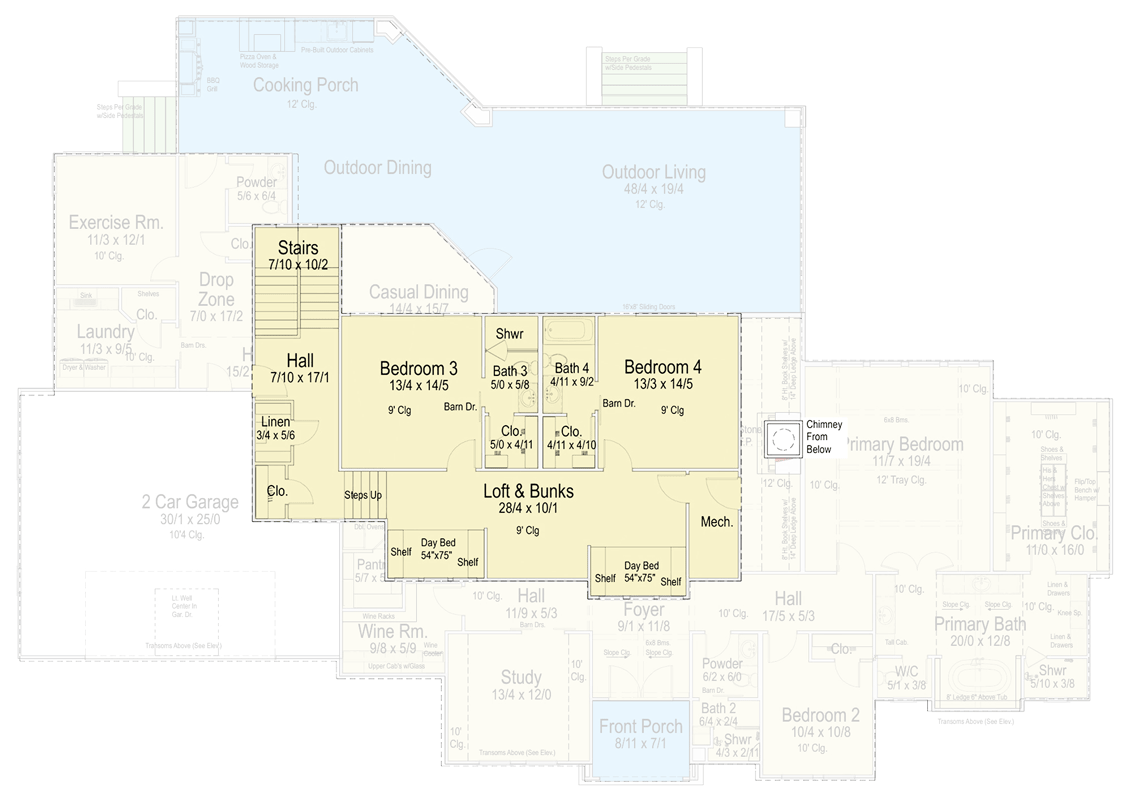

2nd Level

Plan Details

This grand European Hill Country House Plan offers 4,490 finished sq ft, 4 bedrooms, 4 full baths, 1-2 half baths, and an attached 2-car garage spanning 806 sq ft.

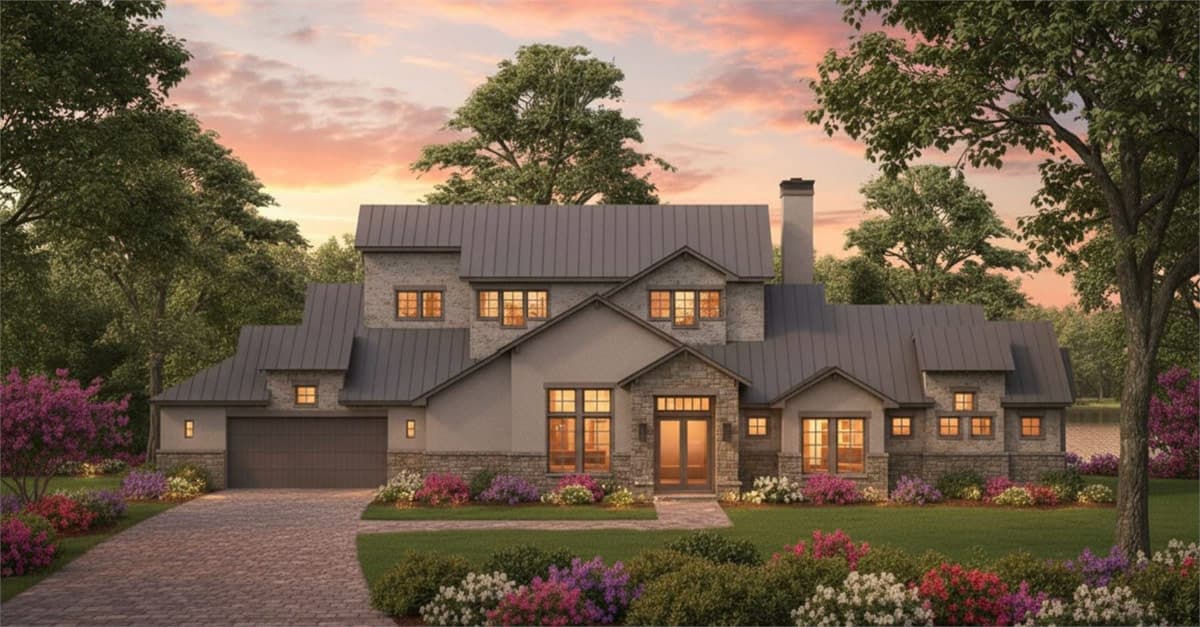

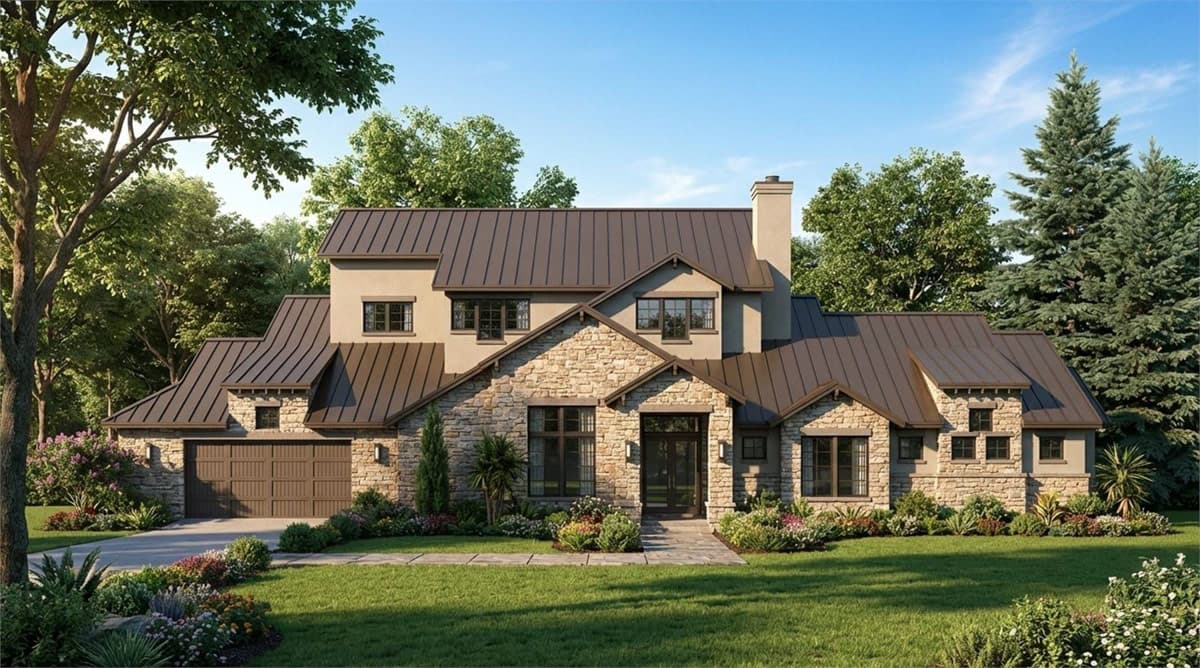

A stately stone facade and a winding pathway lead to a recessed entry, opening to a dramatic foyer with 10-foot ceilings and immediate views into the expansive living areas.
The open-concept design flows seamlessly from the great room to a formal dining area, and a gourmet kitchen featuring a walk-in pantry, ideal for daily living and entertaining.
The luxurious main-level primary suite provides a private retreat, while three secondary bedrooms are thoughtfully clustered for convenience and privacy on the upper floor.
Enjoy dedicated spaces like a private library/study for focused work and an upstairs game/rec room, perfect for family fun and relaxation.

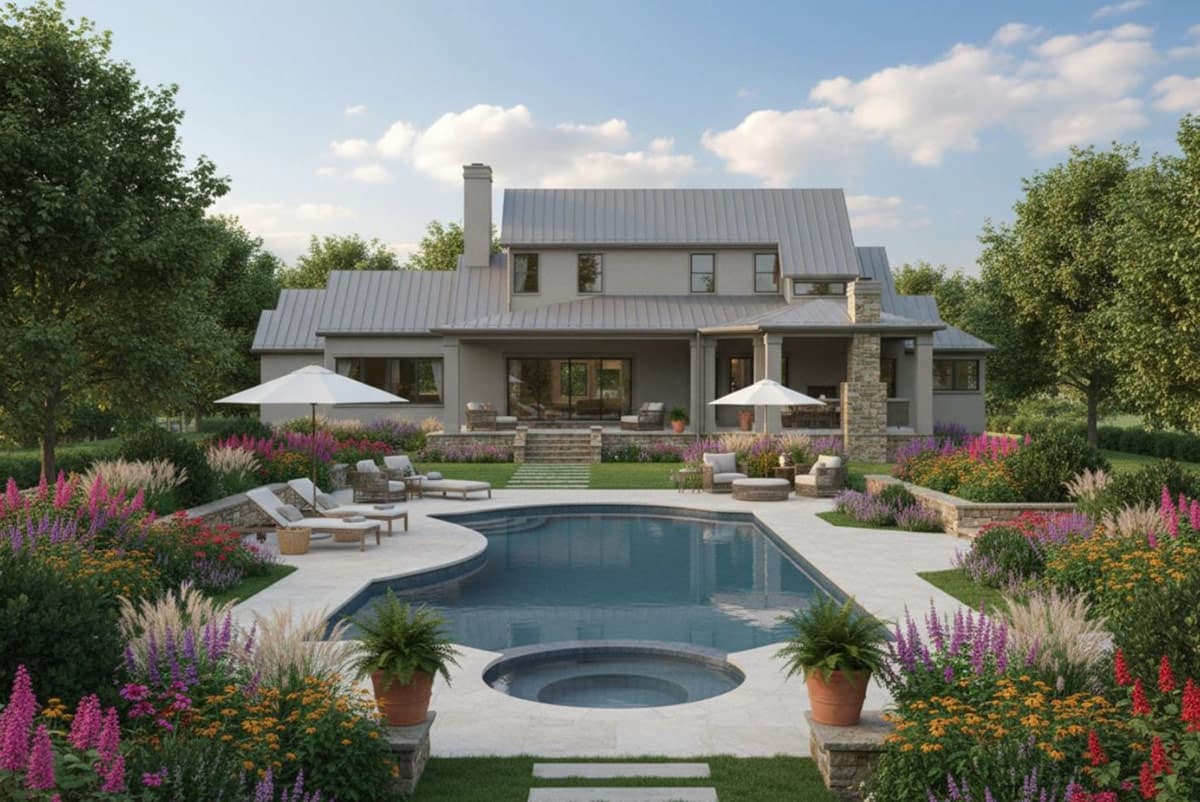

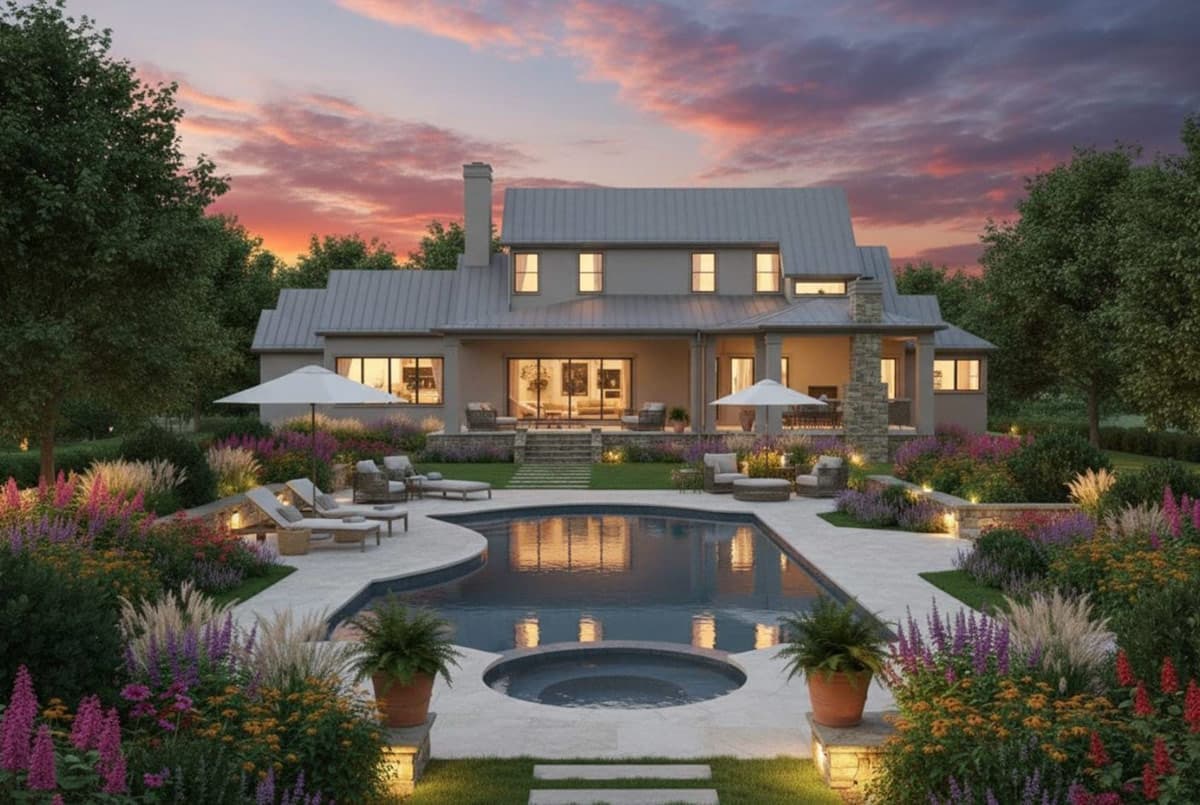

Expansive covered porches totaling 1,140 sq ft and an outdoor kitchen extend living and dining opportunities into the fresh air, perfect for al fresco gatherings.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
