Grand Florida House Plan

Plan 86041BW

  • 4,346

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • With a huge open layout and lots of luxurious details, this grand Florida house plan is made for high end living.
  • Walls of sliding glass doors in the great room area not only bring in light and views, they take you outdoors to the fabulous outdoor lanai with its summer kitchen.
  • There's even a door directly from the indoor kitchen to the outdoor kitchen, for efficiency.
  • A secluded master suite has a lovely tray ceiling, his and her walk-in closets and double doors out to the covered lanai.
  • In the master bathroom, a stand alone soaking tub joins a huge walk-in shower to give you a spa experience.
  • There's a study, wine cellar and guest bedroom on the main floor too.
  • Upstairs, two spacious family bedrooms have easy access to a large loft with tray ceiling and an enormous covered balcony.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

Floor Plan

Plan details



Grand Florida House Plan

  • 4,346

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,910
  • CAD $3,910
  • View all purchase option online

About This Plan

  • With a huge open layout and lots of luxurious details, this grand Florida house plan is made for high end living.
  • Walls of sliding glass doors in the great room area not only bring in light and views, they take you outdoors to the fabulous outdoor lanai with its summer kitchen.
  • There's even a door directly from the indoor kitchen to the outdoor kitchen, for efficiency.
  • A secluded master suite has a lovely tray ceiling, his and her walk-in closets and double doors out to the covered lanai.
  • In the master bathroom, a stand alone soaking tub joins a huge walk-in shower to give you a spa experience.
  • There's a study, wine cellar and guest bedroom on the main floor too.
  • Upstairs, two spacious family bedrooms have easy access to a large loft with tray ceiling and an enormous covered balcony.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

Floor Plans

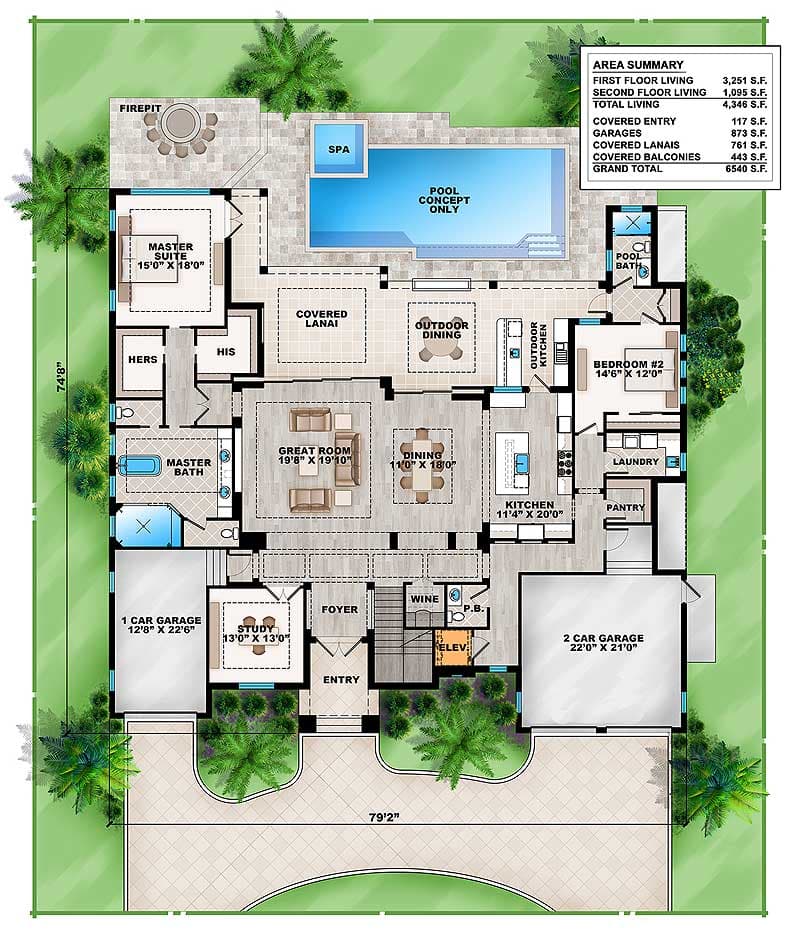

  • Main Level

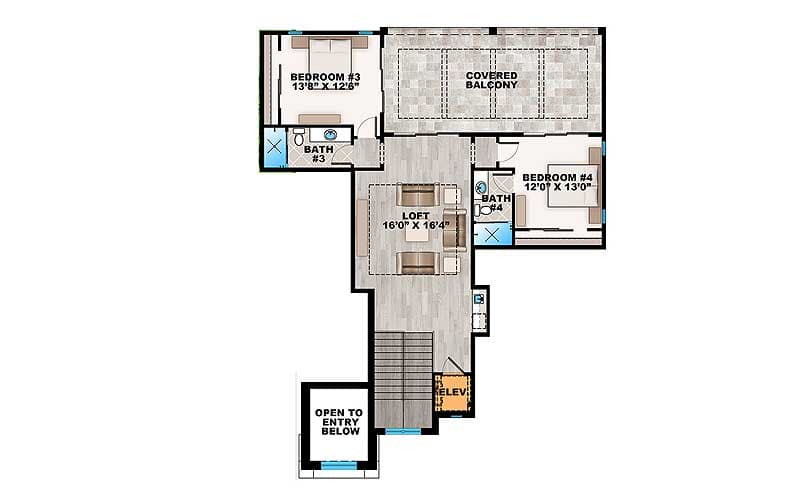

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,346 sq. ft.
  • 1st Floor: 3,251 sq. ft.
  • 2nd Floor: 1,095 sq. ft.
  • Entry: 117 sq. ft.
  • Balcony / Veranda: 443 sq. ft.
  • Lanai: 761 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 79' 2"
  • Depth: 74' 8"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 873 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 4"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
