Plan 59266ND

Grand Great Room

Heated S.F.
1,655
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59266ND

Main Level
Main Level

Plan 59266ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

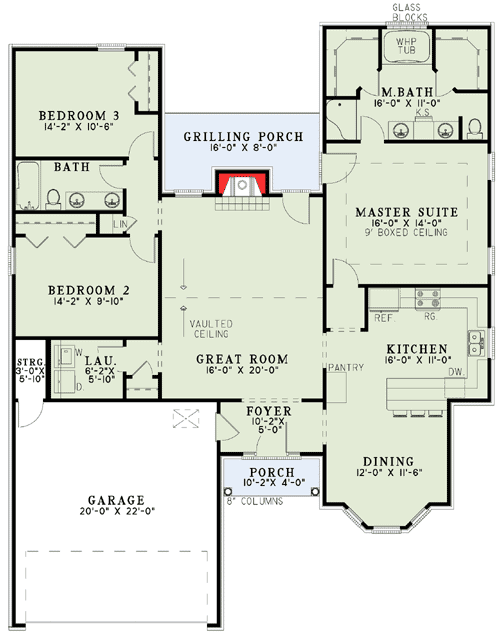

Plan 59266ND: Grand Great Room - Floor Plan - Main Level - Traditional

Plan Details

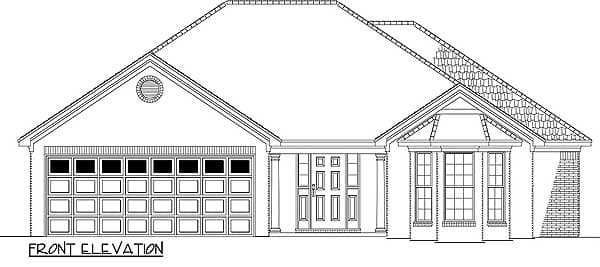

  • Two entry columns and an attractive bay window make this traditional home plan a winner. As you enter the foyer, access the garage or view the formal dining room with open view to the kitchen. This well-arranged kitchen has a window over the sink, full pantry and a handy snack bar with seating, making it a great multipurpose center.
  • A recessed entrance just off the kitchen leads to the master suite which features a boxed ceiling, plenty of wall space and two large windows. The private bathroom offers amenities galore including a whirlpool tub with glass block window and double vanity with make-up area.
  • A grand great room effect is gained by using a vaulted while a large fireplace makes a beautiful focal point and leads guests to a rear un-covered grilling porch.
  • Related Plans: Need less space? See house plans 5952ND, 59221ND and 5910ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,655 sq. ft.

1st Floor

1,655 sq. ft.

Porch, Combined

169 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 6"

Depth

59' 8"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Formal Dining

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,655 sq. ft.

1st Floor

1,655 sq. ft.

Porch, Combined

169 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 6"

Depth

59' 8"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Formal Dining

Master Suite - 1st Floor
