Split-Bedroom Design

Plan 5910ND

  • 1,538

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • This country home plan effectively separates the master suite from the family bedrooms. A tray ceiling tops the master bedroom, while a skylight brightens the master bath. Here, the thoughtful extras include twin walk-in closets and twin vanities separated by make-up space.
  • The spacious great room features a 9' boxed ceiling, a fireplace and backyard access. Off the foyer, the bayed dining room is open to the kitchen. Nearby are a pantry closet and a mudroom-laundry room.
  • In the family wing, a vaulted ceiling expands the front-facing bedroom.
  • Note the storage room off the two-car garage.
  • Ceilings: 8' standard.
  • Related Plans: Need less space? See house plans 5952ND and 59221ND.
  • Get more room with house plan 59266ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

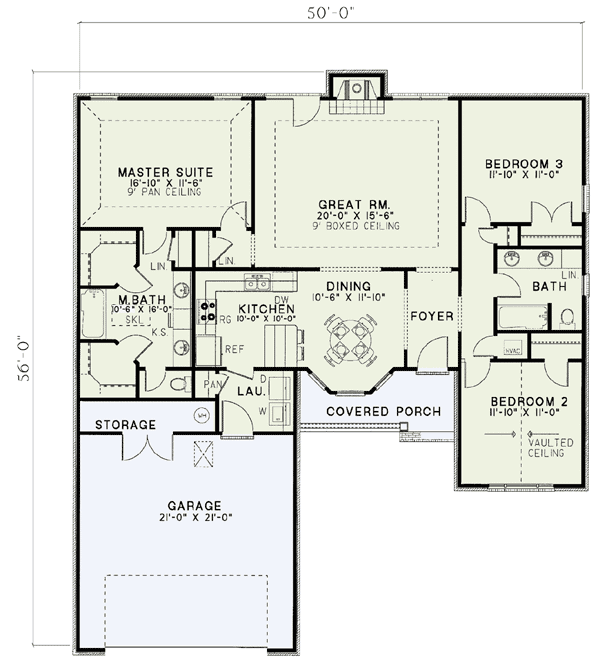

Split-Bedroom Design - 5910ND floor plan - Main Level

Architectural Style

Split-Bedroom Design

  • 1,538

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,538 sq. ft.
  • 1st Floor: 1,538 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 56' 0"
  • Max ridge height: 23' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 1016 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
