Grand Mountain Lodge - 4531 Sq Ft - Architectural Designs

Plan 95029RW

  • 4,531

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Vaulted and beamed ceilings and lots of outdoor spaces are the hallmarks of this exquisite Mountain house plan.
  • There's even a home gym between the two 2 car garage bays.
  • The sunken great room is awash with light from the two-story windows.
  • The home comes with a chef's kitchen loaded with counter space, two islands and a huge walk-in pantry.

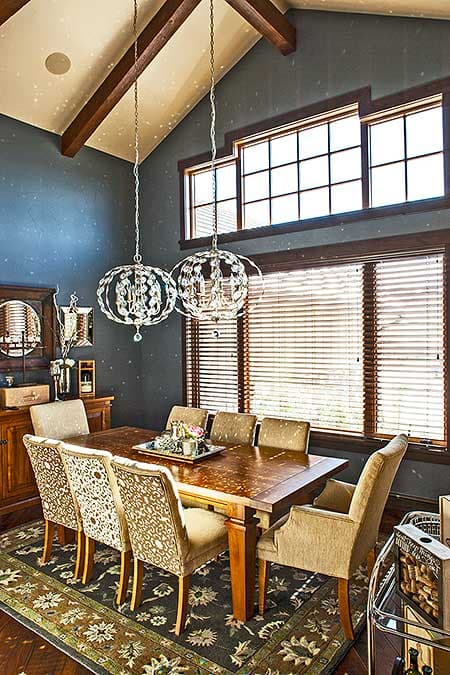

  • You can eat in the casual dining area with windows on three sides or the vaulted formal dining room at the front of the house.
  • Cozy up to the fireplace in the master suite that has double doors out to the deck plus a giant walk-in closet and huge bathroom.
  • There are two second floors, each accessed by its own staircase.

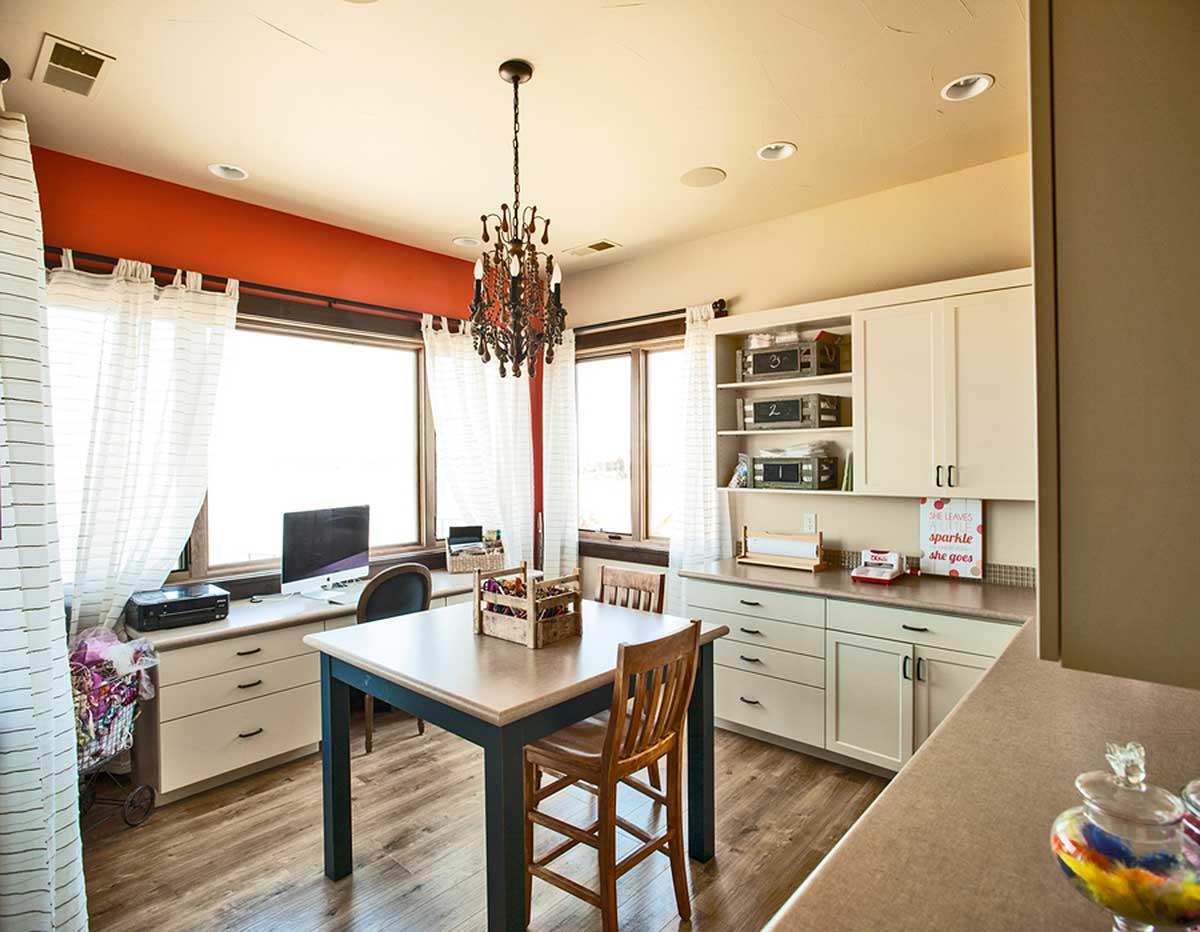

  • The craft room and playroom have a staircase near the kitchen and the two bedrooms have a staircase off the foyer.

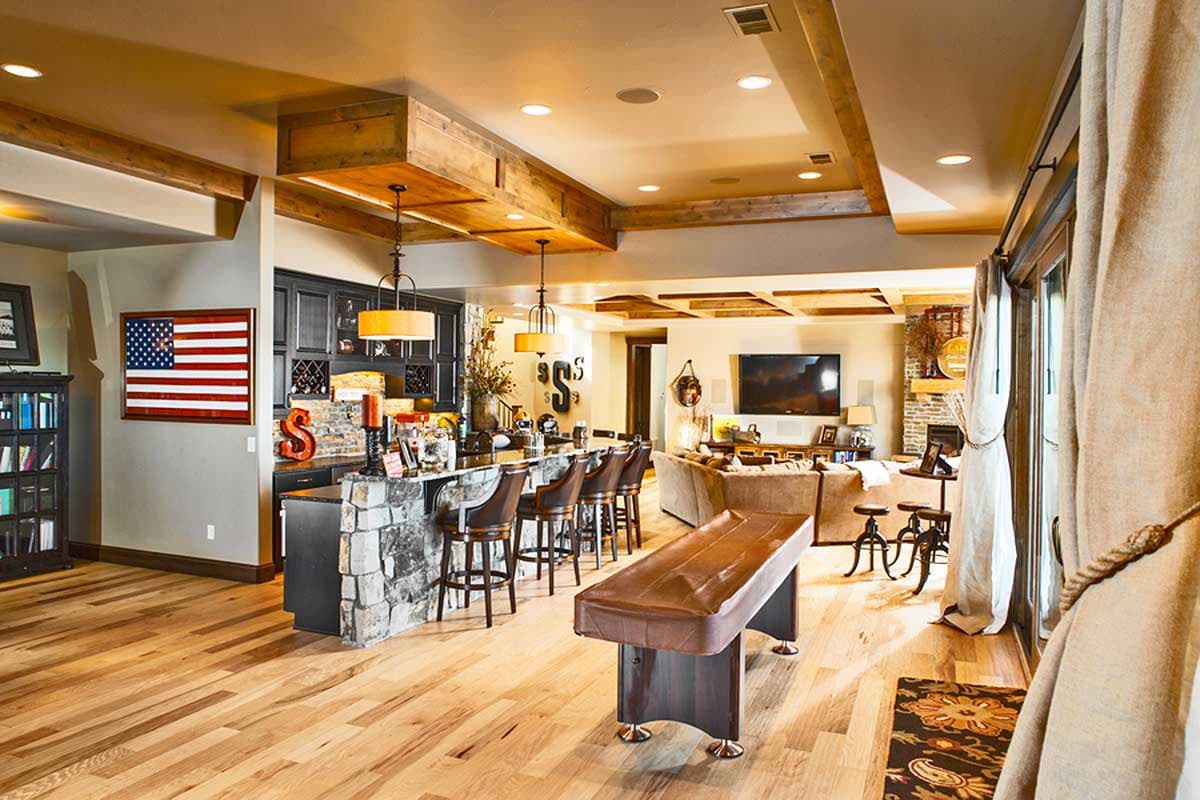

  • Finish the optional lower level to gain even more bedrooms, a media area with wet bar and another exercise room.

The following details are included with this house plan:
  • Cover Page

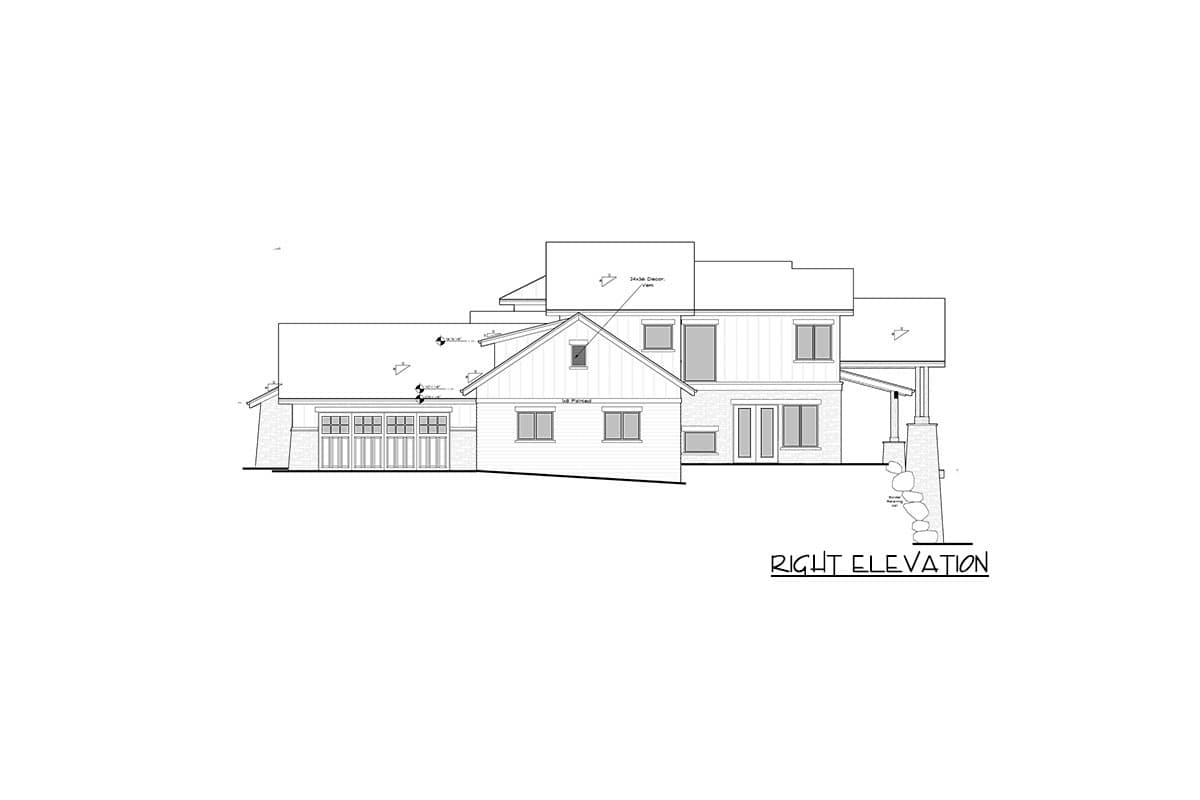

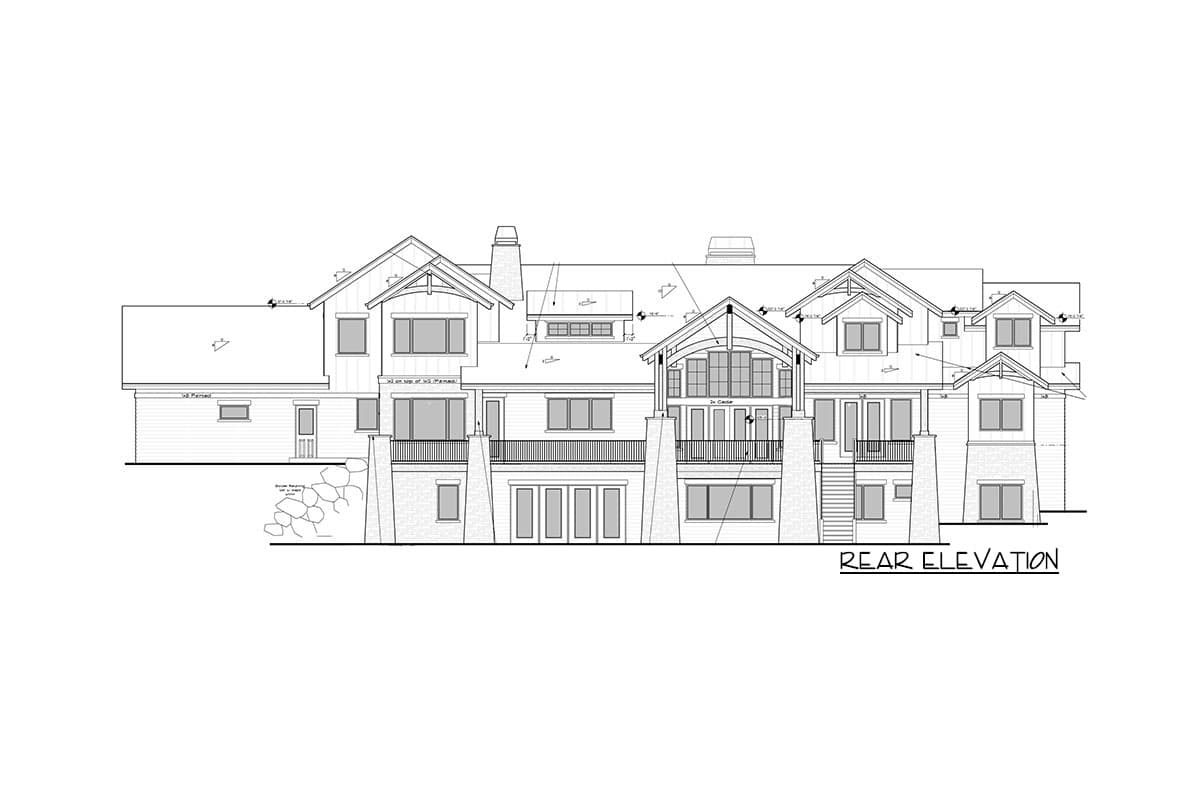

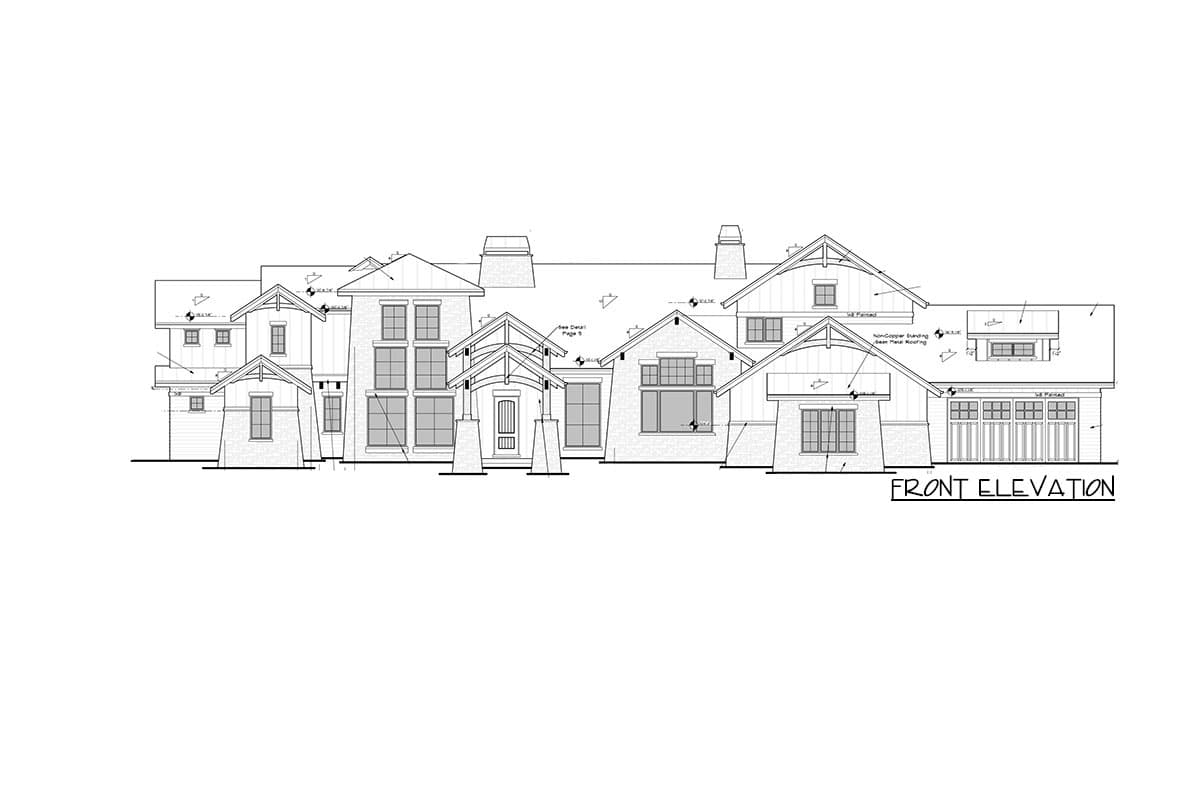

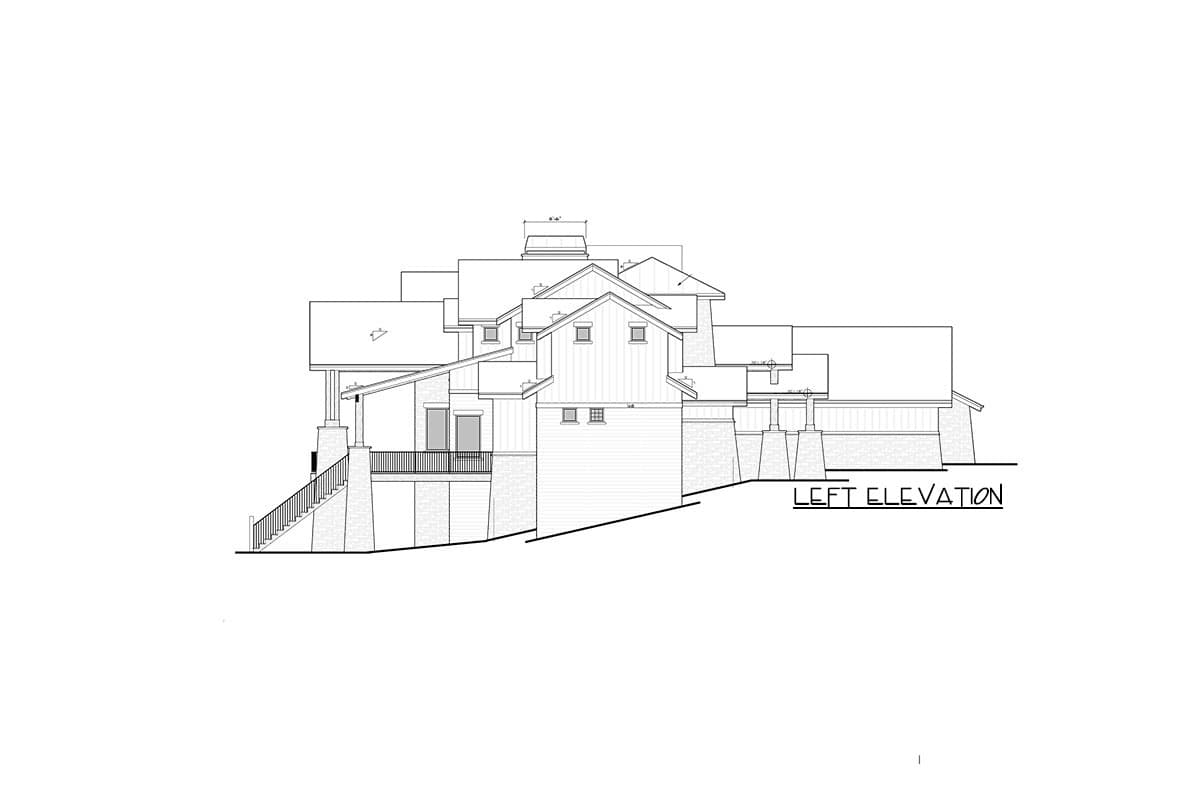

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

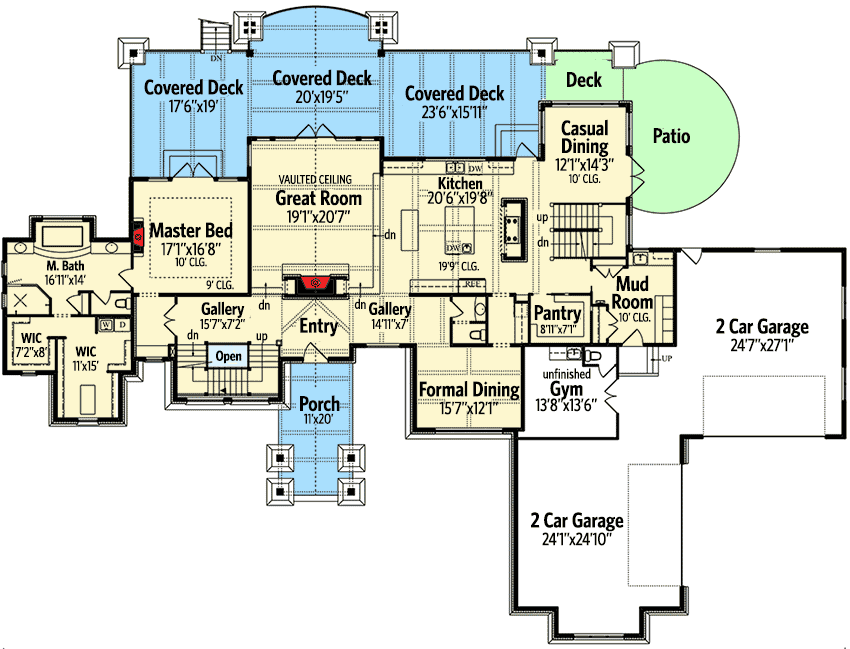

Grand Mountain Lodge - 4531 Sq Ft - Architectural Designs - 95029RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

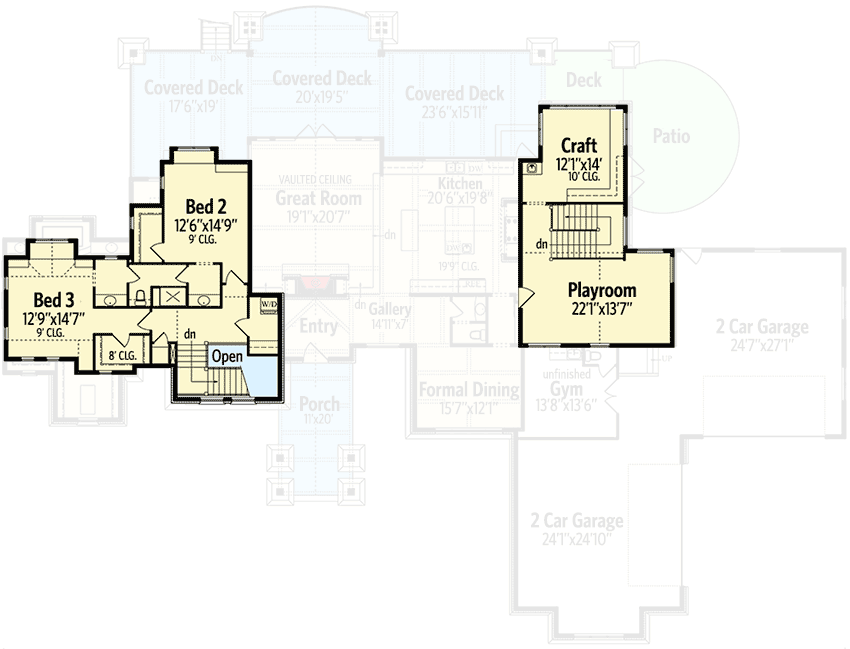

Grand Mountain Lodge - 4531 Sq Ft - Architectural Designs - 95029RW floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

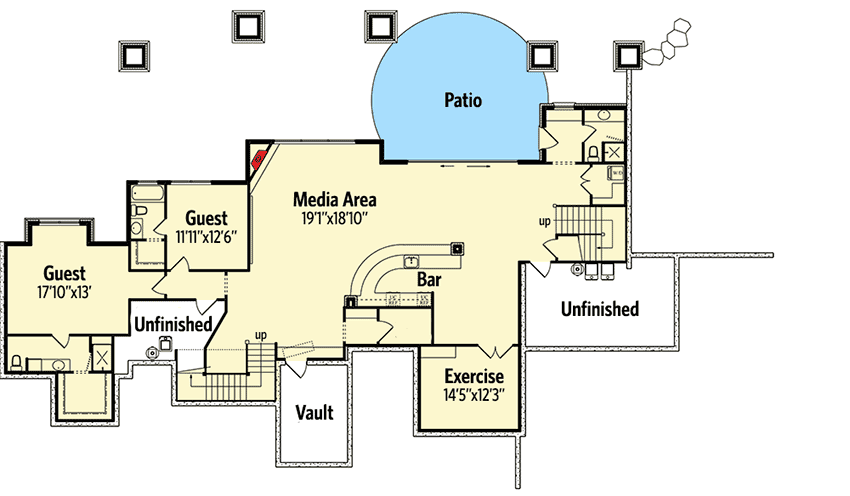

Grand Mountain Lodge - 4531 Sq Ft - Architectural Designs - 95029RW floor plan - Lower Level

Grand Mountain Lodge - 4531 Sq Ft - Architectural Designs

  • 4,531

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,531 sq. ft.
  • 1st Floor: 3,111 sq. ft.
  • 2nd Floor: 1,420 sq. ft.

Dimensions

  • Width: 124' 9"
  • Depth: 92' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1765 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 7' 0" First Floor / 11' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
