Plan 80636PM
Grand Wrap-Around Porch
Heated S.F.
1,781
Beds
3
Baths
1.5
Stories
2
What's Included
Plan Details

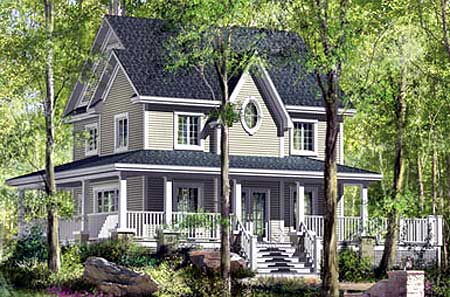

  • Several windows, decorative shutters and a large wrap-around porch enhance this magnificent two-story house plan.
  • The home is 33 feet wide by 32 feet deep and provides 1,781 square feet of living space.

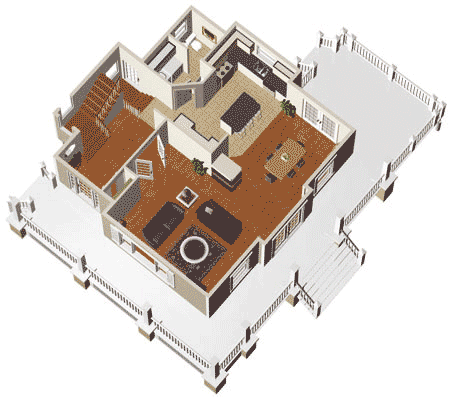

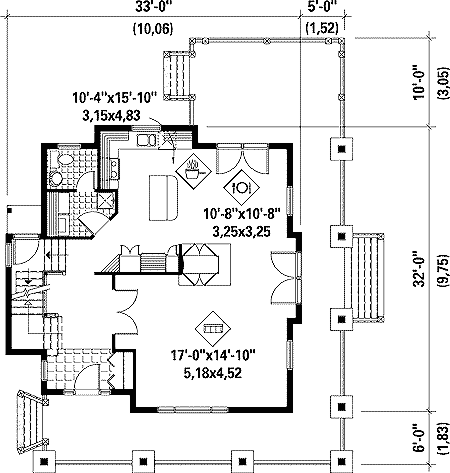

  • The ground floor covers 906 square feet and includes a powder room with a laundry area, a living room with a see through fireplace and a dining room, as well as a kitchen with an island.

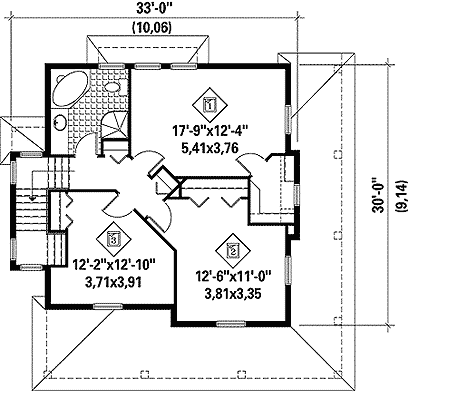

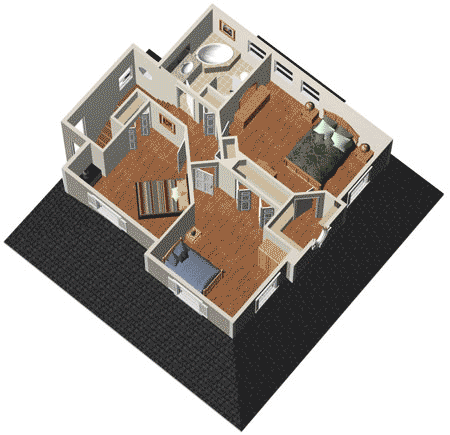

  • The second floor has an 875 square foot living area and includes three bedrooms and a large bathroom.
What's Included

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

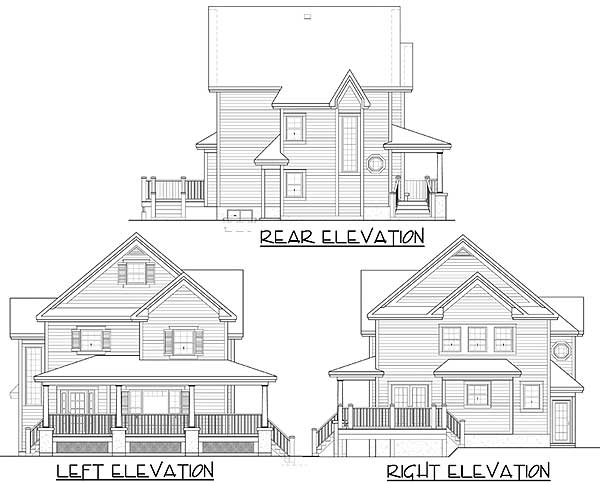

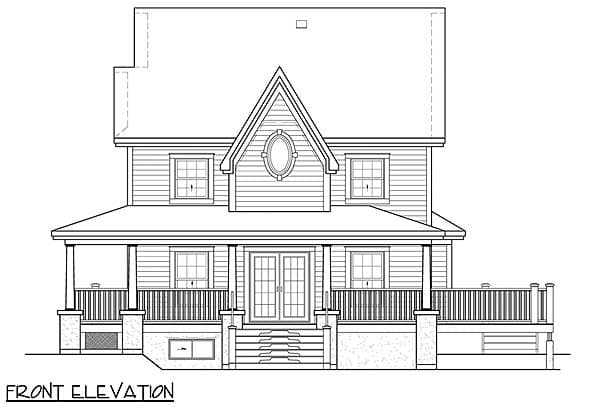

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Grand Wrap-Around Porch

  • 1,781

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • Main Level

  • 2nd Floor

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,781 sq. ft.
  • 1st Floor: 906 sq. ft.
  • 2nd Floor: 875 sq. ft.

Dimensions

  • Width: 33' 0"
  • Depth: 32' 0"
  • Max ridge height: 34' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
