Great Open Floor with Options

Plan 11704HZ

  • 1,500

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This country design has a wonderful open floor plan with everything a family needs to call this home. An added bonus - it comes in four sizes.
  • Enter into the large great room with built in shelves, a tray ceiling and a gas log fireplace.
  • The kitchen with eating bar is conveniently open to the dining area. The rear covered porch is steps away for outdoor dining and entertainment.
  • The master suite has partitioned his-and-hers closets and a master bath with dual sinks, private toilet and jetted tub and shower. Across the home, two more bedrooms share a common bath.
  • Related Plans: Gain a bonus room upstairs with house plan 11720HZ.
  • Need more space? See these larger versions in reverse layouts: 11706HZ (1,600 sq. ft.), 11708HZ (1,700 sq. ft.) and 11710HZ (2,400 sq. ft.).
  • For an alternate elevation, see house plan 11705HZ.

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

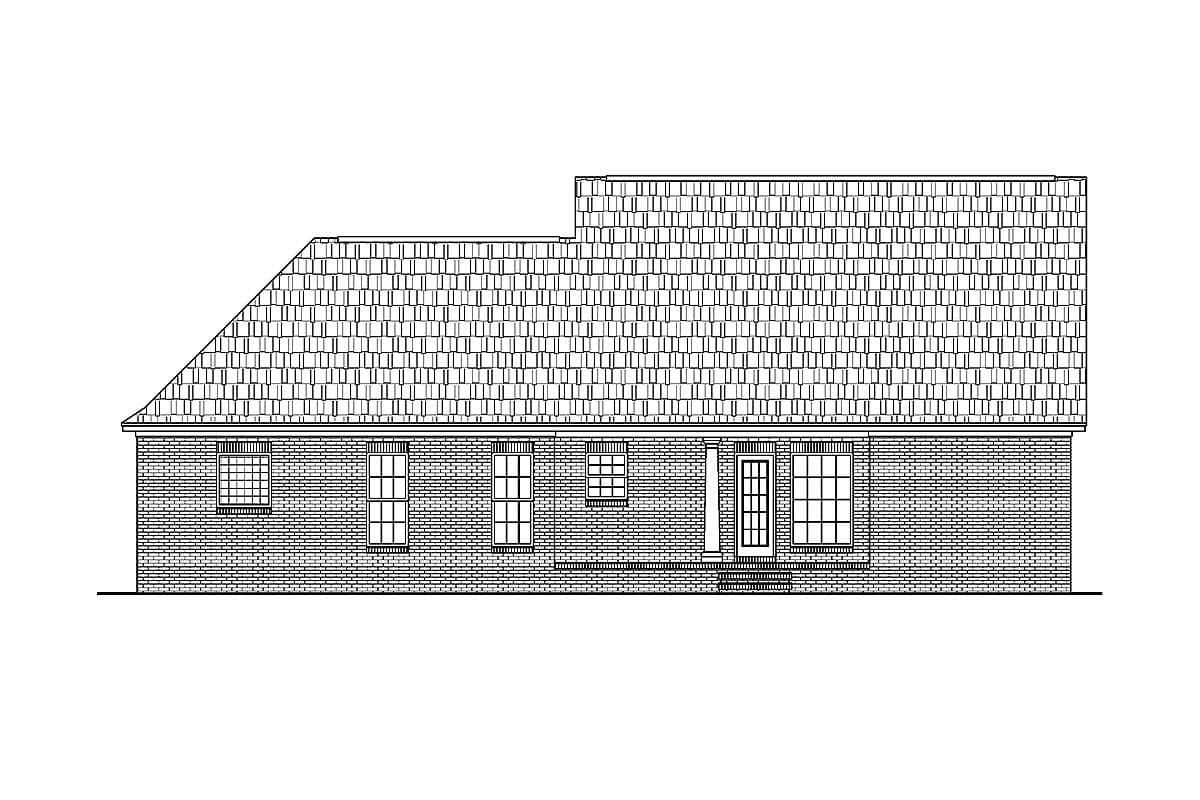

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

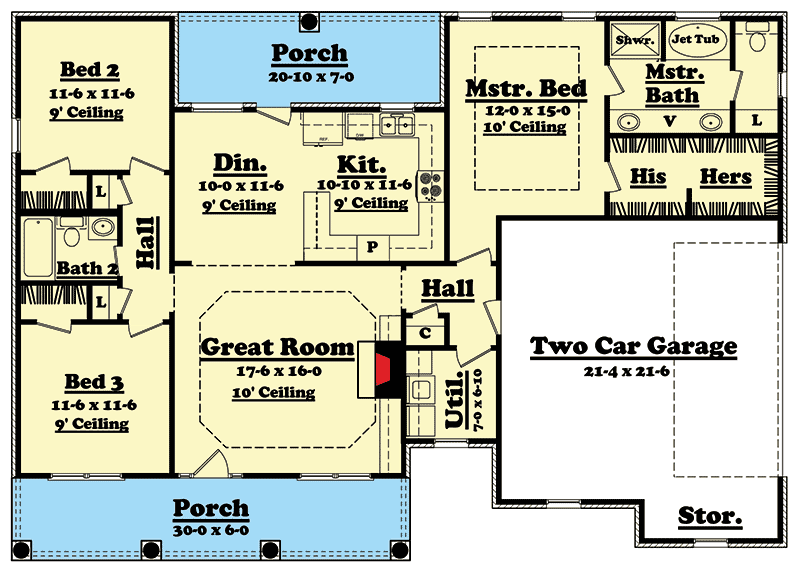

Great Open Floor with Options - 11704HZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

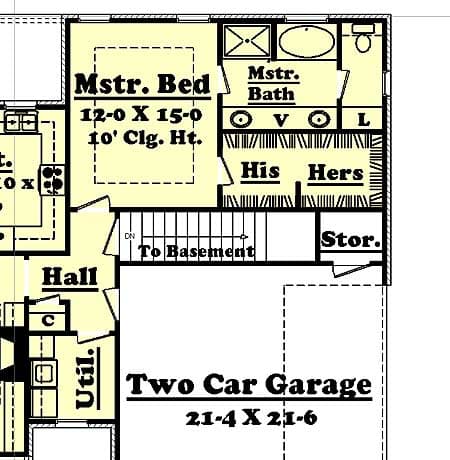

Great Open Floor with Options - 11704HZ floor plan - Optional

Great Open Floor with Options

  • 1,500

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 1,500 sq. ft.
  • 1st Floor: 1,500 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 41' 6"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 474 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
