Plan 42022MJ

Great Outdoor Living Space

Heated S.F.
3,736
Beds
4
Baths
4
Stories
1
Cars
3

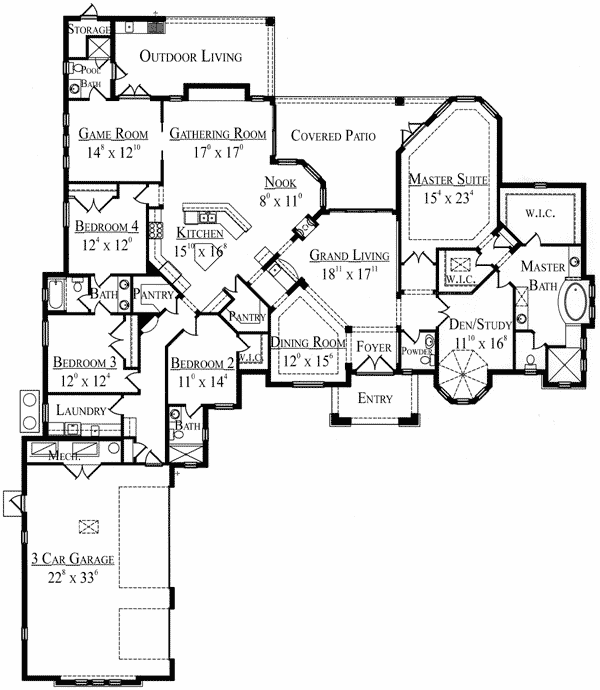

Floor Plan

Plan 42022MJ

Main Level
Main Level

Plan 42022MJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 42022MJ: Great Outdoor Living Space - Floor Plan - Main Level - European, Florida-Style, Mediterranean

Plan Details

  • Step inside and enjoy front-to-back views from the foyer. Ahead, the grand living room angles to the left along a long axis with even deeper sight lines.
  • A 2-sided fireplace separates the living rom from the nook.
  • The kitchen acts as a hub of activity and has counter seating for casual meals.
  • The den has a private entrance to the master bath and can be used as an extended master suite retreat area.
  • A spacious game room opens onto the outdoor living space.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,736 sq. ft.

1st Floor

3,736 sq. ft.

Entry

178 sq. ft.

Covered Patio

628 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

90' 8"

Depth

106' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

829 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Den

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,736 sq. ft.

1st Floor

3,736 sq. ft.

Entry

178 sq. ft.

Covered Patio

628 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

90' 8"

Depth

106' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

829 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Den

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Photo Gallery
