Plan 59445ND

Great Room with Unique Ceilings

1,780 3 2 1 2
Pageloader

Great Room with Unique Ceilings

Plan 59445ND

  • 1,780

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A covered entry porch sets the stage for elegance in this home.
  • Travel through the foyer, and enter a spacious great room with unique sloped ceilings, complete with built-in media center for hours of family entertainment.
  • Take advantage of the distinguished dining and hearth room with a lovely fireplace.
  • Continue entertaining on your covered rear porch over conversation and a breath-taking view.
  • For an alternate Craftsman exterior, see house plan 59767ND.
  • See these related house plans: 59444ND and 5964ND (both brick exteriors) and 59446ND (wood siding exterior).

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

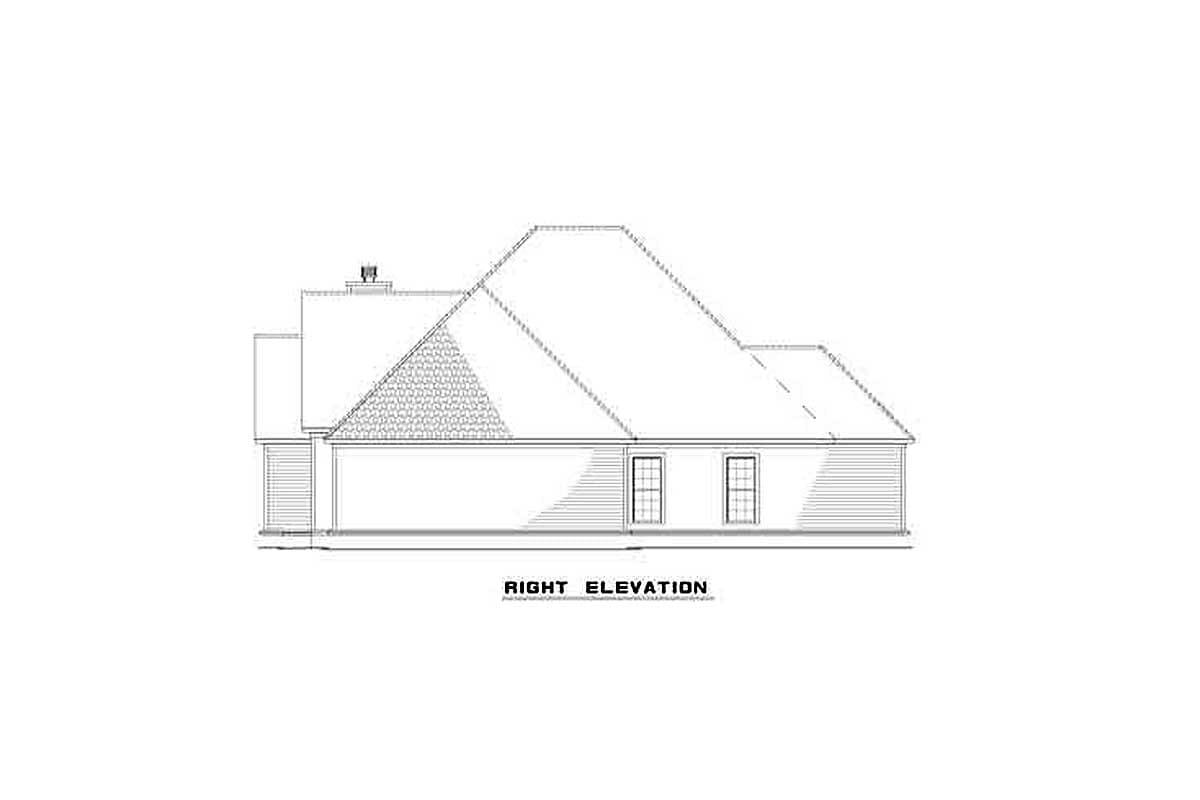

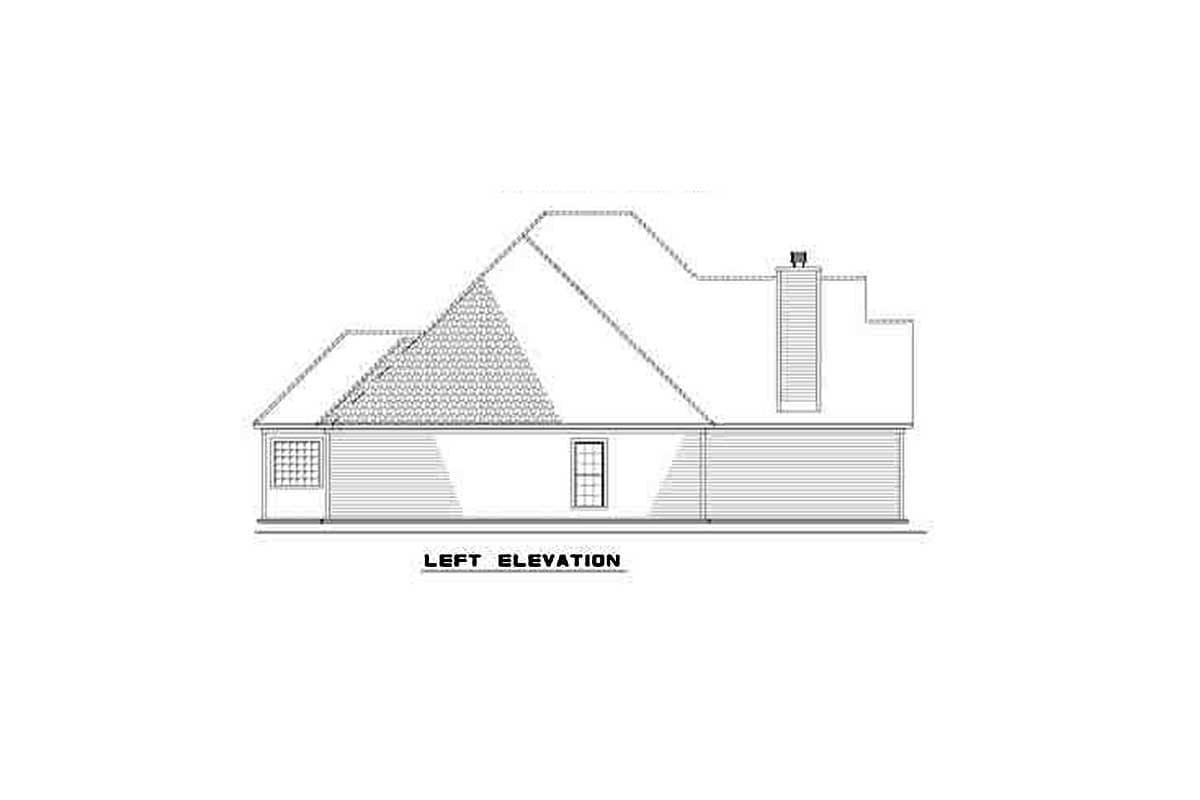

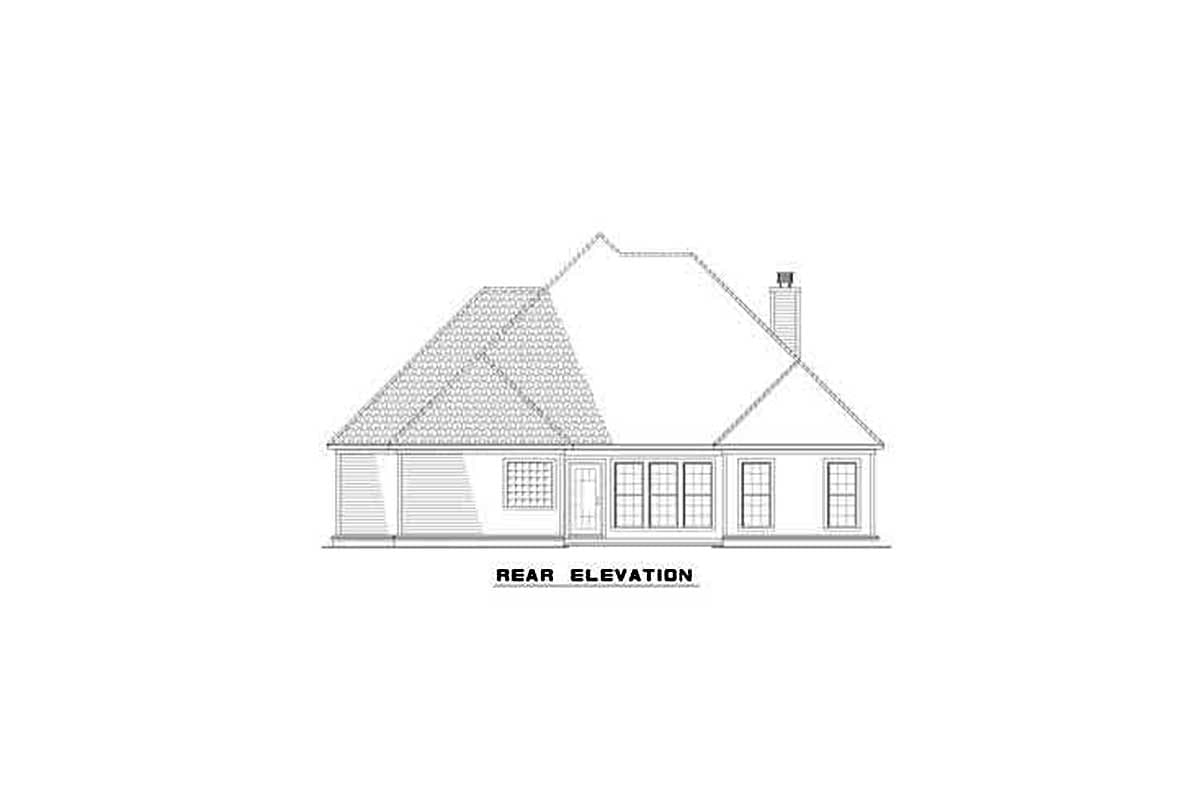

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style



Great Room with Unique Ceilings

  • 1,780

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $580
  • PDF - single-use $580
  • 1 Set $610
  • 5 Sets $680
  • CAD $1,885
  • View all purchase option online

About This Plan

  • A covered entry porch sets the stage for elegance in this home.
  • Travel through the foyer, and enter a spacious great room with unique sloped ceilings, complete with built-in media center for hours of family entertainment.
  • Take advantage of the distinguished dining and hearth room with a lovely fireplace.
  • Continue entertaining on your covered rear porch over conversation and a breath-taking view.
  • For an alternate Craftsman exterior, see house plan 59767ND.
  • See these related house plans: 59444ND and 5964ND (both brick exteriors) and 59446ND (wood siding exterior).

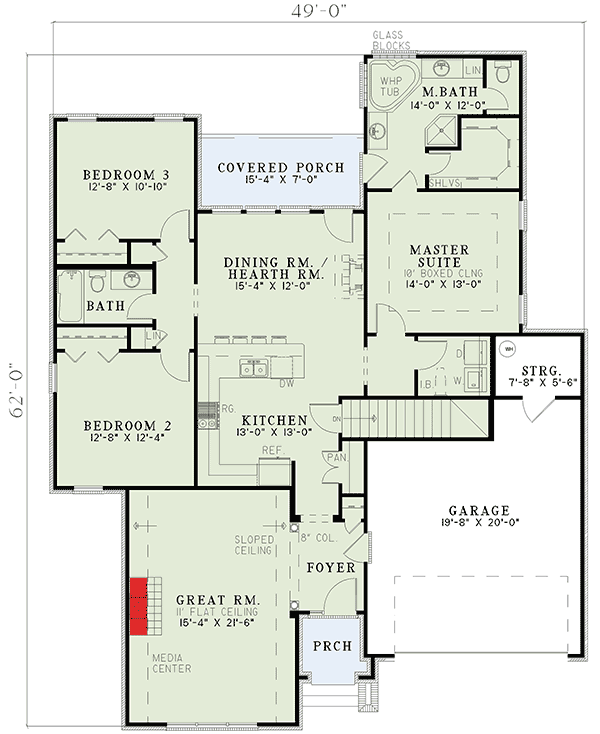

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,780 sq. ft.
  • 1st Floor: 1,780 sq. ft.
  • Porch, Combined: 203 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 62' 0"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
