Plan 430032LY

Hill Country Home Plan with Game Room

Heated S.F.
3,742
Beds
3
Baths
2.5+
Stories
1-2
Cars
3

Floor Plan

Plan 430032LY

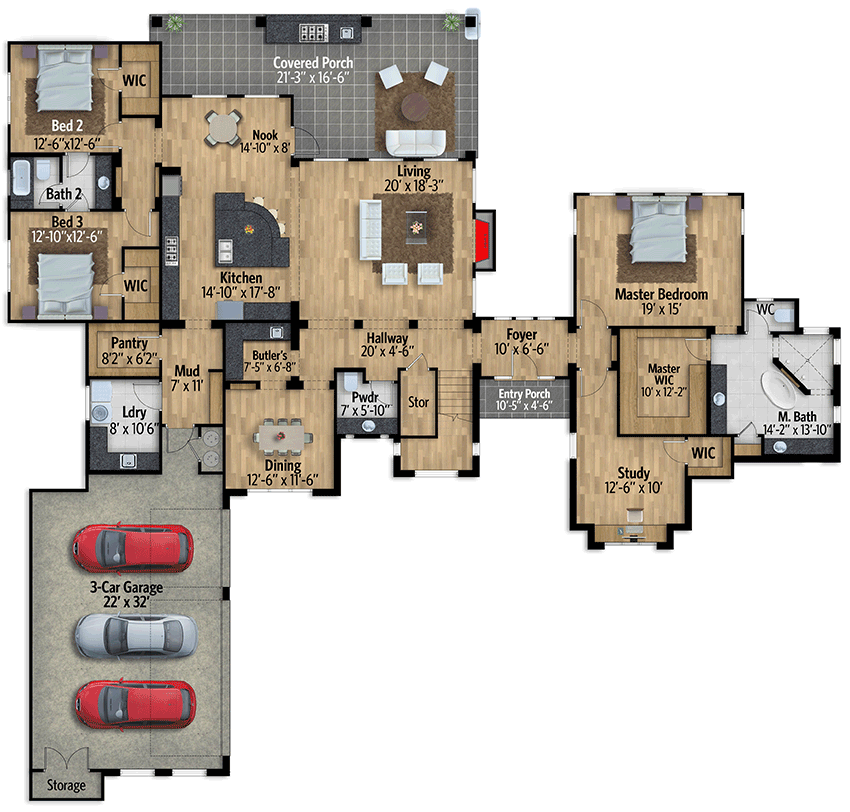

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430032LY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 430032LY: Hill Country Home Plan with Game Room - Floor Plan - Main Level - Hill Country, Mediterranean, Tuscan

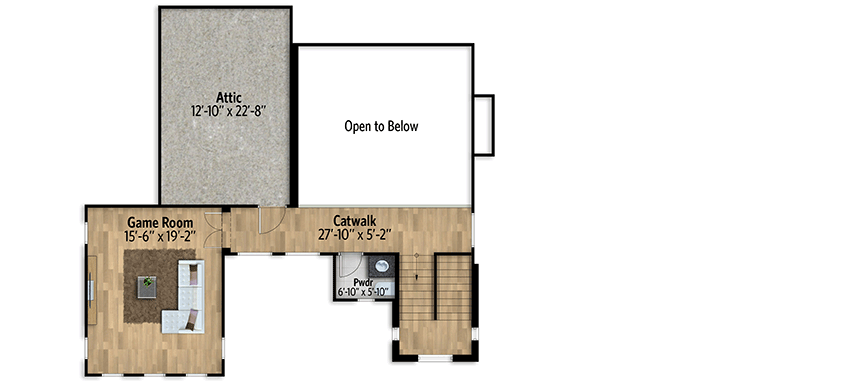

2nd Floor

Plan 430032LY: Hill Country Home Plan with Game Room - Floor Plan - 2nd Floor - Hill Country, Mediterranean, Tuscan

Plan Details

  • This very special Hill Country house plan is exclusive to Architectural Designs and is loaded with features your family will love.

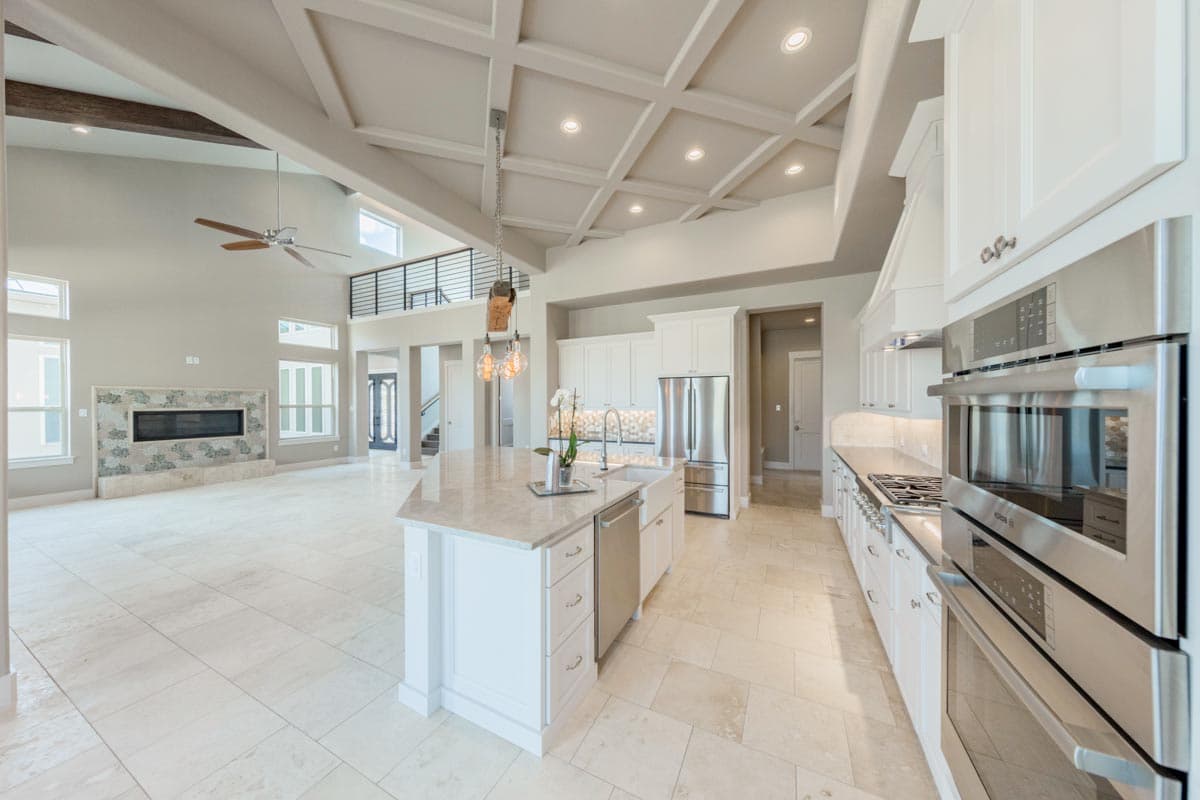

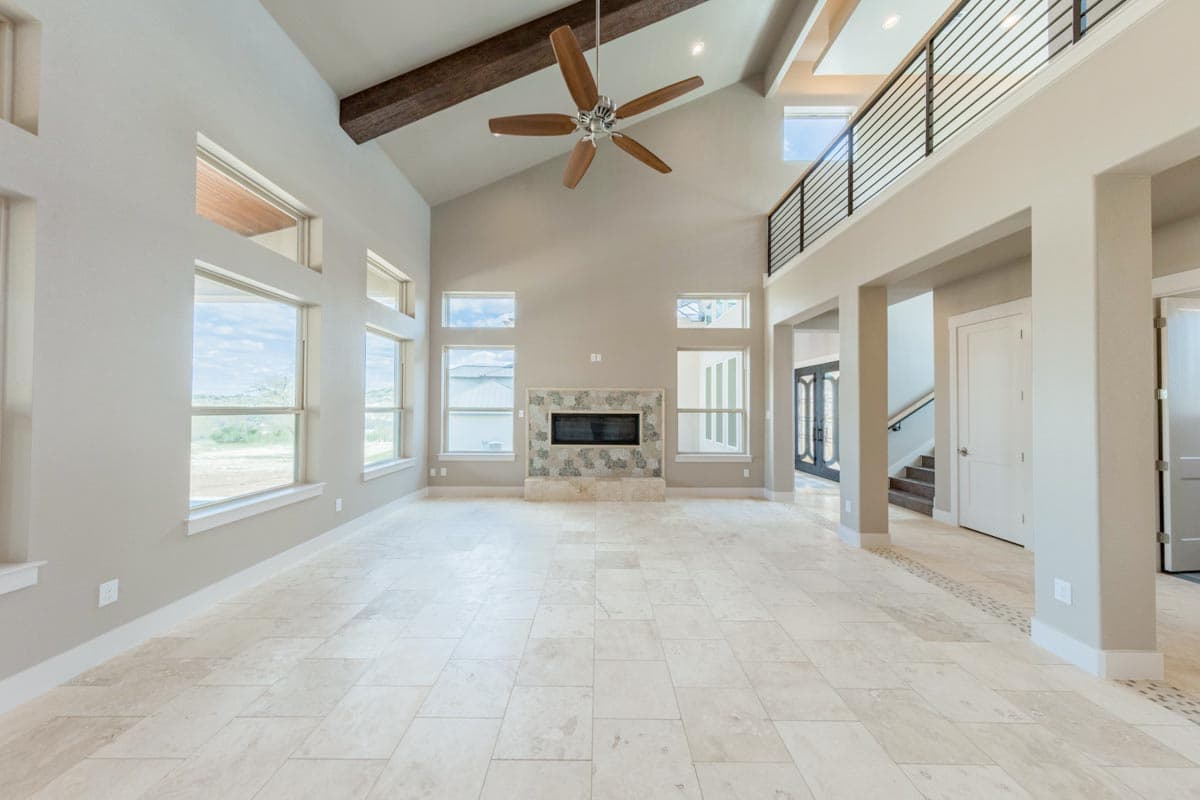

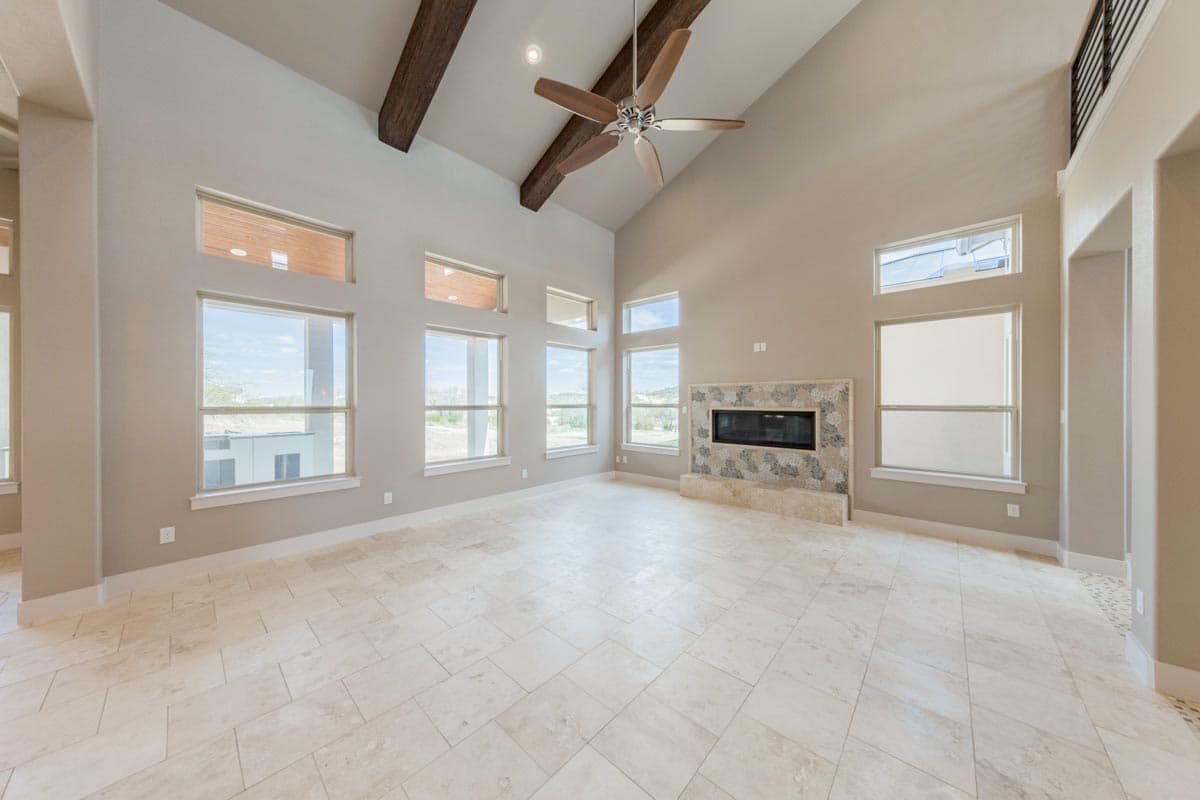

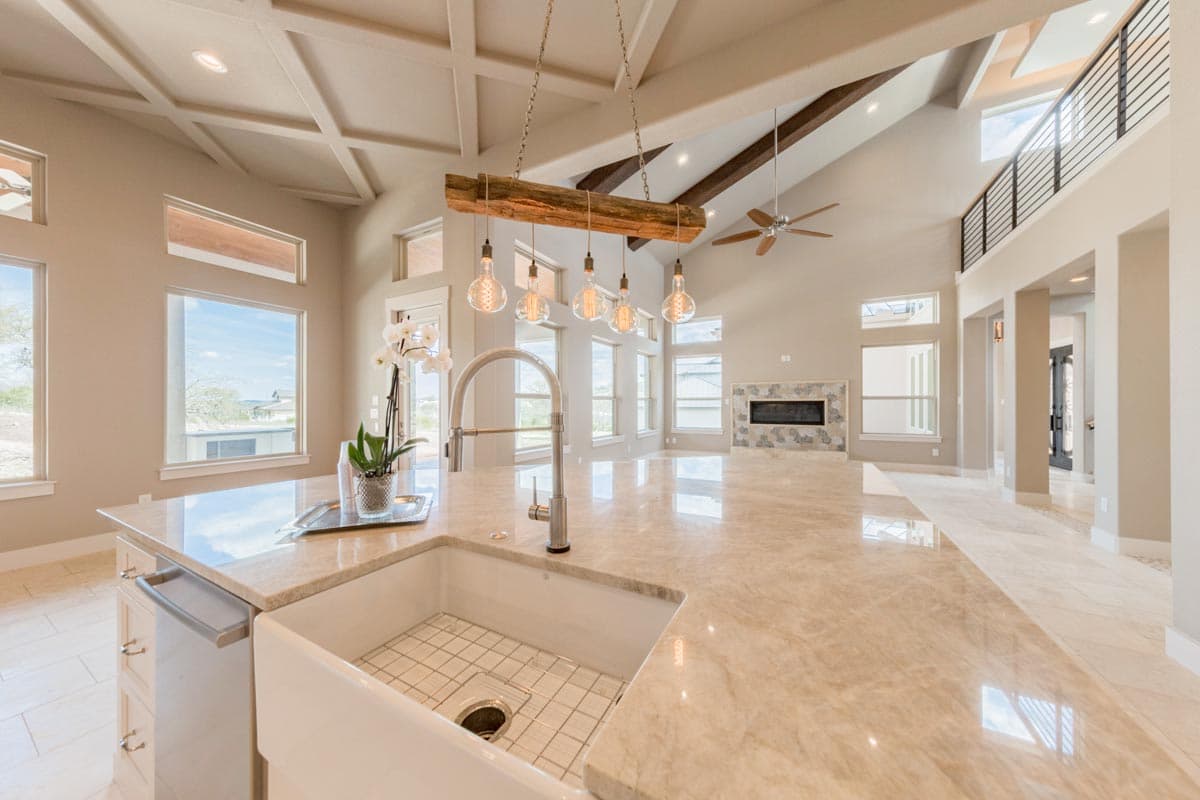

  • The big, open floor plan showcases lots of glass that brings in the outdoors.

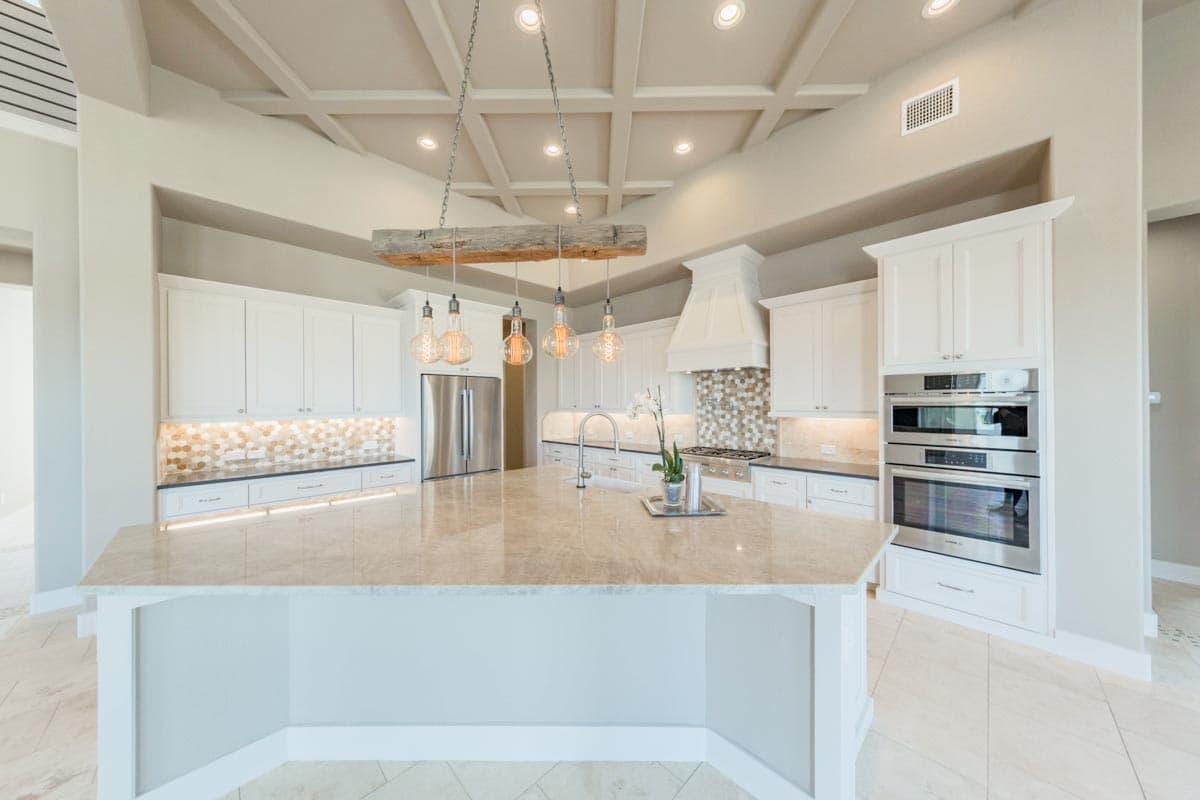

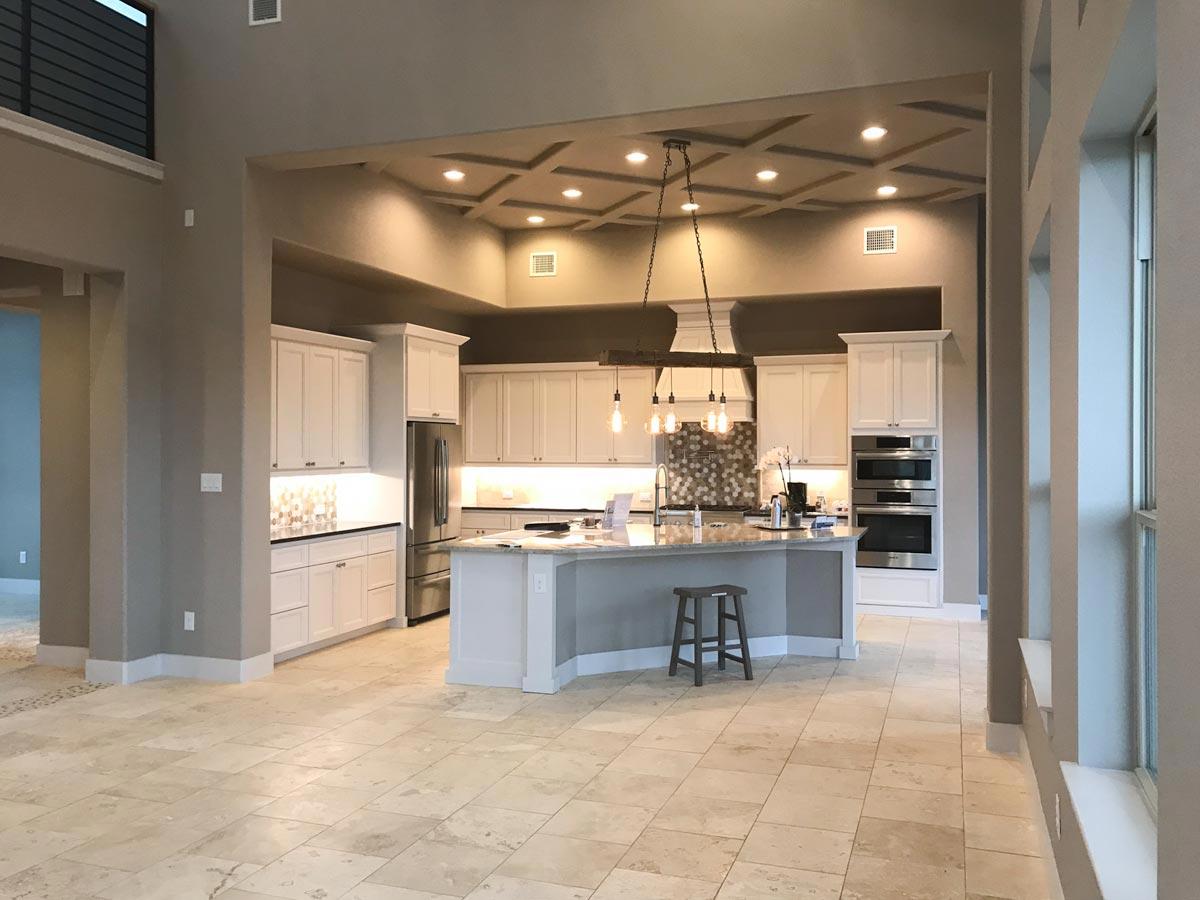

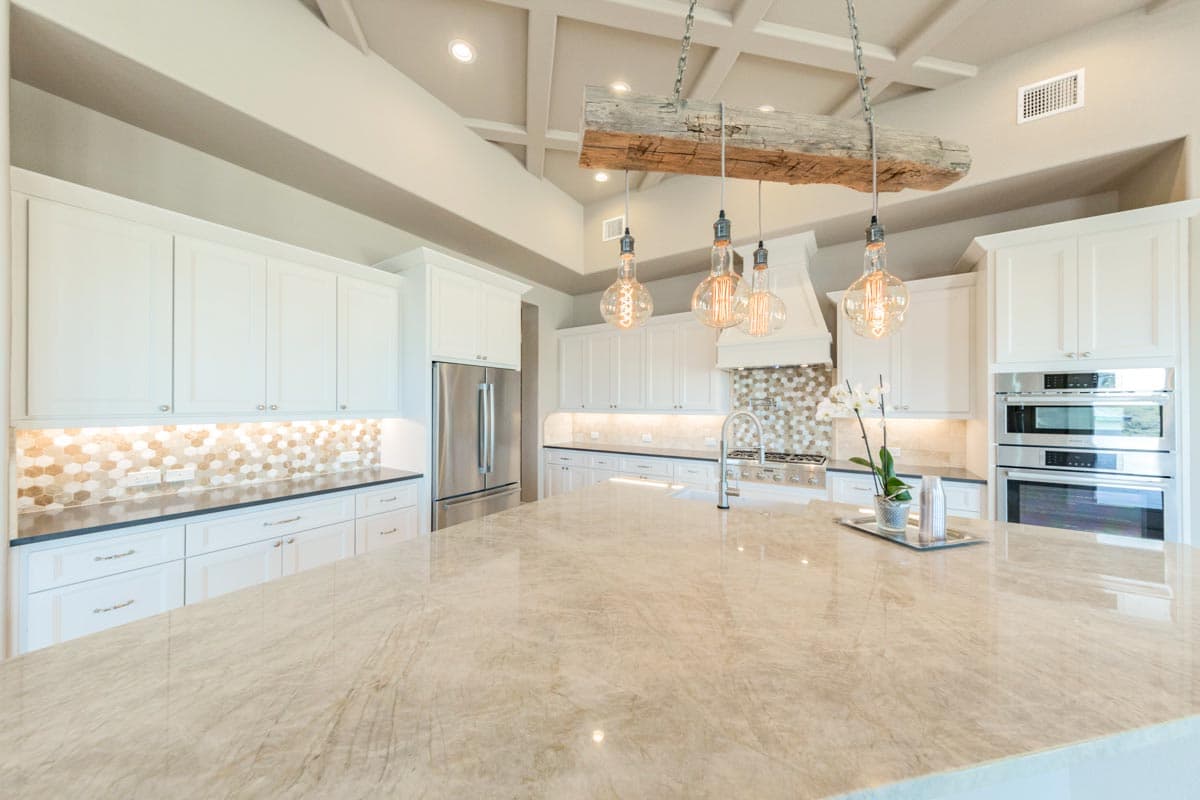

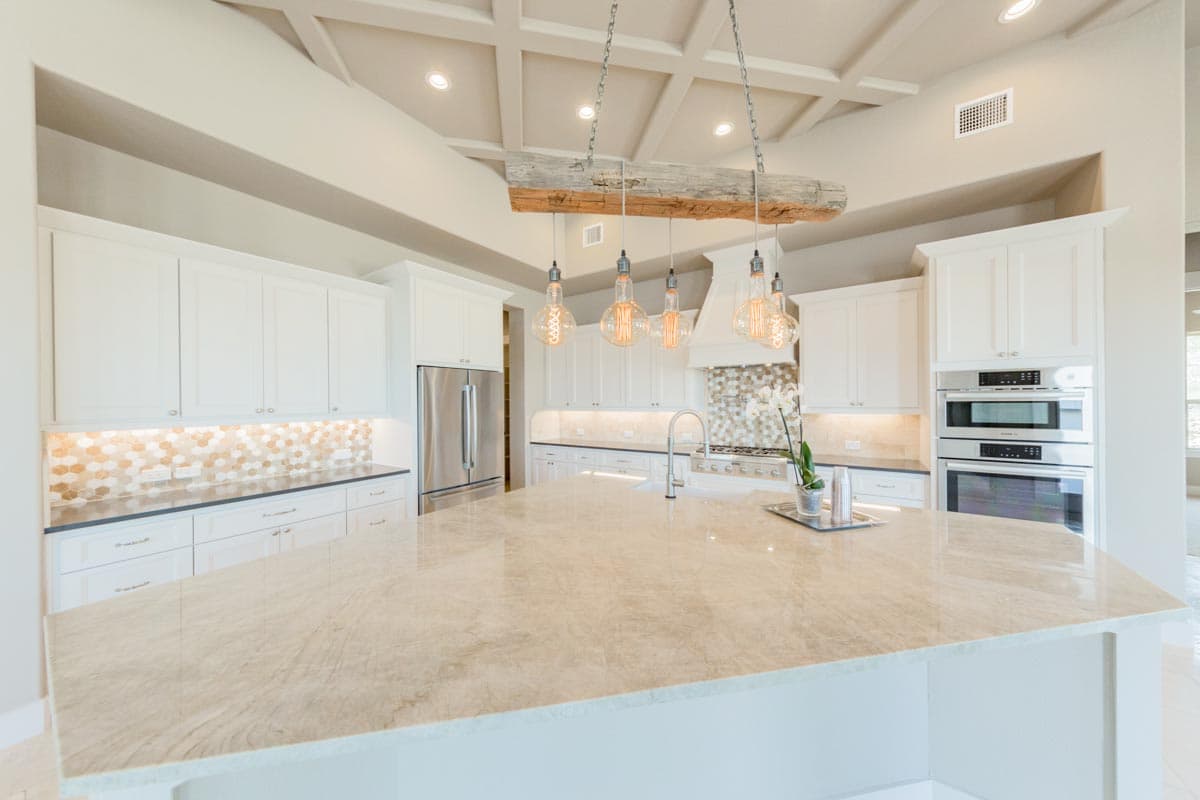

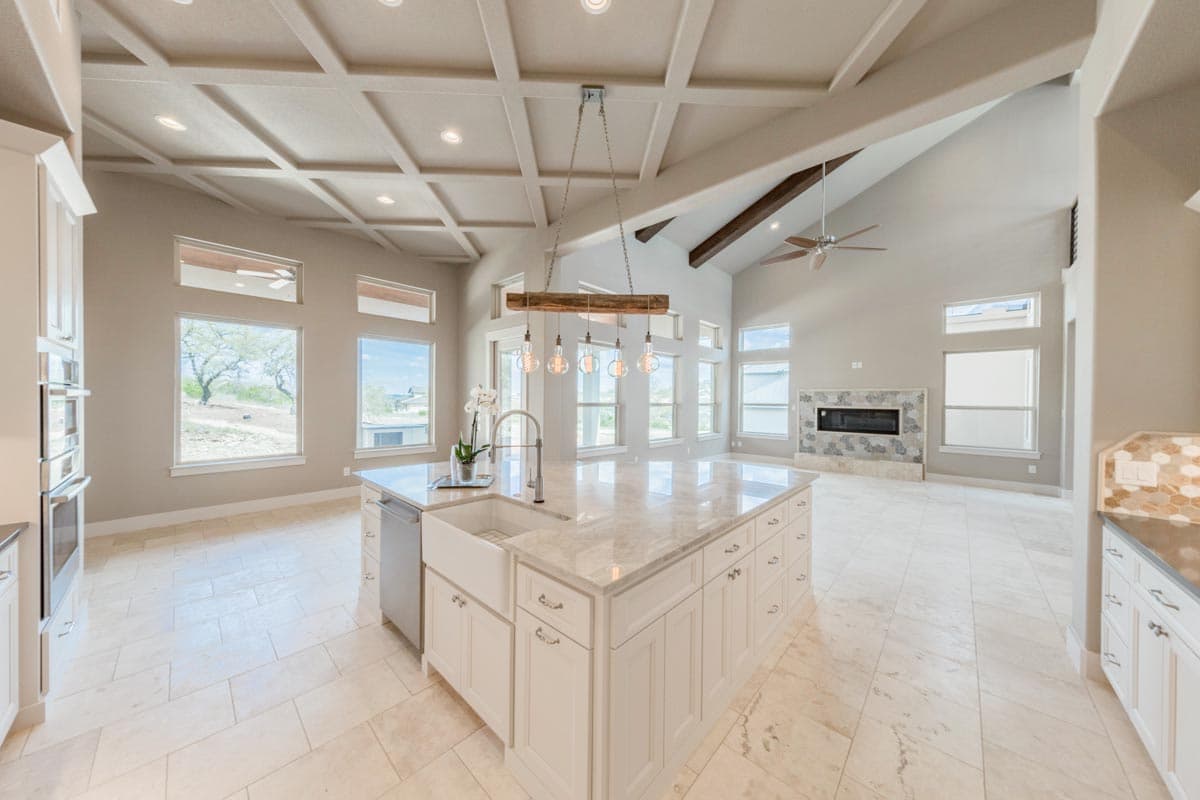

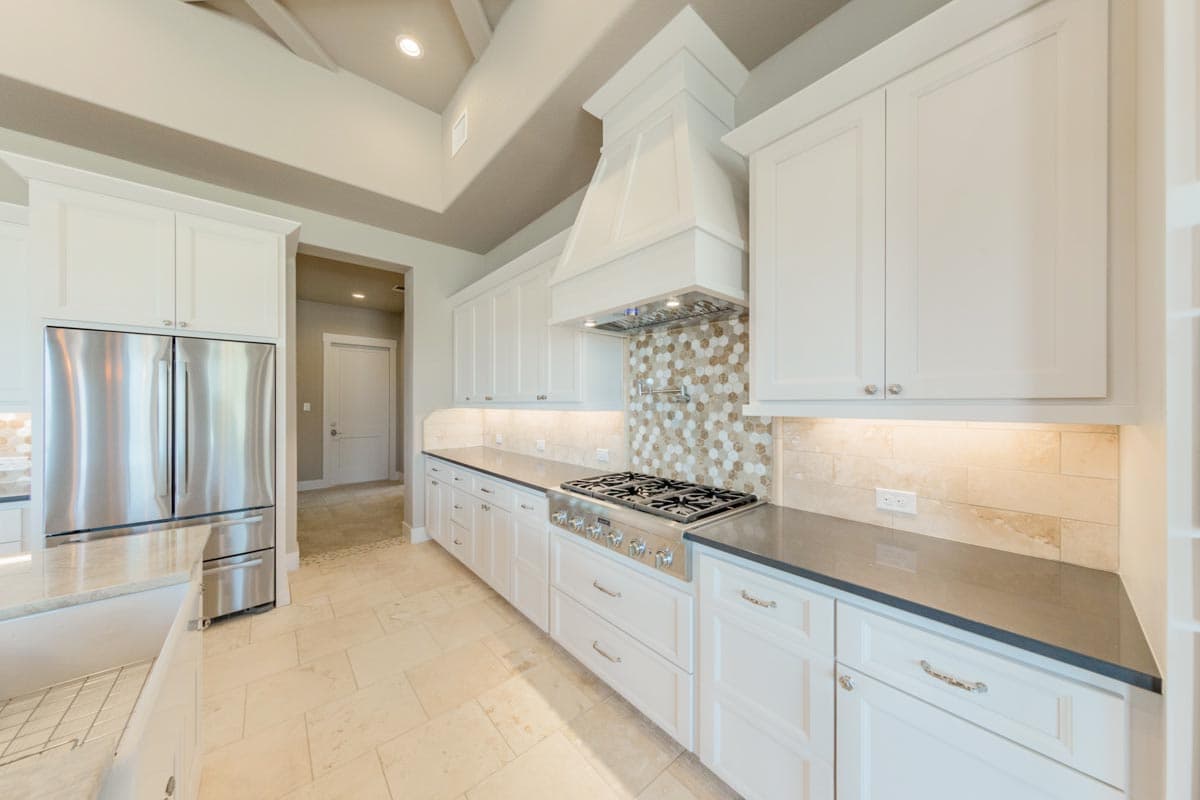

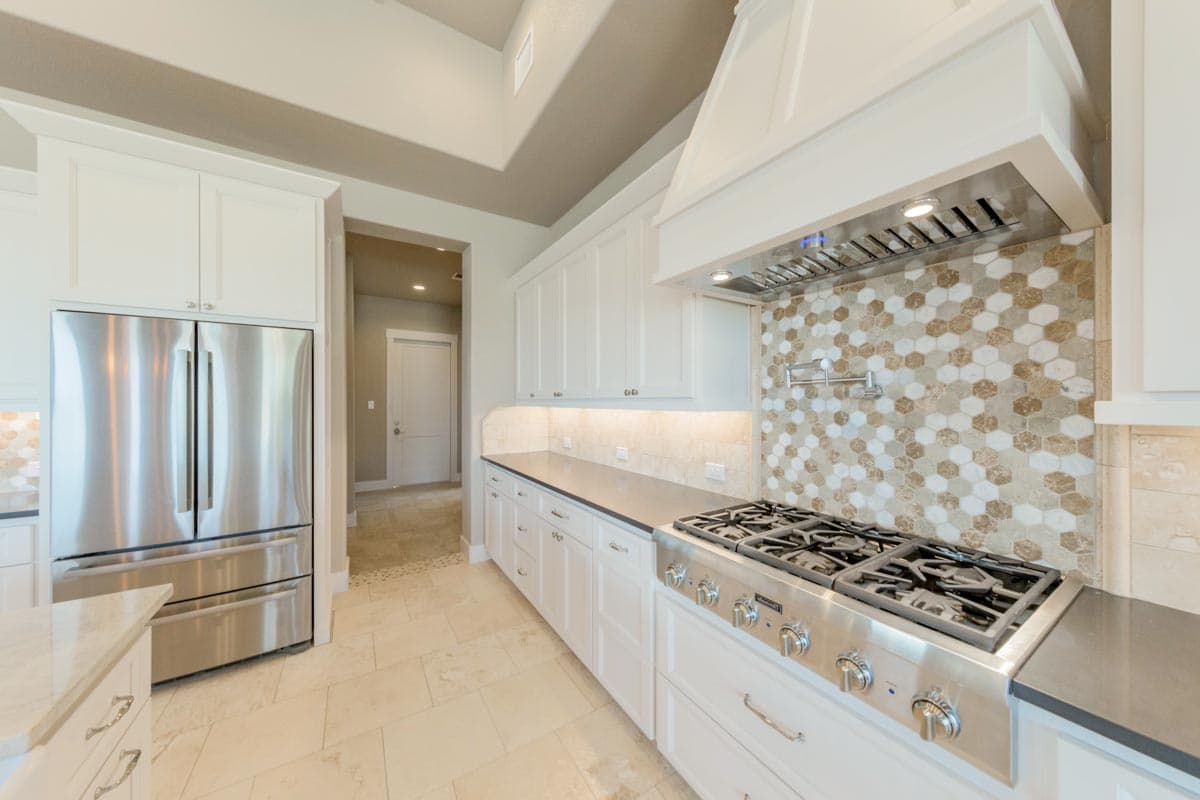

  • The kitchen island has a unique shape and room for three stools for a quick snack.

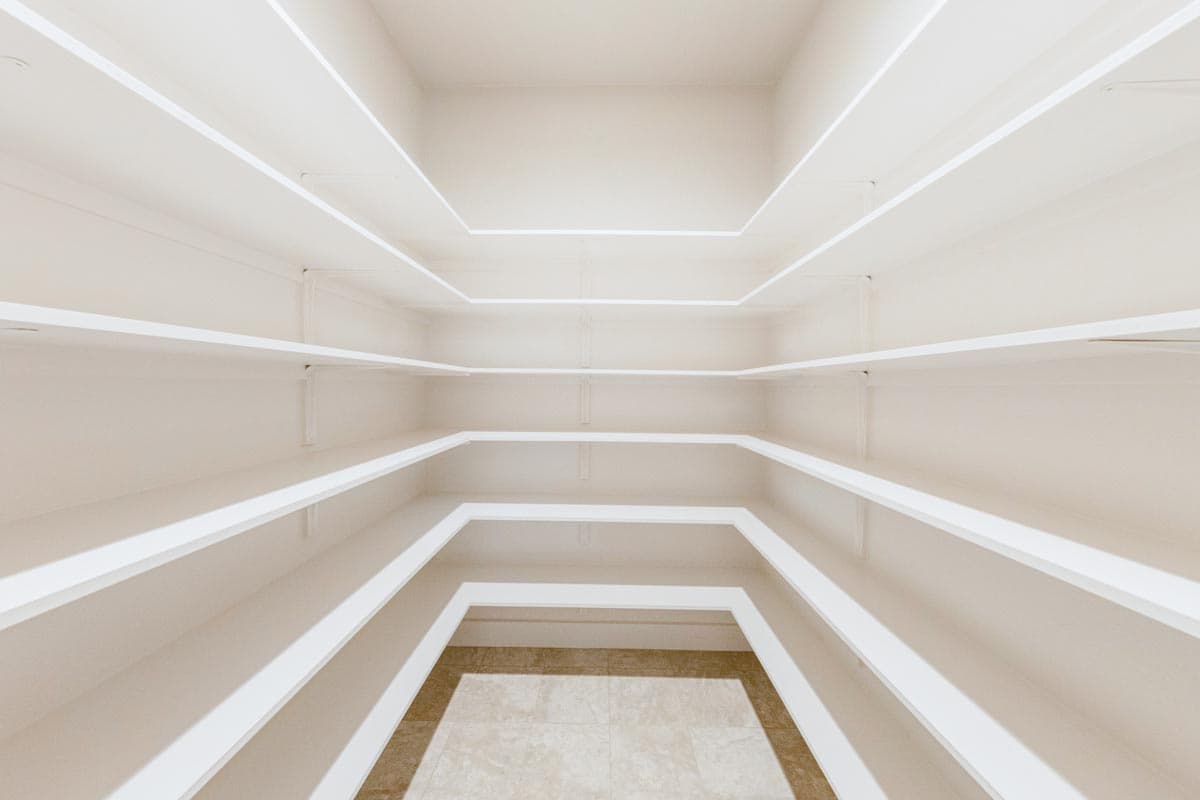

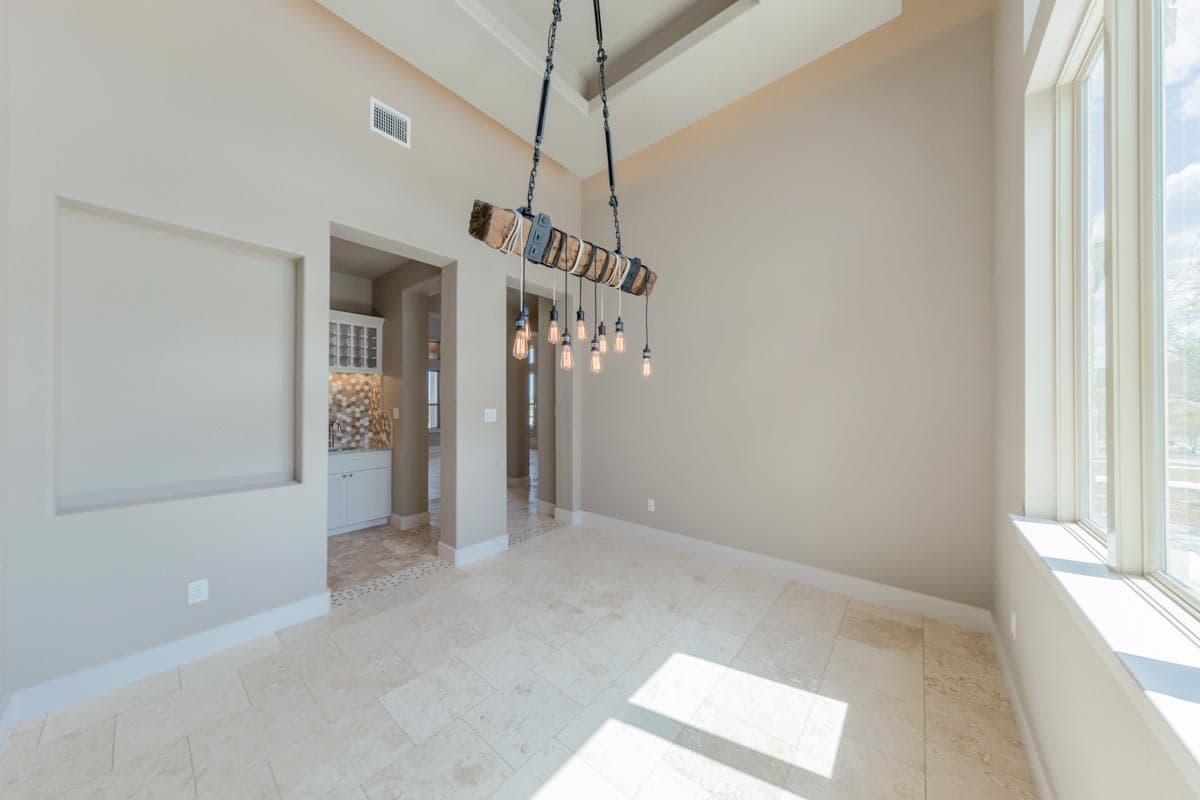

  • Get both a walk-in food pantry and a butler's pantry with wet bar off the dining room.

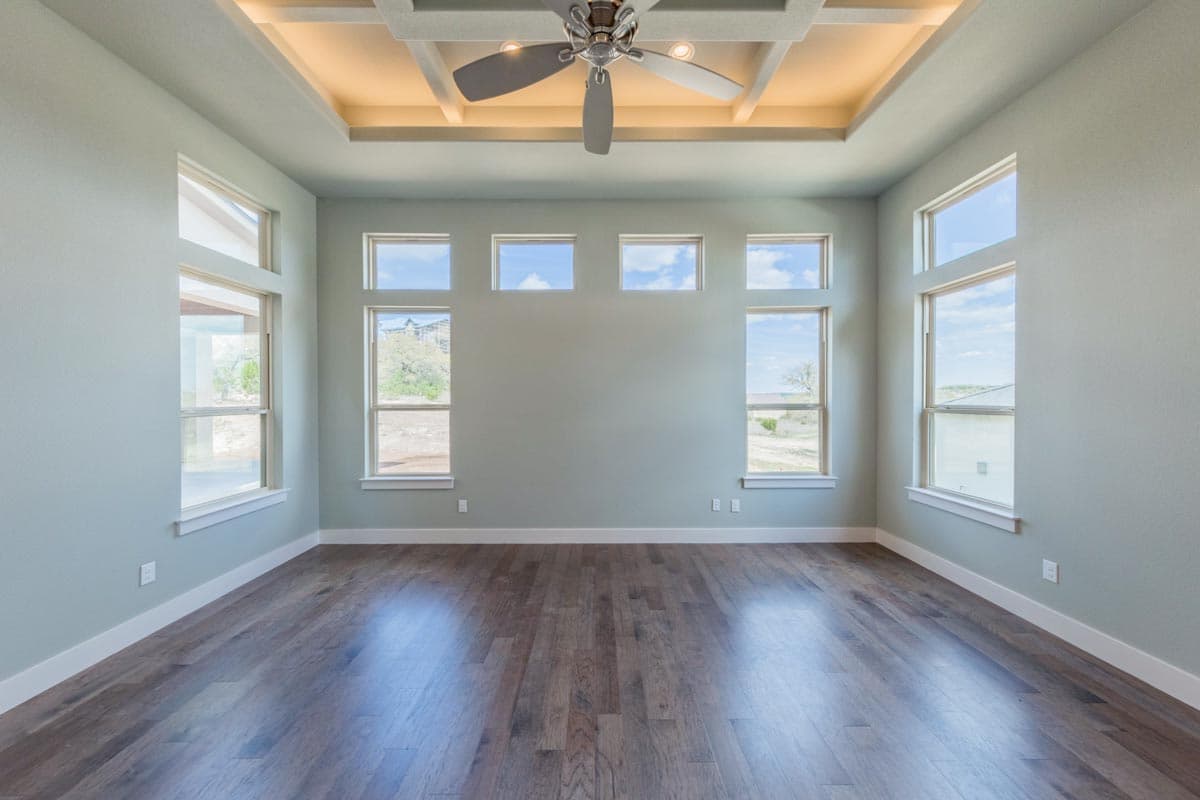

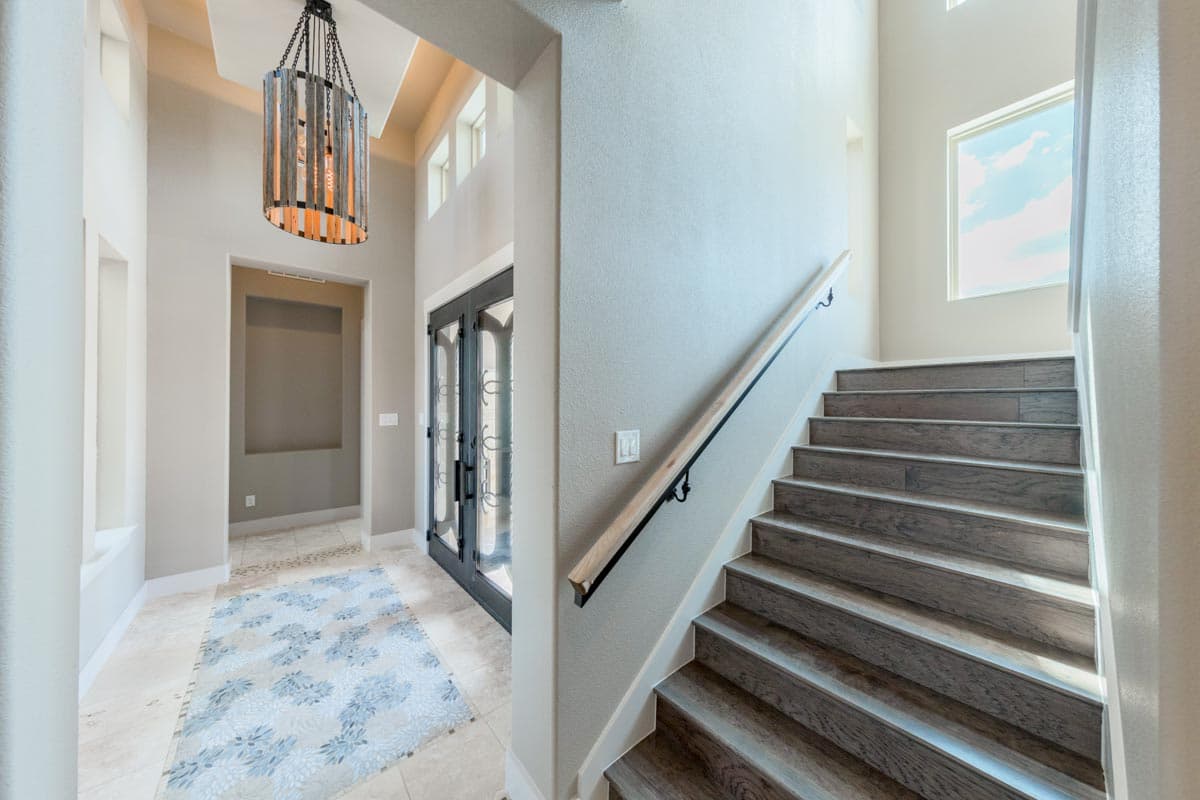

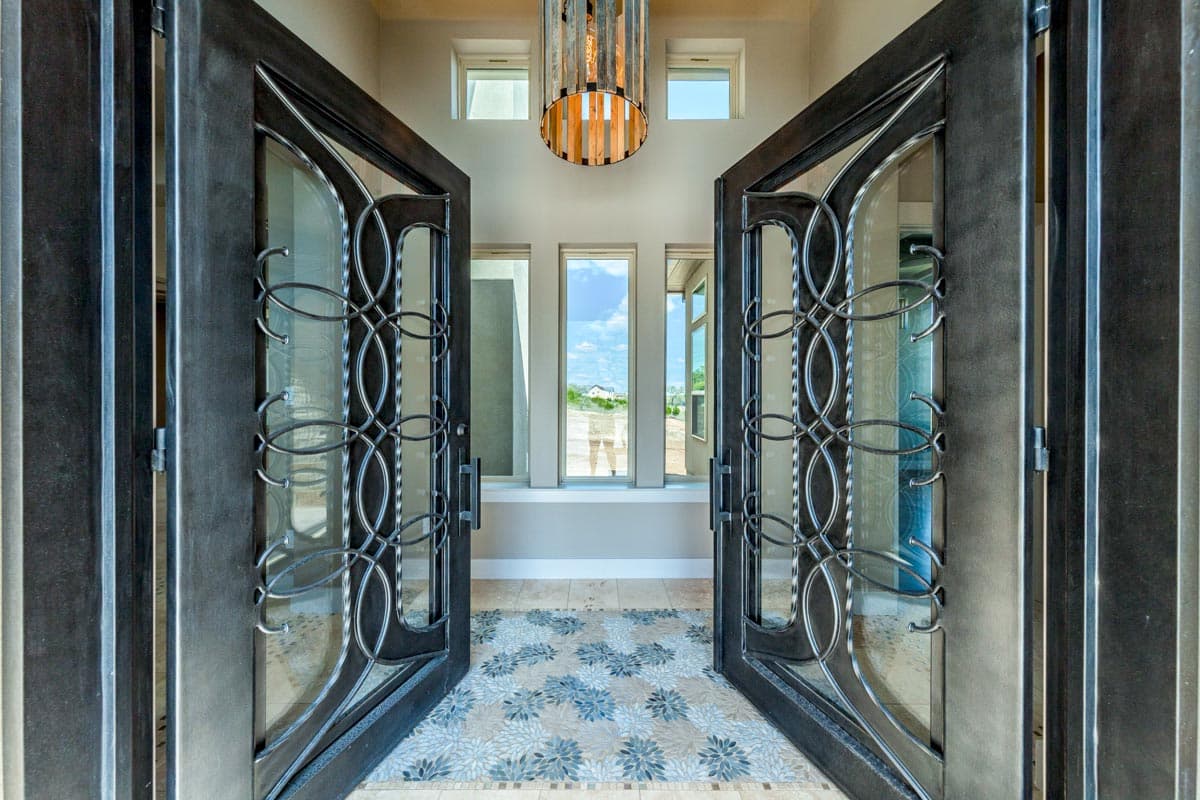

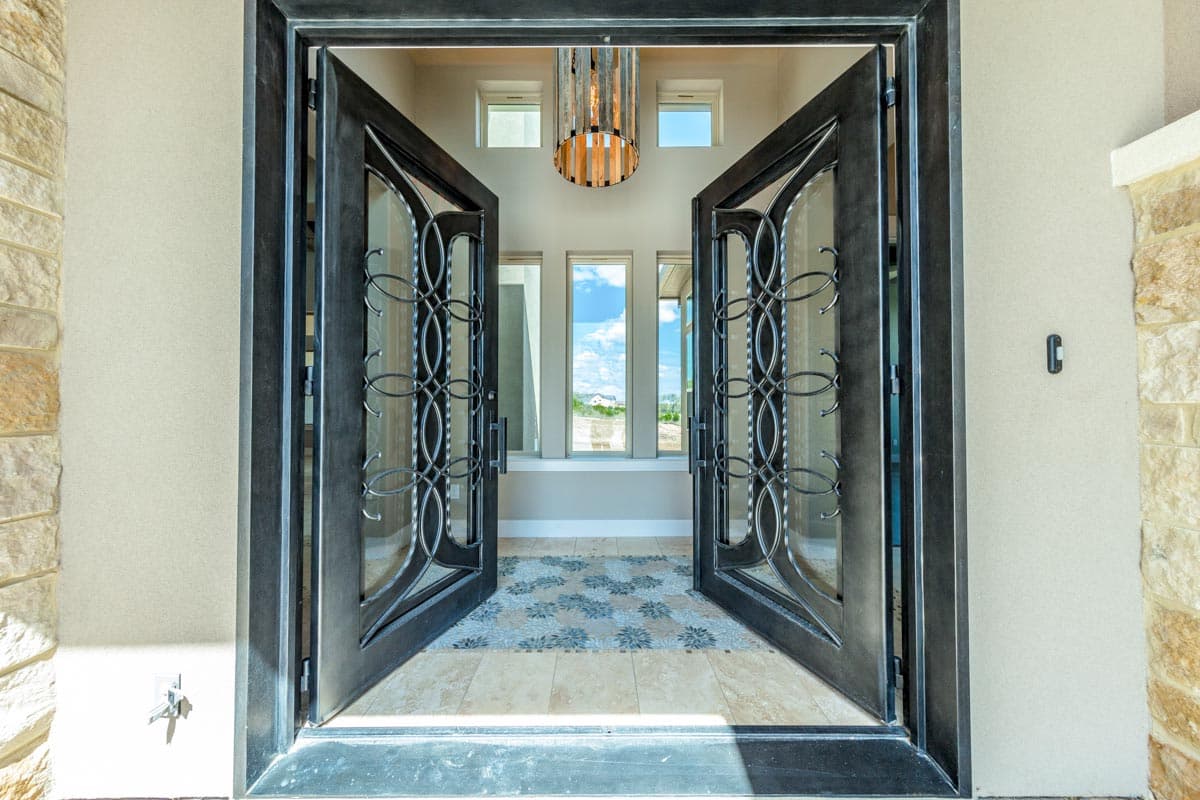

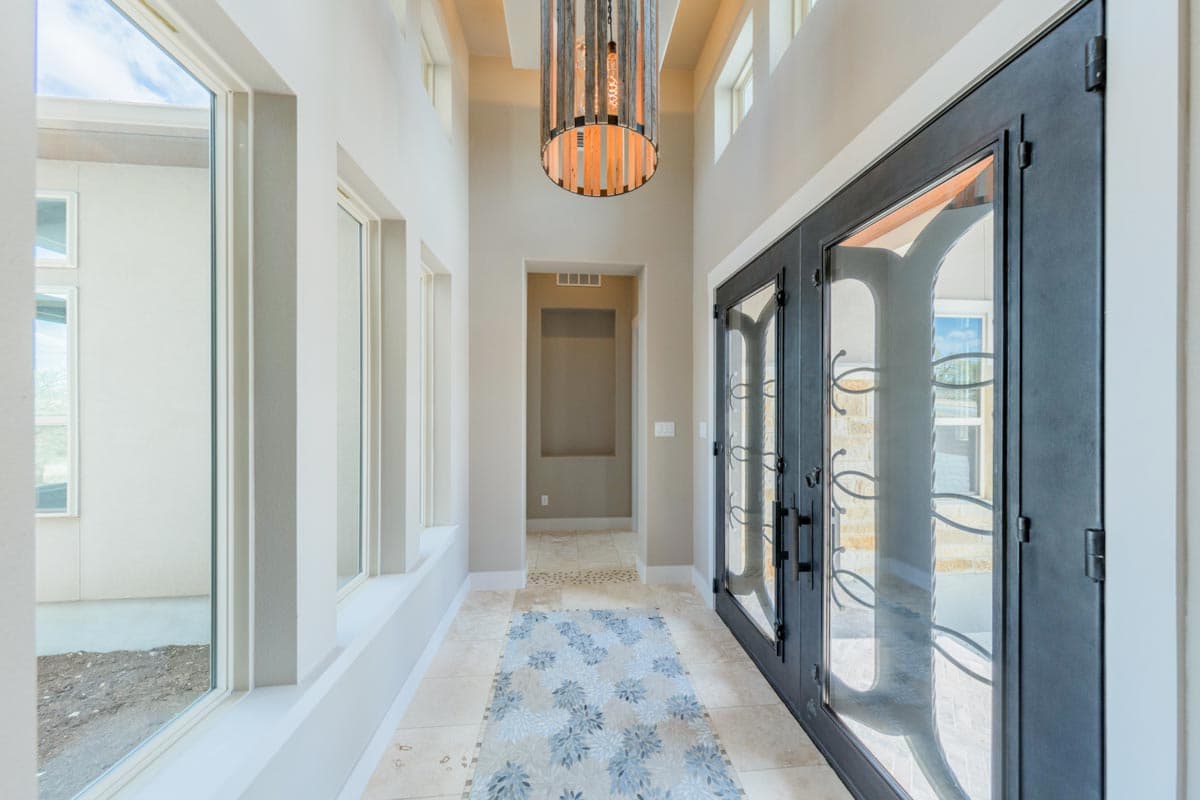

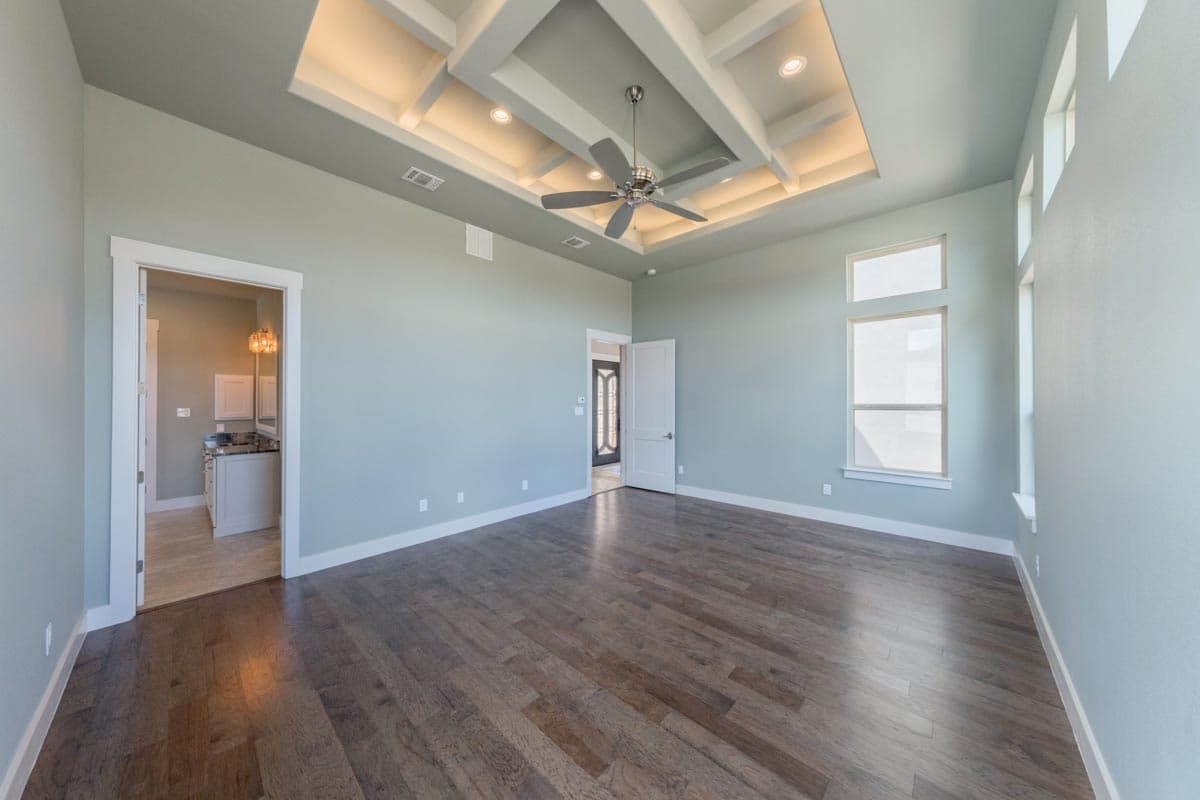

  • The foyer provides separation for the master suite and study so you get a secluded retreat.
  • Use the study as a master sitting room if desired.

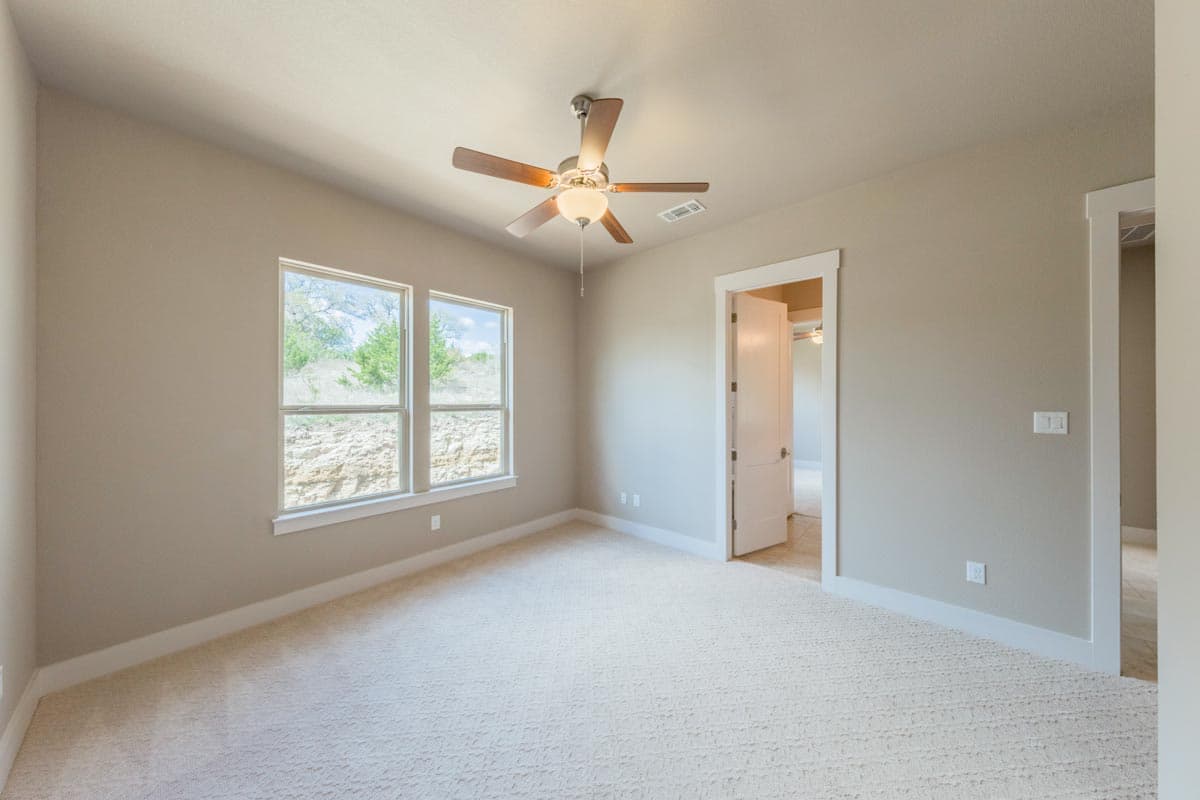

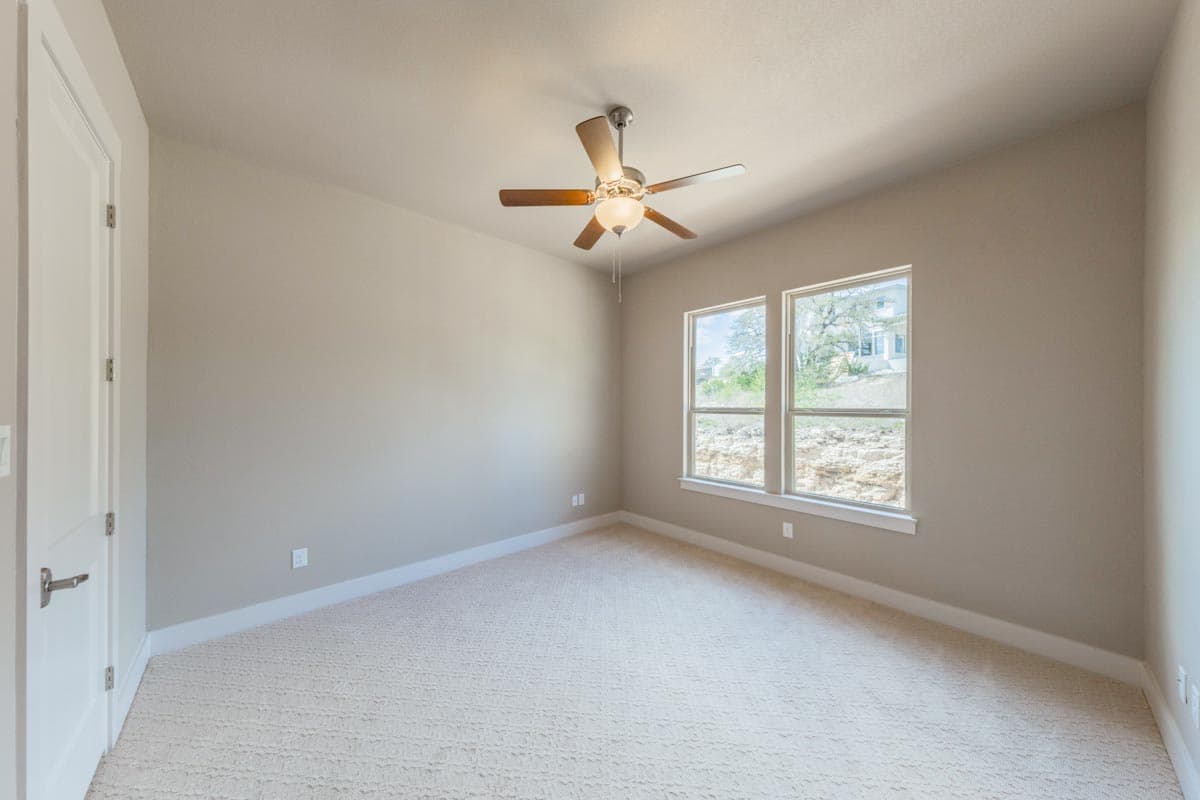

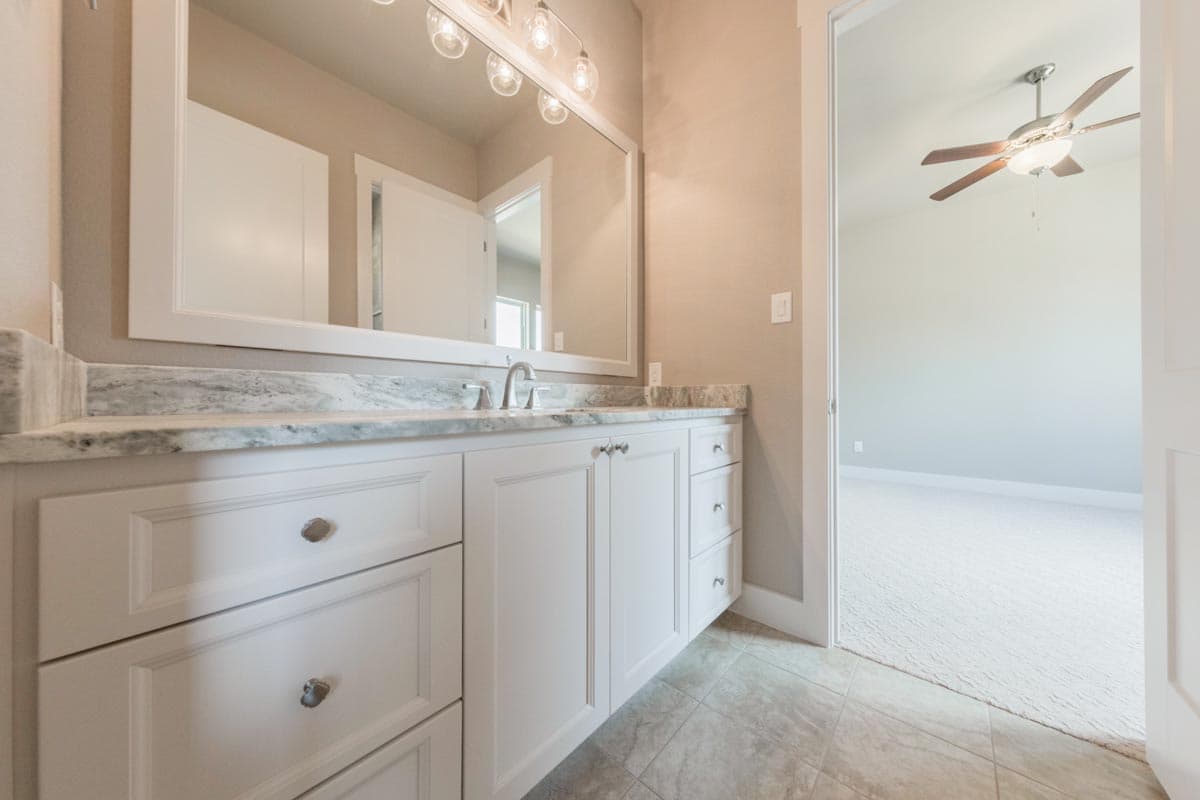

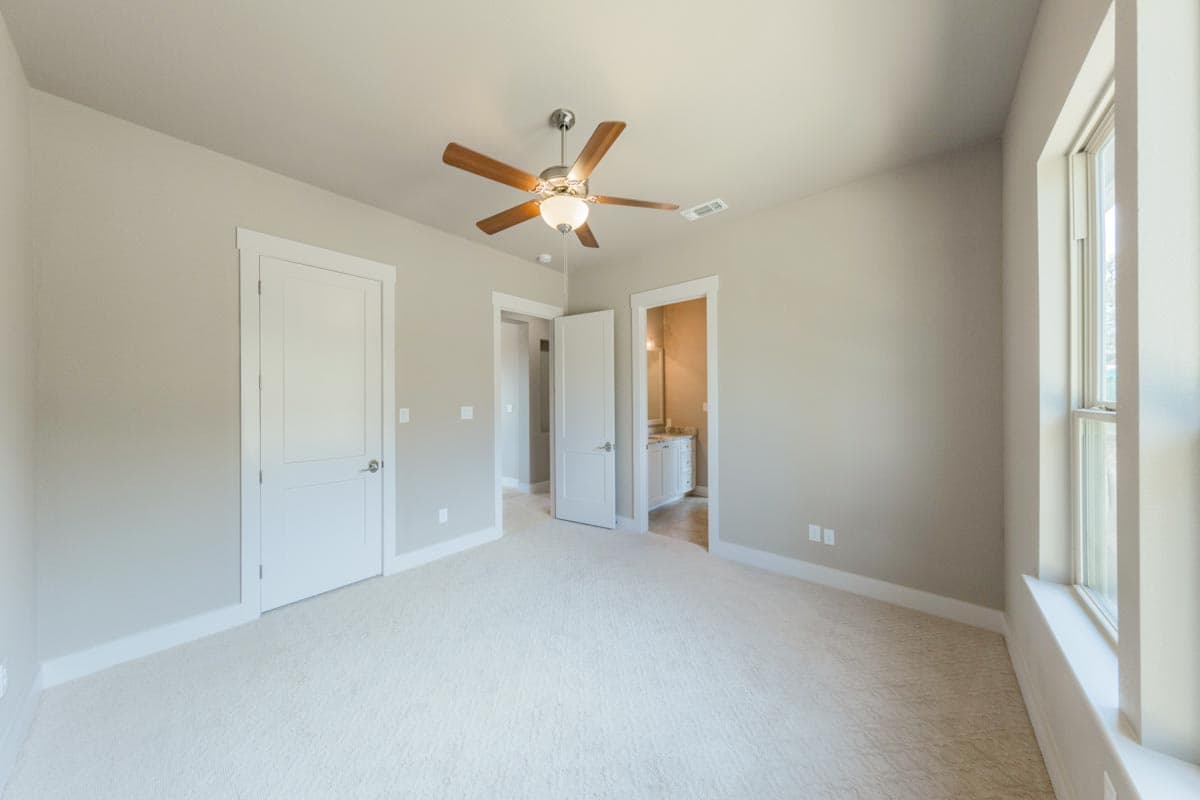

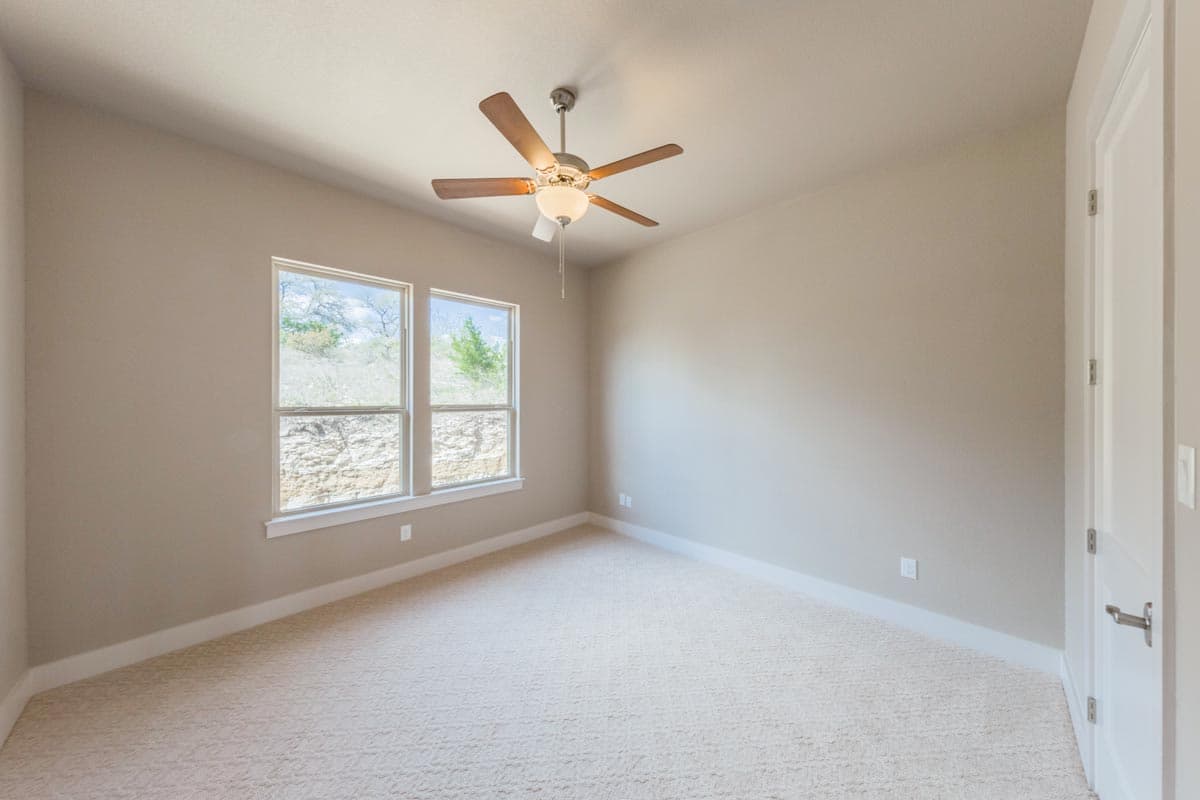

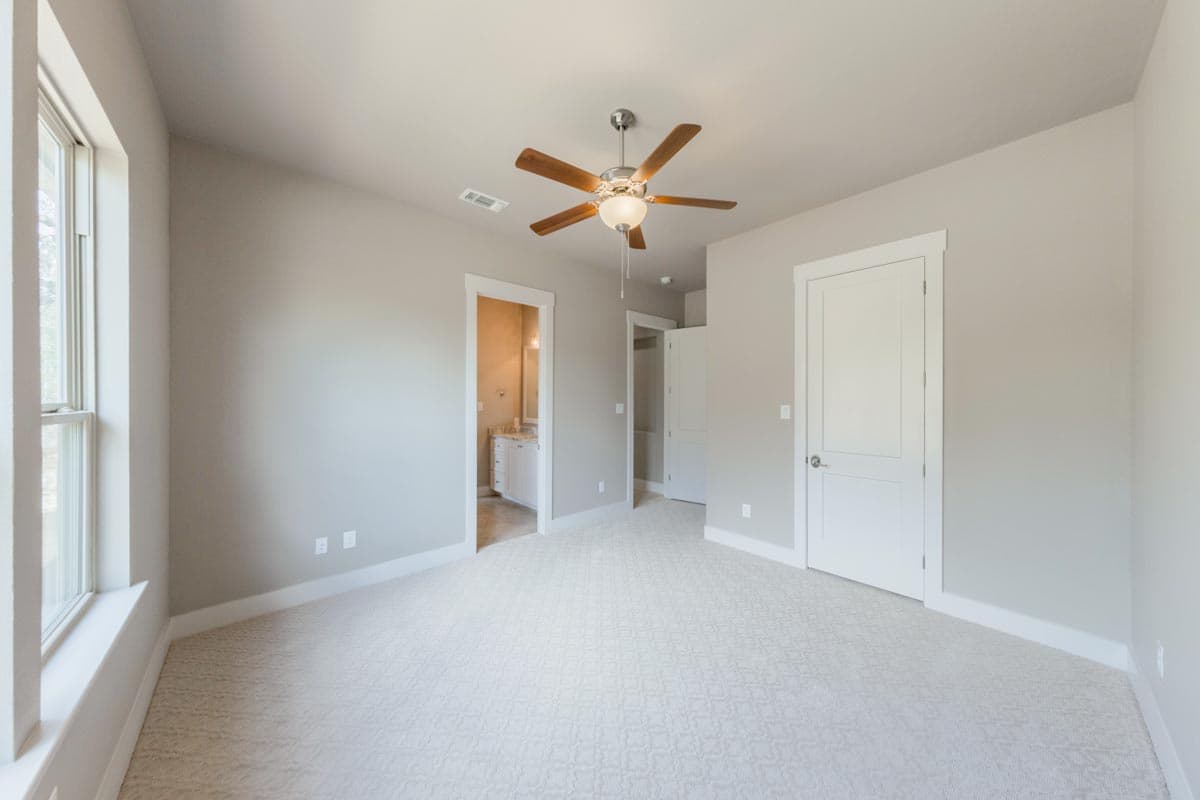

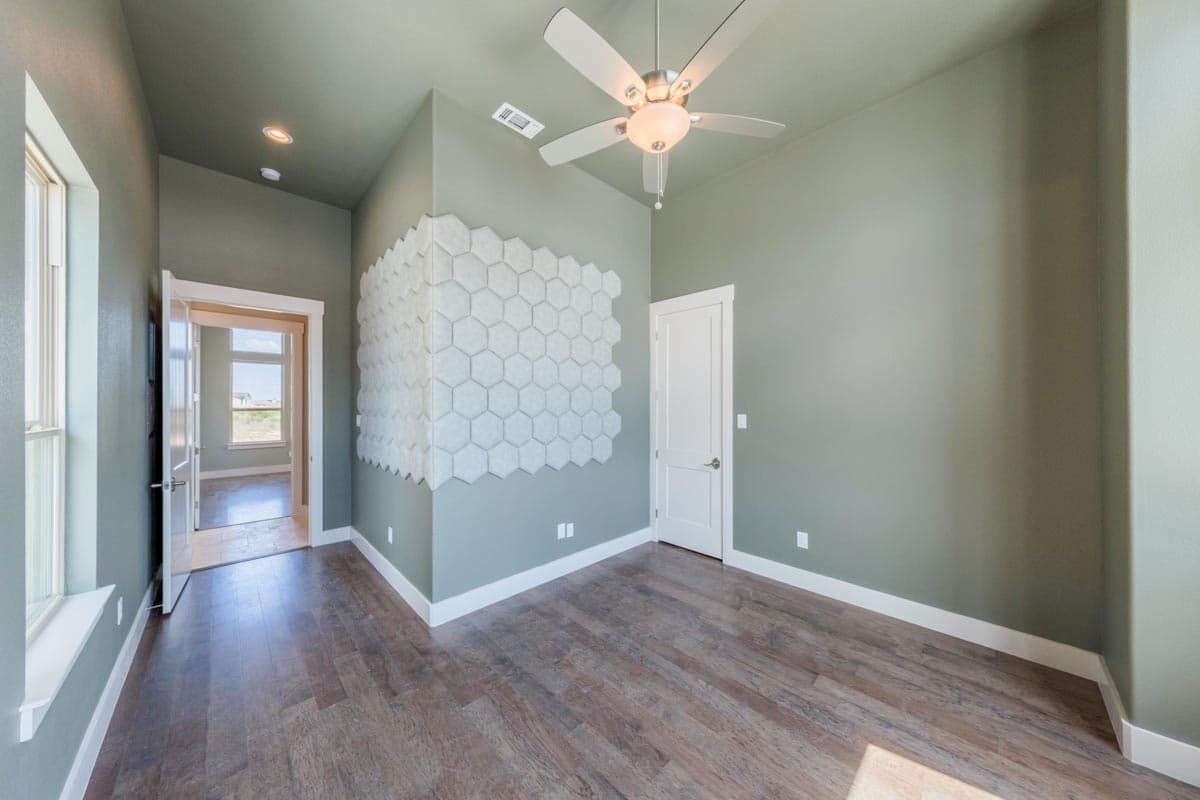

  • Two family bedrooms lie all the way across the house and they share a connected bathroom.

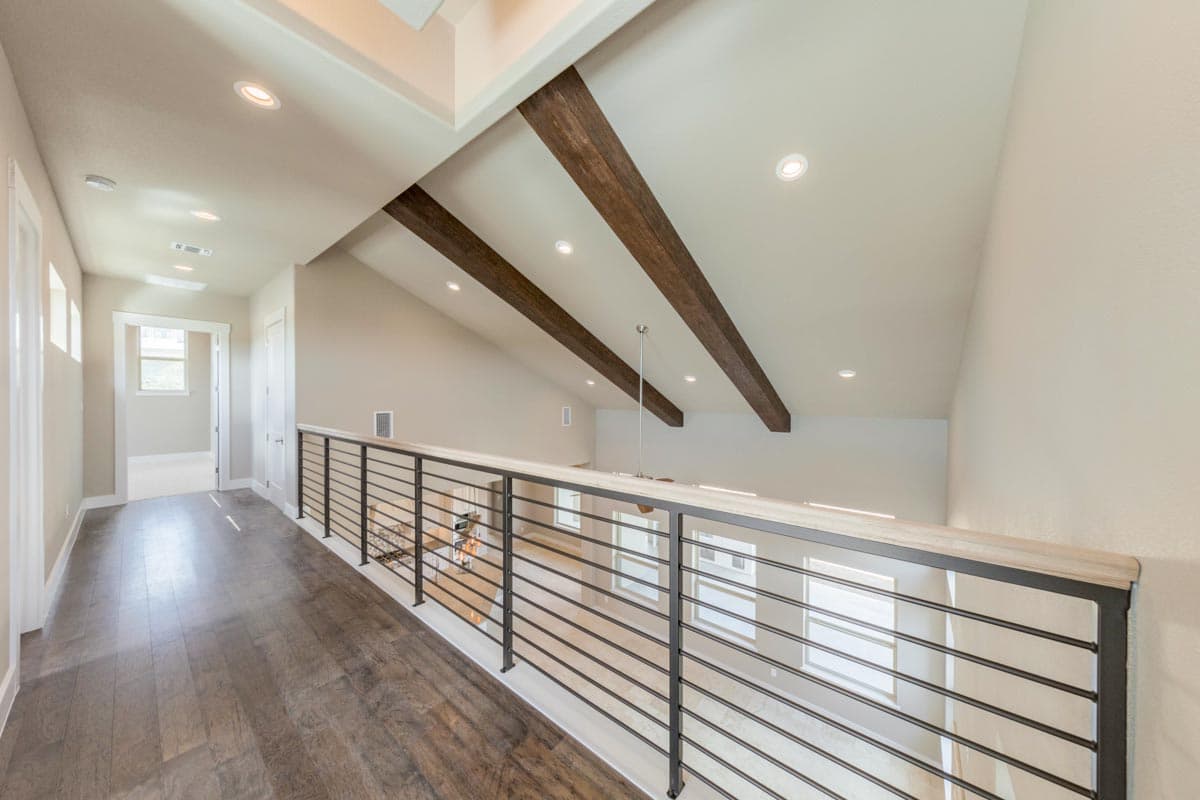

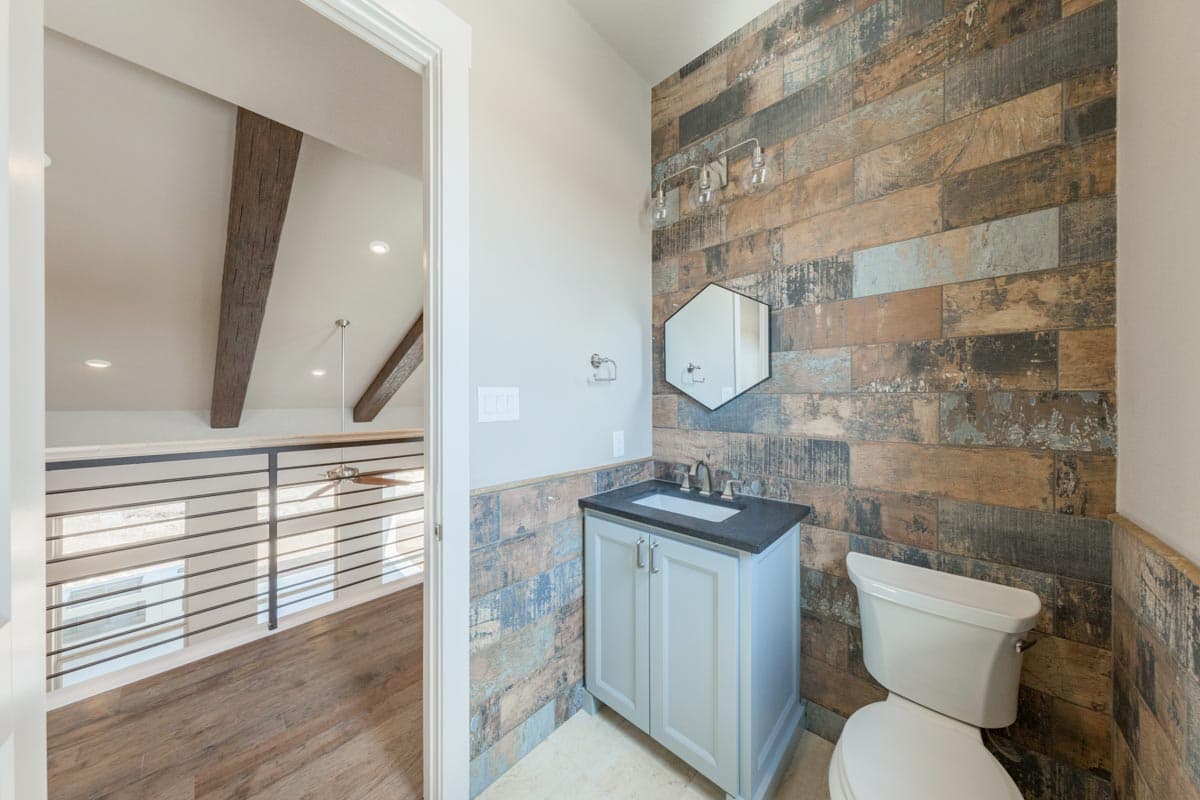

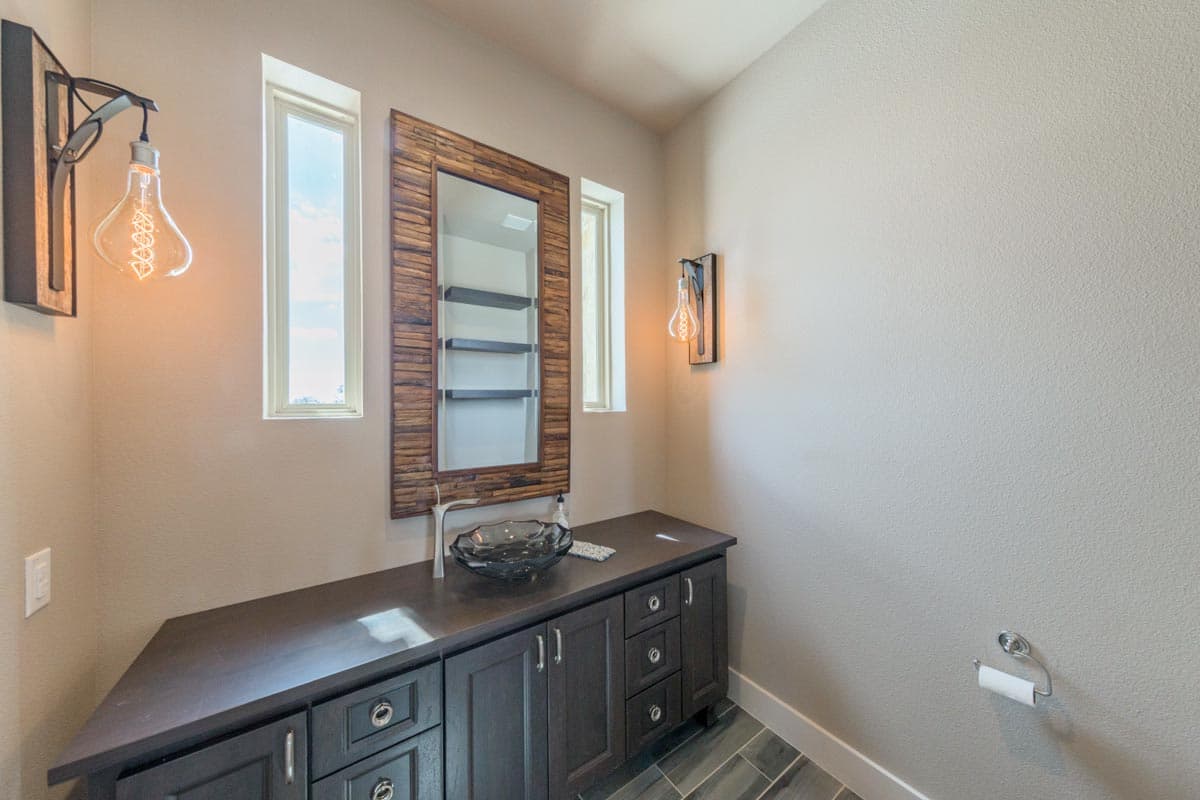

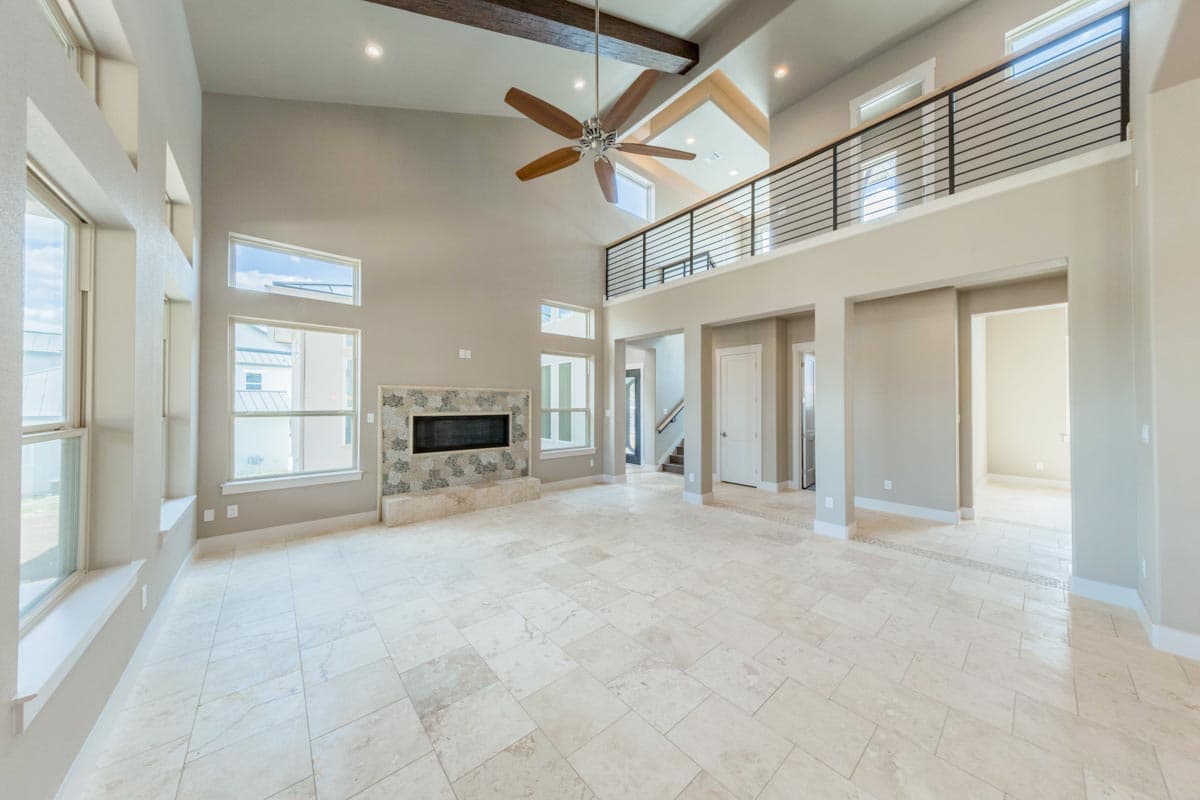

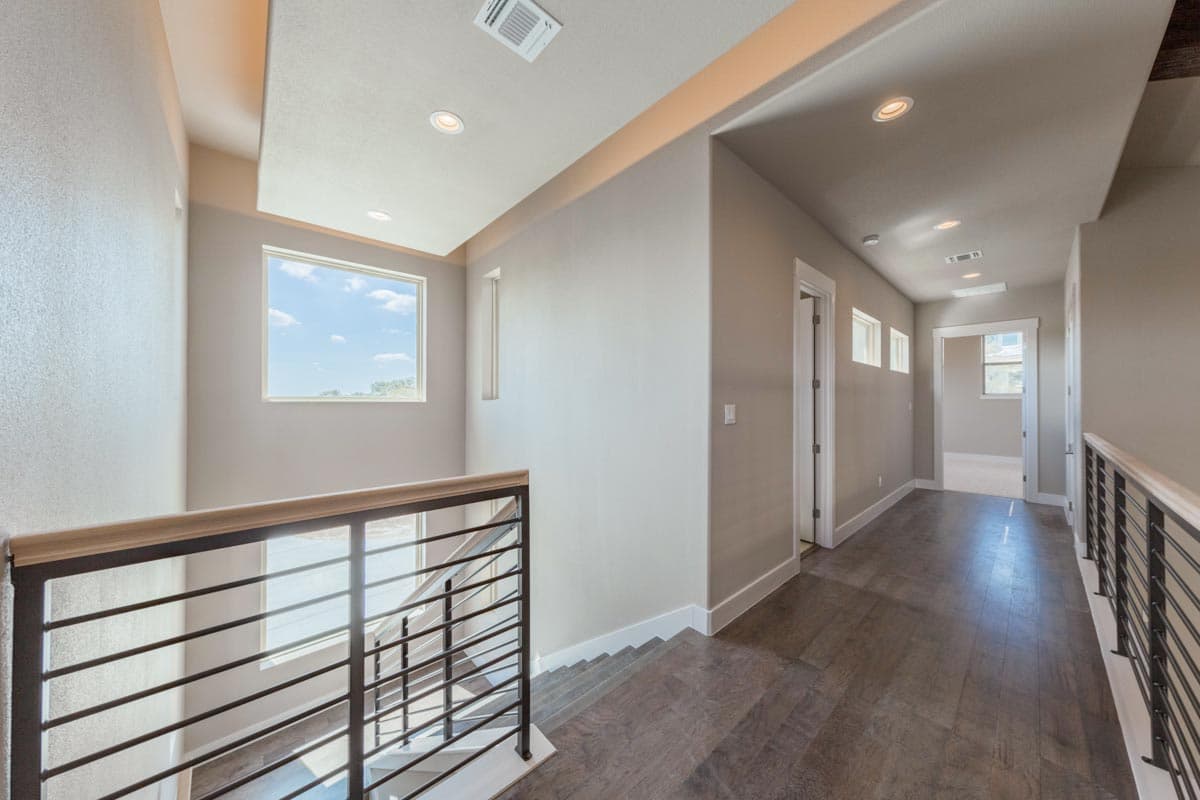

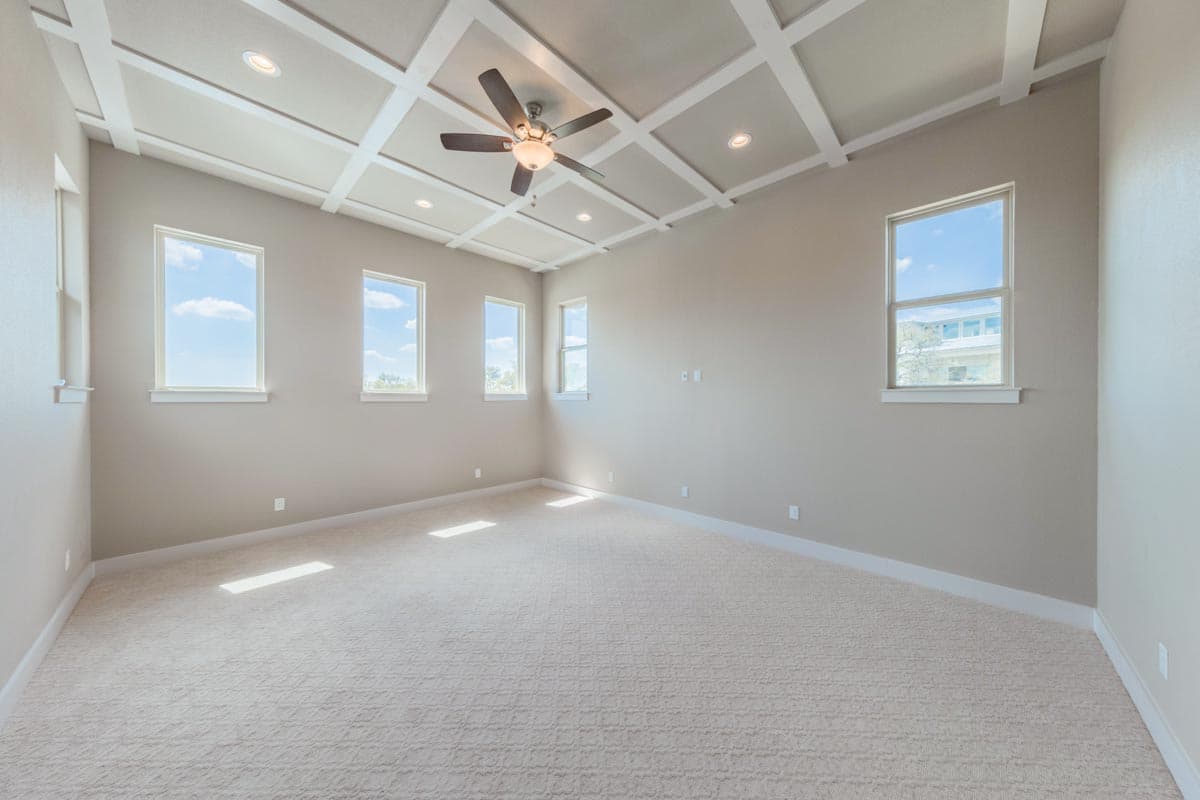

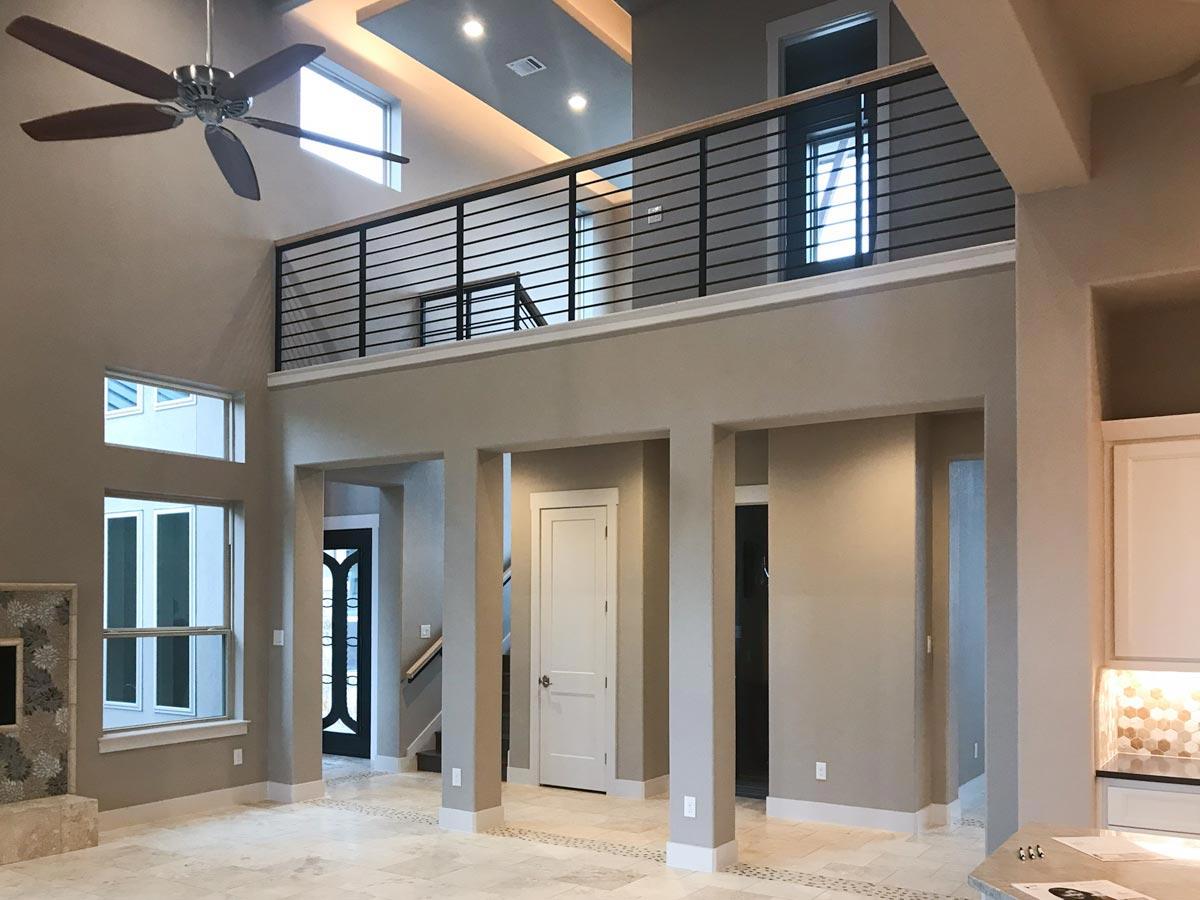

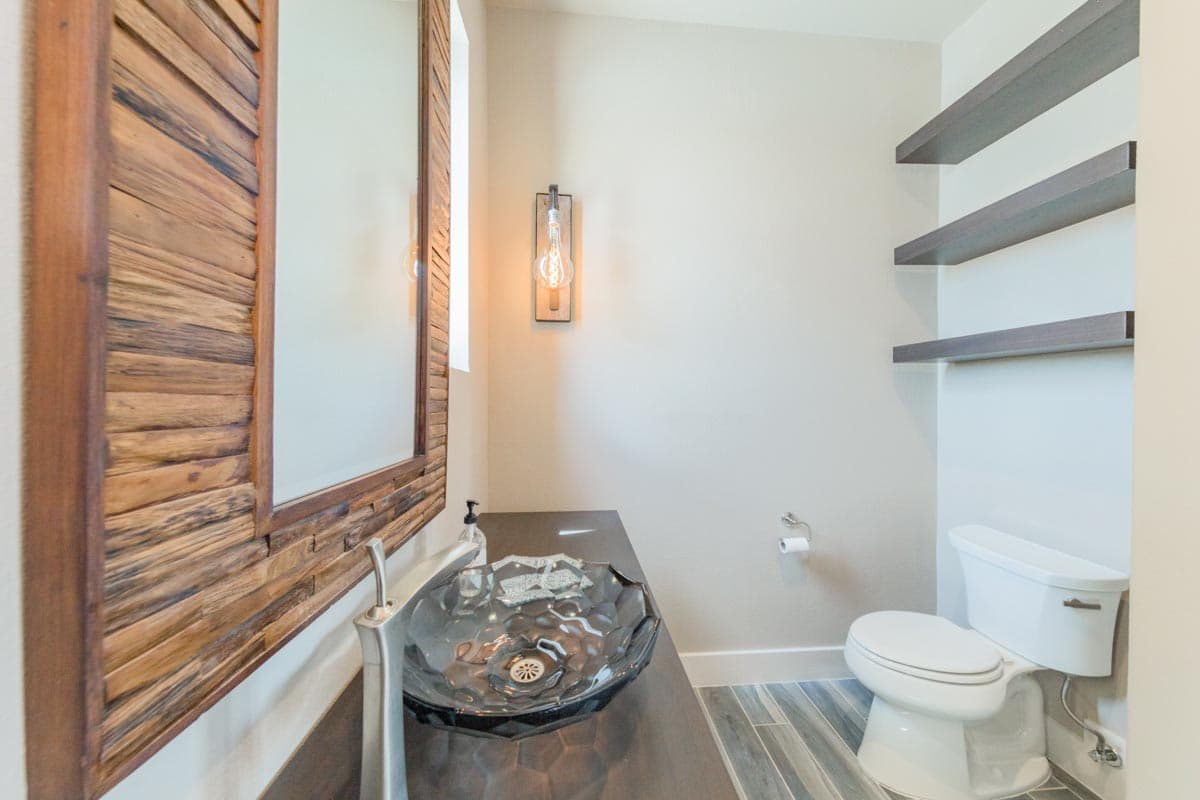

  • Best of all, a second floor catwalk leads across to  the huge game room and there's even a handy powder room close by.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,742 sq. ft.

1st Floor

3,179 sq. ft.

2nd Floor

563 sq. ft.

Porch, Front

47 sq. ft.

Deck

496 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

96' 1"

Depth

90' 6"

Garage

Type

Attached

Area

855 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Foyer

22' 0''

Living Room

23' 5''

Master Bedroom

14' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Hill Country

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Game/Rec Room

Jack & Jill Bath

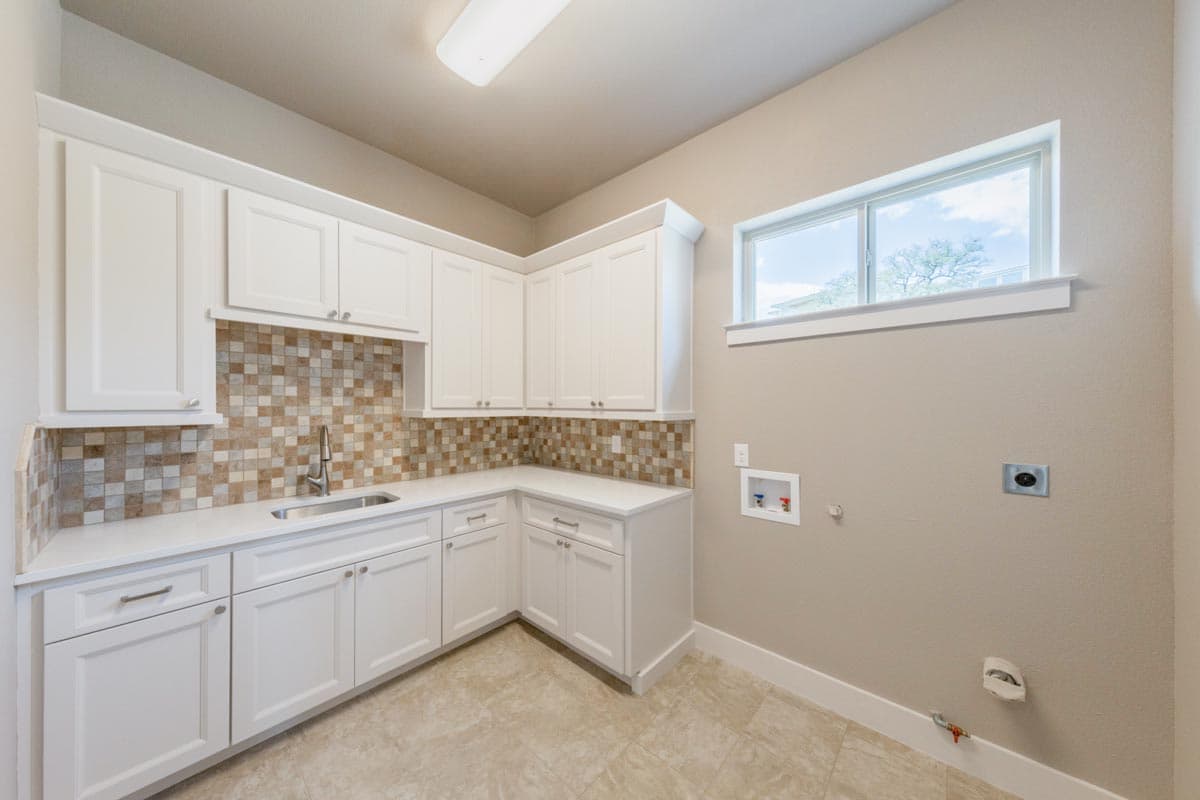

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar

Plan Collections
