Hill Country Home Plan with Outdoor Entertaining Space in Back

Plan 430020LY

  • 4,695

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A stunning Tuscan exterior with a courtyard entry separating your 2-car garage from your 1-car garage gives this 4 bed house plan great curb appeal.
  • French doors on the entry porch open the foyer which divides the home into two separate living wings.
  • You get a stone and stucco greeting to this 4-bed house plan with an entry porch with French doors. Step in the foyer and you'll see the outdoor living space directly ahead and the main living areas to your right.
  • The kitchen has a large island with seating and access to a walk-in pantry and is conveniently located to the entry by the 3-car garage making grocery unloading a breeze. It is open to the breakfast area and the living room with fireplace.
  • A large game room is located in the back and two bedrooms - each with their own baths - line the right side of the home.
  • The covered outdoor living area is accessible from the living room.
  • The left wing has the master suite and guest bedroom. The master suite has access to the covered porch in back, a separate vanity area in the bath and a large walk-in closet. The guest bedroom has its own bath and a walk-in closet.

This designer's plans consist of the following:
  • Cover sheet
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

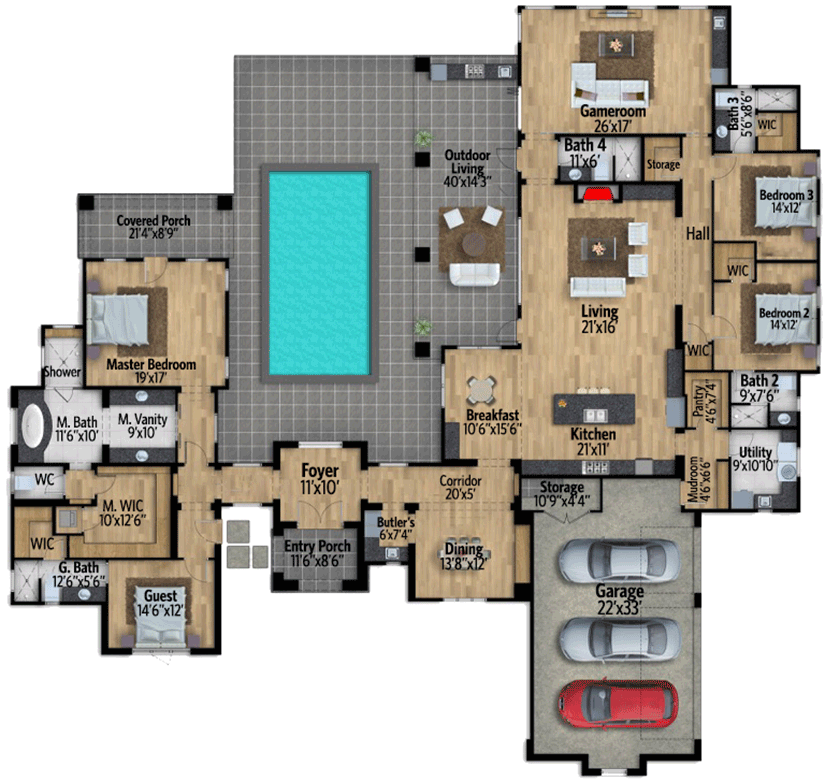

Hill Country Home Plan with Outdoor Entertaining Space in Back - 430020LY floor plan - Main Level

Hill Country Home Plan with Outdoor Entertaining Space in Back

  • 4,695

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,695 sq. ft.
  • 1st Floor: 4,695 sq. ft.

Dimensions

  • Width: 110' 8"
  • Depth: 104' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 922 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick And Truss
