Plan 333007JHB

Hill Country House Plan with Split Garage

Heated S.F.

3,238

Beds

4

Baths

4.5

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

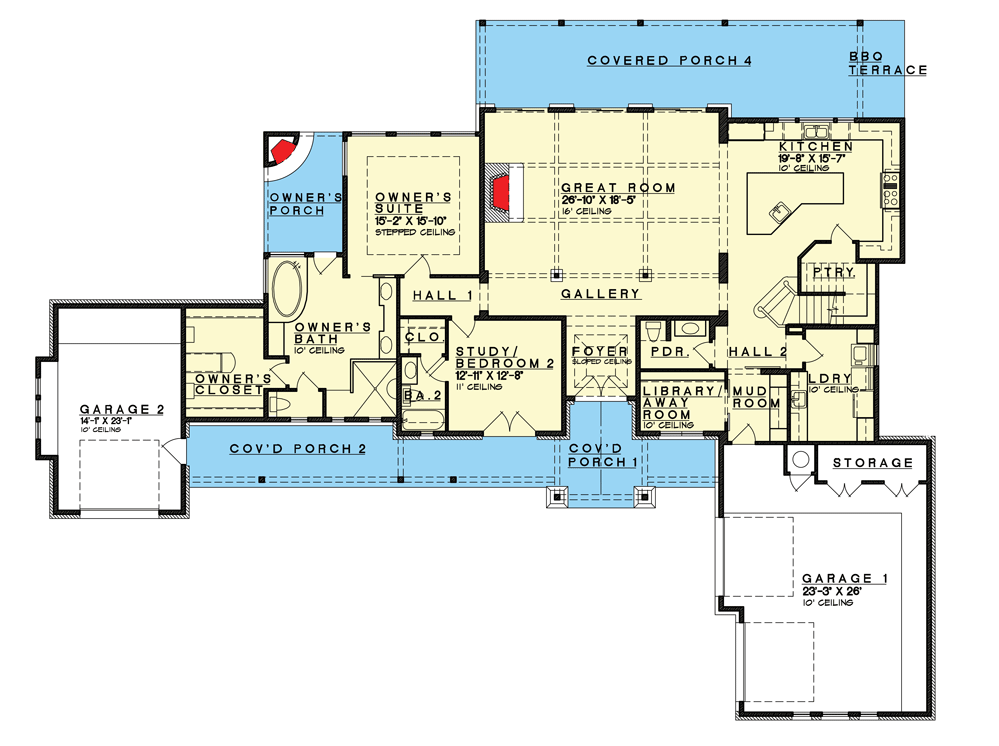

Hill Country House Plan with Split Garage - 333007JHB floor plan - Main Level

2nd Floor

Reverse Floor Plan

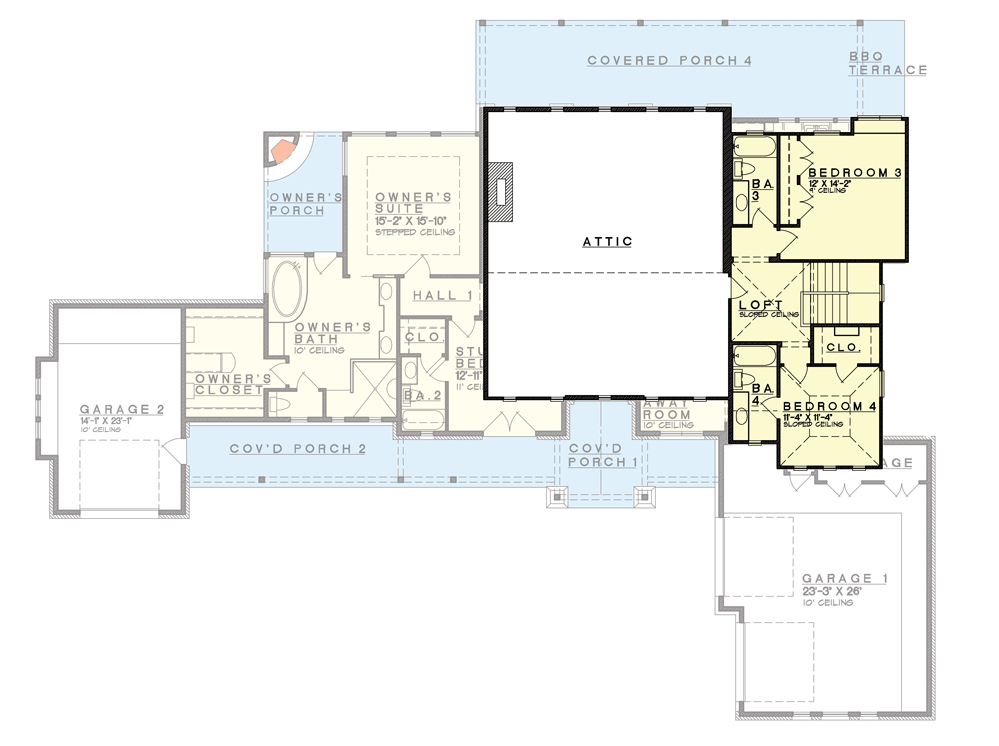

Hill Country House Plan with Split Garage - 333007JHB floor plan - 2nd Floor

Plan Details

Ideal for a lot that slopes down to the back, every major room has a view in this Hill Country house plan.
The kitchen has efficient work flow: oversized pantry, expansive single level island, range creating “second hearth” focal point, and sink with dual dishwashers.
A small "Away Room" off the mud room can be a planning center, reading nook, or music room.
Enjoy the private owners’ suite with its own porch with kiva style fireplace, luxuriously sized closet, and doorless shower. Upstairs are two bedrooms and two baths with a small loft/tower.
The split garage keeps mini-vans segregated from projects or your collector car.
Related Plans: Get a larger version with house plan 333006JHB.

What's Included

Cover page with legends & notes
Foundation details
Floor plan(s) [depending on whether it’s 1 or 2 stories]
Dimension plan(s)
Front view
Right view
Left view

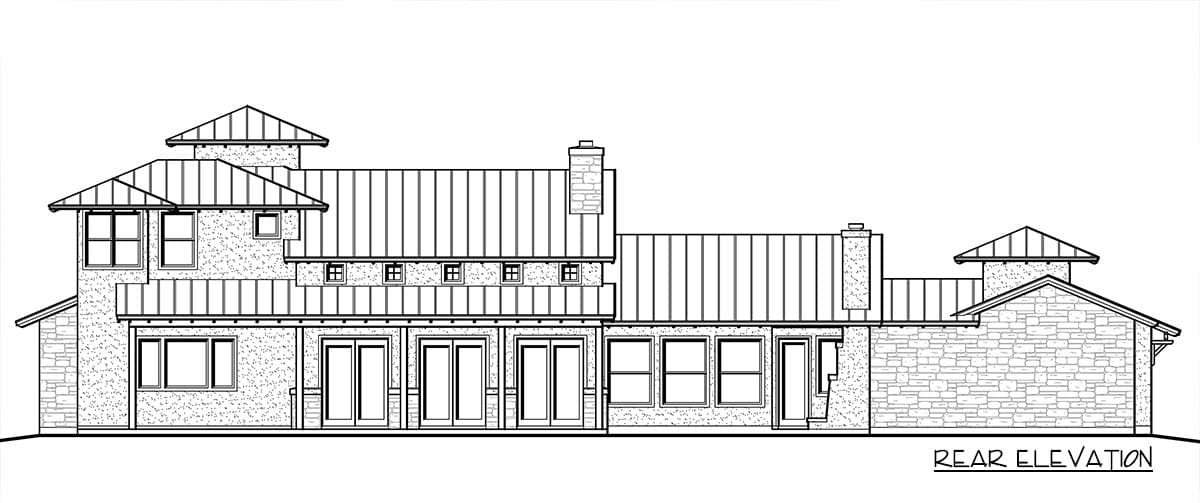

Rear view
Building section(s)
Wall section
Interior views
Electrical plan(s)
Roof layout plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Square Footage Breakdown

Total Heated Area:

3,238 sq. ft.

1st Floor:

2,592 sq. ft.

2nd Floor:

646 sq. ft.

Porch, Rear:

445 sq. ft.

Porch, Front:

421 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

102' 11"

Depth:

79' 11"

Max Ridge Height:

30' 4"

Garage

Type:

Attached

Area:

1169 sq. ft.

Count:

3 Cars

Entry Location:

Courtyard, Front

Roof Details

Primary Pitch:

5 on 12

Secondary Pitch:

2 1/2 on 12

Framing Type:

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
