Hill Country House Plan with Upstairs Game Room

Plan 430004LY

This plan plants 3 trees

4,242
Heated s.f.
4
Beds
3.5+
Baths
2
Stories
3
Cars

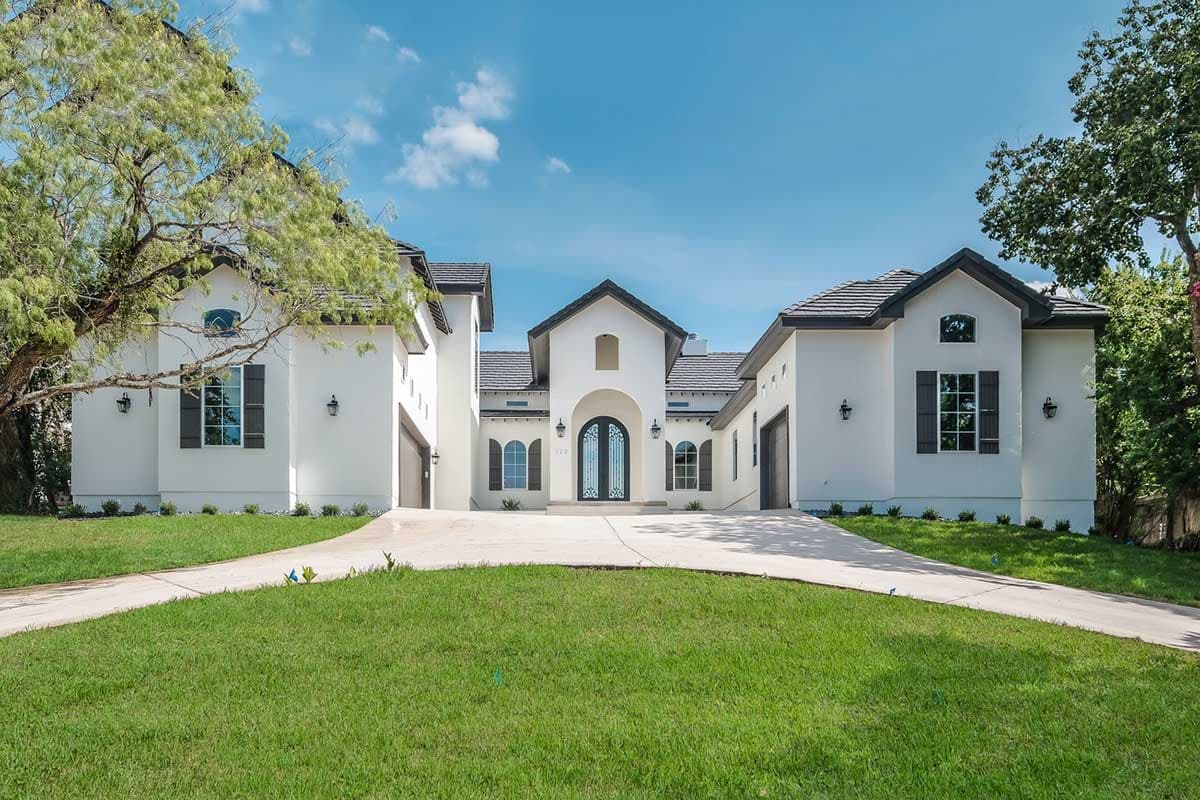

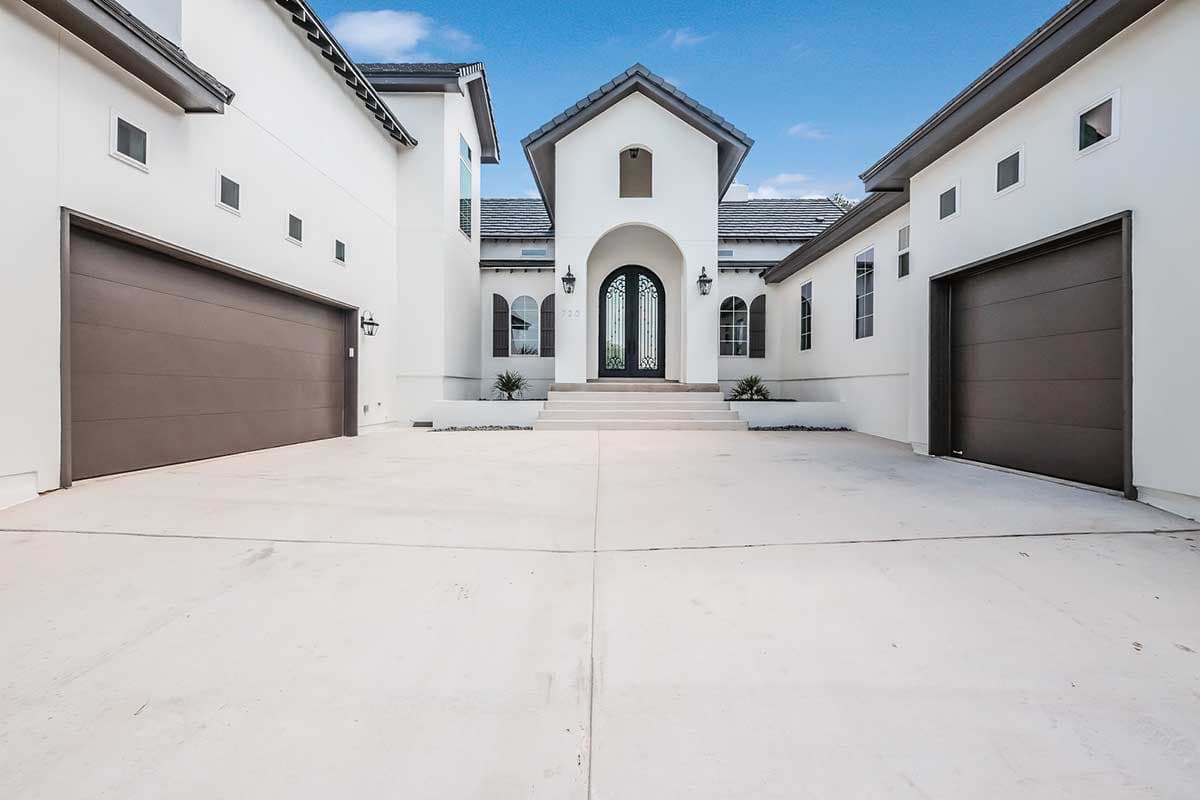

A huge, tall arched front door makes a grand introduction to this impressive house plan with second story game room.

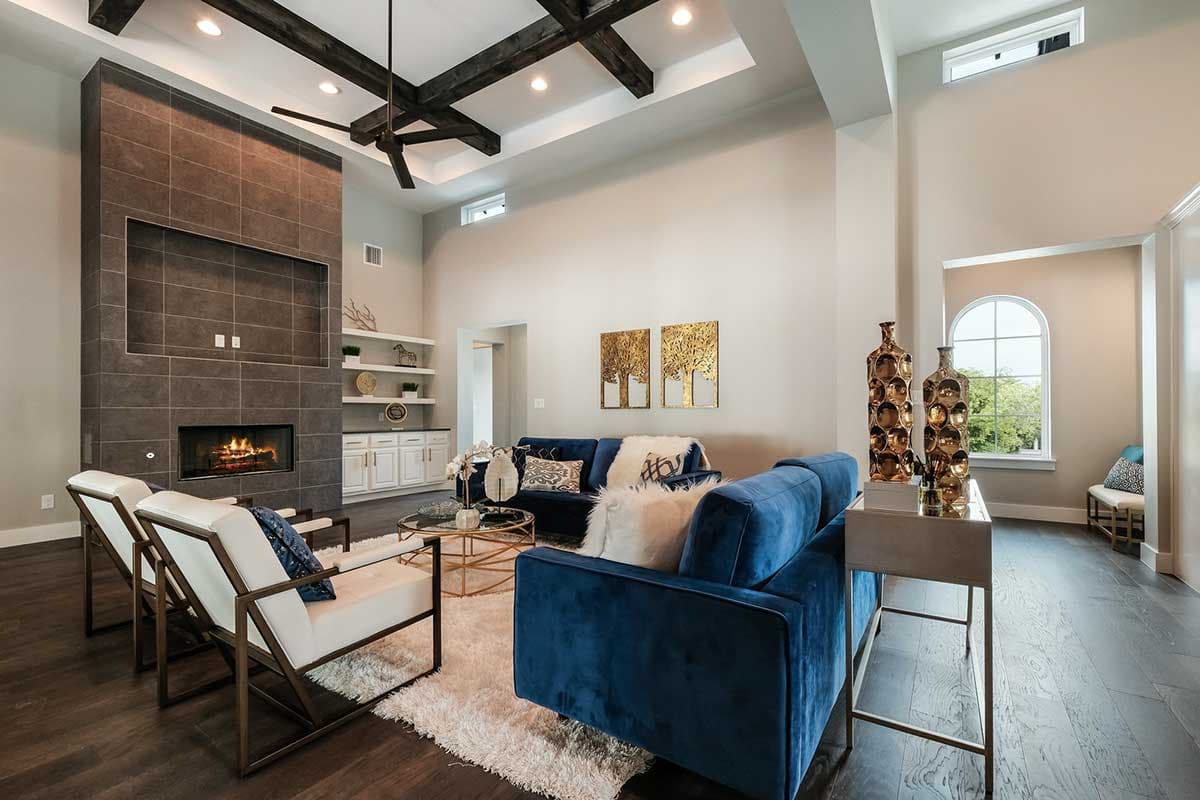

The kitchen and living room share one large space so you can enjoy the fireplace while preparing meals.

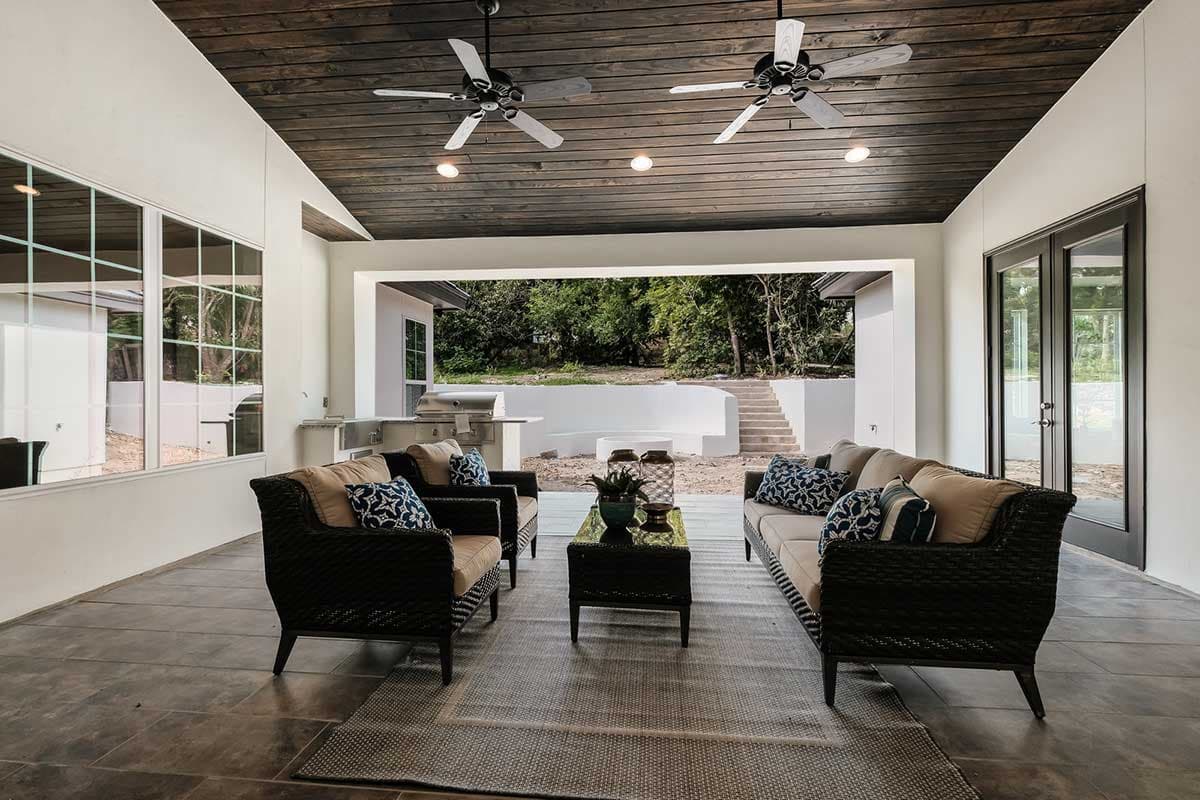

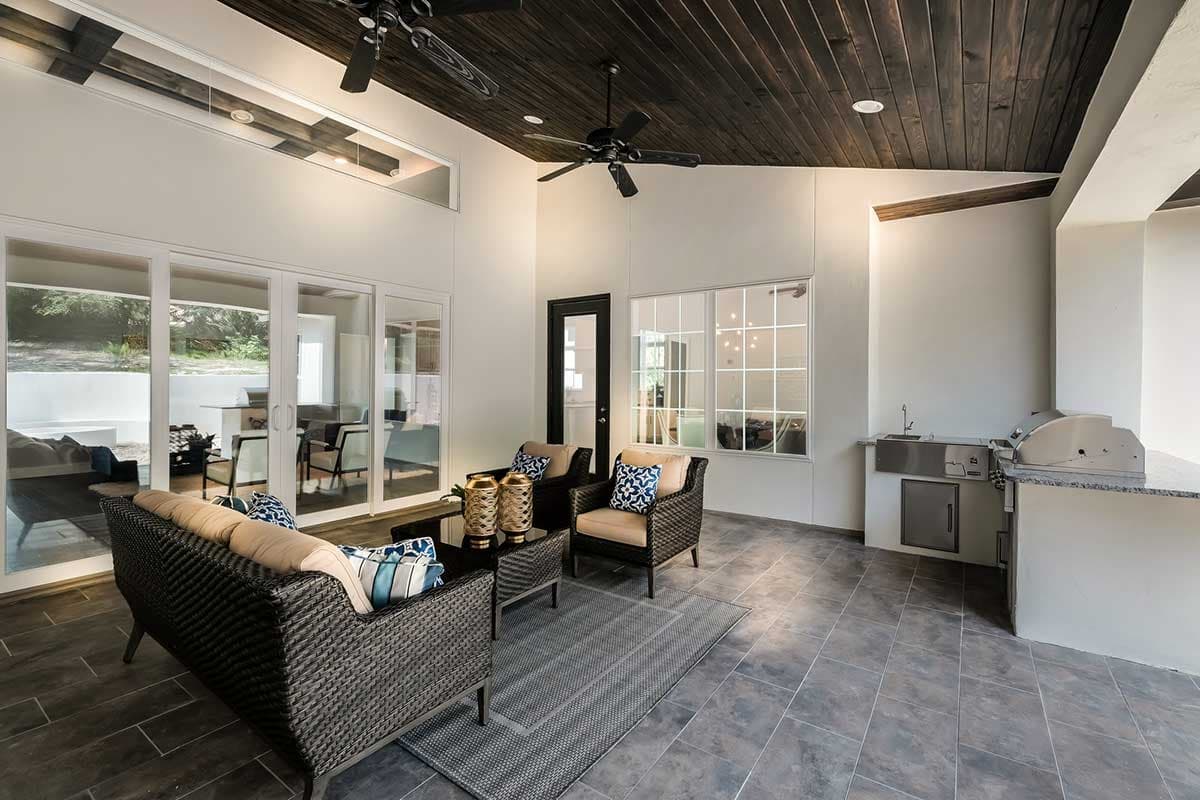

The outdoor patio has a grilling station so you can barbecue in the shade.

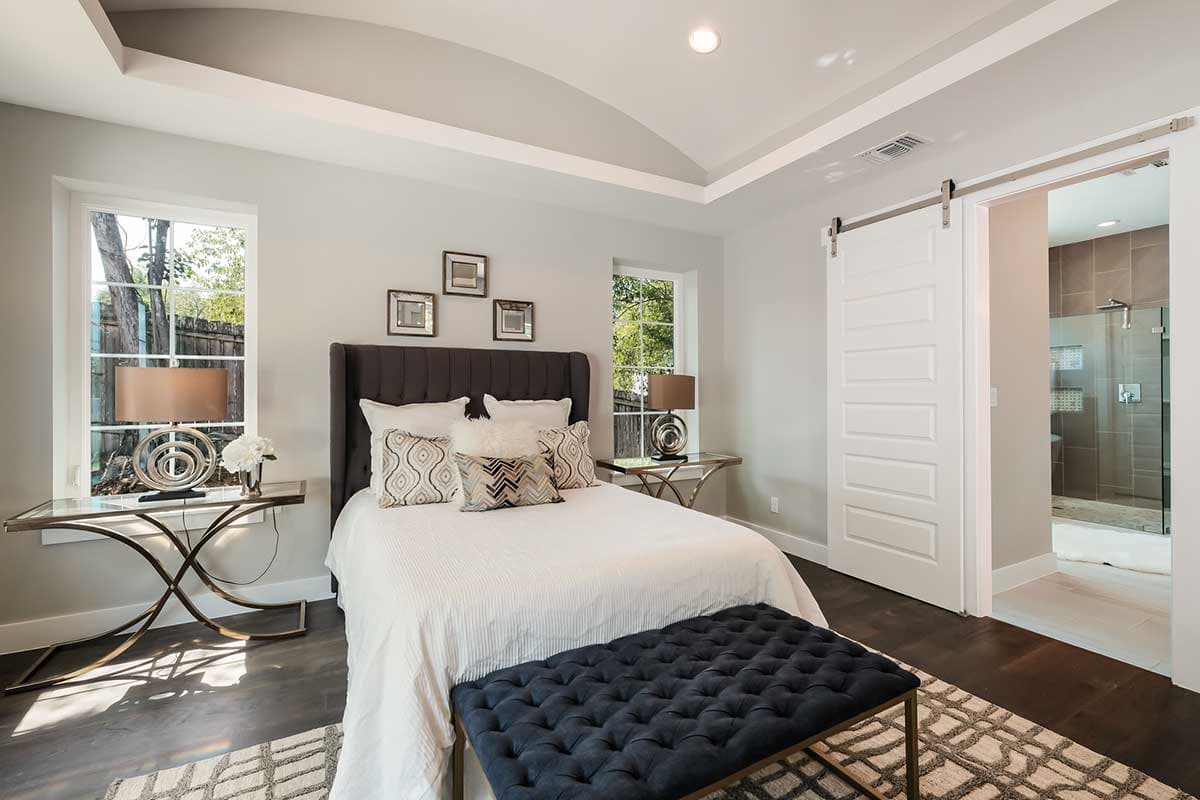

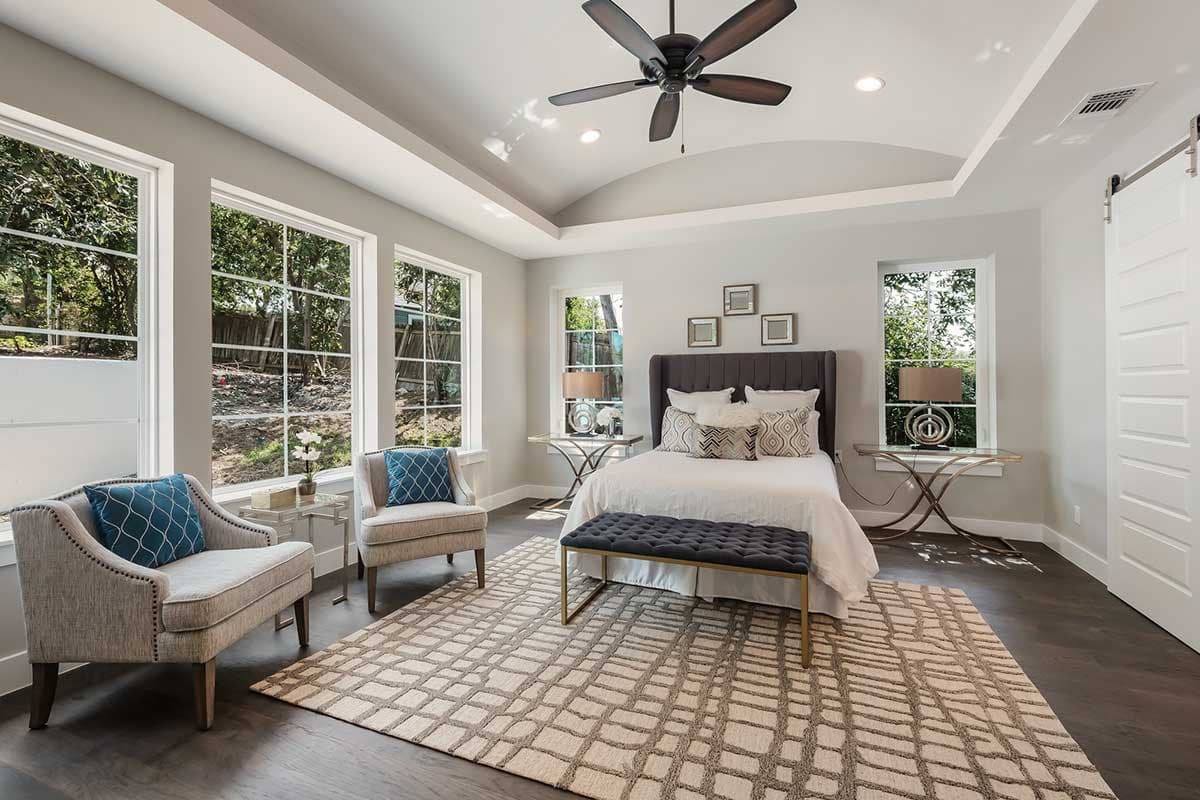

In the spacious master suite, homeowners get a huge walk-in closet with a built-in chest of drawers in the middle and your own washer/dryer - no sharing with the family.

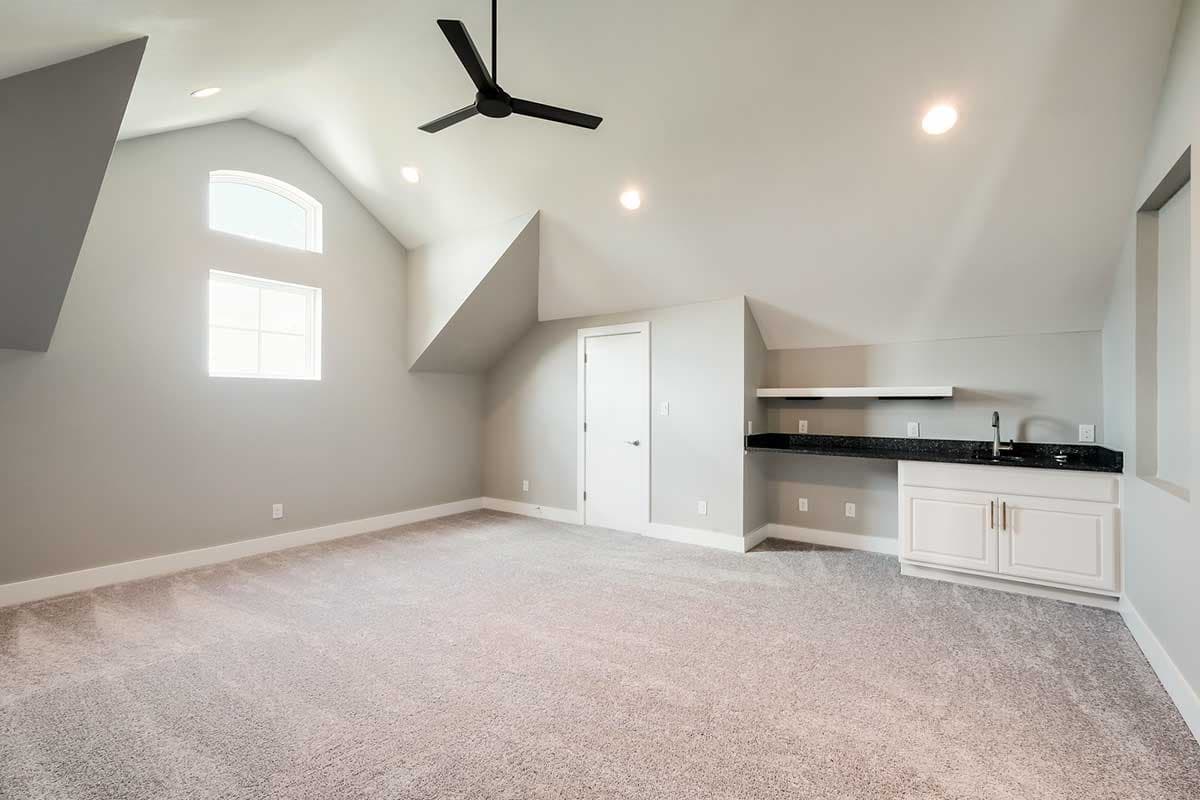

The game room on the second floor has a half bath, wet bar and walk-in closet for storage.
Three family bedrooms and a home office complete this house plan.

This designer's plans consist of the following:

Cover sheet
Roof plan
Floor plan

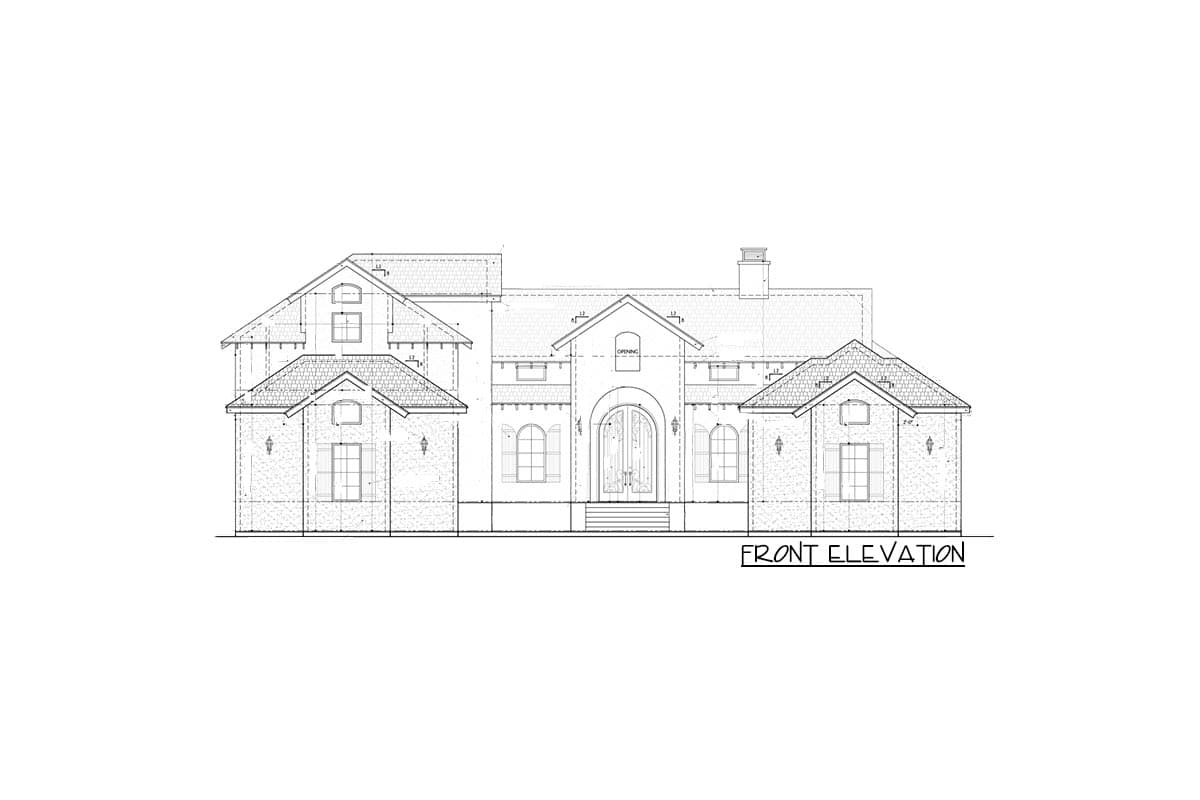

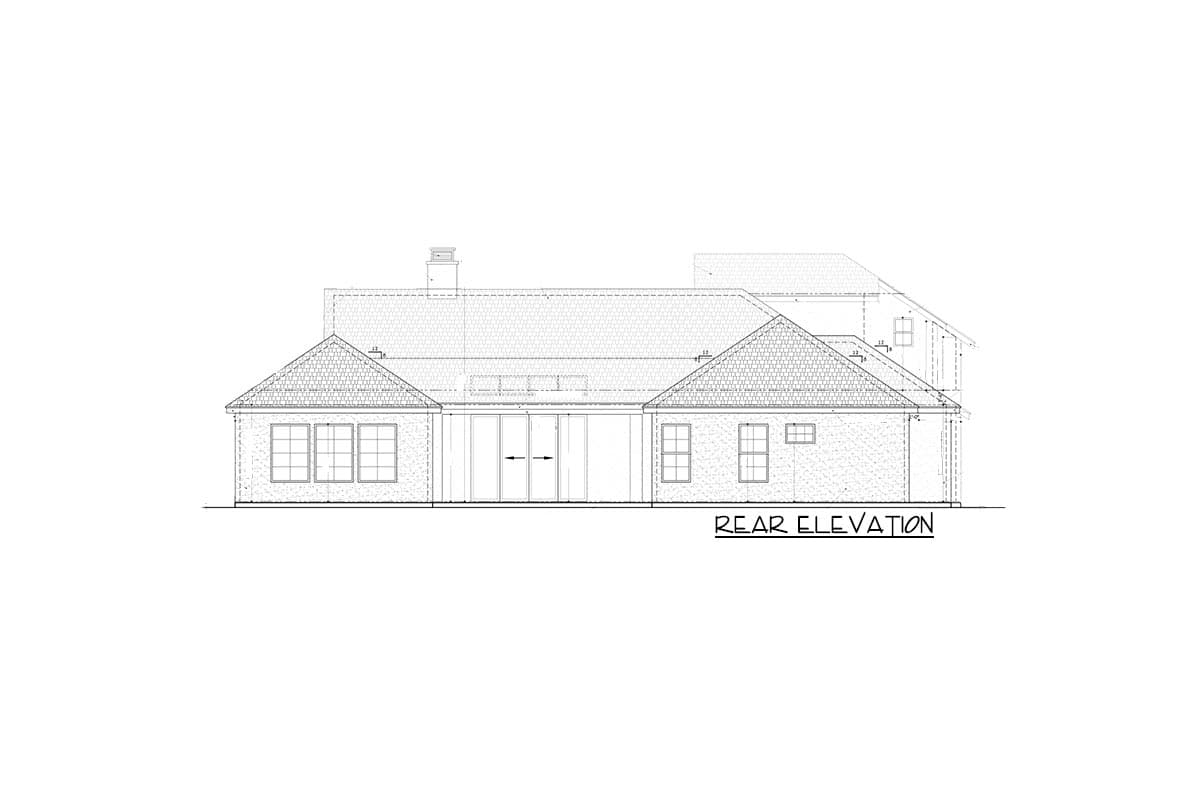

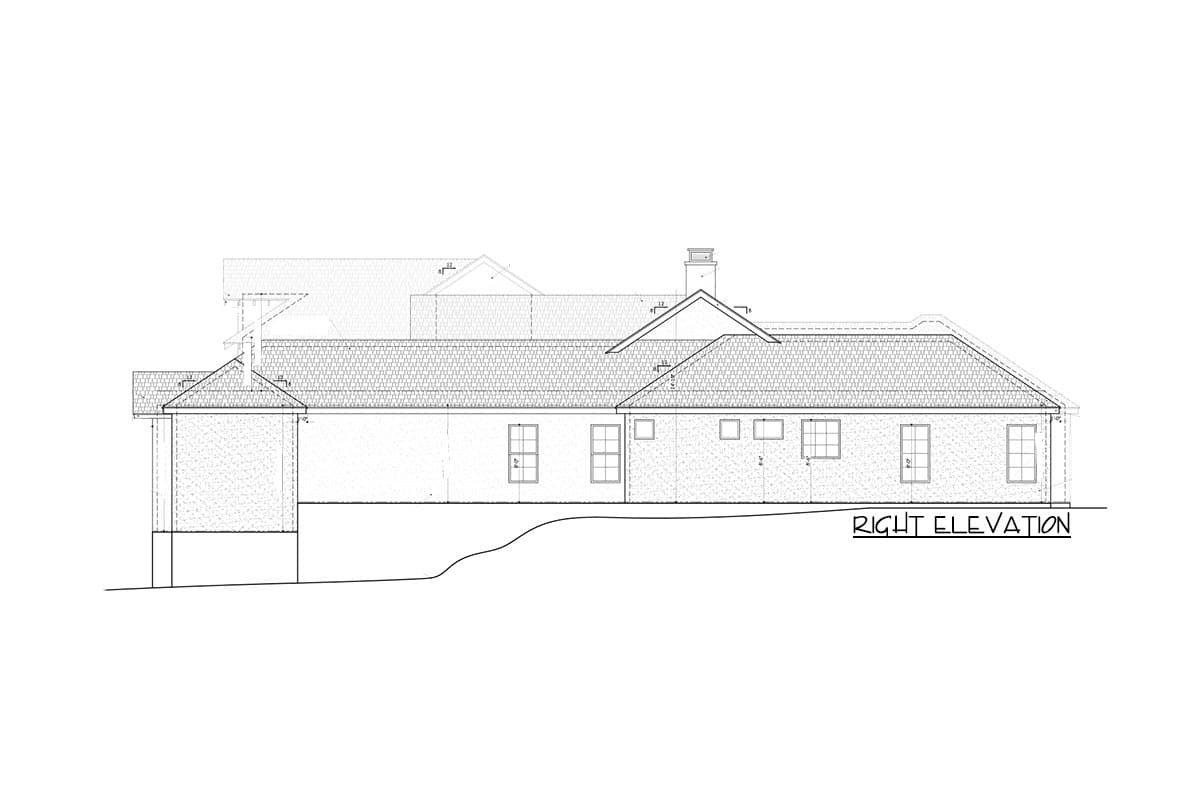

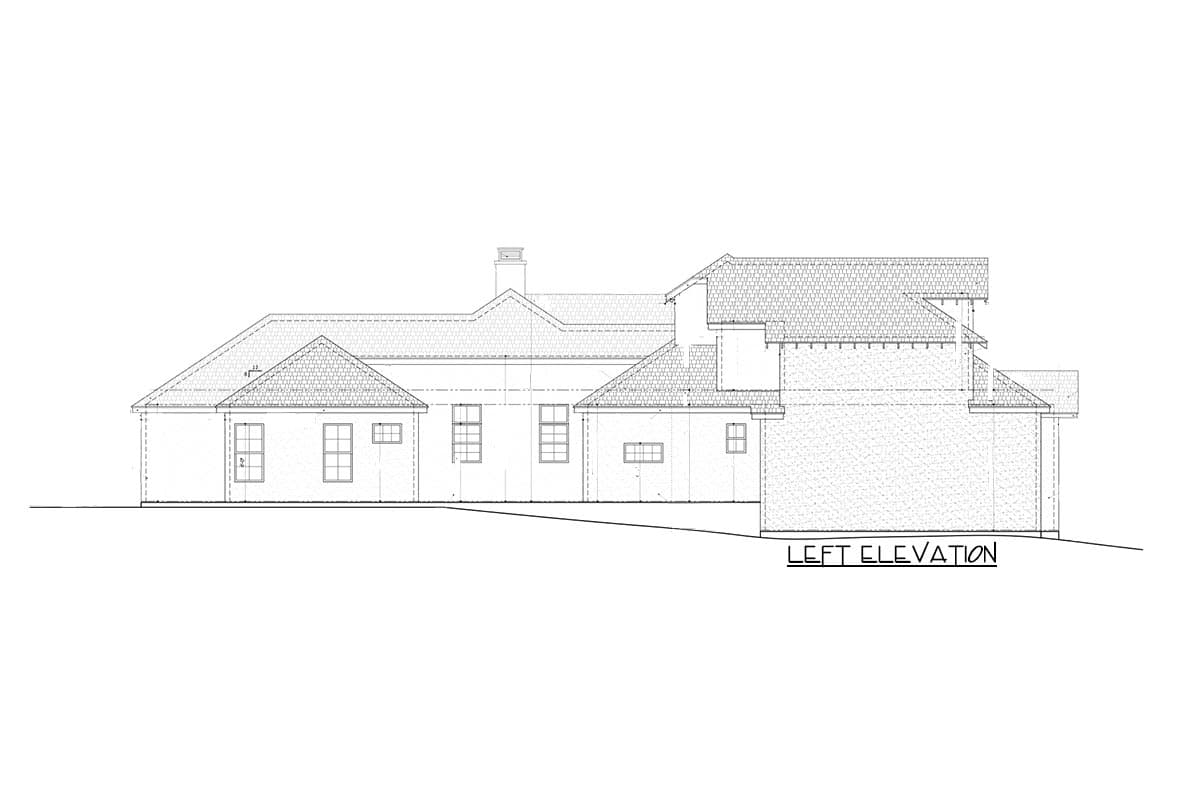

Exterior elevations
Typical wall sections
Ceiling treatment plans
Electrical floor plans
Interior elevations

Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

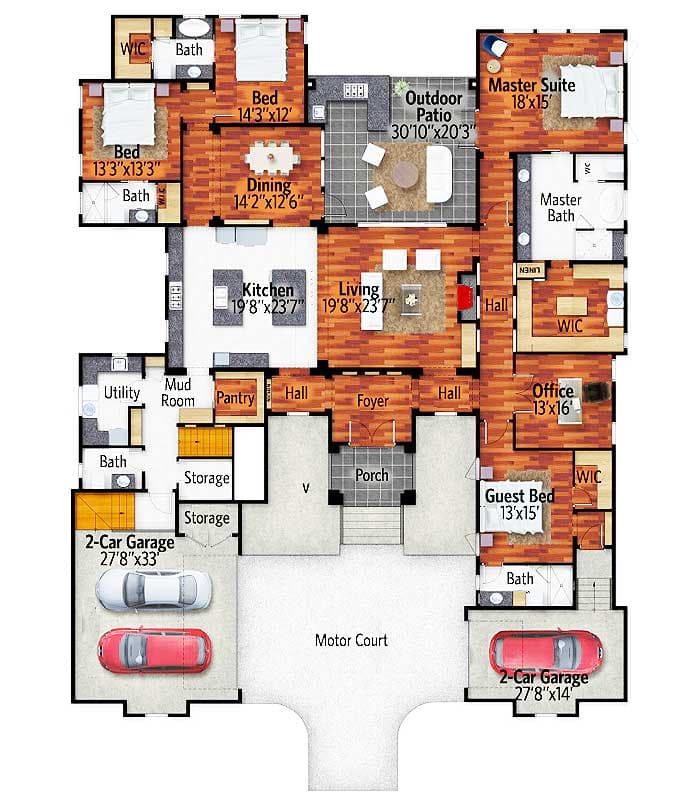

Hill Country House Plan with Upstairs Game Room - 430004LY floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

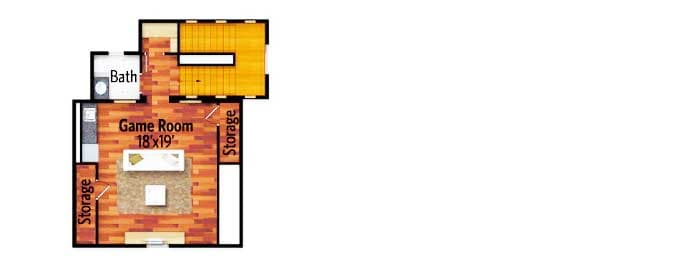

Hill Country House Plan with Upstairs Game Room - 430004LY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,242 sq. ft.
1st Floor: 3,507 sq. ft.
2nd Floor: 735 sq. ft.

Covered Patio: 410 sq. ft.
Porch, Front: 221 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 75' 0"
Depth: 94' 10"

Garage

Type: Attached
Area: 982 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections
