Plan 46045HC

Hill Country Ranch Home

Pageloader

Hill Country Ranch Home

Plan 46045HC

  • 2,444

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Three decorative dormers lie on top of the covered front porch of this Hill Country ranch home.
  • A wide foyer opens up to the enormous great room with its vaulted ceiling.
  • The country kitchen has a bay window at the sink srea and a large walk-in pantry.
  • Split bedrooms separate the master suite from the family bedrooms.
  • A huge covered porch in the rear of the home shelters you from the sun and rain.
  • Finish off the bonus space on the right side of the home and gain 1,263 square feet.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Plan details



Hill Country Ranch Home

  • 2,444

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $675
  • 8 Sets $775
  • Reproducible Set $775
  • PDF - single-use $775
  • CAD $975
  • View all purchase option online

About This Plan

  • Three decorative dormers lie on top of the covered front porch of this Hill Country ranch home.
  • A wide foyer opens up to the enormous great room with its vaulted ceiling.
  • The country kitchen has a bay window at the sink srea and a large walk-in pantry.
  • Split bedrooms separate the master suite from the family bedrooms.
  • A huge covered porch in the rear of the home shelters you from the sun and rain.
  • Finish off the bonus space on the right side of the home and gain 1,263 square feet.

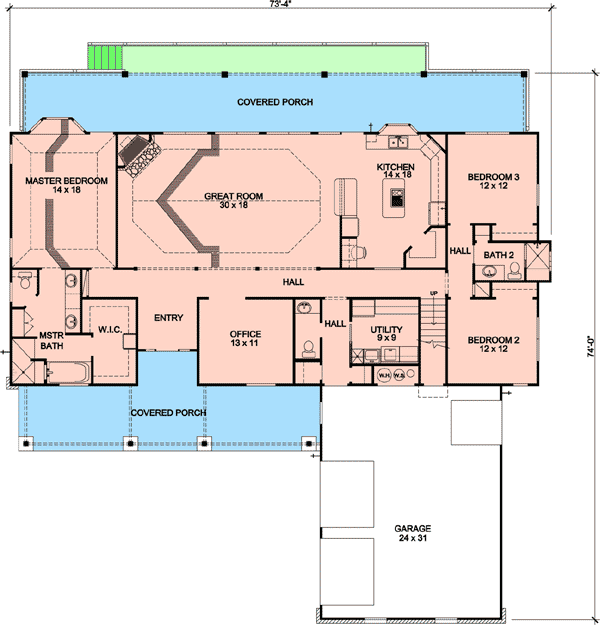

Floor Plans
