Huge Contemporary House Plan with Sunken Great Room

Plan 290006IY

  • 8,488

    Heated s.f.

  • 6

    Beds

  • 6.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Enter this striking Contemporary house plan through a front courtyard that takes you into the spacious and luxurious interior.
  • The gorgeous spiral staircase and sunken great room are impressive features designed to capture your attention.
  • Work from two kitchen islands, one with a cooktop and one with an extra sink.
  • On the far right side of the home, the opulent master bathroom has a big soaking tub set in the center and a huge walk-in closet with a built-in storage island.
  • Exercise at home with your dedicated exercise room - a true luxury.
  • Five big bedrooms lie on the upper floor along with a den/retreat and lots of decks.
  • The guest loft has a kitchenette, walk-in closet and its own bathroom, making it suitable as in-law quarters.
  • The home comes with laundry rooms on two floors as an added convenience.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

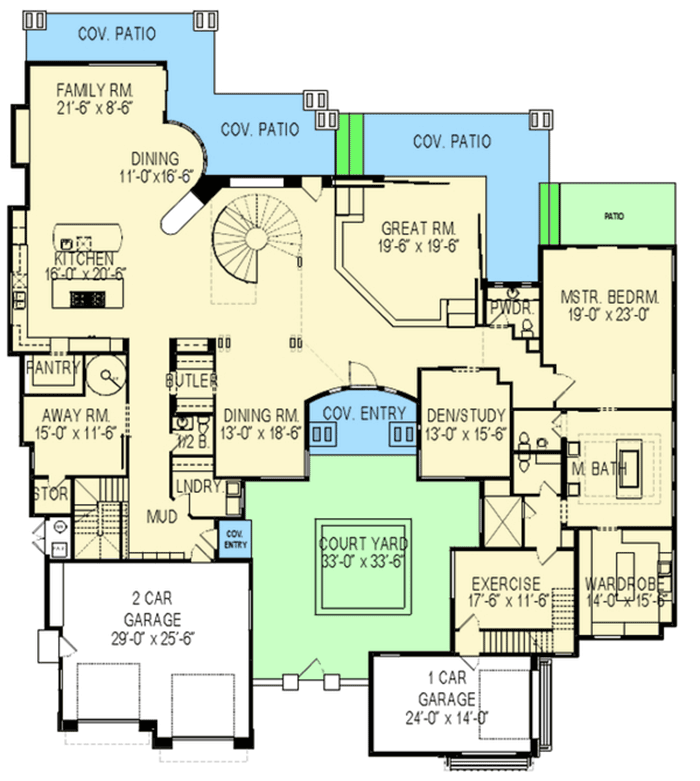

Huge Contemporary House Plan with Sunken Great Room - 290006IY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

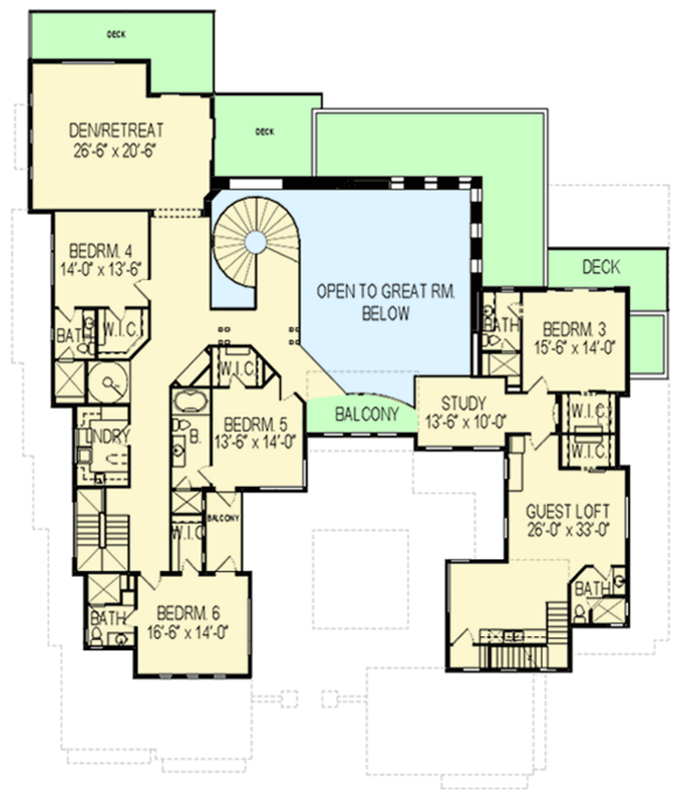

Huge Contemporary House Plan with Sunken Great Room - 290006IY floor plan - 2nd Floor

Huge Contemporary House Plan with Sunken Great Room

  • 8,488

    Heated s.f.

  • 6

    Beds

  • 6.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 8,488 sq. ft.
  • 1st Floor: 5,188 sq. ft.
  • 2nd Floor: 3,300 sq. ft.

Dimensions

  • Width: 97' 3"
  • Depth: 108' 4"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1122 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 0 on 12
