With its front veranda, this lovely two-story house plan is ideal for a family.

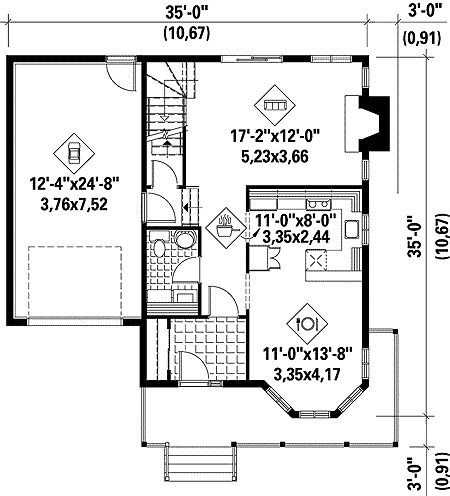

The ground floor includes a closed entrance hall, a living room with a fireplace, a dining room, a U-shaped kitchen with a lunch counter, a powder room and a one-car garage.

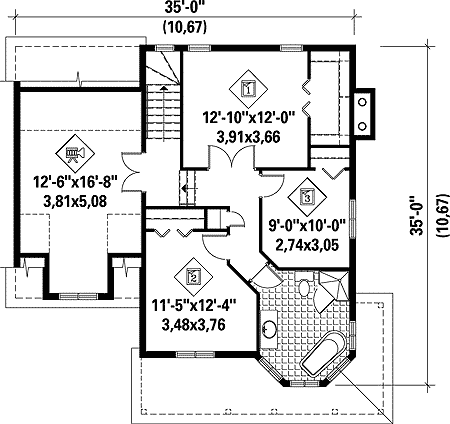

The second floor consists of a bathroom, three bedrooms, including a master bedroom with French doors and a large walk-in closet, and a room located above the garage that can be used as a home theater.

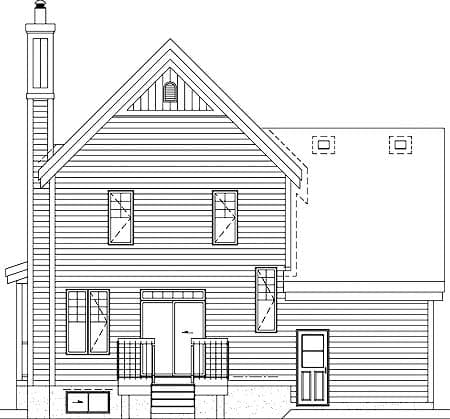

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
**Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**
