Impeccable Detail

Plan 66064WE

  • 3,005

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

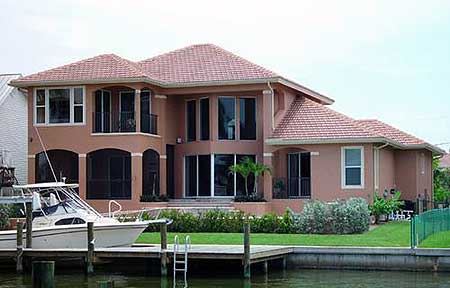

  • This is an attractive three bedroom great room house plan featuring generously sized rooms and is designed at 3005 square feet. The front facade is noted for it's well planned use of form and impeccable detail.
  • The raised entry system has custom wood entry doors that open to the foyer.
  • The large great room has zero-corner sliders, an attractive built-in entertainment unit, and is open to the kitchen and dinning room.
  • The large master suite has a graceful bath with an oversized spa and walk-in shower.
  • The upstairs has two more bedrooms and a den with a vaulted ceiling. The upstairs bedrooms and den have access to the rear balcony and are all connected by an elegant balcony overlooking the great room.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Impeccable Detail

  • 3,005

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,400
  • PDF - single-use $1,400
  • CAD $1,400
  • View all purchase option online

About This Plan

  • This is an attractive three bedroom great room house plan featuring generously sized rooms and is designed at 3005 square feet. The front facade is noted for it's well planned use of form and impeccable detail.
  • The raised entry system has custom wood entry doors that open to the foyer.
  • The large great room has zero-corner sliders, an attractive built-in entertainment unit, and is open to the kitchen and dinning room.
  • The large master suite has a graceful bath with an oversized spa and walk-in shower.
  • The upstairs has two more bedrooms and a den with a vaulted ceiling. The upstairs bedrooms and den have access to the rear balcony and are all connected by an elegant balcony overlooking the great room.

Floor Plans

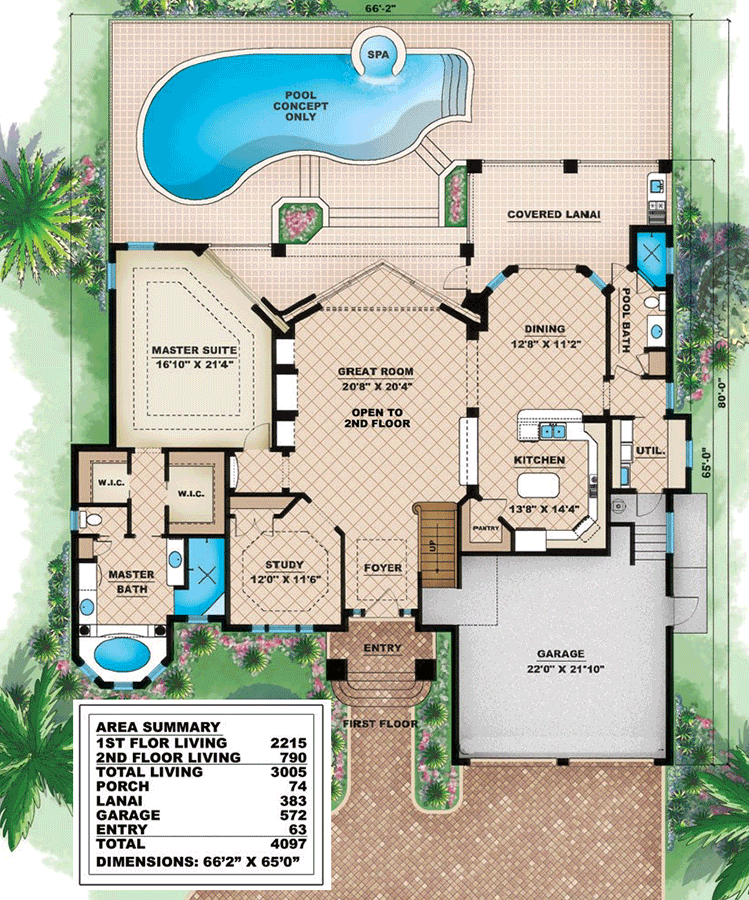

  • Main Level

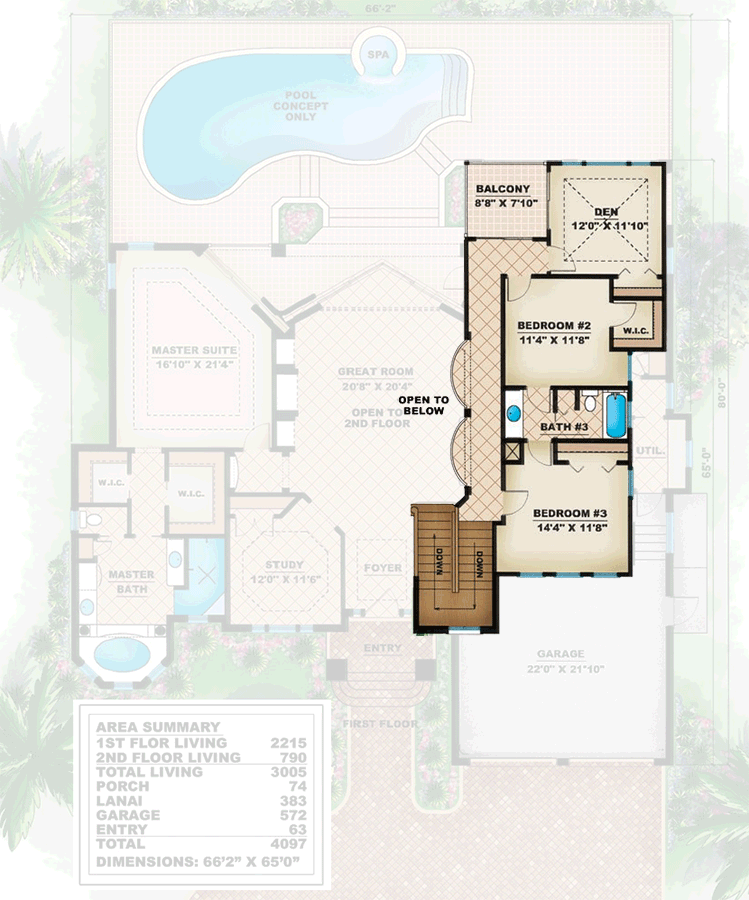

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,005 sq. ft.
  • 1st Floor: 2,215 sq. ft.
  • 2nd Floor: 790 sq. ft.
  • Lanai: 383 sq. ft.
  • Entry: 63 sq. ft.
  • Balcony / Veranda: 74 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6 and Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 66' 2"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
