Plan 62579DJ
Imposing Southern House Plan
Heated S.F.
5,010
Beds
5
Baths
4.5
Stories
2
Cars
4
What's Included
Plan Details
  • A tall entry porch and a lovely hip roof are the hallmarks of this imposing Southern house plan.
  • The special ceiling treatments inside are a delight to behold.
  • Rooms angle off from the center of the house, creating interesting sight-lines.
  • The bright and airy hearth room has a big fireplace and windows on three sides, with sliders to the outdoor covered deck.
  • The well-thought-out master suite has a double tray ceiling, lots of windows and a master bathroom that juts out to the right.
  • And how about a washer and dryer built right into the center of your walk-in closet for the ultimate in convenience!
  • Four bedrooms occupy the second floor along with a loft and an open rail hallway that overlooks the huge great room below.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Imposing Southern House Plan

  • 5,010

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

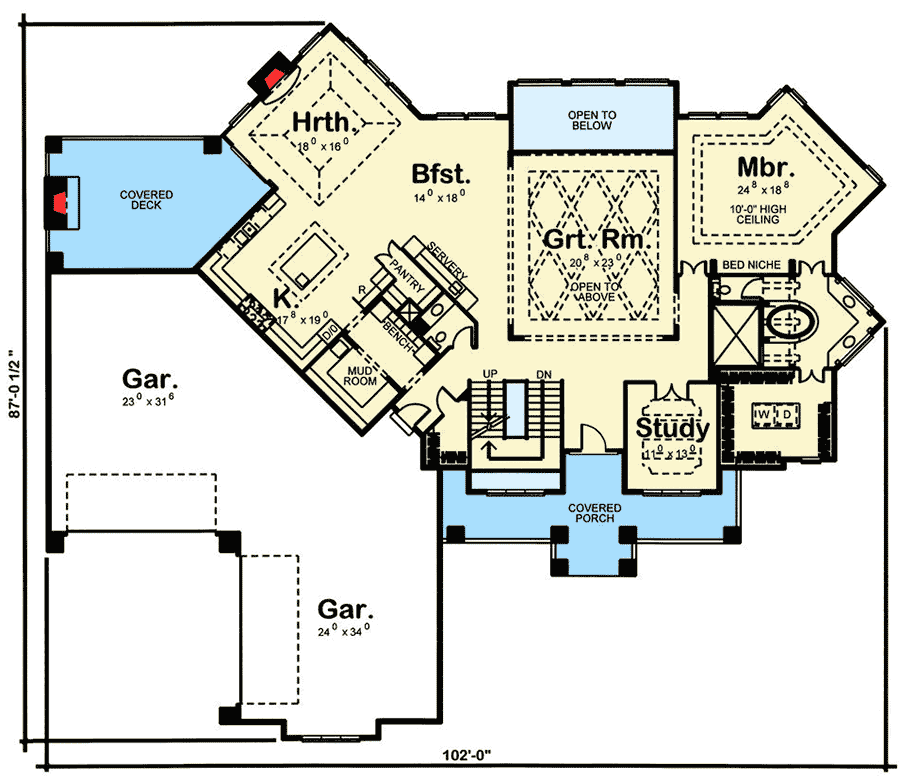

  • Main Level

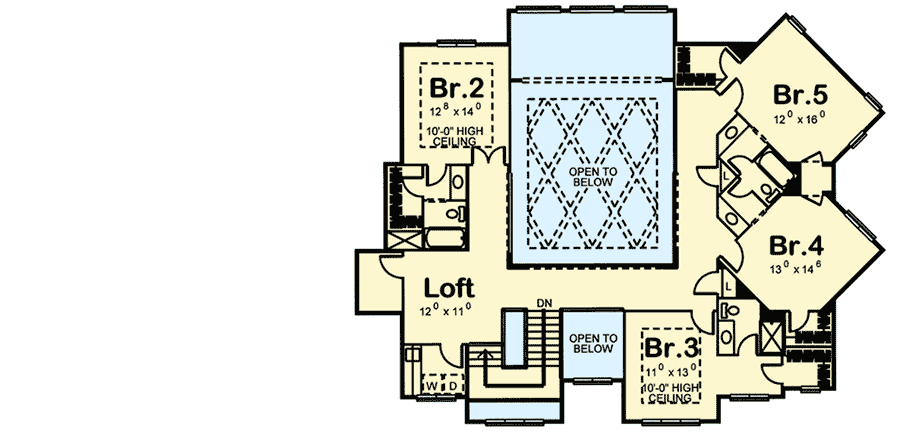

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,010 sq. ft.
  • 1st Floor: 3,268 sq. ft.
  • 2nd Floor: 1,742 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 87' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 3506 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
