Impressive 4800 Square Foot Prairie Style Home Plan with Porte Cochere

Plan 60627ND

  • 4,831

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

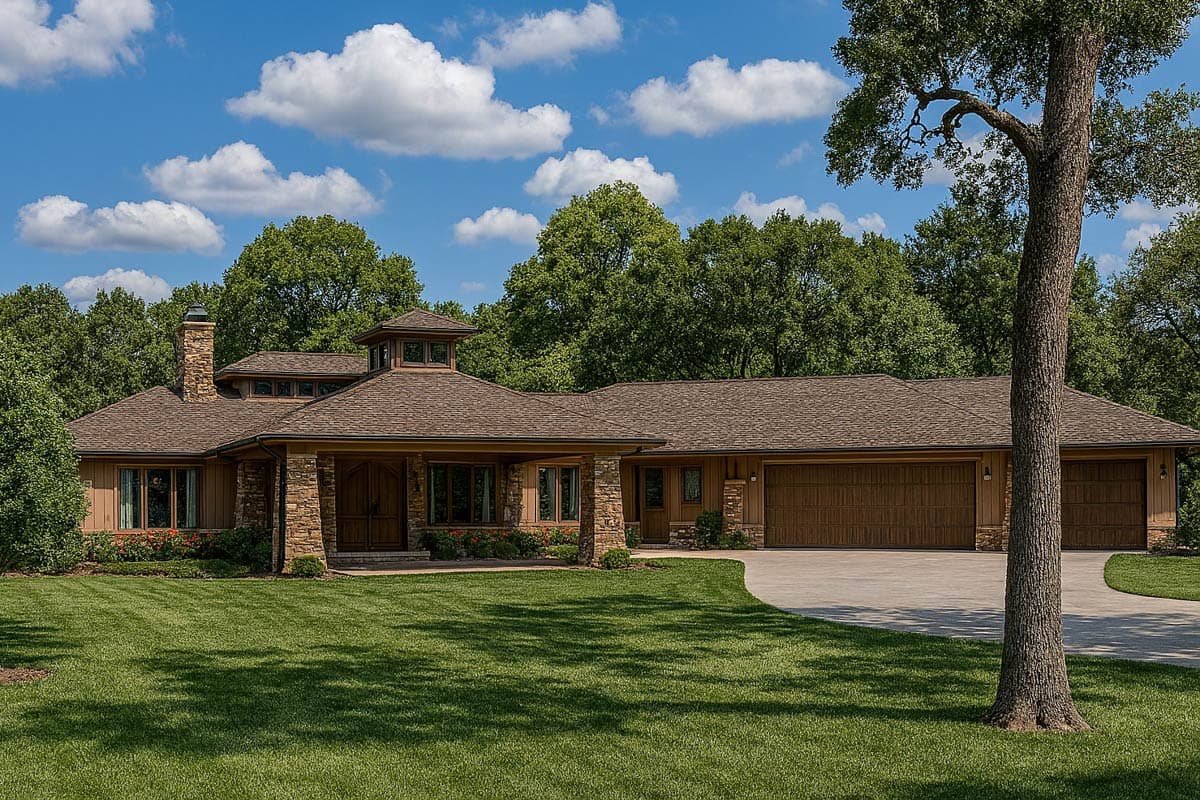

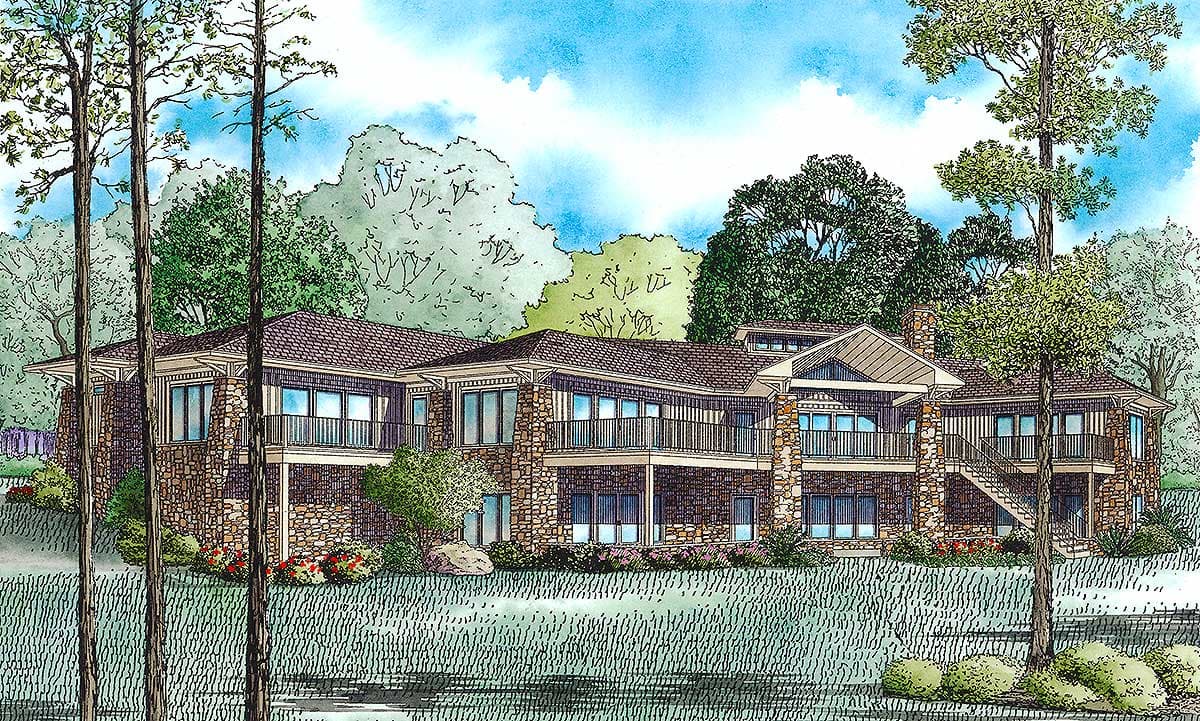

  • Designed for a lot that slopes to the rear, this Prairie style home boasts over 4,500 square feet of living space.

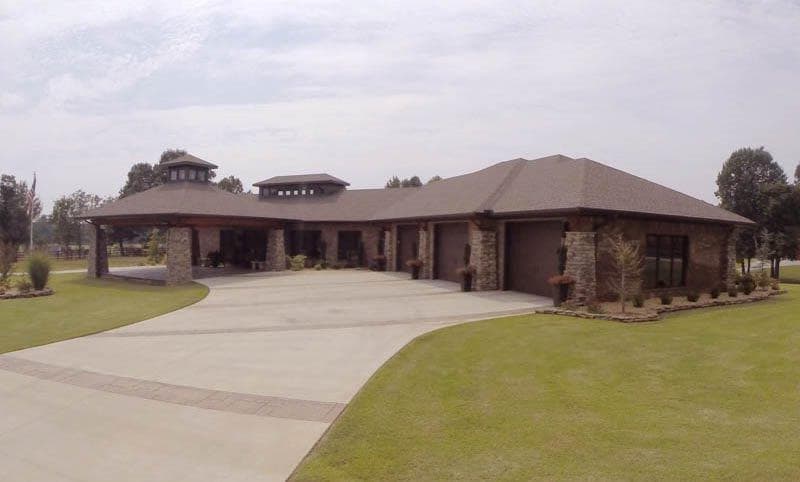

  • The vaulted porte cochere is supported by four bold stone columns for a dramatic look.

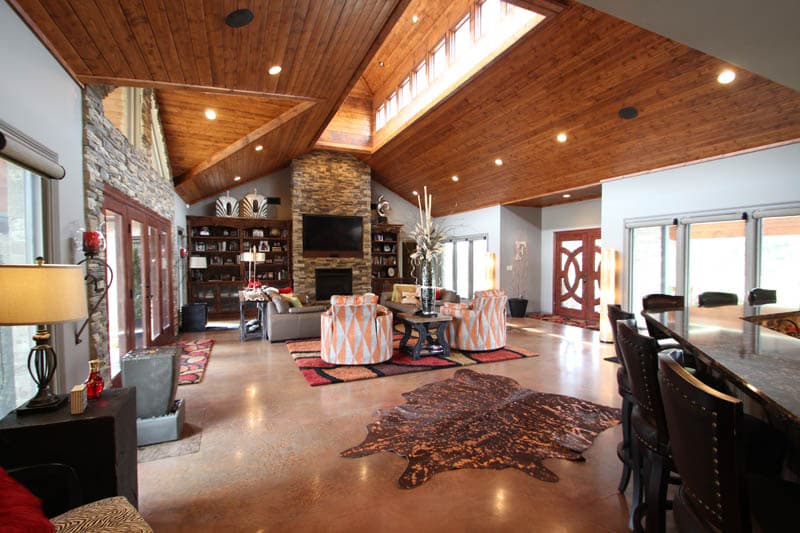

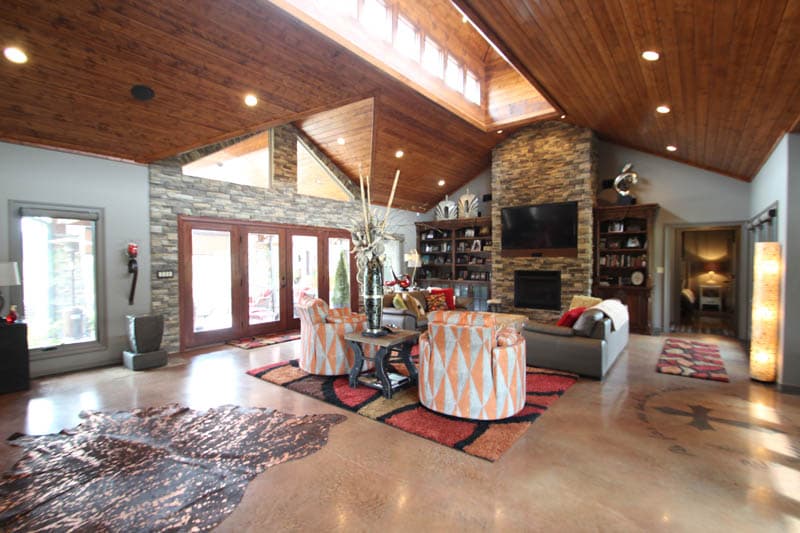

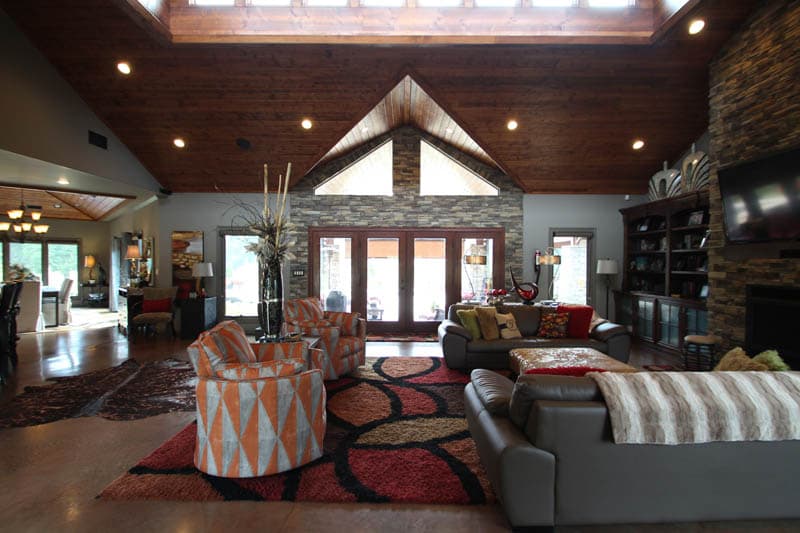

  • Inside, the magnificent great room is brightened by sky windows above.

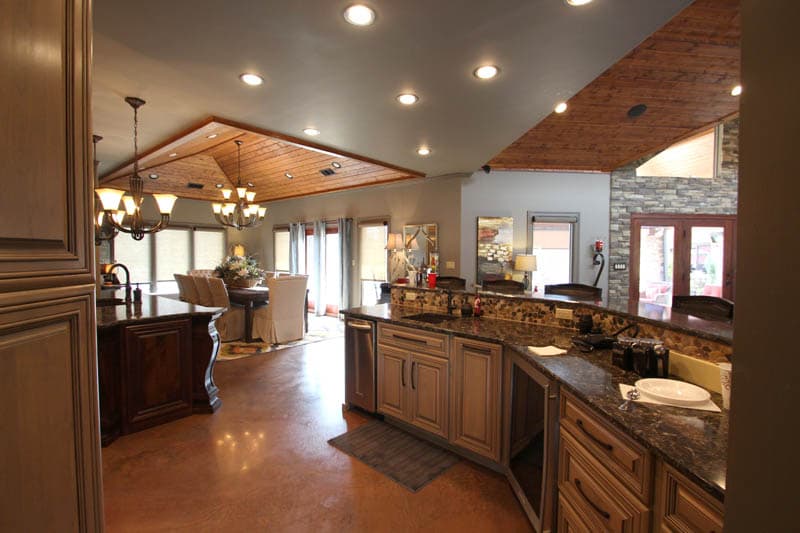

  • The kitchen is huge with a big island and a peninsula eating bar that seats six.

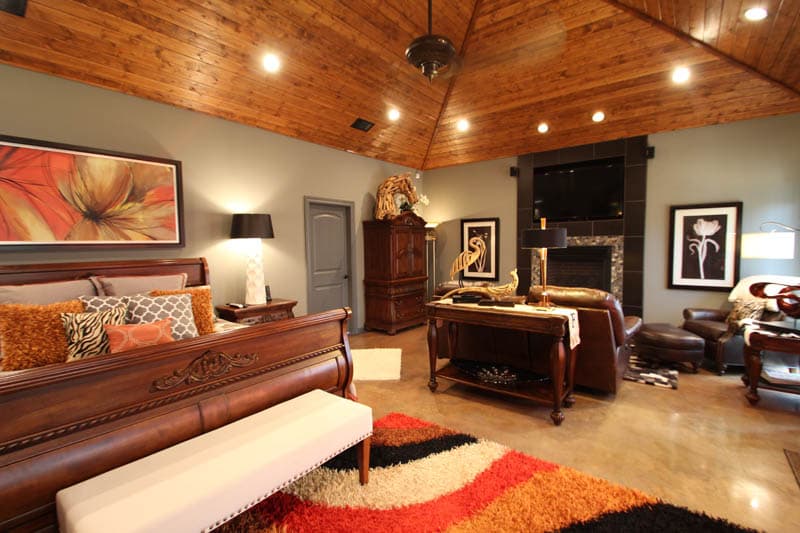

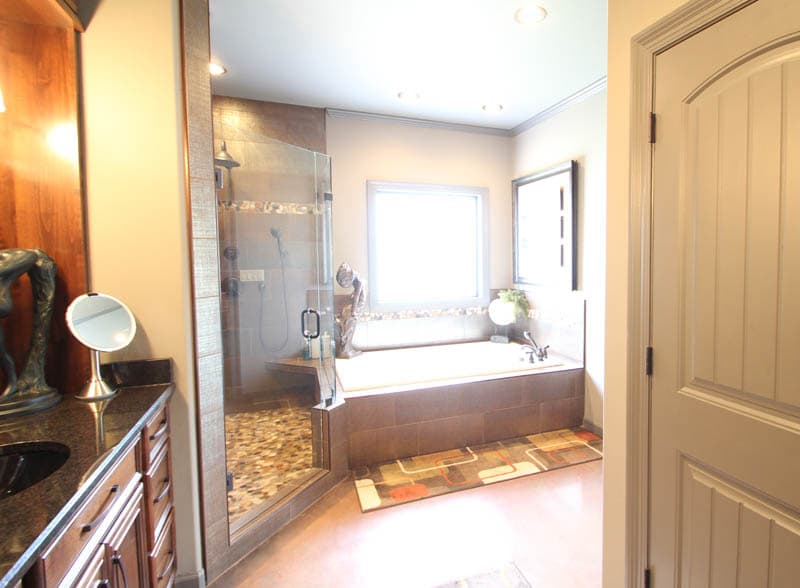

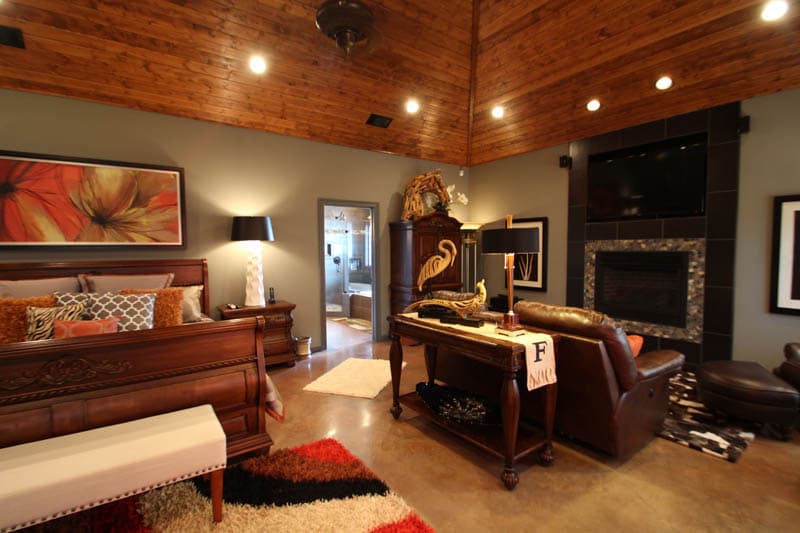

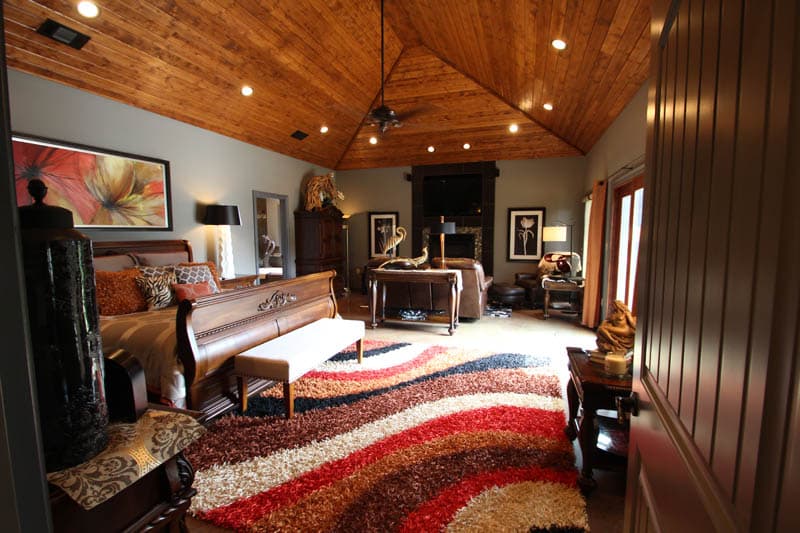

  • Two bedrooms on this level include the master suite while the walk-out basement level holds two more bedrooms.
  • You also have tons of storage and an enormous game/theater room that opens to a covered patio.
  • Related Plans: Get alternate versions with house plans 70840MK and 60636ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Impressive 4800 Square Foot Prairie Style Home Plan with Porte Cochere - 60627ND floor plan - Basement

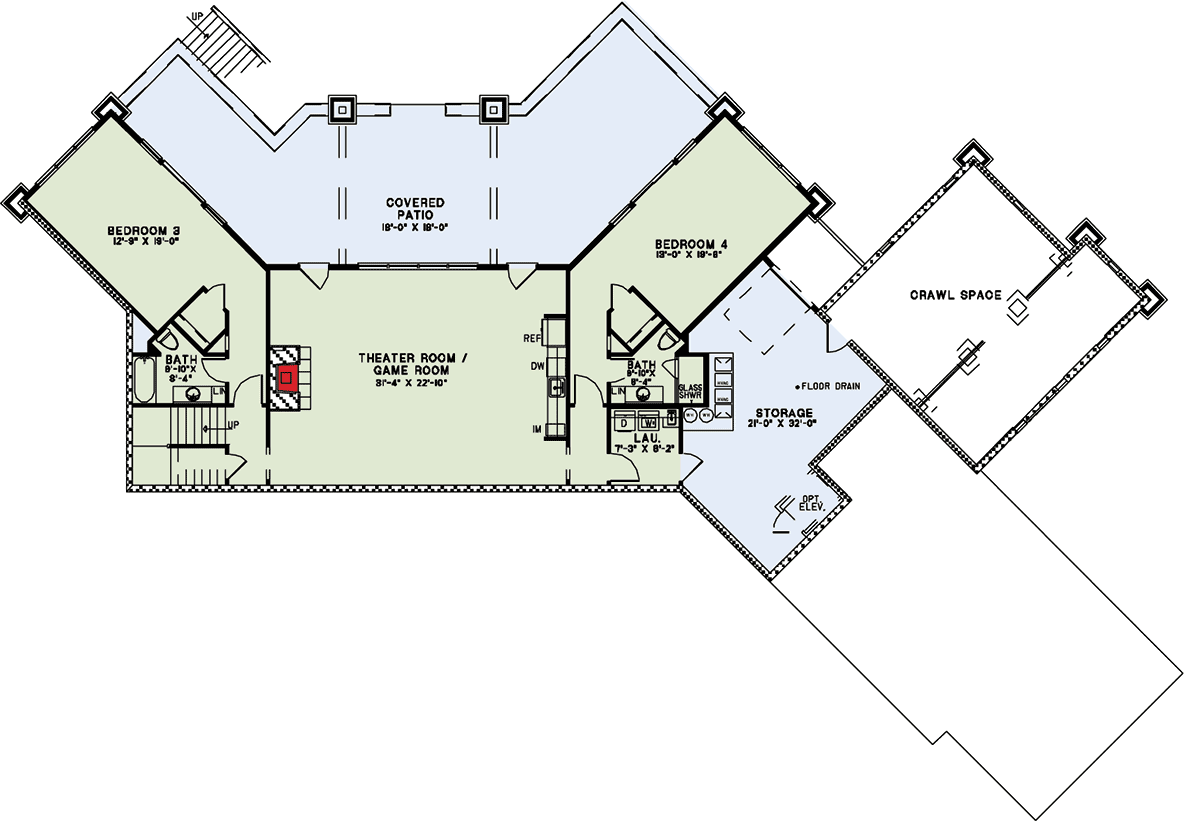

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Impressive 4800 Square Foot Prairie Style Home Plan with Porte Cochere - 60627ND floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,831 sq. ft.
  • Lower Level: 1,782 sq. ft.
  • 1st Floor: 3,049 sq. ft.
  • Porch, Combined: 953 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 123' 0"
  • Depth: 75' 10"
  • Max ridge height: 20' 8"

Garage

  • Type: Attached
  • Area: 934 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Impressive 4800 Square Foot Prairie Style Home Plan with Porte Cochere

  • 4,831

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,650
  • 5 Sets $2,750
  • 5 Sets + PDF $3,000
  • PDF - Unlimited Build $3,350
  • CAD Unlimited + PDF $5,300
  • View all purchase option online

About This Plan

  • Designed for a lot that slopes to the rear, this Prairie style home boasts over 4,500 square feet of living space.
  • The vaulted porte cochere is supported by four bold stone columns for a dramatic look.
  • Inside, the magnificent great room is brightened by sky windows above.
  • The kitchen is huge with a big island and a peninsula eating bar that seats six.
  • Two bedrooms on this level include the master suite while the walk-out basement level holds two more bedrooms.
  • You also have tons of storage and an enormous game/theater room that opens to a covered patio.
  • Related Plans: Get alternate versions with house plans 70840MK and 60636ND.

Floor Plans

  • Basement

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,831 sq. ft.
  • Lower Level: 1,782 sq. ft.
  • 1st Floor: 3,049 sq. ft.
  • Porch, Combined: 953 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 123' 0"
  • Depth: 75' 10"
  • Max ridge height: 20' 8"

Garage

  • Type: Attached
  • Area: 934 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
