Plan 86064BW
Impressive Coastal House Plan with Observation Deck
Heated S.F.
4,532
Beds
4
Baths
5
Stories
2
Cars
3
Plan Details

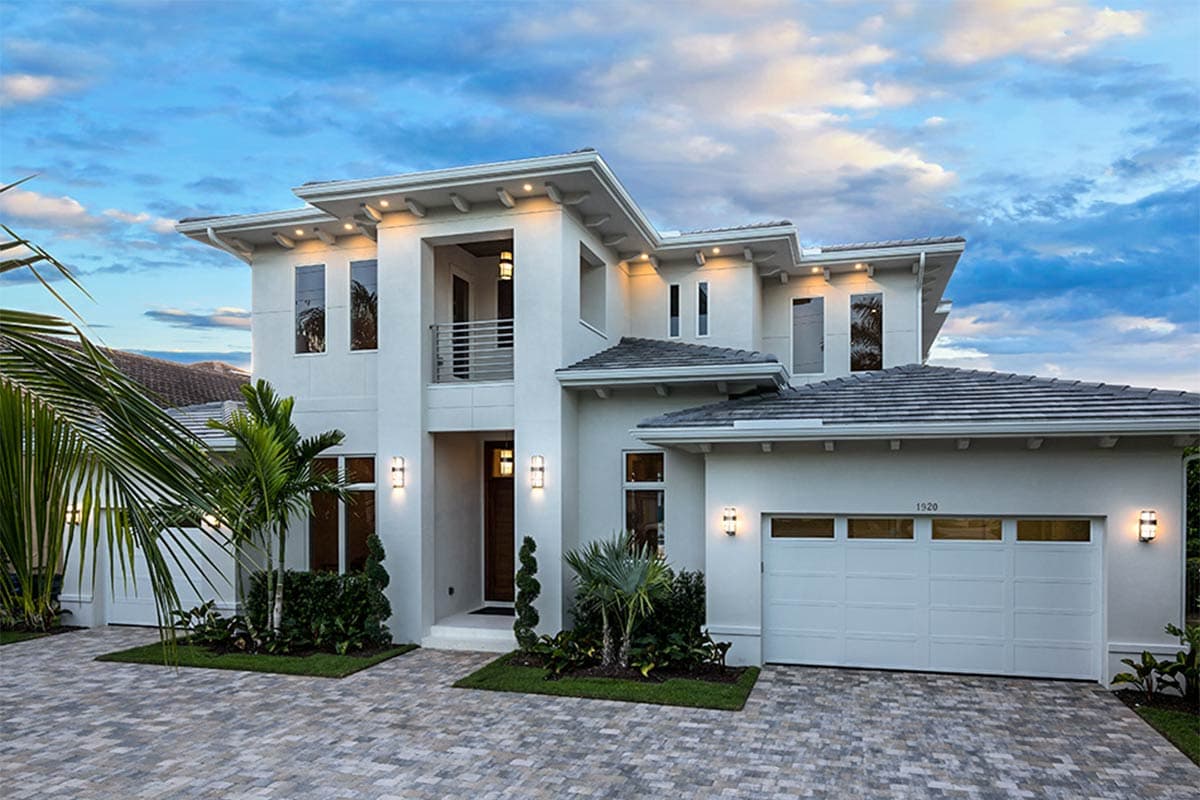

  • Designed for luxurious coastal living, this house plan delivers an abundance of outdoor living spaces and impressive interior features.

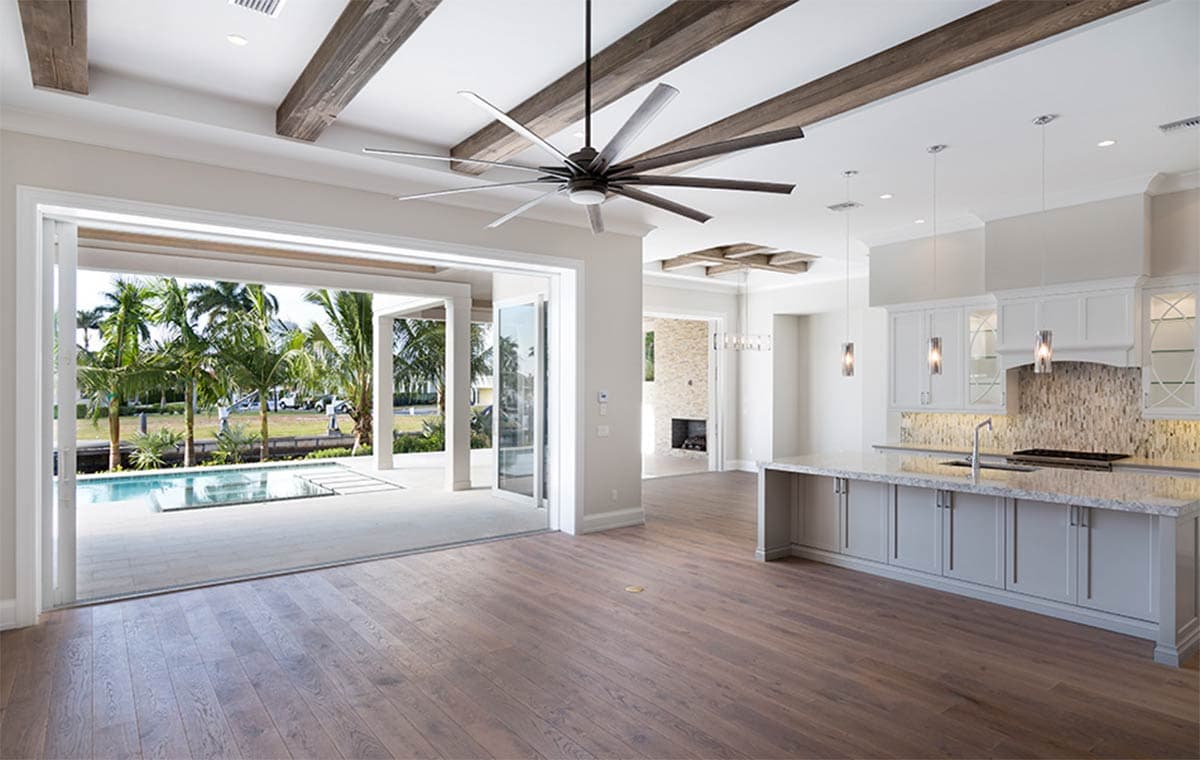

  • With its huge open floor plan and walls of glass, the home feels enormous.

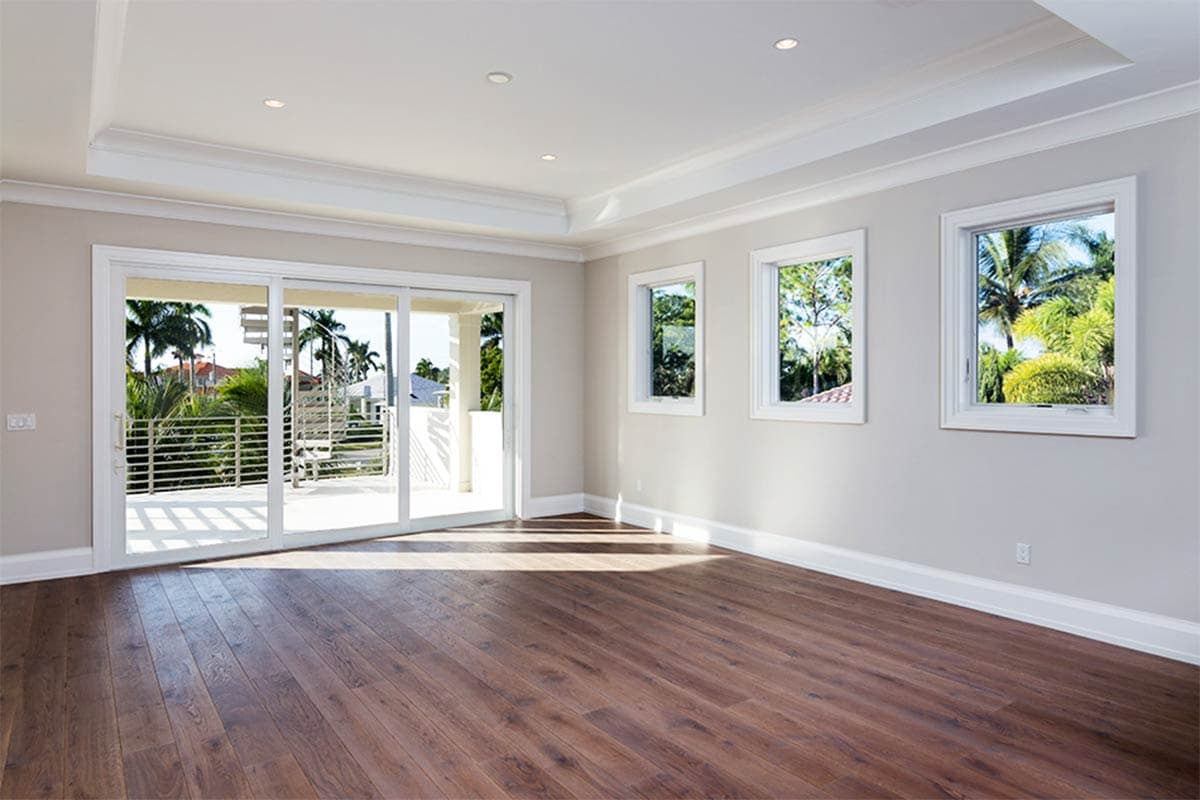

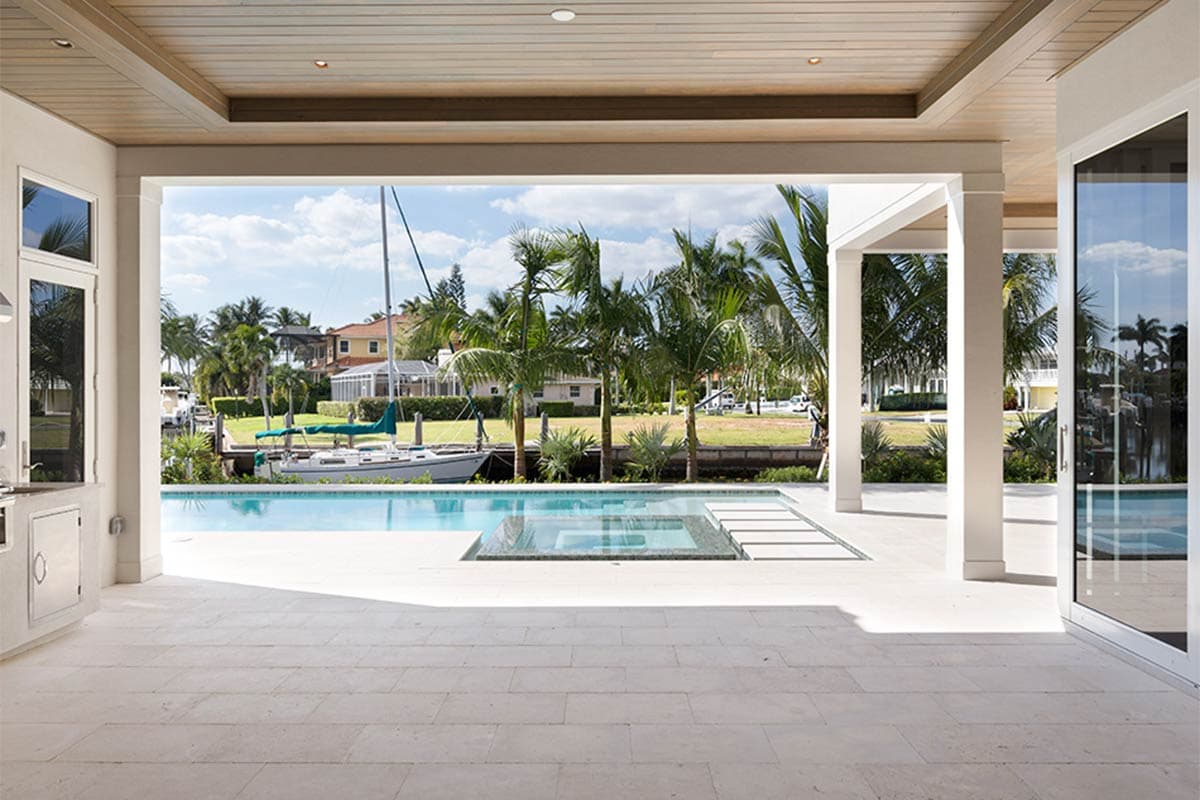

  • Sliding glass doors get you out to the rear covered lanais on both floors.

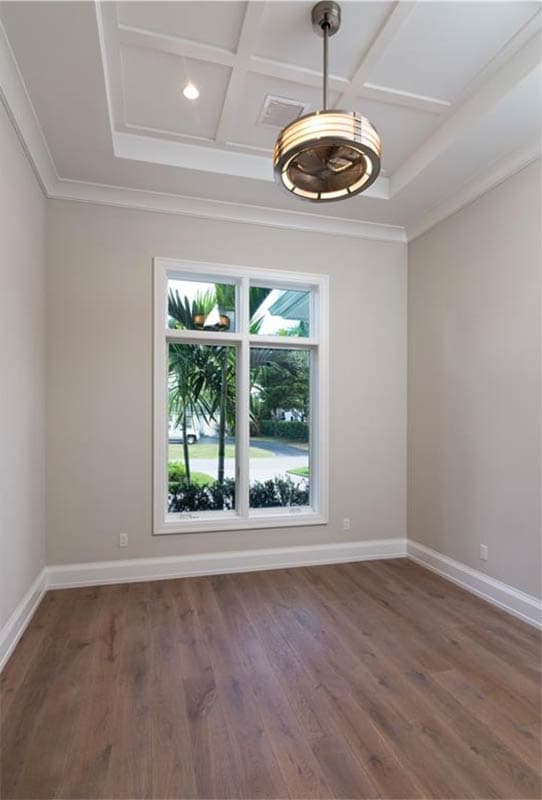

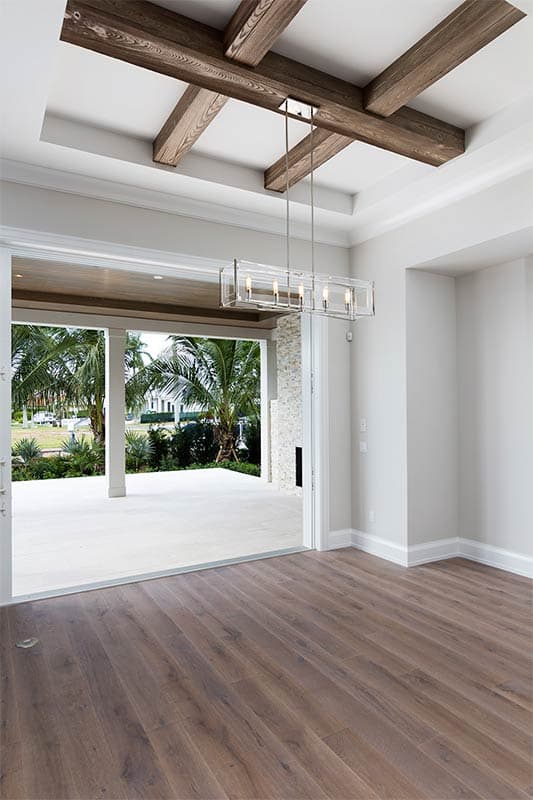

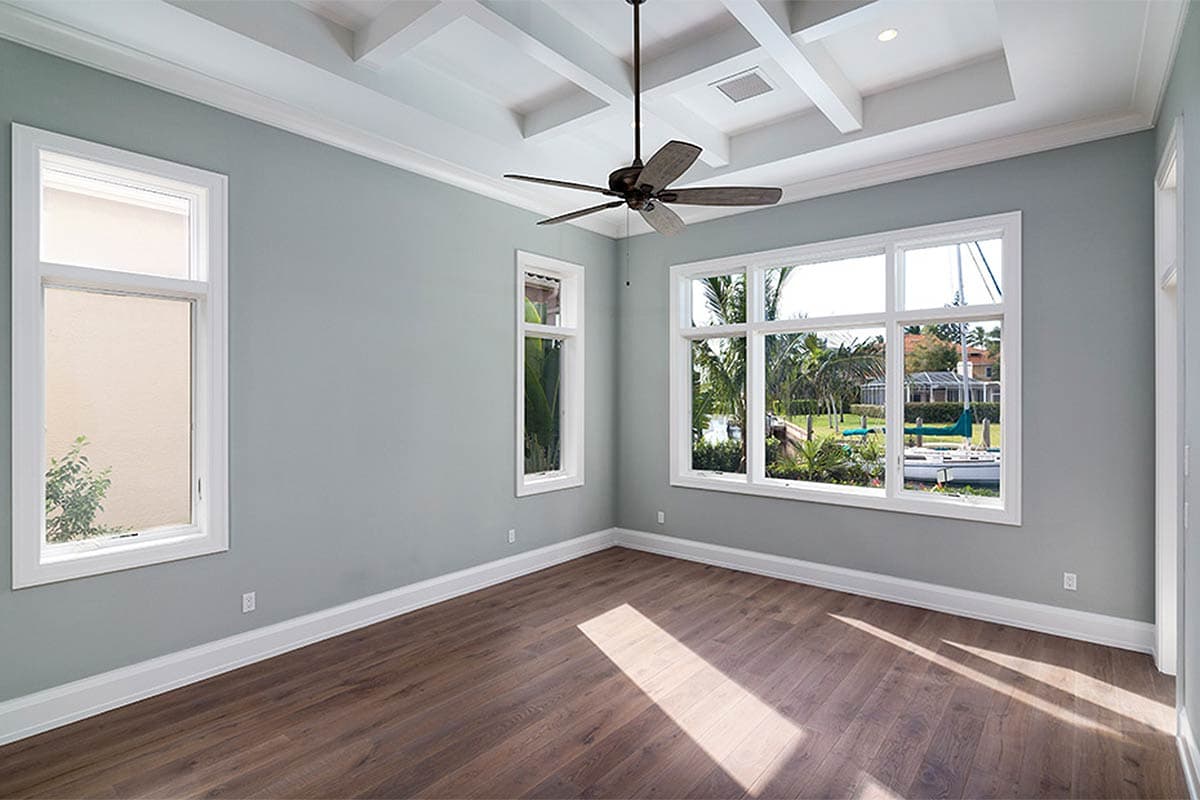

  • Elegant tray ceilings top almost every major room and there are two study/home office areas plus a residential elevator to whisk you up to the second floor.
  • Choose from a first or second floor master suite or give the upstairs one to the grandparents.

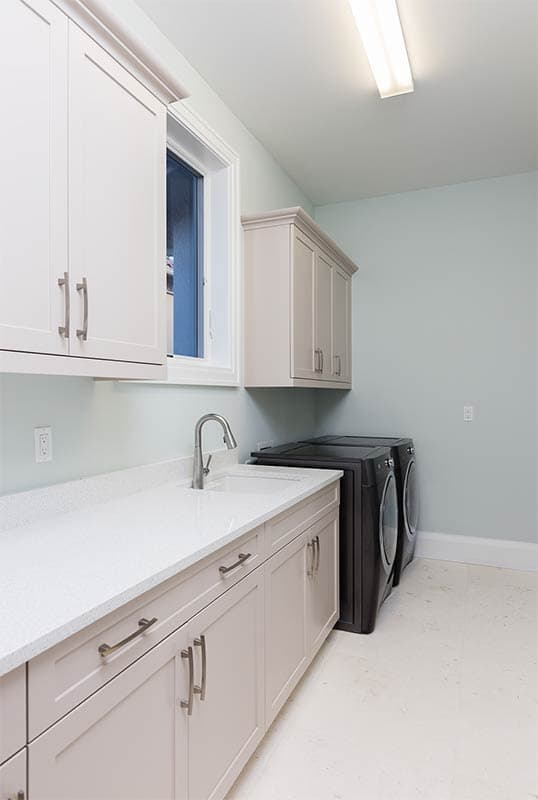

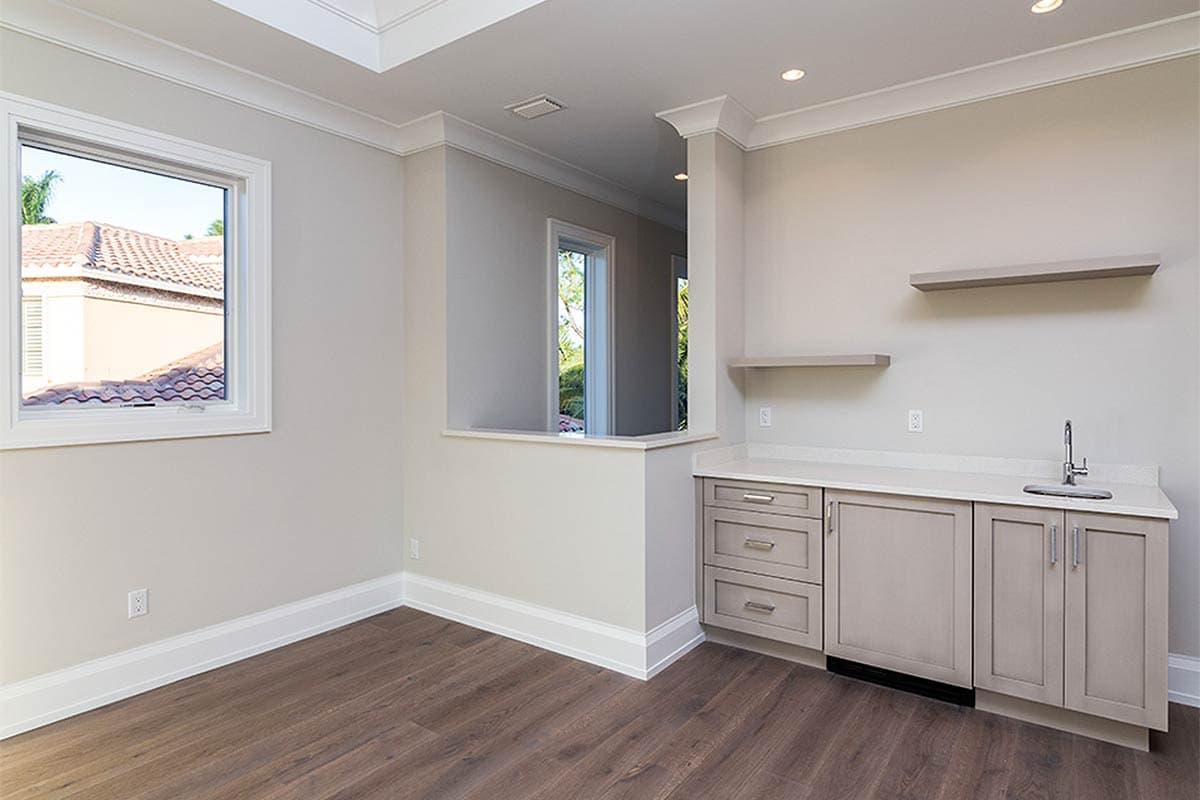

  • There are wet bars and laundry rooms on each floor too.

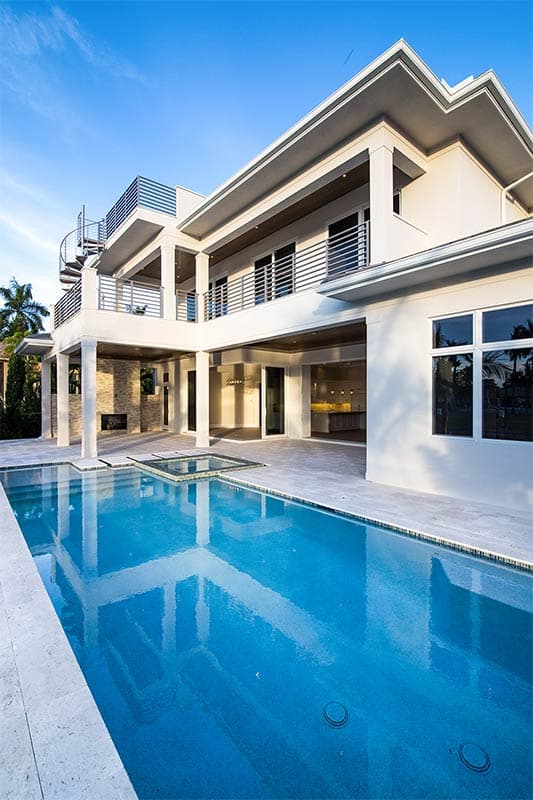

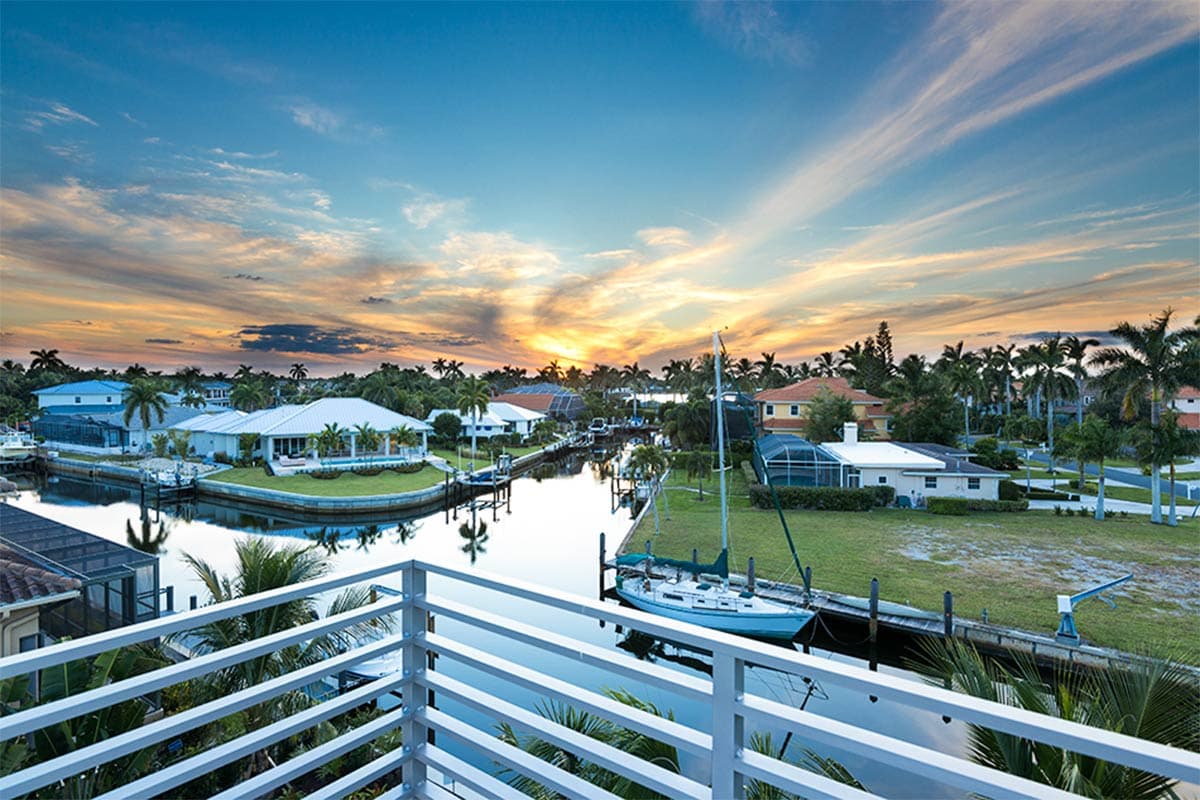

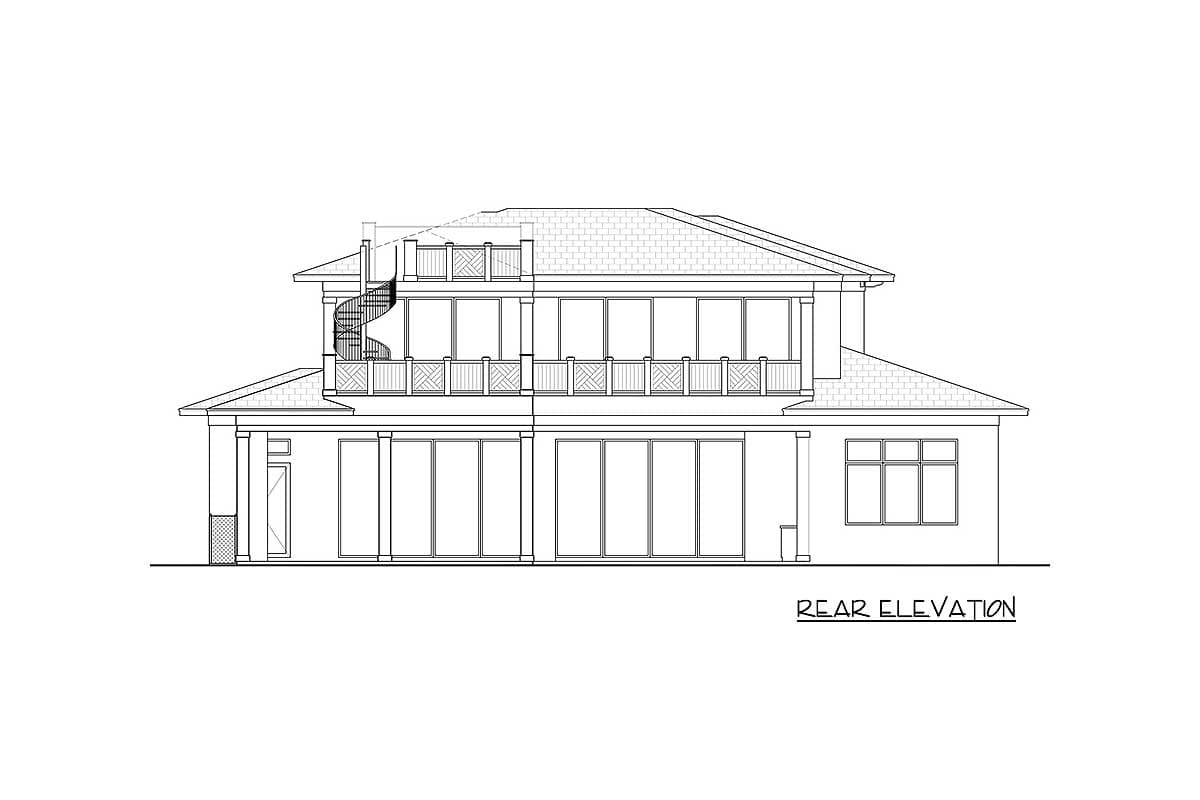

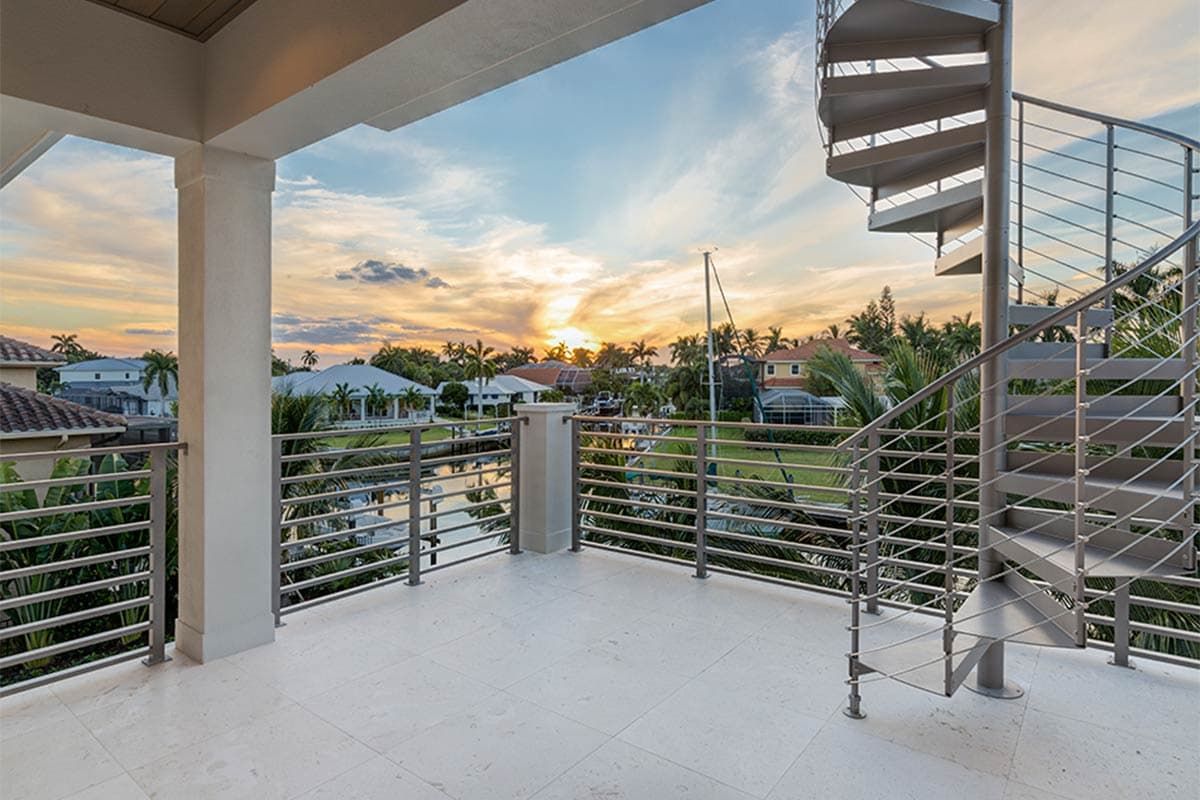

  • Best of all, the home comes with a rec room that opens to both covered and uncovered decks with spiral stairs to a third floor observation deck.
  • This is truly a luxurious and spacious family home.
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Impressive Coastal House Plan with Observation Deck

  • 4,532

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

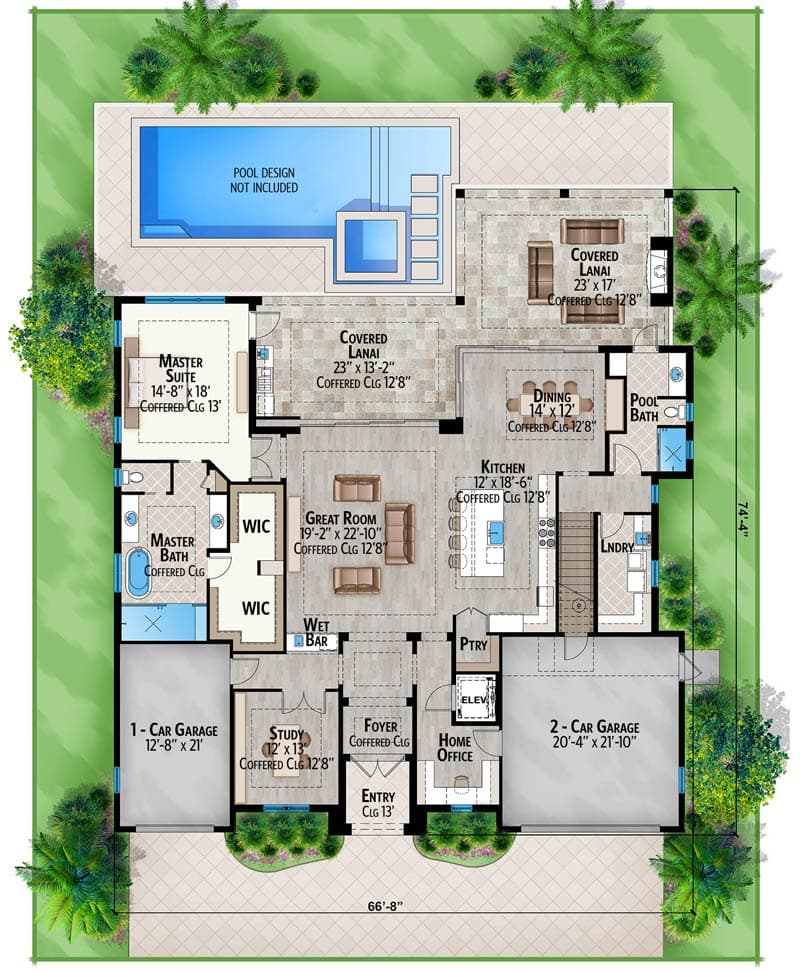

  • Main Level

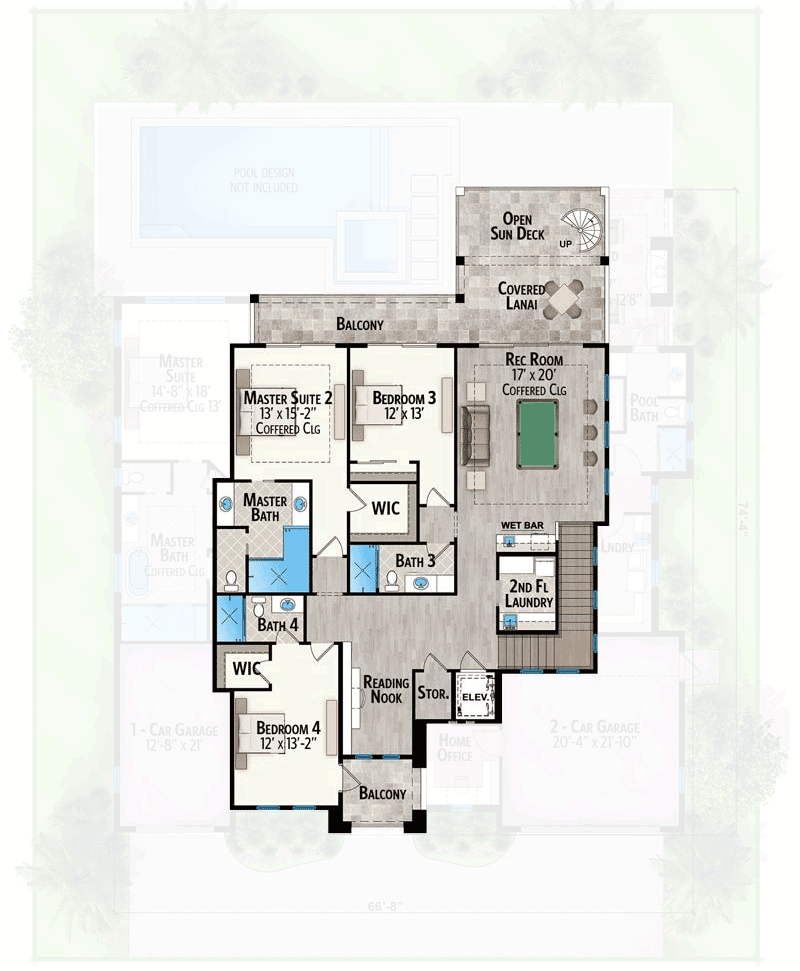

  • 2nd Floor

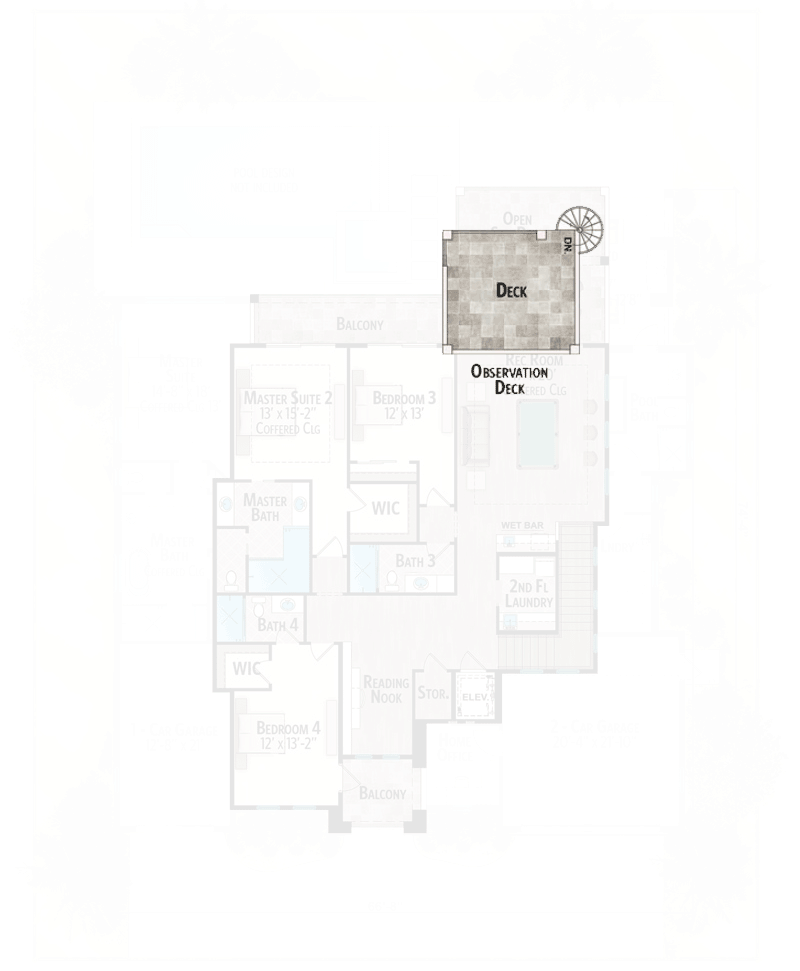

  • Observation Deck

Plan Details

Square Footage Breakdown

  • Total: 4,532 sq. ft.
  • 1st Floor: 2,638 sq. ft.
  • 2nd Floor: 1,894 sq. ft.

Dimensions

  • Width: 66' 8"
  • Depth: 74' 4"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 4"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
