Impressive European House Plan

Plan 740000LAH

5,344
Heated s.f.
4
Beds
4.5+
Baths
2
Stories
3
Cars

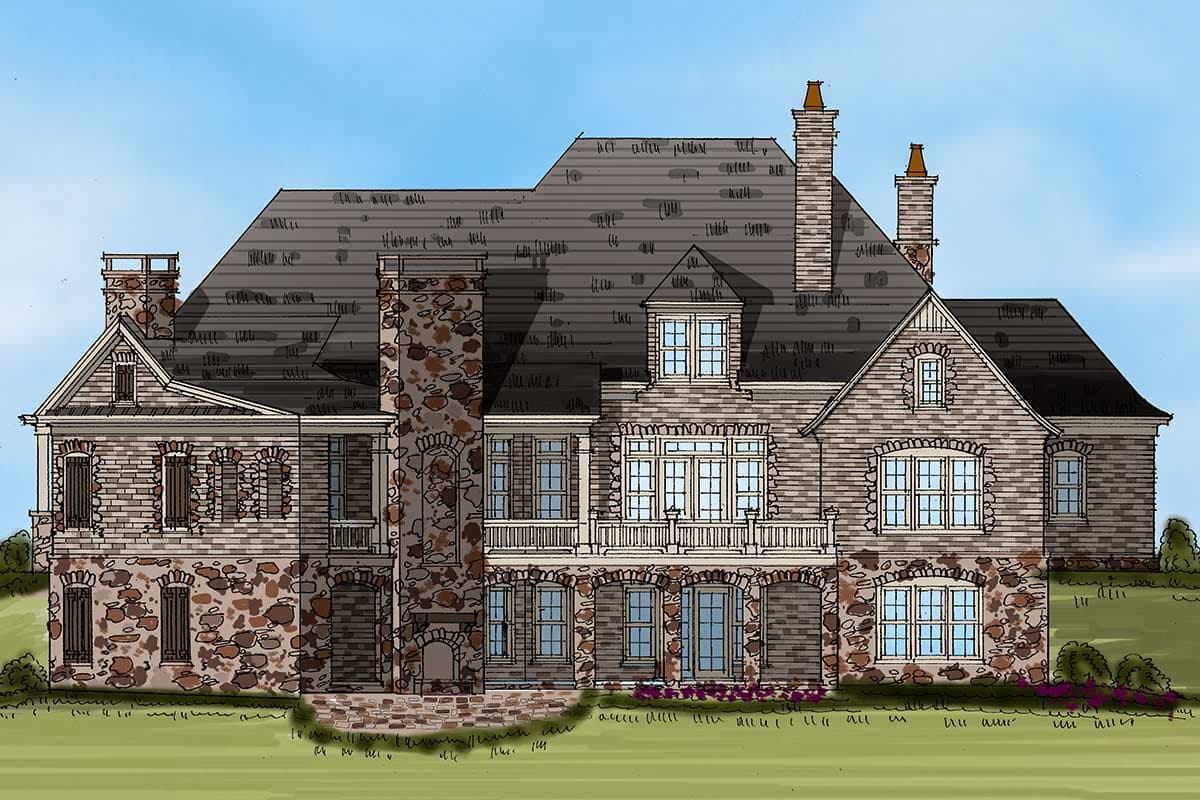

This impressive European house plan offers a brick and stone exterior and intricate roof lines to cap it all off.
The arched entry porch showcases a gorgeous arched double door at the front of the house.
From the foyer you can see into the spacious formal dining room and back into the huge family room with its coffered ceilings and built-ins.
Choose from an open deck or a covered porch with an outdoor fireplace when you want some fresh air.
The kitchen is a chef's delight with lots of counter space, a big island and a huge walk-in pantry.
Vaulted and beamed ceilings top the large keeping room off the kitchen.
The first floor master suite is top of the line, with its own private laundry room and a vaulted bathroom with a stand alone soaking tub near the two-entry giant walk-in shower.
Each of the three bedrooms on the second floor have a walk-in closet and private bathroom.
A second floor laundry room means no one has to go far on laundry day.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles. It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

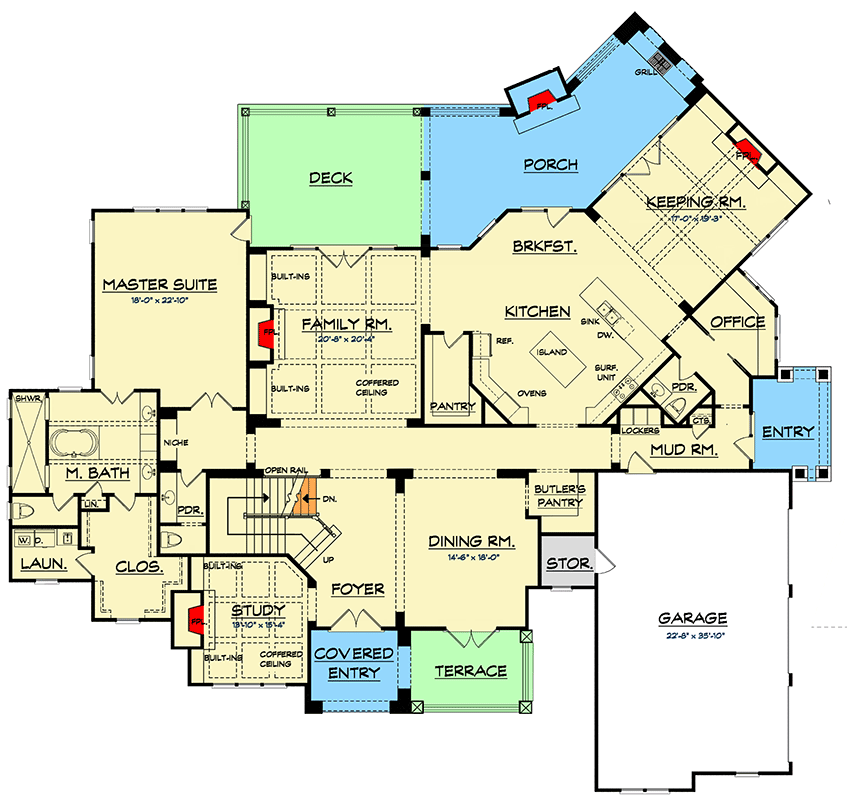

Impressive European House Plan - 740000LAH floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

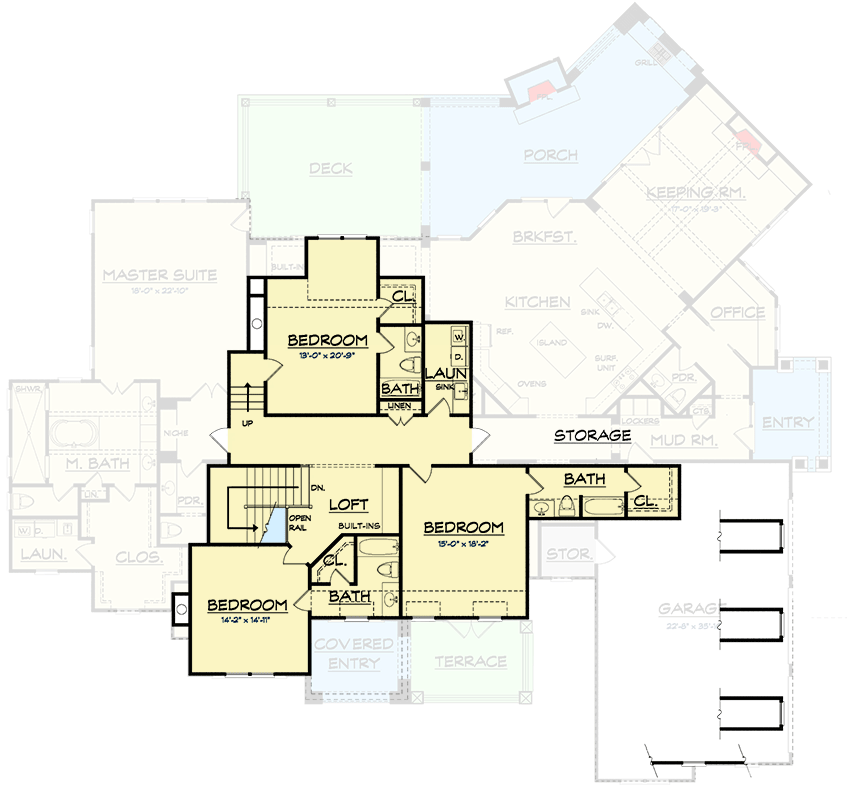

Impressive European House Plan - 740000LAH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 5,344 sq. ft.
1st Floor: 3,888 sq. ft.
2nd Floor: 1,456 sq. ft.

Optional Lower Level: 3,304 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 2

Foundation Type

Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 95' 0"
Depth: 91' 10"
Max ridge height: 32' 8"

Garage

Type: Attached
Area: 812 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 14 on 12
