Plan 4296MJ
Impressive Mediterranean Home Plan
Heated S.F.
3,873
Beds
3
Baths
3
Stories
1
Cars
3
What's Included
Plan Details
  • Multiple roof lines and a clay tile roof enhance the stucco exterior of this impressive Mediterranean home plan.
  • Arched windows and a big arched entry porch add curb appeal.
  • From the 14' high foyer, three sets of double doors open to the huge living room with its sliding glass doors to the rear covered patio.
  • The kitchen is also impressive with two peninsula bars and a center island.
  • The sink faces the enormous gathering room so it is easy to keep your eye on what is going on.
  • A separate entry foyer leads to the secluded game room that keeps the noise away from the rest of the house.
  • This home was a custom design for a family who needed kennels but this space could just as easily be used as storage.
  • The luxurious master suite has a bayed sitting area, two huge walk-in closets and a spa-like bathroom.
  • Bedrooms 2 and 3 have 10' ceilings and the master suite is 12' high.
  • The outside entry porch rises to 15'6".
  • Related Plan: Get a larger version with house plan 42844MJ (4,192 sq. ft.).
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Impressive Mediterranean Home Plan

  • 3,873

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

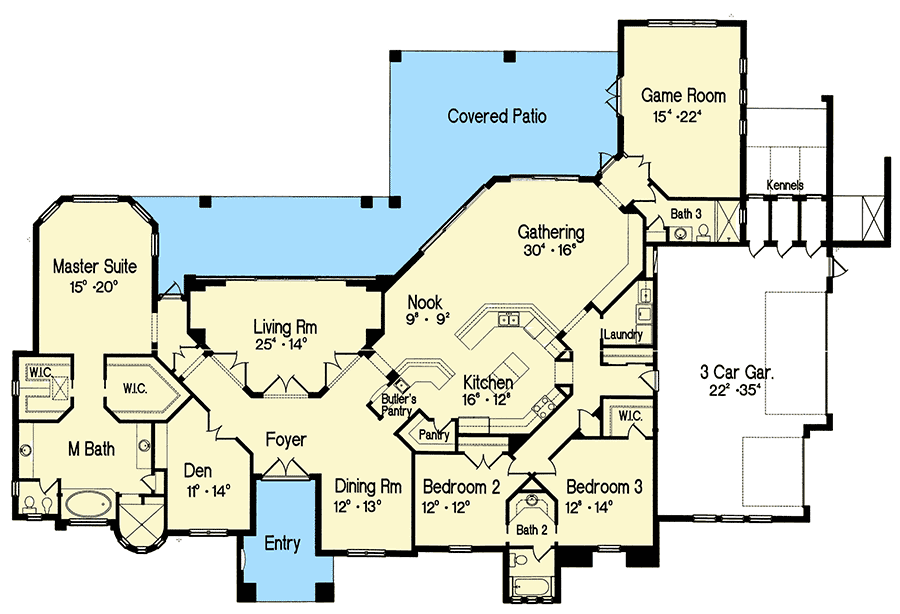

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,873 sq. ft.
  • 1st Floor: 3,873 sq. ft.

Dimensions

  • Width: 107' 8"
  • Depth: 76' 0"
  • Max ridge height: 26' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 863 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 6 on 12
