Plan 430033LY

Impressive Tuscan House Plan with Game Room

Heated S.F.
3,670
Beds
3
Baths
2.5+
Stories
1-2
Cars
3

Floor Plan

Plan 430033LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430033LY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

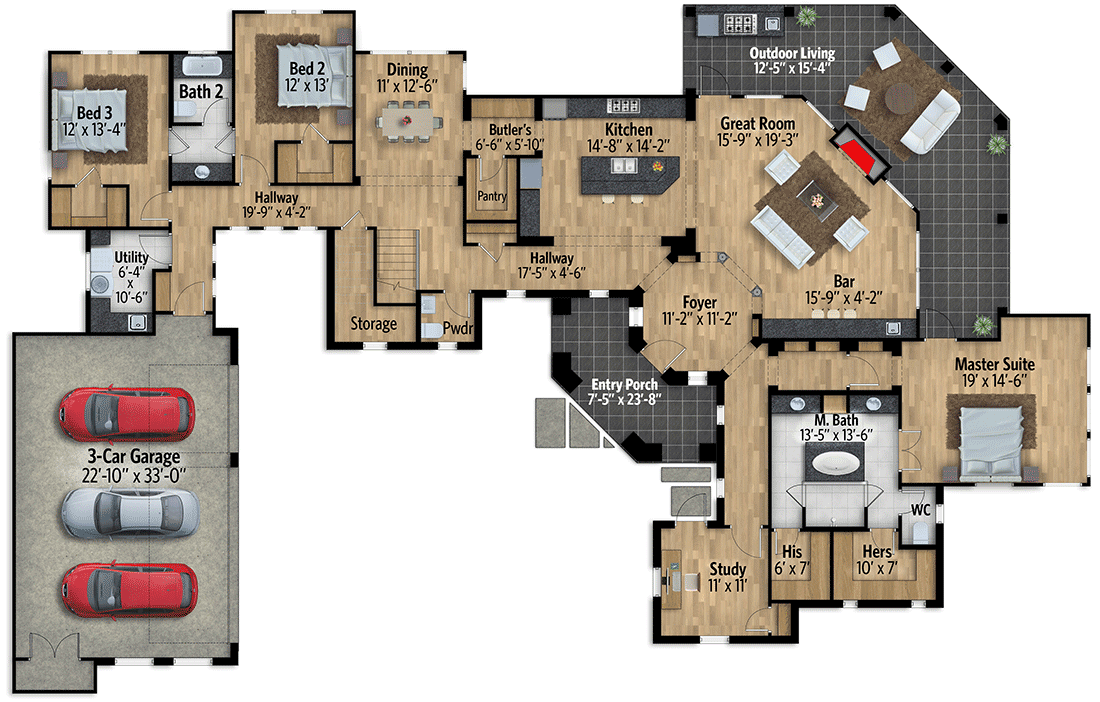

Plan 430033LY: Impressive Tuscan House Plan with Game Room - Floor Plan - Main Level - Hill Country, Mediterranean, Tuscan

2nd Floor

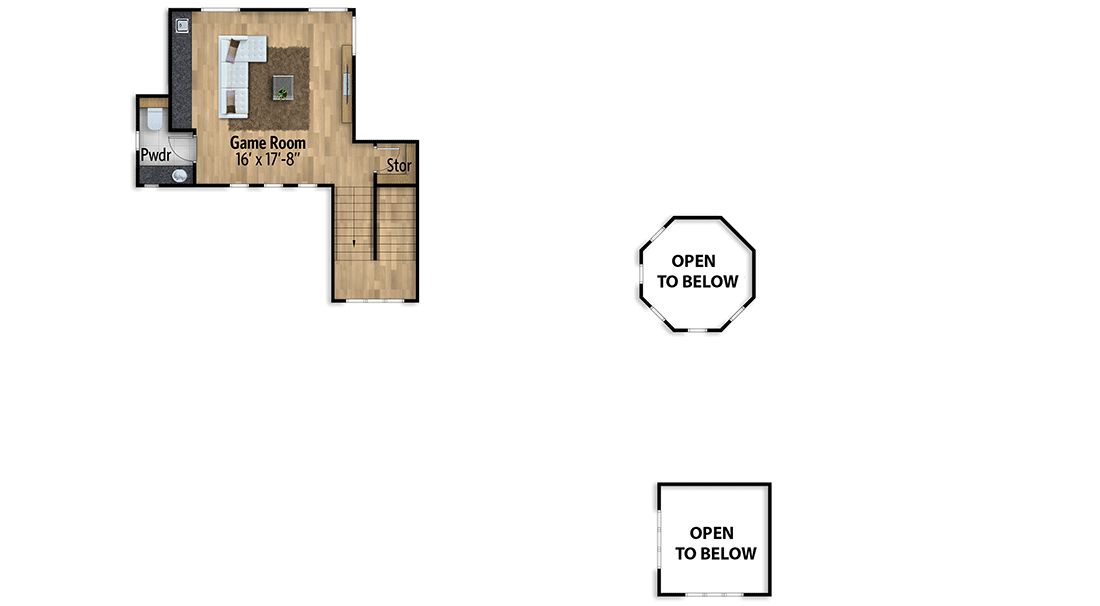

Plan 430033LY: Impressive Tuscan House Plan with Game Room - Floor Plan - 2nd Floor - Hill Country, Mediterranean, Tuscan

Plan Details

  • An octagonal entry foyer welcomes you into this high-end Tuscan house plan that is exclusive to Architectural Designs.
  • Head straight ahead to the giant great room that overlooks a spacious outdoor living area
  • A long wet bar counter makes entertaining a breeze.
  • Other pluses are the butler's pantry and walk-in food storage pantry that separate the kitchen from the formal dining room.
  • Bedrooms 2 and 3 lie to the left, each with a big walk-in closet of their own.
  • The master suite sits off by itself on the right wing of the home, with a luxurious master bathroom that has a two-entry step-in shower.
  • Family and friends alike will love the second floor game room that has a wet bar, powder room and walk-in storage closet for games and toys.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan

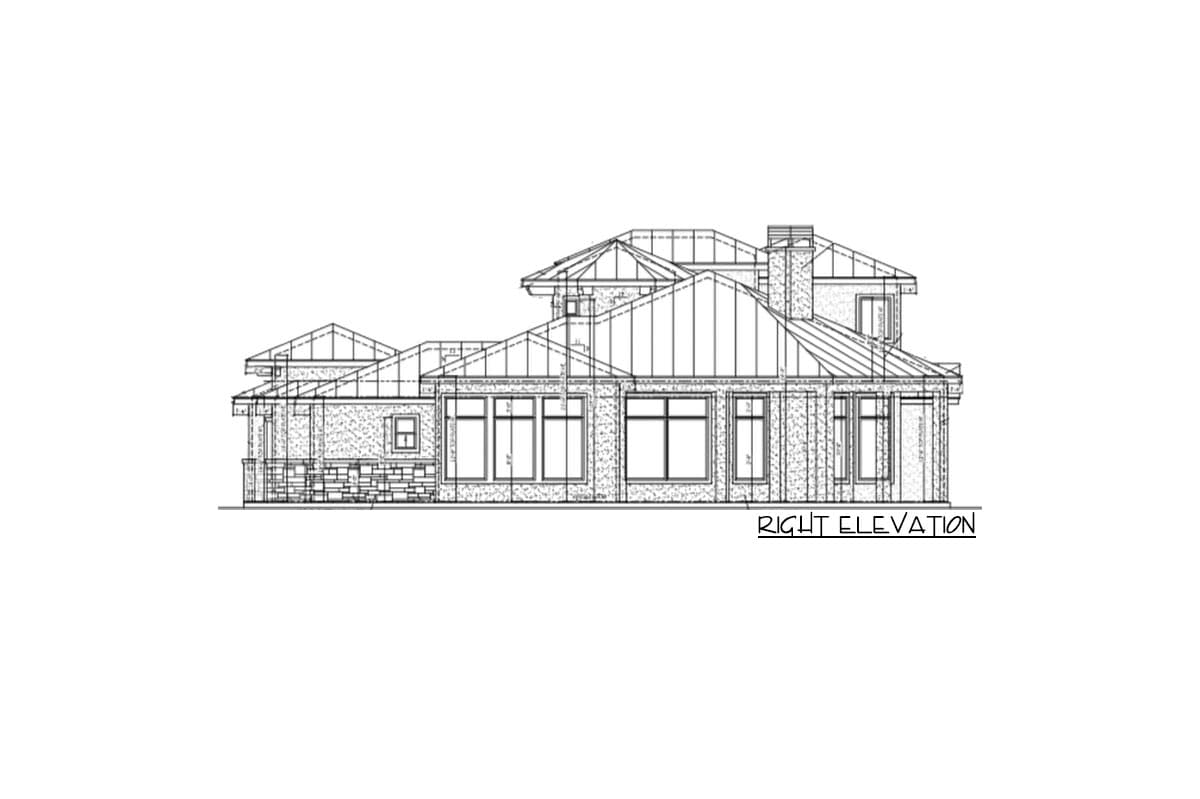

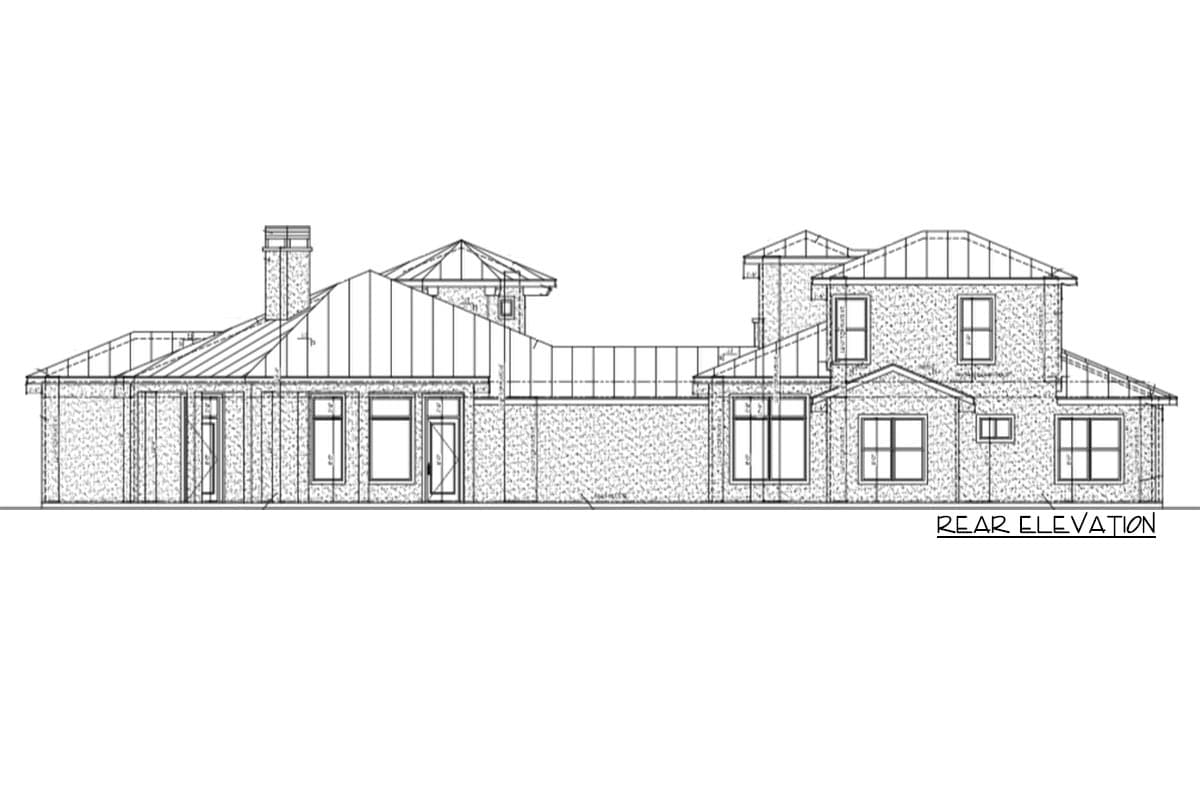

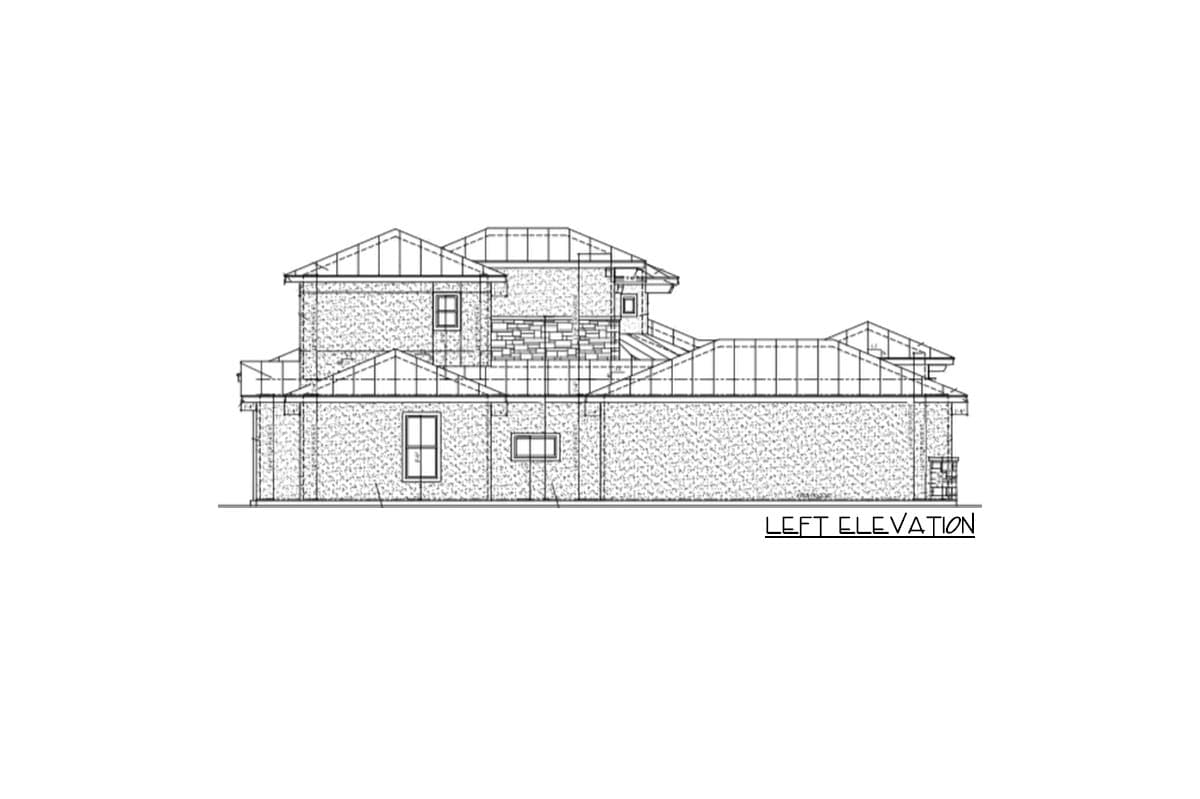

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,670 sq. ft.

1st Floor

3,221 sq. ft.

2nd Floor

449 sq. ft.

Porch, Front

175 sq. ft.

Deck

532 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

110' 5"

Depth

70' 4"

Garage

Type

Attached

Area

824 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Foyer

22' 0''

Living Room

15' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Hill Country

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Formal Dining

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
