Plan 66099WE

Key West Style House Plan with 3 Bedrooms and Expansive Lanai

Name: Plan 66099WE: Key West Style House Plan with 3 Bedrooms and Expansive Lanai
Brand: Architectural Designs
SKU: 66099WE
Price: 1350.0 USD
Availability: InStock

Heated S.F.

3,379

Beds

Baths

3.5

Stories

Cars

Floor Plan

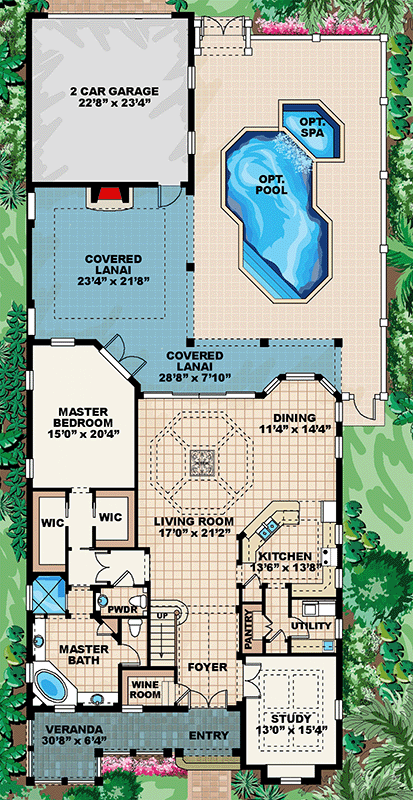

Main Level

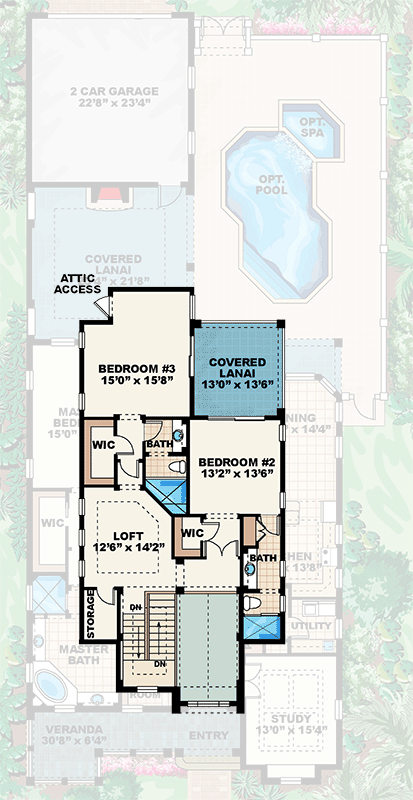

2nd Floor

Plan Details

This charming 3,379 square foot Key West style home plan features three bedrooms, three-and-a-half baths, and a detached two-car garage.
The classic front verandah provides a welcoming entrance that leads into a thoughtfully designed layout perfect for narrow lots.
The main living level includes a private study and a sophisticated wine room, while the kitchen is equipped with a convenient walk-in pantry.
A luxurious primary suite occupies the main floor, offering two walk-in closets and a spa-inspired bathroom with dual sinks, a corner garden tub, and a separate shower.
Upstairs, you will find two additional bedrooms with walk-in closets, two full bathrooms, a versatile loft space, and a private second-floor covered balcony.
The rear of the home is designed for outdoor living, featuring a massive covered lanai with an outdoor fireplace that is easily accessible from the living room and primary suite.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
