L-Shaped Balcony

Plan 21376DR

This plan plants 3 trees

1,603
Heated s.f.
3
Beds
1.5+
Baths
2
Stories

An L-shaped balcony, abundant fenestration in family and dining rooms, a kitchen with spacious central island and the fenestrated breakfast area provide charm and function to this delightful home plan.
The first level features the entrance, half-bath, family room with fireplace, dining room, kitchen with island and breakfast area.
On the second level you'll find the master bedroom with walk-in closets and private haf-bath, two secondary bedrooms and another bathroom.
Need a garage? The detached garage pictured with the house plan is available for purchase. See it here - 21198DR.

Each plan includes the following:

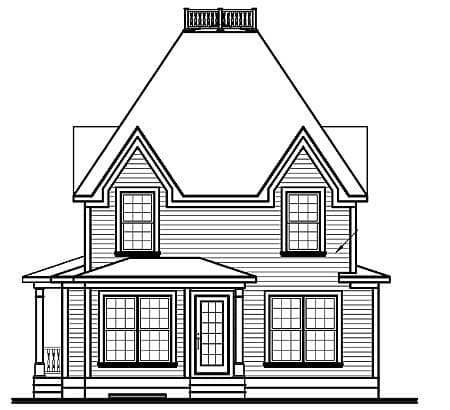

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

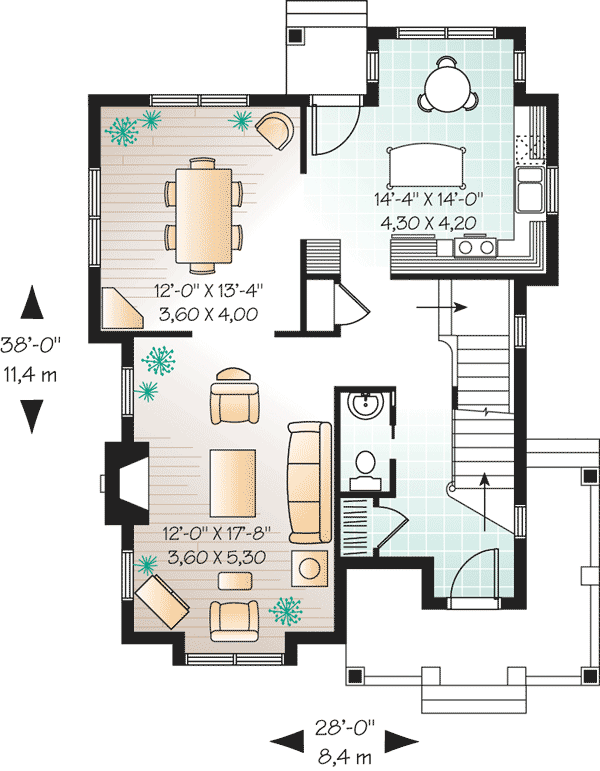

L-Shaped Balcony - 21376DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

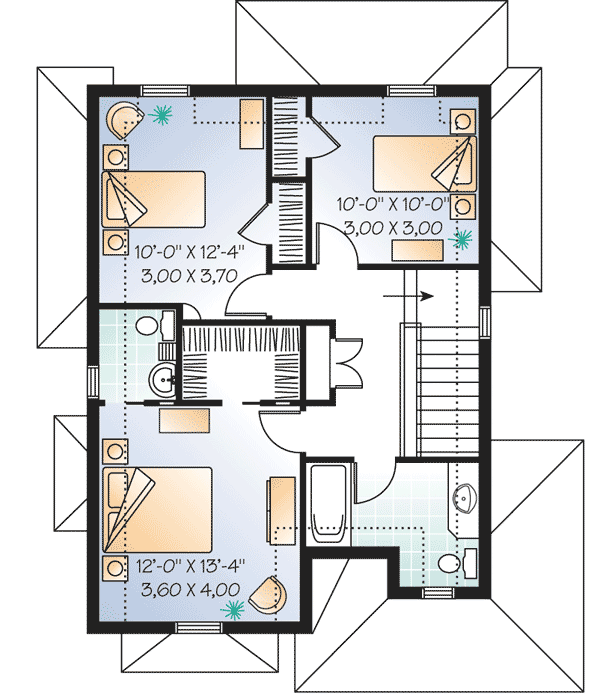

L-Shaped Balcony - 21376DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,603 sq. ft.
1st Floor: 851 sq. ft.
2nd Floor: 752 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 1
Half bathrooms: 2

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Walkout, Daylight, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 28' 0"
Depth: 38' 0"
Max ridge height: 32' 2"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
