Lake House Plan with 2-Sided Fireplace and 3-Car Side Garage - 1234 Sq Ft
Heated S.F.
1,234
Beds
2
Baths
2
Stories
1
Cars
3
What's Included
Plan Details

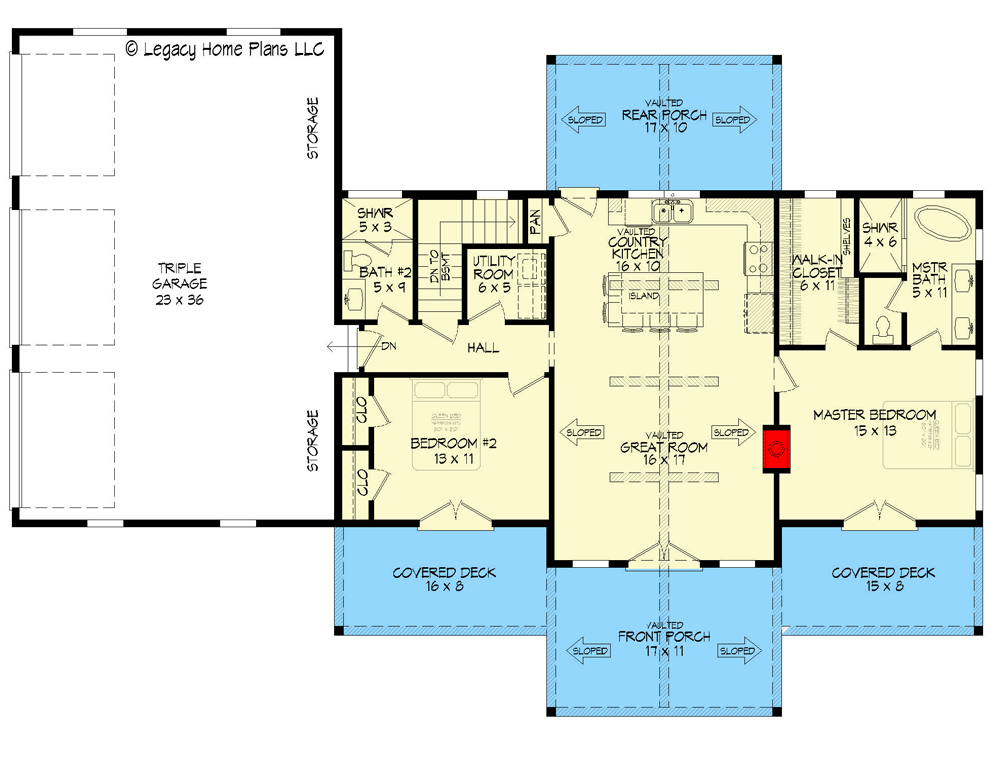

  • Vaulted porches adorn both the front and back of this 2-bed lake (or mountain) house plan making it equally attractive whether you're greeting from the street or from the lake. A pair of French doors open to reveal a dramatic vaulted interior and a floor plan open front to back. Each bedroom in this country ranch also has it's own set of French doors providing access to a semi-private front porch.
  • The great room is vaulted front to back, matching the porch vault line, and features a two-sided fireplace shared with the master bedroom. It is open to the kitchen and provides separation between the entertaining space and the bedrooms.
  • The master bedroom has a large walk-in closet and private bath. The master bath has a large 4' x 6' walk-in shower, a corner soaking tub, 2-sink vanity and a water closet.
  • Across the home, the second bedroom has double closets, and access to bathroom across the hall.
  • The hall bath is adjacent to the utility room, and the hall leads out to the 3-car garage.
  • Related Plans: Get a 2-car version with house plans 680106VR (1,200 sq. ft.), 680276VR (1,421 sq. ft.) and 680137VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

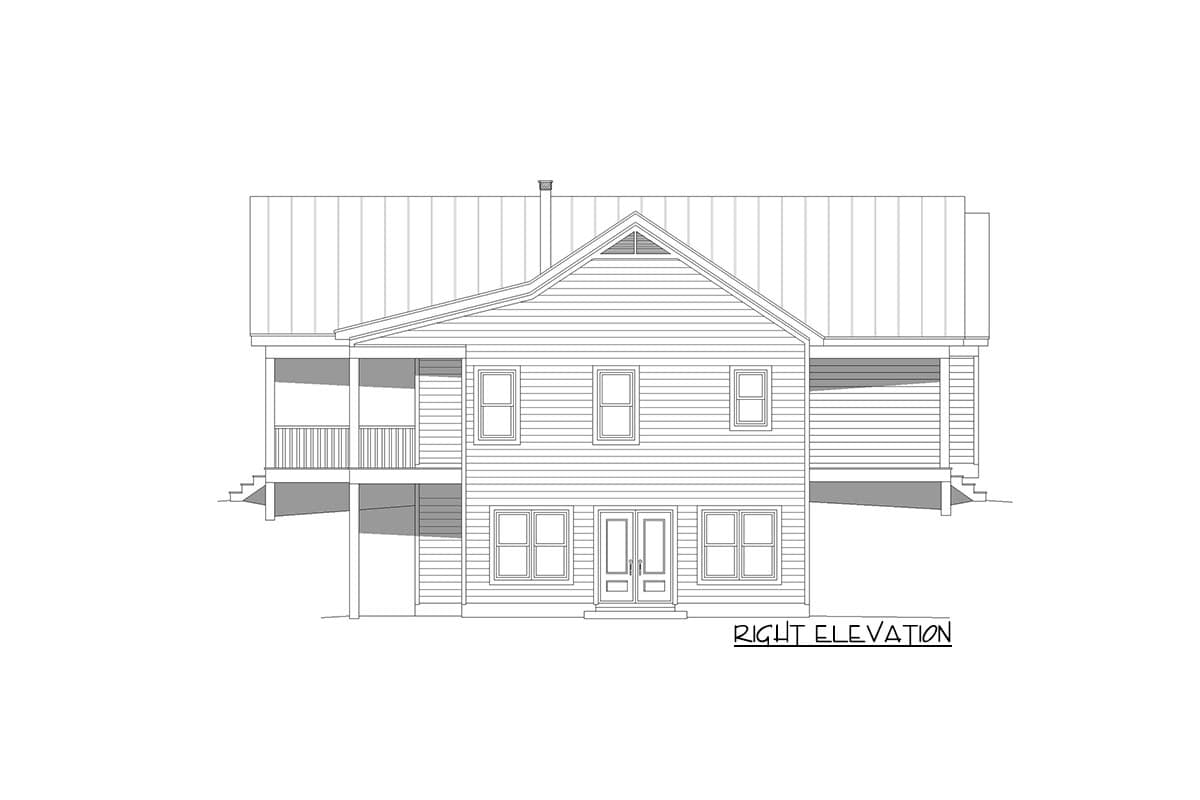

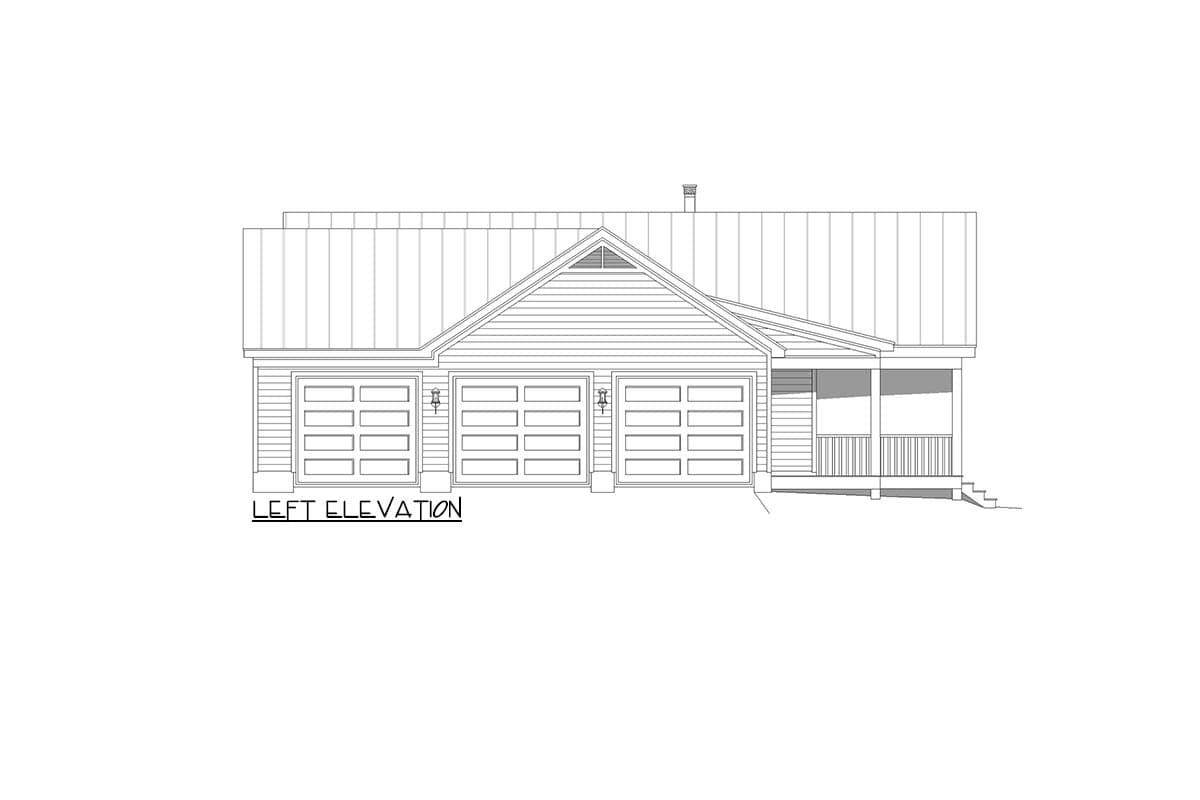

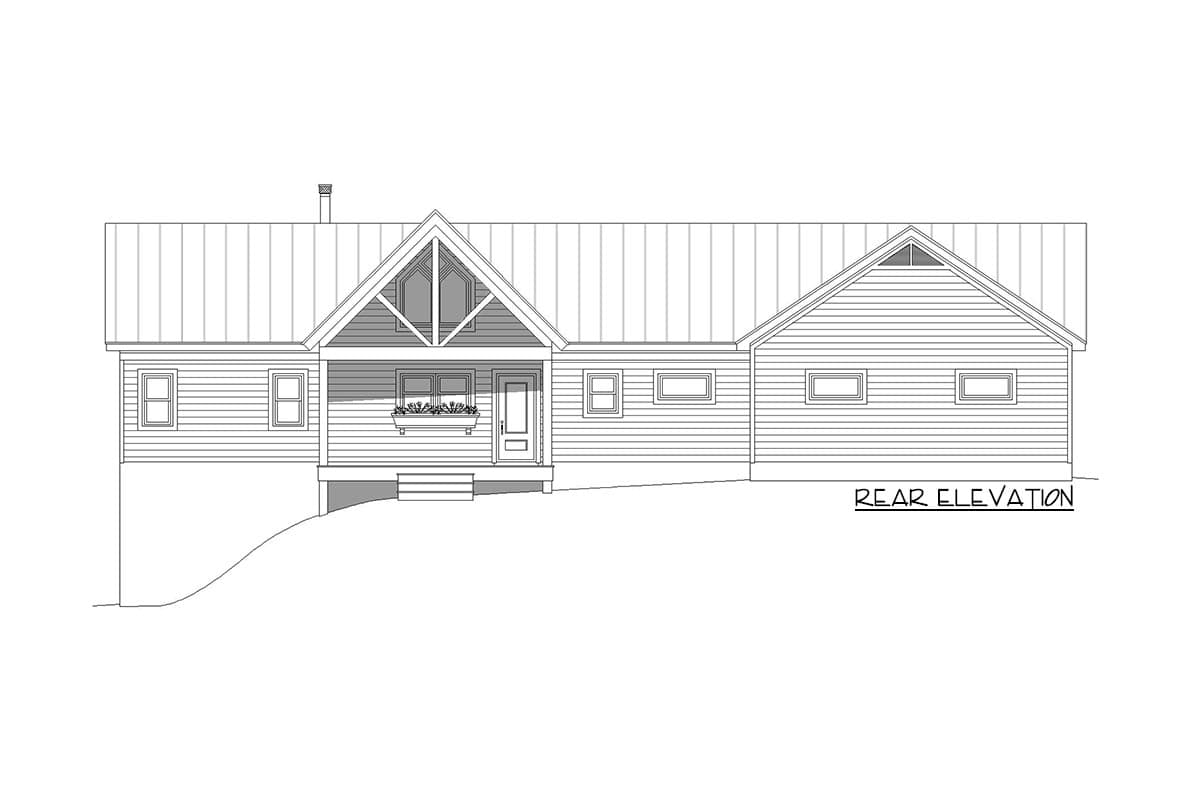

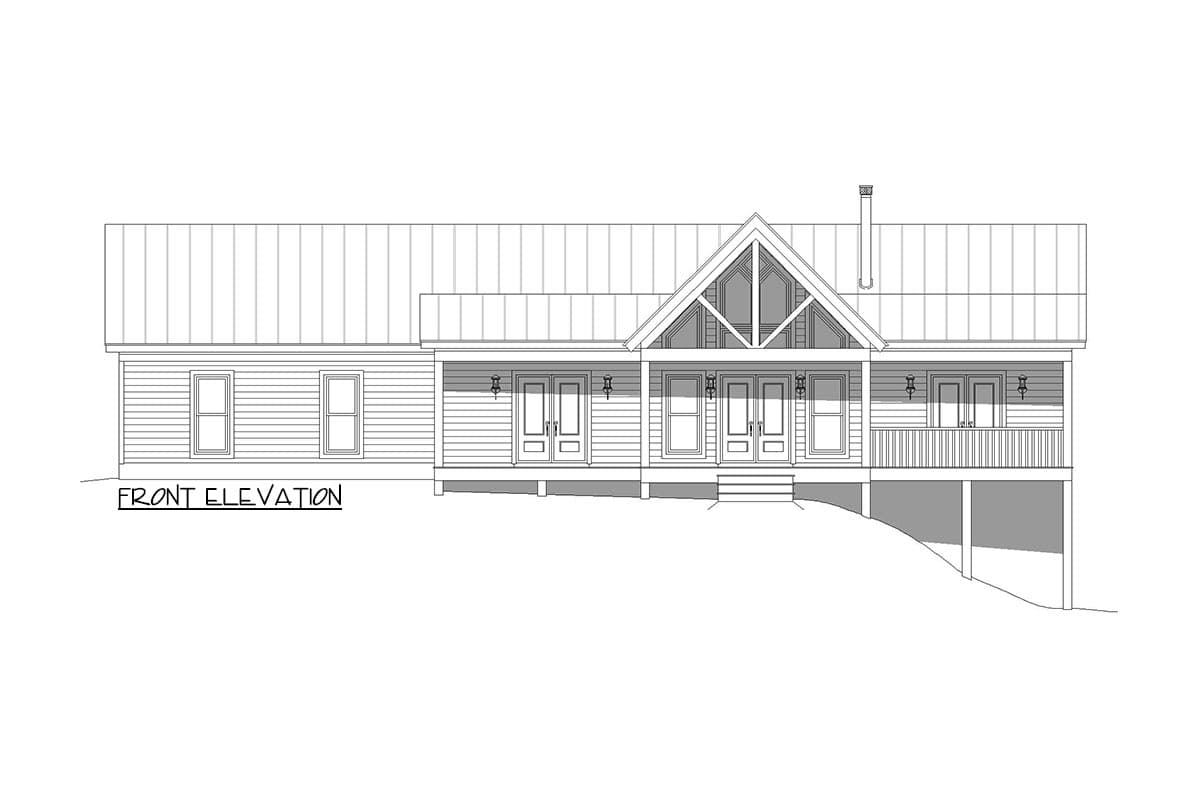

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
