Plan 801109PM

Lake House Plan with Three Levels of Living and Views in Back

Name: Plan 801109PM: Lake House Plan with Three Levels of Living and Views in Back
Brand: Architectural Designs
SKU: 801109PM
Price: 1605.0 USD
Availability: InStock

Heated S.F.

2,814

Beds

Baths

3.5

Stories

Floor Plan

Main Level

2nd Floor

Lower Level

Plan Details

When looking at the front of this cottage, you couldn’t possibly imagine the wonderful view of a lake or mountain you could have from the window-filled back of the home plan with three levels of views and living.

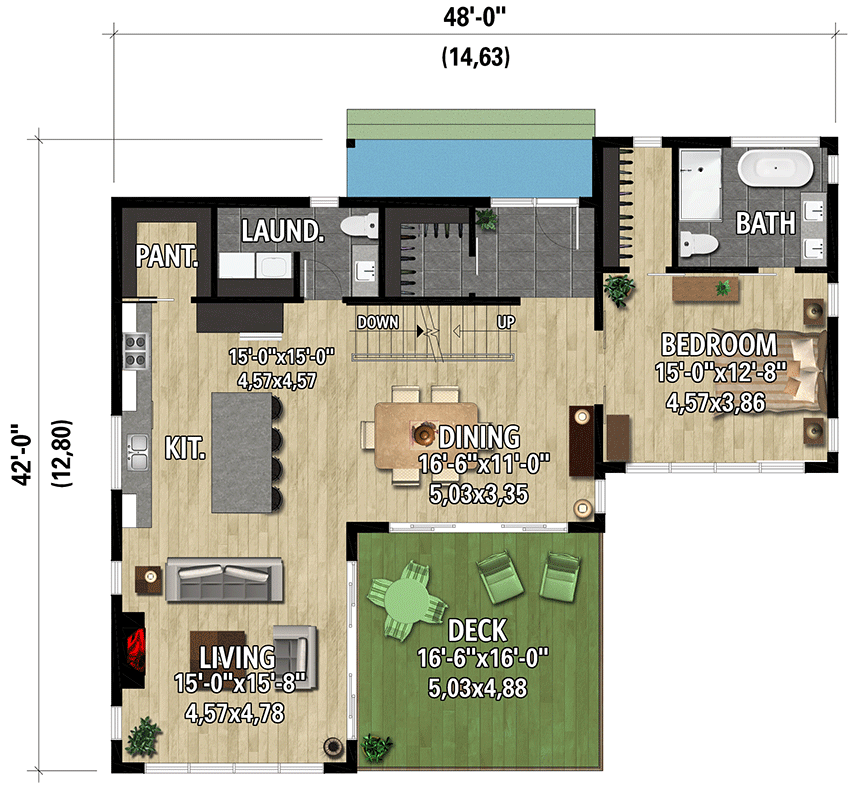

On the open-concept ground floor, the living and dining rooms are both open to above. A vestibule with a walk-in closet, a living room, a dining room, a shower room with a washer and dryer, the master bedroom connected to a private bathroom as well as a kitchen with an island. A large porch completes the scene.

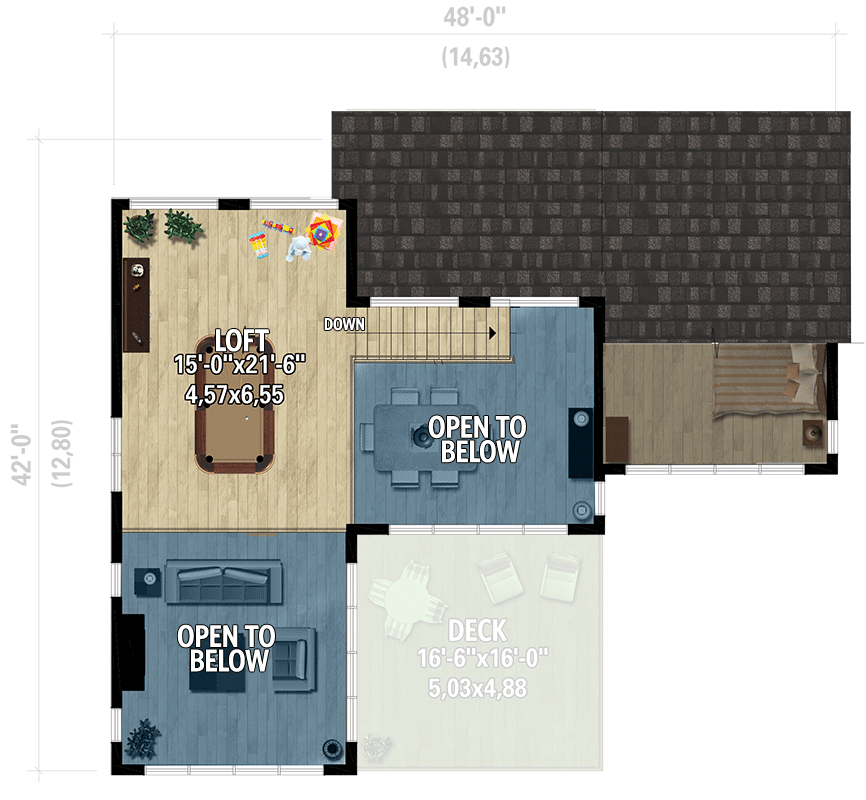

On the second floor, a loft overlooks the living room and dining room below and can act as a game room.

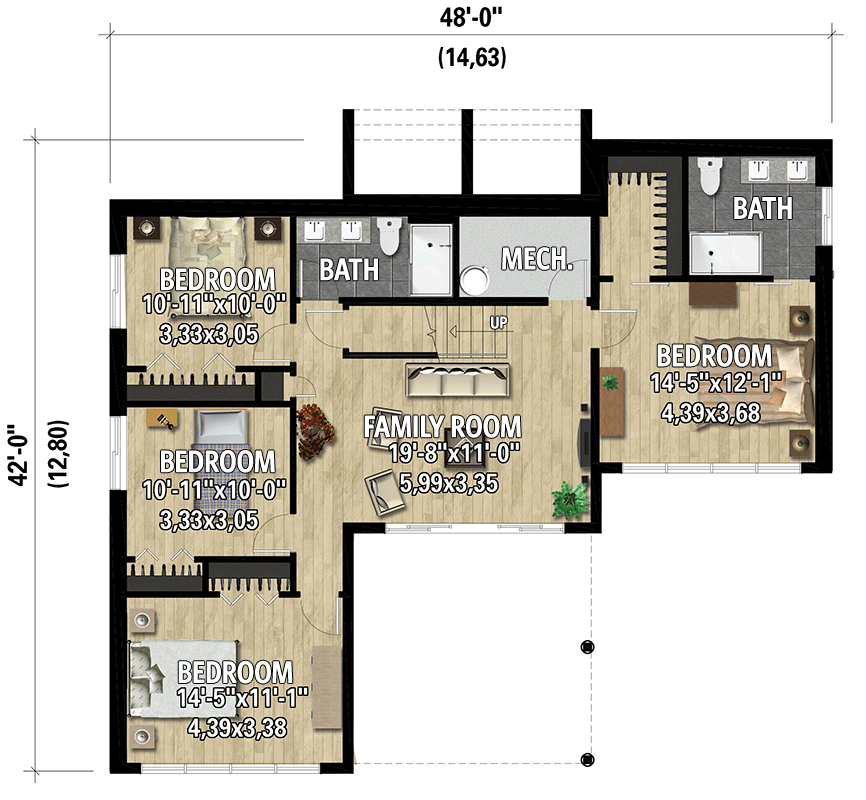

In the basement, three bedrooms are located around the central family room with outdoor access.
NOTE: Please allow up to 15 business days for delivery.

What's Included

Please note this plan is designed to the National Building Code of Canada.

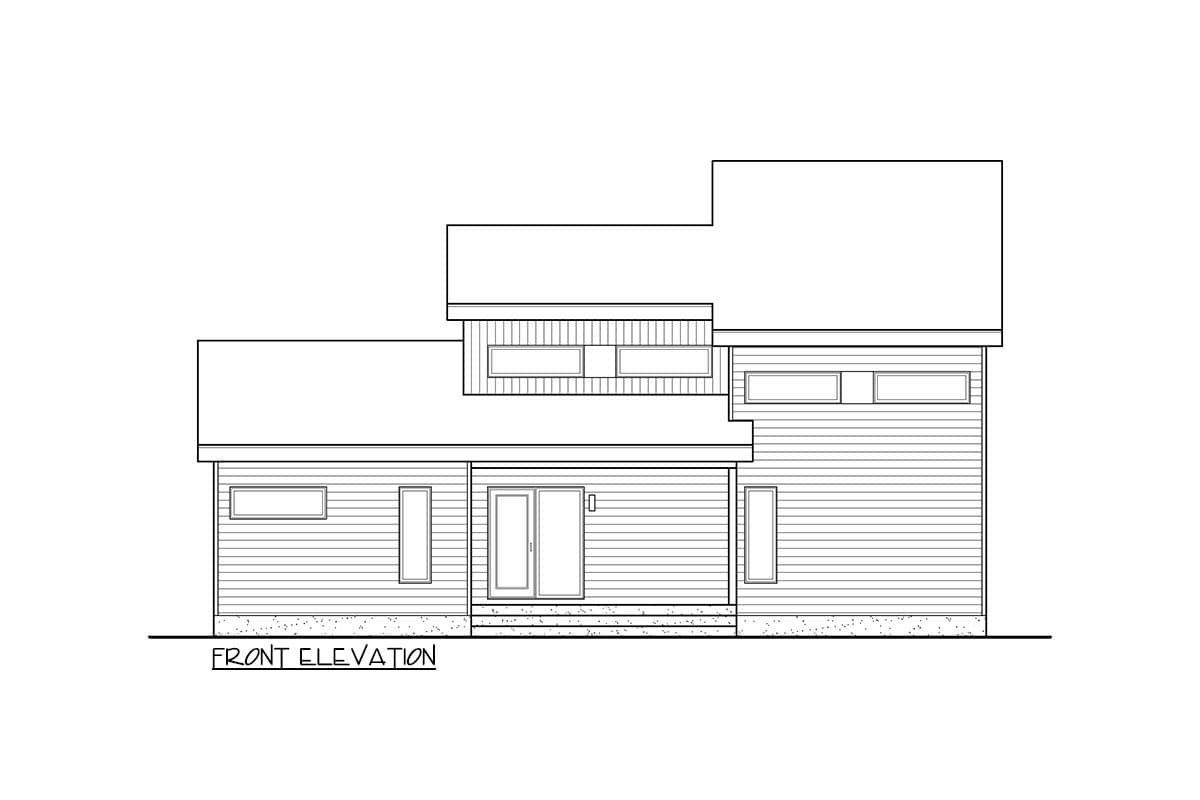

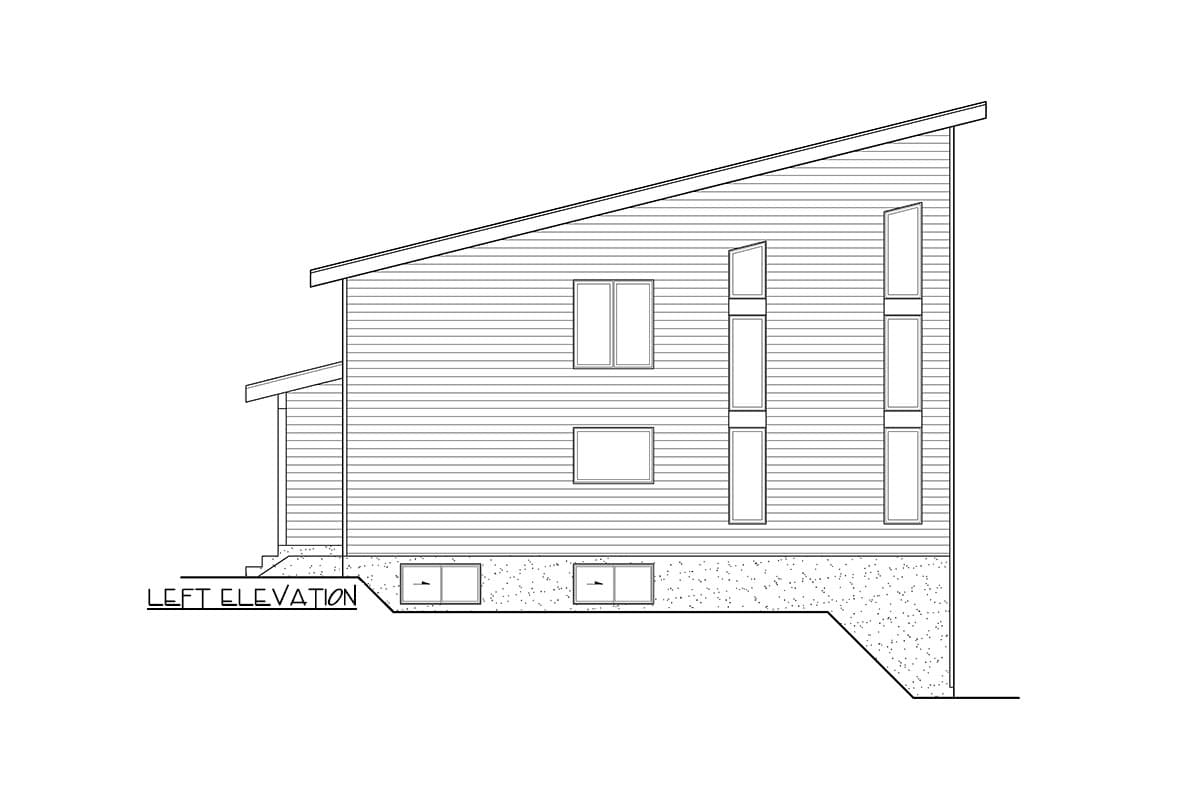

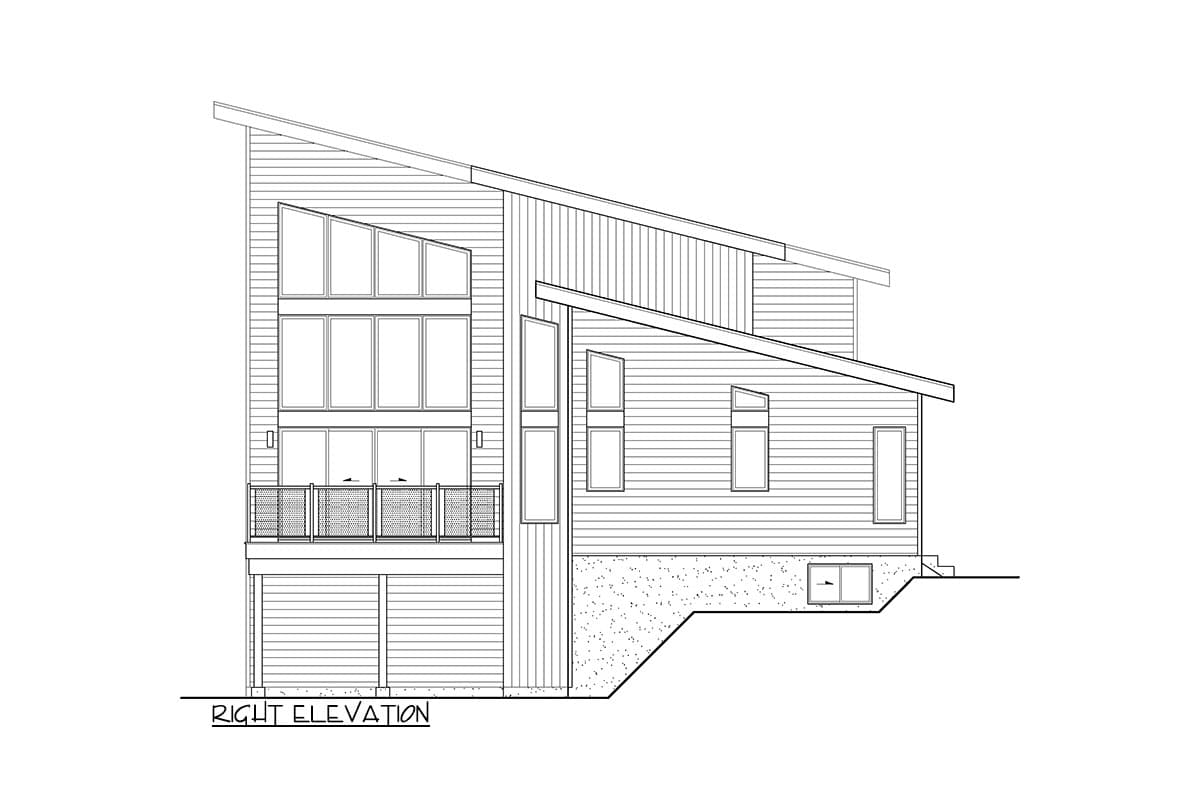

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
